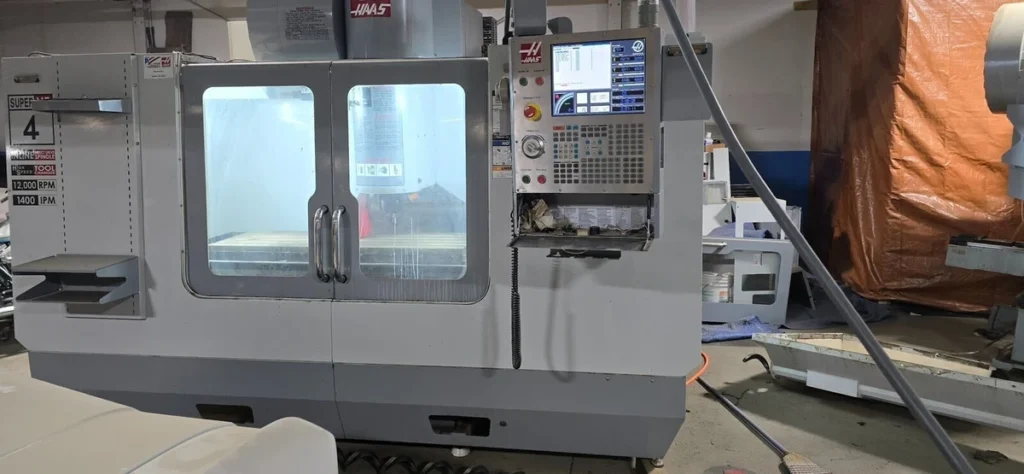

USED HAAS VF-4SS – 2006

The HAAS VF-4SS is a Super-Speed vertical machining center designed for manufacturers requiring high spindle speeds, rapid axis movement, and fast tool changes for efficient production machining. The 2006 HAAS VF-4SS offers approximately 50″ x 20″ x 25″ of X, Y, and Z-axis travel, providing a substantial work envelope for aerospace components, automotive parts, fixtures, molds, dies, and general industrial components.

The VF-4SS platform is built around a 12,000 RPM, 30 HP inline direct-drive spindle and a high-speed side-mount automatic tool changer. These features are intended to reduce non-cutting time and improve productivity in repetitive and high-volume machining applications. The 40-taper spindle provides a practical balance between high-speed machining capability and general-purpose cutting performance.

A 2006 example may differ from later VF-4SS machines in tool magazine capacity, control features, coolant options, probing systems, and other factory-installed equipment. One used 2006 example was listed with a 24-tool automatic tool changer, CAT 40 spindle taper, 12,000 RPM spindle, and 50″ x 20″ x 25″ travels. Buyers should verify the exact specifications and options of the individual machine before purchase.

The 2006 HAAS VF-4SS remains an attractive used CNC machine for job shops and manufacturers that need a large machining envelope and high-speed spindle performance at a lower investment than a newer VMC.

---

HAAS VF-4SS – AXIS

Specification	Details
Machine Type	Super-Speed Vertical Machining Center
Axis Configuration	3-Axis
X-Axis Travel	50″
Y-Axis Travel	20″
Z-Axis Travel	25″
4th-Axis Capability	Available
5th-Axis Capability	Available with Optional Rotary Equipment
CNC Interpolation	3-Axis Standard

---

HAAS VF-4SS – AXIS TRAVELS / WORK ENVELOPE

Specification	Details
X-Axis Travel	50″
Y-Axis Travel	20″
Z-Axis Travel	25″
Spindle Nose to Table	Approx. 4.2″ to 29.2″
Maximum Workpiece Size	Configuration Dependent
Large-Part Machining Capability	Excellent
Rotary Compatibility	Available with Optional Equipment

The VF-4SS provides a 50″ x 20″ x 25″ machining envelope, making it suitable for relatively large components while maintaining the speed advantages of a Super-Speed VMC.

---

HAAS VF-4SS – CAPACITY / TABLE

Specification	Details
Table Type	Fixed T-Slot Table
Table Length	52″
Table Width	Approx. 18″ to 19.5″ Configuration Dependent
Number of Standard T-Slots	5
T-Slot Center Distance	Approx. 3.15″
Maximum Table Load	Verify by Individual Machine Configuration
Workholding	Fixtures, Vises, and Custom Tooling

---

HAAS VF-4SS – SPINDLE

Specification	Details
Spindle Speed	12,000 RPM
Spindle Motor Power	30 HP
Maximum Torque	Approx. 90 ft-lb at 2,000 RPM
Spindle Taper	CAT 40 / BT40 / HSK-A63 Configuration Dependent
Drive System	Inline Direct-Drive
Spindle Cooling	Liquid Cooled
Bearing Lubrication	Air / Oil Injection
Rigid Tapping	Available
Through-Spindle Coolant	Configuration Dependent

The current VF-4SS platform specifies a 12,000 RPM, 30 HP inline direct-drive spindle with approximately 90 ft-lb of maximum torque at 2,000 RPM. Exact specifications on a 2006 machine should be verified against its serial number and build configuration.

---

HAAS VF-4SS – TOOL CHANGER

Specification	Details
Tool Changer Type	High-Speed Side-Mount Tool Changer
Tool Capacity	24, 30+1, or Other Configuration Dependent
Tool Selection	Random Access
Tool Taper	CAT 40 / Configuration Dependent
Maximum Tool Diameter	Configuration Dependent
Large Tool Diameter	Configuration Dependent
Tool-to-Tool Change Time	High-Speed Production Design
Chip-to-Chip Time	Configuration Dependent

A used 2006 VF-4SS example has been listed with a 24-tool automatic tool changer, while later configurations commonly use 30+1 or larger tool capacities. The actual tool magazine on an individual machine should be verified before purchase.

---

HAAS VF-4SS – CONTROL SYSTEM

Specification	Details
CNC Control	Haas CNC Control
Programming Format	G-Code and Conversational Programming
Rigid Tapping	Configuration Dependent
Tool Life Management	Configuration Dependent
Work Coordinate Systems	Standard
High-Speed Machining	Configuration Dependent
Ethernet Connectivity	Configuration Dependent
USB Connectivity	Configuration Dependent
Advanced Diagnostics	Standard for Machine Generation

Because the 2006 model is an earlier-generation VF-4SS, control features and connectivity can differ significantly from newer Haas machines. Buyers should verify the installed control version, memory, communication interfaces, and software options.

---

HAAS VF-4SS – FEEDRATES

Specification	Details
Maximum Cutting Feedrate	Configuration Dependent
X-Axis Rapid Traverse	High-Speed Rapid Traverse
Y-Axis Rapid Traverse	High-Speed Rapid Traverse
Z-Axis Rapid Traverse	High-Speed Rapid Traverse
Servo Drive System	Standard
High-Speed Machining	Configuration Dependent

The VF-4SS design emphasizes rapid axis movement and reduced cycle time. The exact rapid traverse specifications can vary by machine generation and control configuration.

---

HAAS VF-4SS – COOLANT / CHIP MANAGEMENT

Specification	Details
Flood Coolant System	Standard
Coolant Tank	Included
Chip Auger	Available
Chip Conveyor	Optional
Programmable Coolant Nozzle	Configuration Dependent
Through-Spindle Coolant	Optional
High-Pressure Coolant	Optional
Chip Washdown	Configuration Dependent

---

HAAS VF-4SS – PROBING & AUTOMATION OPTIONS

Specification	Details
Work Probe	Available
Tool Setter	Available
Renishaw Probing	Configuration Dependent
4th-Axis Integration	Available
Rotary Table Integration	Available
Robotic Integration	Possible
Lights-Out Production	Configuration Dependent
Automated Production Capability	Available with Proper Configuration

---

HAAS VF-4SS – POWER REQUIREMENTS

Specification	Details
Standard Input Voltage	220 VAC
High-Voltage Option	440 VAC
Electrical Requirement	3 Phase
Full-Load Current at 220V	Approx. 70 A
Full-Load Current at 440V	Approx. 35 A
Air Requirement	Configuration Dependent
Minimum Air Pressure	Typically Approximately 80 PSI

---

HAAS VF-4SS – DIMENSIONS

Specification	Details
Machine Construction	High-Speed Vertical Machining Center
Shipping Weight	Configuration Dependent
Machine Footprint	Large-Format Medium VMC
Installation Type	Industrial Installation Recommended
Production Class	High-Speed Production VMC

The current VF-4SS specification lists a standard shipping weight of approximately 11,720 pounds, with weight and dimensions increasing when equipped with options such as chip conveyors or larger tool magazines. Older 2006 configurations may differ.

---

HAAS VF-4SS – GENERAL INFORMATION

Specification	Details
Manufacturer	Haas Automation
Model	VF-4SS
Year	2006
Machine Category	Super-Speed Vertical Machining Center
Spindle Taper	CAT 40 / Configuration Dependent
Country of Origin	United States
Primary Application	High-Speed Precision Production
Production Environment	Job Shop to Production Manufacturing

---

INDUSTRIES THAT USE HAAS VF-4SS

The HAAS VF-4SS is used in aerospace, automotive, defense, medical, mold and die, robotics, electronics, and general contract manufacturing. Aerospace manufacturers can use the machine for brackets, housings, fixtures, structural components, and other precision parts requiring repeatable machining.

Automotive manufacturers benefit from the machine’s high spindle speed and rapid tool-changing capability when producing repeated components, prototypes, fixtures, brackets, and specialized production parts.

Mold and die manufacturers can use the VF-4SS for cavities, cores, electrodes, tooling components, and contoured parts. Medical manufacturers can use it for precision components, surgical equipment parts, fixtures, and specialized equipment.

The machine is also well suited for general job shops because its 50-inch X-axis travel provides considerable capacity for larger workpieces.

---

TYPICAL PARTS HAAS VF-4SS CAN PRODUCE

The HAAS VF-4SS can produce aerospace brackets, automotive components, industrial housings, mold and die components, fixtures, tooling, medical components, automation parts, and custom-engineered industrial products.

The 50-inch X-axis travel allows manufacturers to machine relatively long components, while the 12,000 RPM spindle supports high-speed cutting applications, especially in aluminum and other materials that benefit from higher cutting speeds.

Typical applications include production brackets, aluminum components, steel fixtures, complex housings, prototype components, automation parts, mold inserts, and general precision-machined parts.

---

WHY CHOOSE HAAS VF-4SS

The main advantage of the HAAS VF-4SS is its combination of a large work envelope and high-speed machining capability. The 12,000 RPM inline direct-drive spindle, rapid axis movement, and Super-Speed tool changer are designed to reduce cycle times and improve productivity.

The 30 HP spindle provides substantial cutting capability for a wide range of applications, while the 40-taper configuration provides a practical balance between high-speed performance and general-purpose machining rigidity.

The VF-4SS is also versatile. Depending on the machine configuration, manufacturers can add probing, through-spindle coolant, programmable coolant, chip removal systems, fourth-axis equipment, and other production accessories.

For manufacturers that need a large-format VMC with high spindle speed but want to control capital costs, the VF-4SS remains an attractive CNC platform.

---

WHY BUY USED HAAS VF-4SS

Purchasing a used 2006 HAAS VF-4SS can provide manufacturers with substantial machining capacity and a 12,000 RPM Super-Speed spindle at a significantly lower investment than purchasing newer equipment.

The machine’s 50″ x 20″ x 25″ travels allow it to handle larger workpieces than many compact VMCs. Its high-speed spindle and production-oriented design can support both job-shop work and repetitive production.

A used 2006 VF-4SS may also include valuable options such as probing, chip auger or conveyor, through-spindle coolant, programmable coolant, and fourth-axis equipment. However, the options on older machines vary significantly, so buyers should verify the exact configuration.

Because the machine is approximately two decades old, condition is especially important. Buyers should inspect the spindle, ballscrews, linear guides, axis drives, tool changer, control electronics, machine geometry, coolant system, and way covers. A complete under-power inspection is strongly recommended before purchase.

---

HOW MUCH DOES A USED HAAS VF-4SS COST?

A used 2006 HAAS VF-4SS typically sells for approximately $15,000 to $30,000, depending on condition, spindle hours, control configuration, tool magazine capacity, installed options, maintenance history, and seller location. A recently listed 2006 example was sold with a 24-tool automatic tool changer, 12,000 RPM spindle, CAT 40 taper, and 50″ x 20″ x 25″ travels, although the final sale price was not publicly disclosed.

Machines in excellent mechanical condition with low spindle hours, good axis geometry, a healthy spindle, documented maintenance, probing, chip removal, through-spindle coolant, and fourth-axis capability may command prices toward the upper end of this range. Machines requiring spindle work, ballscrew replacement, control repairs, tool changer repairs, or significant electrical maintenance may sell for considerably less.

The age of the control system is an important consideration when valuing a 2006 VF-4SS. Buyers should verify available memory, communication capabilities, software options, and the availability of replacement electronic components.

For comparison, Haas quoted new VF-4SS machines at approximately $89,000 to $92,000 in recent published quotes before additional options, illustrating the significant capital savings available from purchasing an older used machine.

In addition to the purchase price, buyers should budget for transportation, rigging, installation, electrical connection, tooling, inspection, and possible preventive maintenance. For manufacturers that can verify the machine’s mechanical condition, a used 2006 HAAS VF-4SS can provide substantial machining capacity at a relatively low entry cost.
