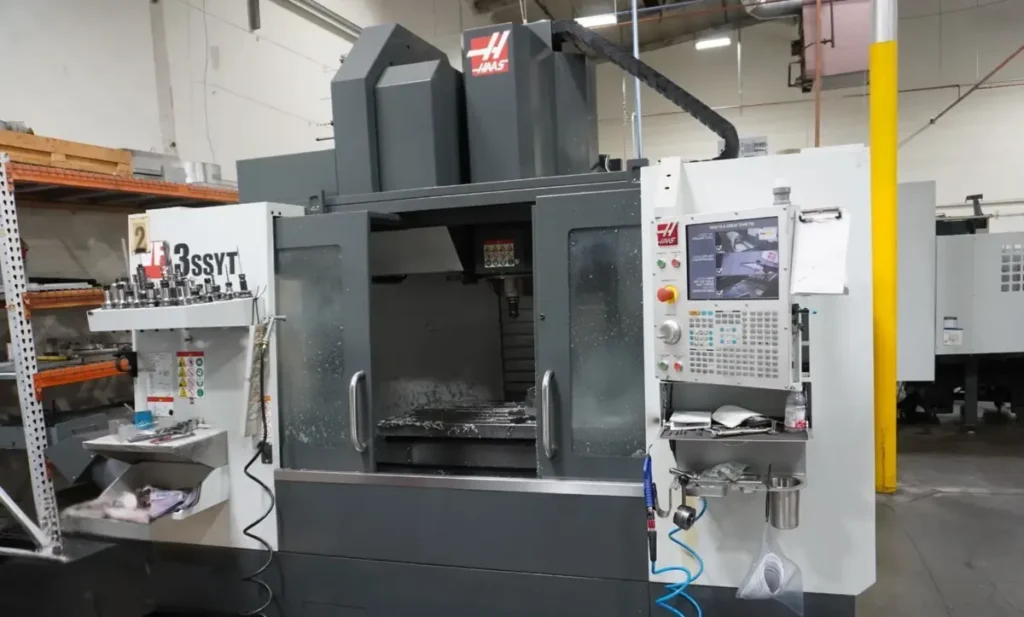

USED HAAS VF3SSYT 2021

The HAAS VF3SSYT 2021 is a high-performance Super Speed CNC Vertical Machining Center (VMC) engineered for manufacturers requiring exceptional machining speed, an expanded work envelope, and superior productivity. Combining Haas’ proven VF Series platform with Super Speed (SS) technology and an extended Y-axis travel (YT) configuration, the VF3SSYT is designed for demanding production environments where reduced cycle times and outstanding machining accuracy are essential. The machine is widely used for aerospace components, automotive parts, medical devices, mold and die manufacturing, electronics, defense applications, and high-precision contract machining. Its rigid cast-iron construction, high-speed spindle, rapid axis movements, and ultra-fast tool changes enable manufacturers to maximize throughput while maintaining excellent dimensional accuracy and surface finish.

The 2021 HAAS VF3SSYT provides a generous machining envelope with 40 inches (1,016 mm) of X-axis travel, 26 inches (660 mm) of Y-axis travel, and 25 inches (635 mm) of Z-axis travel, making it ideal for machining larger workpieces or multiple parts in a single setup. Compared to the standard VF3SS, the additional Y-axis travel provides greater flexibility for oversized fixtures, rotary tables, tombstones, and multi-part production. Equipped with a 12,000 RPM inline direct-drive spindle, 30 HP (22.4 kW) vector drive motor, and a 30+1 high-speed side-mount tool changer, the machine delivers exceptional performance for high-speed milling, drilling, tapping, interpolation, engraving, and finishing operations. High rapid traverse rates of 1,400 IPM (35.6 m/min) significantly reduce non-cutting time and improve overall machine productivity.

Standard equipment on the HAAS VF3SSYT 2021 includes the Haas Next Generation Control (NGC) with a widescreen display, Ethernet connectivity, Wi-Fi capability, HaasConnect remote monitoring, HaasDrop file transfer, rigid tapping, advanced tool management, flood coolant, programmable coolant nozzle, window air blast, automatic lubrication, and a multi-stage coolant pump. Many machines on the used market are additionally equipped with highly desirable factory options such as 15,000 RPM spindle upgrades, through-spindle coolant (TSC), chip conveyor, Renishaw Wireless Intuitive Probing System (WIPS), 4th-axis rotary tables, high-speed machining software, expanded memory, and 50+1 or 70+1 tool changers. Exact specifications and installed options may vary depending on the original factory configuration.

Purchasing a used HAAS VF3SSYT 2021 allows manufacturers to obtain one of Haas Automation’s most productive Super Speed machining centers at a substantially lower investment than purchasing new equipment. With worldwide parts availability, low maintenance costs, intuitive programming, and strong resale value, the VF3SSYT continues to be one of the most sought-after vertical machining centers in the used CNC marketplace.

HAAS VF3SSYT 2021 – AXIS

HAAS VF3SSYT 2021 – AXIS TRAVELS / WORK ENVELOPE

HAAS VF3SSYT 2021 – CAPACITY

HAAS VF3SSYT 2021 – SPINDLE

HAAS VF3SSYT 2021 – TOOL CHANGER

HAAS VF3SSYT 2021 – CONTROL SYSTEM

HAAS VF3SSYT 2021 – COOLANT / CHIP MANAGEMENT

HAAS VF3SSYT 2021 – POWER REQUIREMENTS

HAAS VF3SSYT 2021 – DIMENSIONS

HAAS VF3SSYT 2021 – GENERAL INFORMATION

INDUSTRIES THAT USE HAAS VF3SSYT 2021

The HAAS VF3SSYT 2021 is widely used throughout aerospace, automotive, medical device manufacturing, defense, electronics, mold and die, energy, robotics, and precision contract machining industries. Its combination of a high-speed spindle, extended Y-axis travel, and rapid tool changes makes it particularly well suited for high-volume production where minimizing cycle time directly improves profitability.

Manufacturers machining aluminum aerospace structures, precision steel components, stainless steel medical devices, injection mold components, hydraulic manifolds, electronic housings, and complex fixture plates benefit from the machine’s ability to maintain excellent surface finishes while achieving high material removal rates. The VF3SSYT is equally effective for prototype development, flexible manufacturing cells, lights-out machining, and continuous production environments requiring repeatable accuracy.

TYPICAL PARTS HAAS VF3SSYT 2021 CAN PRODUCE

The HAAS VF3SSYT 2021 is capable of manufacturing a wide range of precision components including aerospace brackets, aircraft structural parts, mold bases, die plates, transmission housings, hydraulic manifolds, robotic components, medical instrument bodies, fixture plates, tooling assemblies, valve bodies, pump housings, aluminum enclosures, machine bases, production tooling, precision fixtures, automotive suspension components, gearbox housings, and industrial automation components.

The machine performs high-speed roughing, precision finishing, contour milling, drilling, tapping, boring, engraving, interpolation, pocket milling, thread milling, and multi-face machining with outstanding repeatability. The larger Y-axis travel enables multiple vises, rotary tables, and complex workholding solutions that significantly improve production efficiency while reducing setup times.

WHY CHOOSE HAAS VF3SSYT 2021

The HAAS VF3SSYT 2021 combines the speed of Haas Super Speed technology with an expanded machining envelope, making it one of the most versatile production machining centers available. Its 12,000 RPM inline direct-drive spindle, 1,400 IPM rapid traverses, and 30+1 ultra-fast side-mount tool changer dramatically reduce cycle times compared to conventional vertical machining centers while maintaining excellent machining accuracy.

The extended Y-axis offers greater flexibility for machining larger workpieces and accommodating sophisticated workholding systems. Combined with the Haas Next Generation Control, integrated networking features, and optional automation equipment, the VF3SSYT is well suited for both unattended production and high-mix manufacturing. Worldwide service support, excellent parts availability, straightforward maintenance, and strong resale value continue to make the VF3SSYT one of the industry’s most popular Super Speed machining centers.

WHY BUY USED HAAS VF3SSYT 2021

Purchasing a used HAAS VF3SSYT 2021 allows manufacturers to acquire a nearly new high-performance machining center while saving a substantial amount compared to purchasing a factory-new machine. Since many used machines already include expensive factory-installed options such as probing systems, through-spindle coolant, chip conveyors, additional tool capacity, and rotary tables, buyers often receive significantly greater value than purchasing a base-model machine.

Another major advantage is immediate availability. Rather than waiting months for factory production and delivery, a used VF3SSYT can often be inspected, purchased, and installed quickly. Haas’ extensive global dealer network ensures excellent service support and readily available replacement parts, making long-term ownership economical. A properly maintained HAAS VF3SSYT 2021 continues to provide exceptional productivity, excellent machining accuracy, low operating costs, and dependable production for years to come.

HOW MUCH DOES A USED HAAS VF3SSYT 2021 COST?

The value of a used HAAS VF3SSYT 2021 depends on spindle hours, maintenance records, installed factory options, tooling package, automation equipment, and overall machine condition. Machines equipped with 15,000 RPM spindle upgrades, Through-Spindle Coolant (TSC), Renishaw WIPS probing, chip conveyors, 4th-axis rotary tables, expanded tool changers, and low spindle hours typically command premium resale values.

Before purchasing, buyers should carefully inspect spindle condition, spindle taper, axis backlash, linear guideways, ballscrews, lubrication system, coolant equipment, tool changer operation, probing systems, electrical cabinet, servo drives, and Haas control diagnostics. Machines with documented preventive maintenance, factory service history, and original documentation generally provide the highest long-term value.

Depending on condition, spindle hours, tooling, installed options, and included accessories, a used HAAS VF3SSYT 2021 typically sells within an estimated price range of $95,000 to $150,000 USD. Premium machines equipped with low operating hours, extensive factory options, complete tooling packages, and excellent maintenance records may exceed this range, while higher-hour machines without optional equipment may be available at lower prices. A properly maintained HAAS VF3SSYT 2021 offers outstanding productivity, high-speed machining capability, excellent reliability, and exceptional long-term value, making it one of the strongest investments in the used CNC vertical machining center market.
