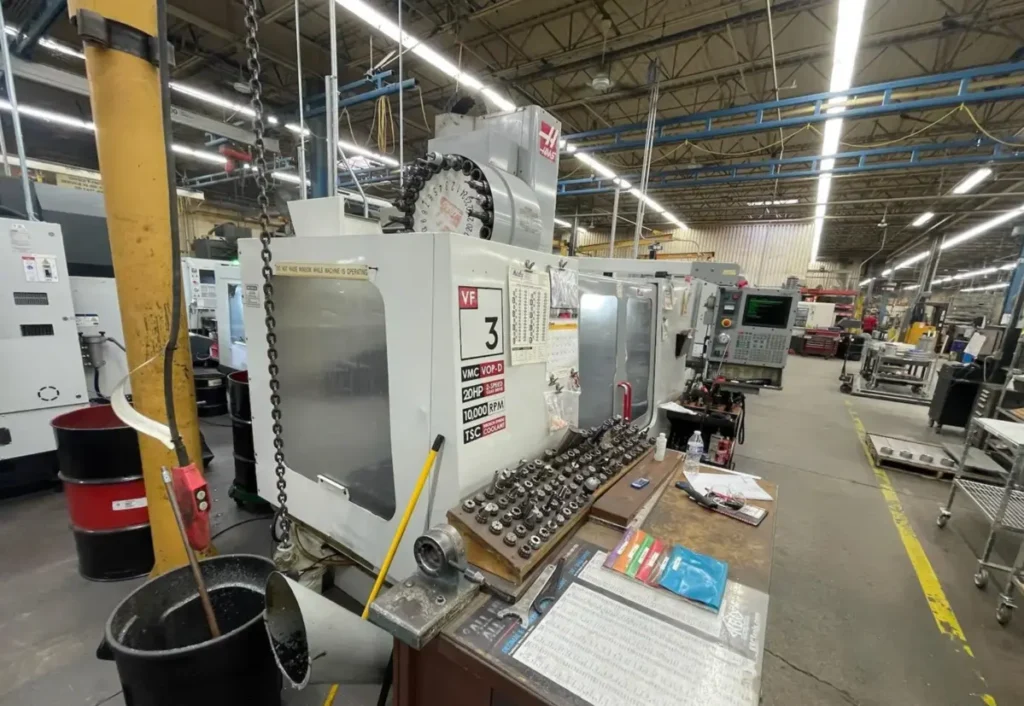

USED HAAS VF3APC 2002

The HAAS VF3APC 2002 is an automated CNC Vertical Machining Center (VMC) designed for manufacturers that require maximum productivity, reduced setup times, and continuous production. Equipped with an Automatic Pallet Changer (APC), the VF3APC allows operators to load one pallet while machining continues on the other, dramatically reducing machine idle time and increasing spindle utilization. Built on the proven Haas VF-3 platform, the 2002 VF3APC combines a rigid cast-iron structure, high-precision linear motion system, reliable Haas CNC Control, and automated pallet handling to provide an excellent solution for medium- and high-volume production. It is widely used in aerospace, automotive, medical, oil and gas, industrial equipment, mold and die, and precision contract machining facilities where productivity and repeatability are critical.

The HAAS VF3APC 2002 offers 40 inches (1,016 mm) of X-axis travel, 20 inches (508 mm) of Y-axis travel, and 25 inches (635 mm) of Z-axis travel, providing a generous machining envelope for a wide variety of production components. Depending on the original factory configuration, many 2002 machines were equipped with a 10,000 RPM spindle, 2-speed gearbox, 20 HP vector drive motor, and 24-position automatic tool changer, allowing the machine to perform both high-speed finishing and heavy-duty roughing operations efficiently. The dual-pallet system enables continuous machining by reducing loading and unloading time, making the VF3APC an excellent choice for manufacturers seeking higher throughput without investing in a fully automated machining cell.

Standard equipment generally includes the Haas CNC Control, Automatic Pallet Changer, 24-tool automatic tool changer, rigid tapping, programmable coolant nozzle, flood coolant system, automatic lubrication, spindle orientation, remote jog handle, and quick-code programming. Many used machines on today’s market are additionally equipped with valuable factory-installed options including Through-Spindle Coolant (TSC), Renishaw probing systems, chip conveyor, 4th-axis drive and wiring, rotary tables, custom macros, coordinate rotation and scaling, expanded memory, and Ethernet connectivity. Since Haas offered numerous optional configurations, actual machine specifications may vary depending on the original build sheet and previous ownership.

Purchasing a used HAAS VF3APC 2002 provides manufacturers with an economical way to acquire an automated production machining center capable of significantly increasing output while reducing labor costs. Its combination of pallet automation, dependable mechanical design, user-friendly programming, and worldwide parts availability continues to make the VF3APC a highly desirable machine in the used CNC equipment market.

HAAS VF3APC 2002 – AXIS

HAAS VF3APC 2002 – AXIS TRAVELS / WORK ENVELOPE

HAAS VF3APC 2002 – CAPACITY

HAAS VF3APC 2002 – SPINDLE

HAAS VF3APC 2002 – TOOL CHANGER

HAAS VF3APC 2002 – CONTROL SYSTEM

HAAS VF3APC 2002 – COOLANT / CHIP MANAGEMENT

HAAS VF3APC 2002 – POWER REQUIREMENTS

HAAS VF3APC 2002 – DIMENSIONS

HAAS VF3APC 2002 – GENERAL INFORMATION

INDUSTRIES THAT USE HAAS VF3APC 2002

The HAAS VF3APC 2002 is widely used throughout aerospace, automotive, medical device manufacturing, industrial automation, mold and die, defense, electronics, agricultural equipment, energy, and precision contract machining industries. The automatic pallet changer makes it particularly valuable for manufacturers producing medium- and high-volume batches where reducing setup time has a direct impact on production efficiency.

The machine is commonly used to manufacture aerospace brackets, hydraulic manifolds, transmission housings, valve bodies, machine components, tooling fixtures, mold plates, robotic parts, pump housings, aluminum structural components, production tooling, and precision-machined assemblies. Its automated pallet exchange allows operators to prepare the next job while the current workpiece is still being machined, significantly increasing machine utilization.

TYPICAL PARTS HAAS VF3APC 2002 CAN PRODUCE

The HAAS VF3APC 2002 is capable of producing mold bases, die plates, gearbox housings, hydraulic manifolds, aerospace brackets, pump bodies, machine frames, valve blocks, production fixtures, robotic components, aluminum housings, industrial automation parts, medical equipment components, tooling plates, electronic enclosures, and custom precision-machined assemblies.

The machine performs face milling, pocket milling, contour machining, drilling, tapping, boring, thread milling, interpolation, engraving, and finishing operations with excellent repeatability. The dual-pallet system allows continuous production by eliminating machine downtime between workpiece loading cycles, making it ideal for repeat production and lights-out machining applications.

WHY CHOOSE HAAS VF3APC 2002

The HAAS VF3APC 2002 combines the proven reliability of the Haas VF Series with the productivity advantages of an Automatic Pallet Changer. By allowing one pallet to be machined while the second pallet is loaded, manufacturers can dramatically reduce non-cutting time and increase daily production capacity. The machine’s rigid construction, dependable spindle, and user-friendly Haas CNC Control provide consistent machining accuracy while minimizing operator training requirements.

Another major advantage is the machine’s flexibility. Whether producing small production runs or high-volume batches, the VF3APC offers the ability to switch jobs quickly while maintaining excellent repeatability. Haas’ extensive global service network and affordable replacement parts further reduce long-term ownership costs, making the machine an excellent investment for manufacturers seeking automated production capability.

WHY BUY USED HAAS VF3APC 2002

Purchasing a used HAAS VF3APC 2002 allows manufacturers to obtain an automated machining center at a significantly lower investment than purchasing a comparable new machine. Many used machines already include valuable options such as Through-Spindle Coolant, probing systems, rotary tables, chip conveyors, and additional tooling, providing substantial savings compared to buying new equipment.

A used VF3APC also offers immediate availability, eliminating lengthy factory lead times. With proper preventive maintenance, regular lubrication, and periodic inspection of the pallet changer, spindle, and tool changer systems, these machines continue to provide dependable production for many years. Their proven reliability, straightforward maintenance, and widespread availability of parts make them an excellent long-term investment for machine shops and production manufacturers.

HOW MUCH DOES A USED HAAS VF3APC 2002 COST?

The value of a used HAAS VF3APC 2002 depends on spindle hours, pallet changer condition, maintenance history, installed options, tooling package, and overall machine condition. Machines equipped with Through-Spindle Coolant (TSC), probing systems, rotary tables, chip conveyors, low spindle hours, and documented maintenance records generally command higher resale values.

Before purchasing, buyers should inspect spindle condition, gearbox operation, pallet changer indexing accuracy, pallet clamping system, tool changer performance, ballscrews, lubrication system, coolant equipment, servo drives, electrical cabinet, and Haas CNC diagnostics. Particular attention should be paid to the APC mechanism, since smooth pallet exchange is essential for uninterrupted production.

Depending on spindle hours, overall condition, tooling, installed options, and included accessories, a used HAAS VF3APC 2002 typically sells within an estimated price range of $28,000 to $55,000 USD. Premium machines with low operating hours, complete maintenance records, Through-Spindle Coolant, probing systems, and extensive tooling packages may exceed this range, while higher-hour machines requiring refurbishment may sell below it. A well-maintained HAAS VF3APC 2002 continues to deliver excellent productivity, dependable automation, and strong long-term value, making it one of the most practical automated vertical machining centers available in the used CNC equipment market.
