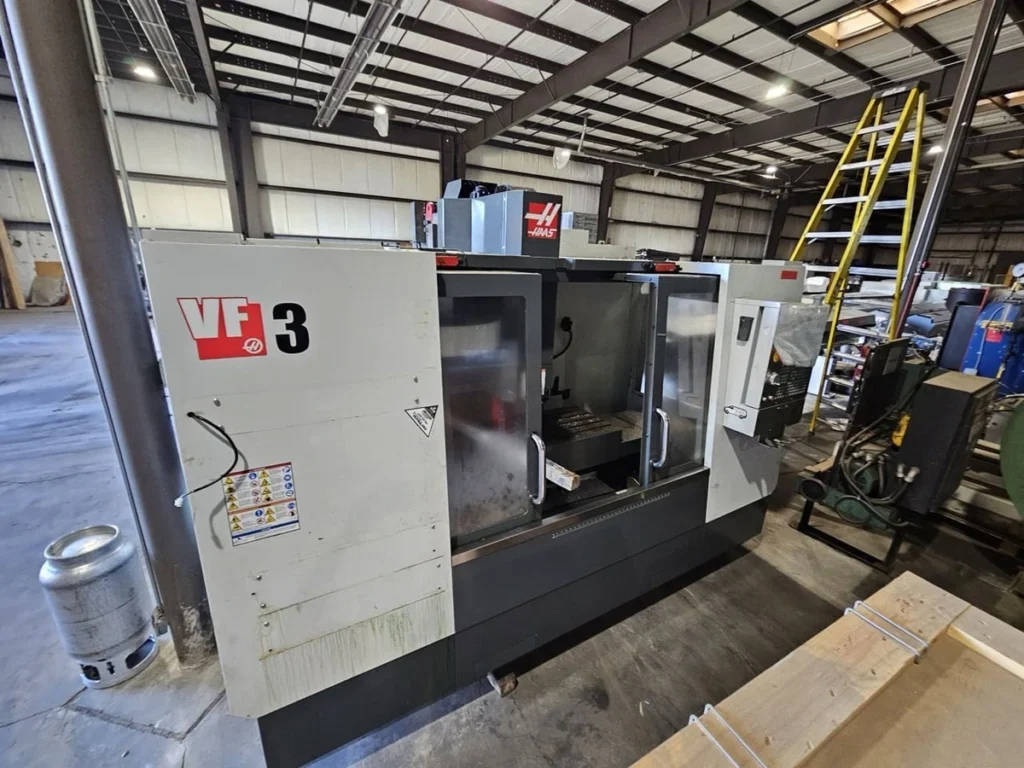

USED HAAS VF3 – 2013

The HAAS VF3 is a 40-taper vertical machining center designed for general-purpose production machining, job-shop work, prototyping, tooling, and precision component manufacturing. The 2013 HAAS VF3 provides approximately 40″ x 20″ x 25″ of X-, Y-, and Z-axis travel, along with a 48″ x 18″ worktable, making it suitable for medium-to-large components, fixtures, tooling, and production work.

The standard VF3 platform is commonly configured with a 30 HP inline direct-drive spindle, 8,100 RPM maximum spindle speed, and 40-taper tooling. The machine typically features a 20-tool carousel tool changer, approximately 1,000 IPM rapid traverses, and a maximum cutting feedrate of approximately 650 IPM.

The 2013 HAAS VF3 can be used for machining aluminum, steel, stainless steel, cast iron, and other commonly used industrial materials. Its large work envelope and 40-taper spindle make it suitable for aerospace components, automotive parts, industrial equipment, production fixtures, molds, dies, and general contract manufacturing.

Depending on the individual machine, options may include rigid tapping, probing, chip auger, programmable coolant, fourth-axis drive and wiring, expanded memory, and other production features. Because the machine is from 2013, the exact control configuration and installed options should be verified before purchase.

A used 2013 HAAS VF3 can be an excellent option for manufacturers seeking a versatile full-size vertical machining center with substantial work envelope, strong spindle power, and broad tooling compatibility.

---

HAAS VF3 – AXIS

Specification	Details
Machine Type	Vertical Machining Center
Axis Configuration	3-Axis
X-Axis Travel	40″
Y-Axis Travel	20″
Z-Axis Travel	25″
4th-Axis Capability	Available / Configuration Dependent
5th-Axis Capability	Available with Optional Rotary Equipment
CNC Interpolation	3-Axis Standard

---

HAAS VF3 – AXIS TRAVELS / WORK ENVELOPE

Specification	Details
X-Axis Travel	40″
Y-Axis Travel	20″
Z-Axis Travel	25″
Spindle Nose to Table, Maximum	Approx. 29.2″
Spindle Nose to Table, Minimum	Approx. 4.2″
Maximum Workpiece Size	Configuration Dependent
Large-Part Machining Capability	Excellent
Rotary Compatibility	Available

The 40″ x 20″ x 25″ travel envelope provides substantial capacity for medium-to-large components and production fixtures.

---

HAAS VF3 – CAPACITY / TABLE

Specification	Details
Table Type	Fixed T-Slot Table
Table Length	48″
Table Width	18″
Number of Standard T-Slots	5
T-Slot Center Distance	3.15″
Maximum Table Load	3,500 lbs Evenly Distributed
Workholding	Fixtures, Vises, and Custom Tooling

The 48″ x 18″ table provides a substantial workholding surface for large components, multiple vises, and production fixtures.

---

HAAS VF3 – SPINDLE

Specification	Details
Spindle Speed	8,100 RPM
Spindle Motor Power	30 HP
Maximum Torque	Approx. 90 ft-lb at 2,000 RPM
Spindle Taper	CT40 / BT40 / HSK A63 Configuration Dependent
Drive System	Inline Direct-Drive
Spindle Cooling	Liquid Cooled
Bearing Lubrication	Air / Oil Injection
Rigid Tapping	Available
Through-Spindle Coolant	Optional

The 30 HP inline direct-drive spindle provides a strong combination of cutting power and speed for general-purpose machining.

---

HAAS VF3 – TOOL CHANGER

Specification	Details
Tool Changer Type	Carousel Tool Changer
Tool Capacity	20 Tools
Tool Selection	Random Access
Tool Taper	40-Taper
Maximum Tool Diameter	Approx. 3.5″
Maximum Tool Weight	12 lbs
Average Tool-to-Tool Time	Approx. 4.2 Seconds
Average Chip-to-Chip Time	Approx. 4.5 Seconds

The 20-tool carousel supports multi-operation machining and provides automatic tool changes for production and job-shop applications.

---

HAAS VF3 – CONTROL SYSTEM

Specification	Details
CNC Control	Haas CNC Control
Control Generation	Configuration Dependent
Programming Format	G-Code and Conversational Programming
Rigid Tapping	Available
Macros	Configuration Dependent
Advanced Tool Management	Configuration Dependent
Program Memory	Configuration Dependent
Ethernet Connectivity	Configuration Dependent
USB Connectivity	Configuration Dependent
Remote Jog Handle	Available / Optional
4th-Axis Drive and Wiring	Configuration Dependent

The exact control generation and available connectivity should be verified on the individual 2013 machine.

---

HAAS VF3 – FEEDRATES

Specification	Details
X-Axis Rapid Traverse	1,000 IPM
Y-Axis Rapid Traverse	1,000 IPM
Z-Axis Rapid Traverse	1,000 IPM
Maximum Cutting Feedrate	650 IPM
X-Axis Maximum Thrust	Approx. 2,550 lbf
Y-Axis Maximum Thrust	Approx. 2,550 lbf
Z-Axis Maximum Thrust	Approx. 4,200 lbf
Servo Drive System	Standard

The 1,000 IPM rapid traverse rate provides efficient positioning between machining operations.

---

HAAS VF3 – COOLANT / CHIP MANAGEMENT

Specification	Details
Flood Coolant System	Standard
Coolant Capacity	55 Gallons
Coolant Pump	Standard
Programmable Coolant	Available
Chip Auger	Optional
Chip Conveyor	Optional / Configuration Dependent
Through-Spindle Coolant	Optional
High-Pressure Coolant	Configuration Dependent
Chip Washdown	Configuration Dependent

The 55-gallon coolant system provides adequate capacity for extended machining operations, while optional chip removal systems can improve production efficiency.

---

HAAS VF3 – PROBING & AUTOMATION OPTIONS

Specification	Details
Work Probe	Available
Tool Setter	Available
Renishaw Probing	Configuration Dependent
4th-Axis Drive	Available
4th-Axis Wiring	Available
Rotary Table Integration	Available
Remote Jog Handle	Available
Robotic Integration	Possible

---

HAAS VF3 – POWER REQUIREMENTS

Specification	Details
Standard Input Voltage	220 VAC
High-Voltage Option	440 VAC
Electrical Requirement	3 Phase
Full-Load Current at 220V	Approx. 70 A
Full-Load Current at 440V	Approx. 35 A
Air Requirement	4 SCFM at 100 PSI
Minimum Air Pressure	80 PSI

The exact electrical requirements should be confirmed from the individual machine’s electrical documentation and nameplate.

---

HAAS VF3 – DIMENSIONS

Specification	Details
Machine Construction	Vertical Machining Center
Domestic Shipping Dimensions	Approx. 152″ x 99″ x 106″
Export Shipping Dimensions	Approx. 131″ x 91.5″ x 101″
Approximate Shipping Weight	11,720 lbs
Installation Type	Industrial Installation Recommended
Floor Space Requirement	Configuration Dependent

Actual dimensions and weight may vary depending on the installed coolant system, chip conveyor, tool changer configuration, and other options.

---

HAAS VF3 – GENERAL INFORMATION

Specification	Details
Manufacturer	Haas Automation
Model	VF3
Year	2013
Machine Category	Vertical Machining Center
Spindle Taper	40-Taper
Spindle Speed	8,100 RPM
Spindle Motor	30 HP
Tool Capacity	20 Tools
Primary Application	General-Purpose Precision Machining
Production Environment	Job Shop to Production Manufacturing

---

INDUSTRIES THAT USE HAAS VF3

The HAAS VF3 is used in aerospace, automotive, medical, defense, industrial equipment, energy, electronics, mold and die, and general contract manufacturing.

Aerospace manufacturers can use the machine for brackets, housings, fixtures, tooling, and structural components. Automotive manufacturers can use the VF3 for prototypes, production components, fixtures, and specialized tooling.

Industrial equipment manufacturers benefit from the machine’s 40-inch X-axis travel and large worktable when producing housings, plates, brackets, and other components. General job shops can use the machine for short-run production, repeat orders, repair parts, and custom machining.

The 30 HP spindle and 8,100 RPM maximum speed provide a practical balance of cutting power and machining speed for aluminum, steel, stainless steel, cast iron, and other industrial materials.

---

TYPICAL PARTS HAAS VF3 CAN PRODUCE

The HAAS VF3 can produce aerospace brackets, automotive components, industrial housings, tooling plates, production fixtures, mold components, machine components, automation parts, repair parts, and custom-engineered products.

The 40″ X-axis travel and 48″ x 18″ table provide substantial capacity for large components and multiple workholding setups. The 40-taper spindle supports a broad range of standard industrial cutting tools.

Typical applications include roughing, finishing, drilling, tapping, pocketing, contouring, face milling, production fixture machining, prototype work, and repeat manufacturing.

---

WHY CHOOSE HAAS VF3

The primary advantage of the HAAS VF3 is its combination of large work envelope, 30 HP spindle power, 40-taper tooling, automatic tool changing, and versatile production capability.

The 40″ x 20″ x 25″ work envelope allows the machine to handle a wide range of medium-to-large workpieces. The 48″ x 18″ table provides sufficient space for large components, multiple vises, and production fixtures.

The 30 HP inline direct-drive spindle provides sufficient power for demanding cutting operations while maintaining a maximum speed of 8,100 RPM for a broad range of machining applications.

The VF3 is also a practical platform for fourth-axis integration, probing, programmable coolant, chip auger systems, and other production upgrades.

---

WHY BUY USED HAAS VF3

Purchasing a used 2013 HAAS VF3 allows manufacturers to acquire a relatively modern 40-taper vertical machining center at a lower capital investment than purchasing new equipment.

The machine offers a large work envelope, 30 HP spindle, 8,100 RPM spindle speed, automatic tool changing, and a 3,500-pound table-load capacity. These features make it suitable for job shops, contract manufacturers, production facilities, and manufacturers requiring flexible machining capability.

A used VF3 may also include valuable equipment such as probing, through-spindle coolant, chip augers, programmable coolant, fourth-axis drive and wiring, and additional tooling.

Before purchasing, buyers should inspect the spindle, ballscrews, linear guides, axis accuracy, tool changer, control system, coolant system, lubrication system, and machine geometry. Spindle hours and maintenance records are particularly important when evaluating a used machine.

A well-maintained 2013 VF3 can provide many years of reliable production service and may offer an excellent combination of machining capacity, spindle power, versatility, and used-equipment value.

---

HOW MUCH DOES A USED HAAS VF3 COST?

A used 2013 HAAS VF3 typically sells for approximately $35,000 to $60,000, depending on spindle hours, overall mechanical condition, control configuration, installed options, maintenance history, tooling, and seller location.

Machines with low spindle hours, a healthy 30 HP spindle, accurate axes, a properly functioning 20-tool changer, documented maintenance, probing, through-spindle coolant, chip management, and fourth-axis capability may command prices toward the upper end of this range.

Machines with high spindle hours, spindle wear, ballscrew or linear-guide problems, tool changer faults, control issues, or missing production options may be priced lower.

The installed options can significantly affect the final market value. Probing, chip conveyors, through-spindle coolant, fourth-axis equipment, additional tooling, and documented maintenance can all improve the machine’s overall value.

Buyers should perform a complete under-power inspection and verify spindle performance, axis movement, machine geometry, tool changer operation, coolant system, lubrication system, control electronics, and maintenance records.

In addition to the purchase price, buyers should budget for transportation, rigging, installation, electrical connection, tooling, inspection, and any required repairs. For manufacturers seeking a versatile 40-taper VMC with a large work envelope and strong spindle power, a used 2013 HAAS VF3 can provide an excellent combination of capacity, performance, and value.
