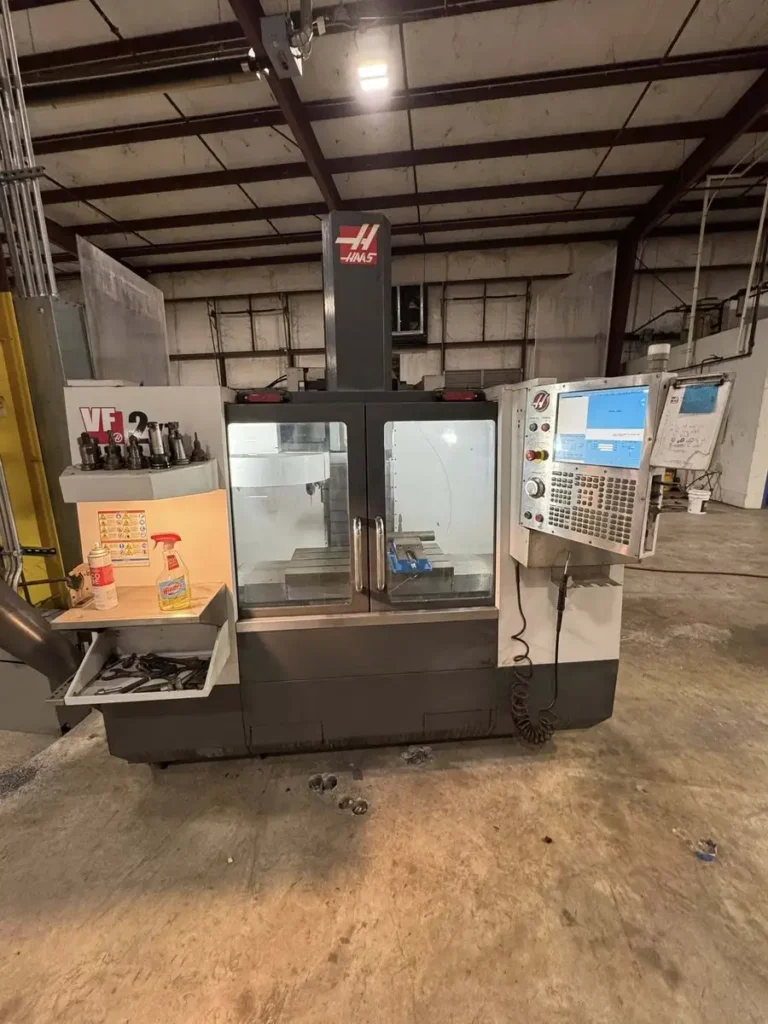

USED HAAS VF2YT 2012

The HAAS VF2YT 2012 is a high-performance CNC Vertical Machining Center (VMC) designed for manufacturers requiring additional Y-axis travel without increasing the overall machine footprint. The “YT” (Extended Y-Travel) configuration provides more machining capacity than the standard VF2, making it ideal for larger fixtures, wider workpieces, multi-part setups, and fourth-axis machining applications. Built on Haas Automation’s proven VF Series platform, the VF2YT combines a rigid cast-iron structure, precision linear guideways, an inline direct-drive spindle, and the intuitive Haas CNC Control to deliver exceptional reliability, accuracy, and productivity. It is widely used in aerospace, automotive, medical, mold and die, industrial equipment, defense, electronics, and precision contract machining where flexibility and uptime are essential.

The 2012 HAAS VF2YT provides 30 inches (762 mm) of X-axis travel, 20 inches (508 mm) of Y-axis travel, and 20 inches (508 mm) of Z-axis travel, offering considerably more Y-axis capacity than the standard VF2. The machine features a 36″ × 18″ precision-ground table capable of supporting workpieces weighing up to 3,000 lbs (1,361 kg). Standard machines are equipped with an 8,100 RPM inline direct-drive spindle powered by a 30 HP (22.4 kW) vector drive motor, providing smooth power delivery, excellent surface finishes, and outstanding machining performance across aluminum, steel, stainless steel, cast iron, and engineering plastics. Optional gearbox spindles and higher-speed spindle configurations were also available depending on the original factory build.

Standard equipment generally includes a 20-position automatic carousel tool changer, rigid tapping, programmable coolant nozzle, flood coolant system, automatic lubrication, USB programming, Ethernet connectivity, spindle orientation, and Haas CNC Control. Many used HAAS VF2YT 2012 machines are equipped with valuable factory-installed options including Through-Spindle Coolant (TSC), Renishaw Wireless Intuitive Probing System (WIPS), 30+1 or 50+1 side-mount tool changers, chip conveyor, rotary tables, 4th-axis drive and wiring, high-speed machining software, expanded memory, coolant filtration systems, and additional tooling packages. Since Haas offered numerous factory options, exact specifications may vary depending on the original machine configuration.

Purchasing a used HAAS VF2YT 2012 allows manufacturers to acquire a highly capable machining center with an expanded work envelope at a significantly lower investment than purchasing a comparable new machine. Its proven reliability, straightforward maintenance, global parts availability, and user-friendly Haas CNC Control continue to make the VF2YT one of the most desirable used vertical machining centers available.

HAAS VF2YT 2012 – AXIS

HAAS VF2YT 2012 – AXIS TRAVELS / WORK ENVELOPE

HAAS VF2YT 2012 – CAPACITY

HAAS VF2YT 2012 – SPINDLE

HAAS VF2YT 2012 – TOOL CHANGER

HAAS VF2YT 2012 – CONTROL SYSTEM

HAAS VF2YT 2012 – COOLANT / CHIP MANAGEMENT

HAAS VF2YT 2012 – POWER REQUIREMENTS

HAAS VF2YT 2012 – DIMENSIONS

HAAS VF2YT 2012 – GENERAL INFORMATION

INDUSTRIES THAT USE HAAS VF2YT 2012

The HAAS VF2YT 2012 is widely used in aerospace, automotive, medical device manufacturing, mold and die, industrial machinery, electronics, defense, agricultural equipment, and general precision machining. The extended Y-axis travel makes the machine especially valuable for machining larger fixture plates, wider mold components, multiple parts in a single setup, and complex workpieces requiring greater machining flexibility.

Manufacturers commonly use the VF2YT to produce aerospace brackets, hydraulic manifolds, gearbox housings, valve bodies, tooling fixtures, machine components, robotic parts, aluminum structural components, medical equipment parts, mold inserts, production tooling, and custom-machined assemblies. Its combination of precision, rigidity, and productivity makes it well suited for both prototype work and medium- to high-volume production.

TYPICAL PARTS HAAS VF2YT 2012 CAN PRODUCE

The HAAS VF2YT 2012 can manufacture mold plates, die components, fixture plates, hydraulic manifolds, gearbox housings, aerospace brackets, pump bodies, machine frames, valve blocks, robotic components, aluminum housings, tooling fixtures, automation equipment, medical device components, precision production tooling, and custom-machined industrial parts.

The machine performs face milling, pocket milling, contour machining, drilling, tapping, boring, thread milling, engraving, interpolation, and precision finishing with excellent repeatability. When equipped with an optional rotary table or fourth-axis system, the VF2YT can efficiently machine multiple faces of a component in fewer setups, improving productivity while maintaining high dimensional accuracy.

WHY CHOOSE HAAS VF2YT 2012

The HAAS VF2YT 2012 is an excellent choice for manufacturers needing additional Y-axis travel without stepping up to a much larger machining center. Its expanded work envelope increases machining flexibility, while the 30 HP inline direct-drive spindle delivers smooth cutting performance, excellent surface finishes, and reliable productivity. The rigid machine construction minimizes vibration during demanding machining operations, improving tool life and machining accuracy.

Another major advantage is the simplicity and reliability of the Haas CNC Control. Operators benefit from intuitive programming, fast setup, and straightforward maintenance, while owners appreciate the worldwide availability of parts, service, and technical support. These qualities have made the VF2YT one of the most trusted vertical machining centers in shops around the world.

WHY BUY USED HAAS VF2YT 2012

Purchasing a used HAAS VF2YT 2012 allows manufacturers to obtain a premium vertical machining center at a fraction of the cost of buying new equipment. Many used machines include valuable options such as Through-Spindle Coolant, Renishaw probing, chip conveyors, rotary tables, side-mount tool changers, fourth-axis capability, and extensive tooling packages, significantly increasing their value.

Another major benefit is immediate availability. Rather than waiting for factory lead times, a used VF2YT can often be inspected, delivered, and installed within days. Haas machines are well known for their long service life, affordable maintenance, and dependable operation. With proper preventive maintenance and lubrication, a HAAS VF2YT 2012 can continue producing high-quality components for many years while delivering an excellent return on investment.

HOW MUCH DOES A USED HAAS VF2YT 2012 COST?

The value of a used HAAS VF2YT 2012 depends on spindle hours, maintenance history, tooling package, installed factory options, machine condition, and overall operating performance. Machines equipped with Through-Spindle Coolant (TSC), Renishaw WIPS, side-mount tool changers, chip conveyors, rotary tables, low spindle hours, and documented maintenance records generally command higher resale values.

Before purchasing, buyers should inspect spindle condition, spindle taper wear, ballscrews, linear guideways, lubrication system, tool changer operation, coolant equipment, electrical cabinet, servo drives, and Haas CNC diagnostics. Machines with complete maintenance records and documented preventive servicing generally provide the best long-term value.

Depending on spindle hours, machine condition, tooling, installed options, and included accessories, a used HAAS VF2YT 2012 typically sells within an estimated price range of $35,000 to $60,000 USD. Premium machines featuring low operating hours, Through-Spindle Coolant, probing systems, side-mount tool changers, and comprehensive maintenance documentation may exceed this range, while higher-hour machines may be available at lower prices. A properly maintained HAAS VF2YT 2012 continues to deliver excellent machining performance, dependable reliability, and outstanding long-term value, making it one of the most versatile used CNC vertical machining centers available.
