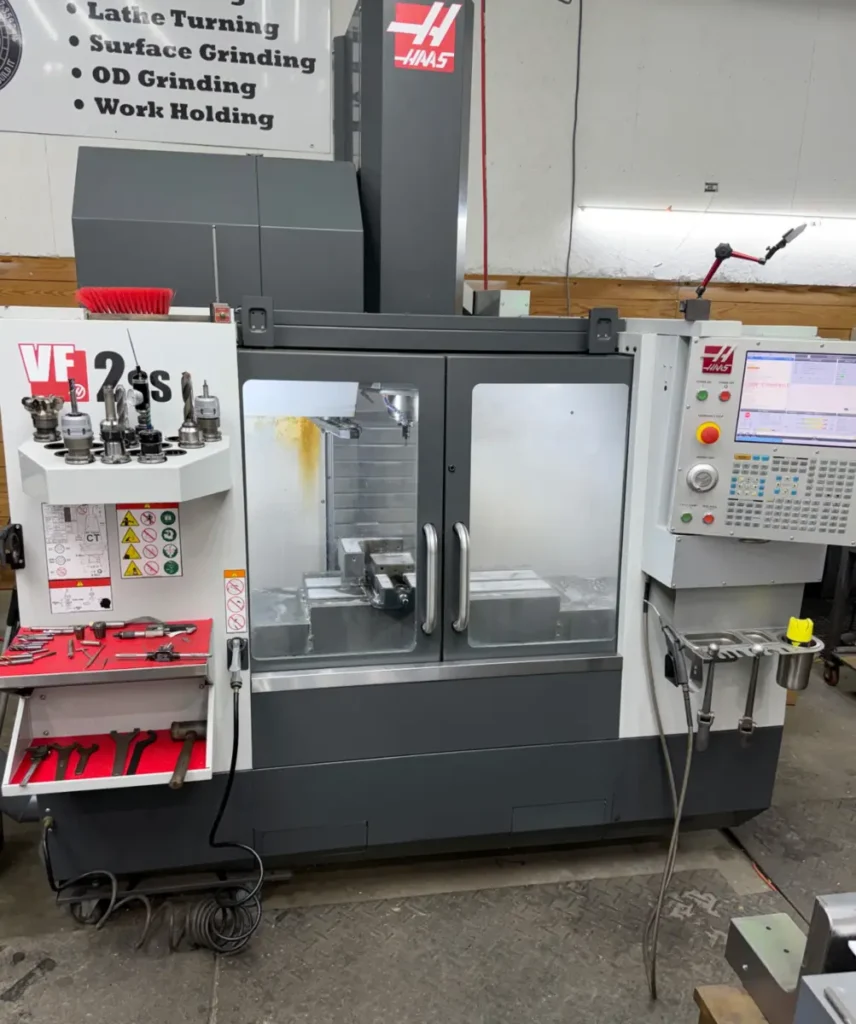

USED HAAS VF2SS – 2022

The HAAS VF2SS is a high-performance 40-taper Super-Speed vertical machining center designed for high-volume production, precision machining, rapid cycle times, and demanding job-shop applications. The 2022 HAAS VF2SS provides 30″ x 16″ x 20″ of X-, Y-, and Z-axis travel, making it suitable for small- and medium-sized components, fixtures, prototypes, and production parts. Haas identifies the VF2SS as one of its most popular Super-Speed models.

The VF2SS features a 30 HP, 12,000 RPM inline direct-drive spindle, a 30+1 side-mount tool changer, and rapid traverses of approximately 1,400 IPM on all three axes. The machine has a 36″ x 14″ worktable with a maximum evenly distributed table load of approximately 1,500 lbs.

The Super-Speed design is intended to reduce non-cutting time through fast spindle performance, rapid axis movement, and quick automatic tool changes. The standard platform includes a 55-gallon coolant tank, multi-stage coolant pump, chip washdown, Ethernet, Wi-Fi, 1 GB program memory, HaasConnect, rigid tapping, and advanced tool management. Additional options can include fourth-axis equipment, probing, through-spindle coolant, chip conveyors, programmable coolant, and other production upgrades.

Because individual 2022 machines can have different factory options and operating hours, buyers should verify the exact configuration, spindle hours, control options, coolant system, tooling, and maintenance history before purchase.

---

HAAS VF2SS – AXIS

Specification	Details
Machine Type	Super-Speed Vertical Machining Center
Axis Configuration	3-Axis
X-Axis Travel	30″
Y-Axis Travel	16″
Z-Axis Travel	20″
4th-Axis Capability	Available / Configuration Dependent
5th-Axis Capability	Available with Optional Rotary Equipment
CNC Interpolation	3-Axis Standard

---

HAAS VF2SS – AXIS TRAVELS / WORK ENVELOPE

Specification	Details
X-Axis Travel	30″
Y-Axis Travel	16″
Z-Axis Travel	20″
Spindle Nose to Table Maximum	Approx. 24″
Spindle Nose to Table Minimum	Approx. 4″
Work Envelope	30″ x 16″ x 20″
Rotary Compatibility	Available

The 30″ x 16″ x 20″ work envelope provides a useful balance between machining capacity and compact machine footprint.

---

HAAS VF2SS – CAPACITY / TABLE

Specification	Details
Table Type	Fixed T-Slot Table
Table Length	36″
Table Width	14″
Number of Standard T-Slots	3
T-Slot Center Distance	4.92″
Maximum Table Load	Approx. 1,500 lbs
Workholding	Vises, Fixtures, and Custom Tooling
Rotary Compatibility	Available

The 36″ x 14″ table is suitable for production fixtures, vises, smaller components, and optional rotary equipment.

---

HAAS VF2SS – SPINDLE

Specification	Details
Spindle Type	Inline Direct-Drive
Spindle Motor Power	30 HP
Maximum Spindle Speed	12,000 RPM
Maximum Torque	Approx. 90 ft-lb at 2,000 RPM
Spindle Taper	40-Taper
Bearing Lubrication	Air / Oil Injection
Spindle Cooling	Liquid Cooled
Rigid Tapping	Standard
High-Speed Machining	Available
Through-Spindle Coolant	Optional / Configuration Dependent

The 12,000 RPM direct-drive spindle is particularly useful for high-speed machining and applications requiring rapid material removal and finishing cycles.

---

HAAS VF2SS – TOOL CHANGER

Specification	Details
Tool Changer Type	Side-Mount Automatic Tool Changer
Tool Capacity	30+1
Tool Taper	40-Taper
Maximum Tool Diameter, Full	Approx. 2.5″
Maximum Tool Diameter, Large	Approx. 5″ with Adjacent Pocket Empty
Maximum Tool Length	Approx. 11″ from Gage Line
Maximum Tool Weight	Approx. 12 lbs
Average Tool-to-Tool Time	Approx. 1.8 Seconds
Average Chip-to-Chip Time	Approx. 2.4 Seconds

The high-speed side-mount tool changer helps reduce non-cutting time during multi-tool production cycles.

---

HAAS VF2SS – CONTROL SYSTEM

Specification	Details
CNC Control	Haas CNC Control
Control Generation	Haas Next Generation Control
Display	Widescreen Color Monitor
Standard Program Memory	1 GB
Ethernet Interface	Standard
Wi-Fi Connectivity	Standard
HaasConnect	Standard
Advanced Tool Management	Standard
Rigid Tapping	Standard
High-Speed Machining	Available
User-Definable Macros	Available / Configuration Dependent
Coordinate Rotation & Scaling	Available
Remote Monitoring	HaasConnect
HaasDrop	Standard

The modern Haas control platform provides connectivity and production-management features appropriate for contemporary manufacturing environments.

---

HAAS VF2SS – FEEDRATES

Specification	Details
X-Axis Rapid Traverse	1,400 IPM
Y-Axis Rapid Traverse	1,400 IPM
Z-Axis Rapid Traverse	1,400 IPM
Maximum Cutting Feedrate	Approx. 833 IPM
X-Axis Maximum Thrust	Approx. 1,995 lbf
Y-Axis Maximum Thrust	Approx. 1,995 lbf
Z-Axis Maximum Thrust	Approx. 3,085 lbf
High-Speed Machining	Available

The 1,400 IPM rapid traverse rate helps reduce positioning time between machining operations and contributes to the Super-Speed platform’s productivity.

---

HAAS VF2SS – COOLANT / CHIP MANAGEMENT

Specification	Details
Flood Coolant System	Standard
Coolant Capacity	Approx. 55 Gallons
Coolant Pump	Multi-Stage
Programmable Coolant	Available / Configuration Dependent
Chip Auger	Available / Configuration Dependent
Chip Conveyor	Optional / Configuration Dependent
Through-Spindle Coolant	Available / Configuration Dependent
High-Pressure Coolant	Available / Configuration Dependent
Chip Washdown	Standard
Window Air Blast	Standard

The standard 55-gallon coolant system, multi-stage pump, chip washdown, and window air blast support continuous production machining.

---

HAAS VF2SS – PROBING & AUTOMATION OPTIONS

Specification	Details
Work Probe	Available
Tool Setter	Available / Configuration Dependent
Wireless Intuitive Probing System	Available
Renishaw Probing	Configuration Dependent
4th-Axis Drive	Available
4th-Axis Wiring	Available
Rotary Table Integration	Available
Robotic Integration	Available / Configuration Dependent
Automation Compatibility	Available

---

HAAS VF2SS – POWER REQUIREMENTS

Specification	Details
Standard Input Voltage	220 VAC, 3 Phase
High-Voltage Option	440 VAC
Full-Load Current at 220V	Approx. 70 A
Full-Load Current at 440V	Approx. 35 A
Minimum Air Pressure	80 PSI
Air Requirement	Approx. 4 SCFM at 100 PSI
Electrical Requirement	3 Phase

Exact electrical requirements should be verified from the machine’s nameplate and installation documentation.

---

HAAS VF2SS – DIMENSIONS

Specification	Details
Machine Construction	Super-Speed Vertical Machining Center
Domestic Shipping Dimensions	Approx. 101″ x 99″ x 101″
Export Shipping Dimensions	Approx. 98″ x 91.5″ x 100″
Approximate Shipping Weight	7,800 lbs
Installation Type	Industrial Installation Recommended
Floor Space Requirement	Configuration Dependent

Actual dimensions can vary depending on chip conveyor, coolant equipment, rotary equipment, and other installed options.

---

HAAS VF2SS – GENERAL INFORMATION

Specification	Details
Manufacturer	Haas Automation
Model	VF2SS
Year	2022
Machine Category	Super-Speed Vertical Machining Center
Spindle Taper	40-Taper
Spindle Speed	12,000 RPM
Spindle Motor	30 HP
Tool Capacity	30+1
X-Axis Travel	30″
Y-Axis Travel	16″
Z-Axis Travel	20″
Table Size	36″ x 14″
Maximum Table Load	Approx. 1,500 lbs
Primary Application	High-Speed Precision Machining
Production Environment	Job Shop to High-Volume Production

---

INDUSTRIES THAT USE HAAS VF2SS

The HAAS VF2SS is suitable for aerospace, automotive, medical, electronics, defense, industrial equipment, energy, mold and die, automation, and general contract manufacturing.

Aerospace manufacturers can use the machine for brackets, housings, fixtures, tooling, and smaller structural components. Automotive manufacturers can use the VF2SS for production components, prototypes, fixtures, and specialized tooling.

The machine is particularly useful in industries where cycle time and production throughput are important. Its 12,000 RPM spindle, 1,400 IPM rapid traverses, and fast side-mount tool changer help reduce non-cutting time.

The VF2SS is also well suited to aluminum machining, where high spindle speeds and rapid feedrates can improve material removal and finishing performance.

---

TYPICAL PARTS HAAS VF2SS CAN PRODUCE

The HAAS VF2SS can produce aerospace brackets, automotive components, aluminum housings, electronics enclosures, industrial components, tooling plates, production fixtures, mold components, automation parts, repair parts, and custom-engineered products.

Its 30″ X-axis travel and 16″ Y-axis travel provide useful capacity for small- and medium-sized components. The 36″ x 14″ table can accommodate multiple vises, fixtures, and rotary equipment.

Typical machining operations include high-speed roughing, finishing, drilling, tapping, pocketing, contouring, face milling, engraving, fixture machining, and repeat production.

---

WHY CHOOSE HAAS VF2SS

The primary advantage of the HAAS VF2SS is its combination of 12,000 RPM spindle speed, 30 HP spindle power, 1,400 IPM rapid traverses, and a high-speed 30+1 side-mount tool changer.

The Super-Speed configuration is designed to reduce cycle times compared with standard-speed VMCs. The high-speed spindle is particularly useful for aluminum and other applications where elevated spindle speeds can improve cutting performance.

The compact footprint makes the VF2SS practical for shops that need high production capability without the floor space required by a larger vertical machining center.

Fourth-axis integration, probing, through-spindle coolant, chip removal systems, and automation options can further expand the machine’s production capabilities.

---

WHY BUY USED HAAS VF2SS

Purchasing a used 2022 HAAS VF2SS can allow manufacturers to acquire a relatively recent Super-Speed vertical machining center without paying the full price of new equipment.

The machine combines a 30 HP, 12,000 RPM spindle, 30+1 tool changer, 1,400 IPM rapids, modern Haas control, and compact footprint. These characteristics make it suitable for job shops, contract manufacturers, and higher-volume production facilities.

A used VF2SS may also include valuable options such as WIPS probing, fourth-axis drive and wiring, through-spindle coolant, chip conveyor, programmable coolant, and other production enhancements.

When evaluating a 2022 machine, buyers should check spindle hours, power-on hours, tool-change count, spindle condition, axis backlash, ballscrew and linear-guide condition, machine geometry, coolant system, tool changer, probing system, and control electronics.

A well-maintained 2022 VF2SS can offer performance close to current production equipment while potentially providing a meaningful reduction in acquisition cost.

---

HOW MUCH DOES A USED HAAS VF2SS COST?

A used 2022 HAAS VF2SS can typically be estimated at approximately $60,000 to $85,000, depending on spindle hours, machine condition, factory options, tooling, location, maintenance history, and seller.

A very low-hour machine with WIPS probing, fourth-axis capability, through-spindle coolant, chip conveyor, programmable coolant, and other factory options can command a premium and may approach or exceed the upper end of this range.

For market context, a recent 2026 discussion regarding a very low-hour 2020 VF2SS with WIPS probing, fourth-axis readiness, chip conveyor, TSC readiness, and programmable coolant produced estimates around $50,000 to $60,000. A 2022 machine with comparable hours and options would generally be expected to command somewhat more because of its newer age.

The actual selling price of a 2022 VF2SS should therefore be based on the machine’s cutting hours, spindle condition, options, tooling package, maintenance history, and remaining service or warranty coverage, rather than year alone.

Buyers should also account for transportation, rigging, installation, electrical connection, tooling, inspection, and any required repairs.

For manufacturers looking for a relatively recent high-speed VMC, a used 2022 HAAS VF2SS offers a strong combination of 12,000 RPM spindle performance, 30+1 tool capacity, rapid axis movement, modern controls, and high production capability.
