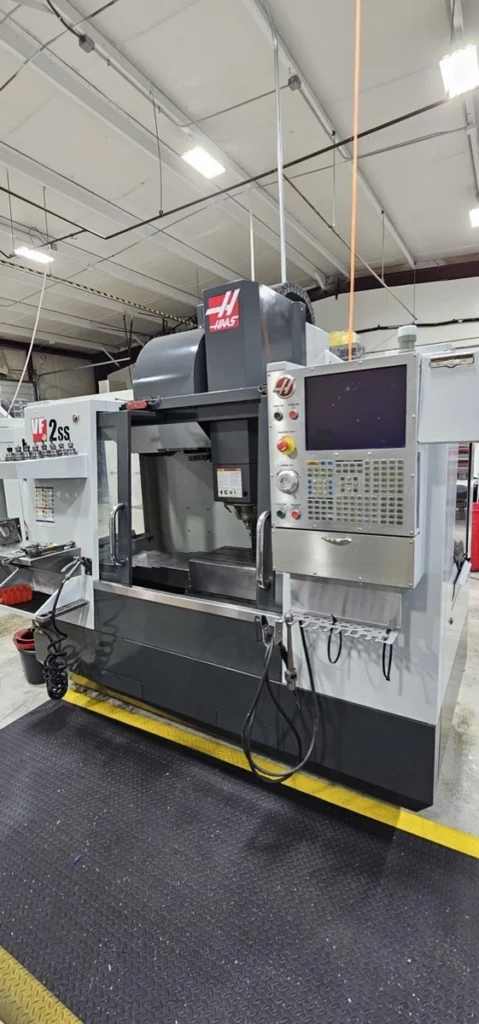

USED HAAS VF2SS 2015

The HAAS VF2SS 2015 is a high-speed CNC Vertical Machining Center (VMC) designed for manufacturers that require fast cycle times, exceptional machining accuracy, and reliable production performance. As one of the most popular models in the Haas Super-Speed (SS) Series, the VF2SS combines a 12,000 RPM inline direct-drive spindle, ultra-fast rapid traverse rates, and a high-speed side-mount tool changer to maximize productivity while minimizing non-cutting time. The 2015 model is widely used in aerospace, automotive, medical, mold and die, electronics, industrial equipment, and precision contract machining where speed, repeatability, and ease of operation are critical. Its rigid cast-iron construction, precision linear guideways, and proven Haas CNC Control provide excellent machining performance on aluminum, steel, stainless steel, titanium, engineering plastics, and composite materials.

The 2015 HAAS VF2SS offers 30 inches (762 mm) of X-axis travel, 16 inches (406 mm) of Y-axis travel, and 20 inches (508 mm) of Z-axis travel, providing an ideal work envelope for high-speed production machining and precision component manufacturing. The 36″ × 14″ precision-ground table supports workpieces weighing up to 1,500 lbs (680 kg). The machine is powered by a 30 HP (22.4 kW) inline direct-drive spindle capable of 12,000 RPM, delivering rapid acceleration, excellent surface finishes, and smooth cutting performance across a wide range of materials. The machine also features 1,400 IPM (35.6 m/min) rapid traverse rates and a 30+1 high-speed side-mount automatic tool changer capable of approximately 1.6 to 1.8-second tool-to-tool changes, dramatically reducing cycle times during production machining. Optional 15,000 RPM spindle configurations were also available depending on the original factory specification.

Standard equipment generally includes the Haas CNC Control, rigid tapping, programmable coolant nozzle, flood coolant system, automatic lubrication, spindle orientation, USB interface, Ethernet connectivity, High-Speed Machining, coordinate rotation and scaling, user-definable macros, 4th-axis drive and wiring, and chip auger. Many used HAAS VF2SS 2015 machines are equipped with valuable factory-installed options including Through-Spindle Coolant (TSC), Wireless Intuitive Probing System (WIPS), chip conveyor, rotary tables, 15,000 RPM spindle upgrade, coolant filtration systems, and extensive tooling packages. Since Haas offered numerous factory options, exact specifications may vary depending on the original machine configuration.

Purchasing a used HAAS VF2SS 2015 allows manufacturers to obtain a proven high-speed machining center at a substantially lower investment than buying a comparable new machine. With excellent worldwide parts availability, simple maintenance, operator-friendly programming, and strong resale value, the VF2SS continues to be one of the most popular used CNC vertical machining centers available today.

HAAS VF2SS 2015 – AXIS

HAAS VF2SS 2015 – AXIS TRAVELS / WORK ENVELOPE

HAAS VF2SS 2015 – CAPACITY

HAAS VF2SS 2015 – SPINDLE

HAAS VF2SS 2015 – TOOL CHANGER

HAAS VF2SS 2015 – CONTROL SYSTEM

HAAS VF2SS 2015 – COOLANT / CHIP MANAGEMENT

HAAS VF2SS 2015 – POWER REQUIREMENTS

HAAS VF2SS 2015 – DIMENSIONS

HAAS VF2SS 2015 – GENERAL INFORMATION

INDUSTRIES THAT USE HAAS VF2SS 2015

The HAAS VF2SS 2015 is extensively used in aerospace, automotive, medical device manufacturing, mold and die, electronics, robotics, industrial automation, defense, energy, and precision contract machining. Its high-speed spindle, rapid tool changes, and rigid machine construction make it ideal for machining aluminum, stainless steel, titanium, plastics, and other engineering materials while maintaining excellent dimensional accuracy and surface finish.

Manufacturers commonly use the VF2SS to produce aerospace brackets, hydraulic manifolds, mold inserts, medical components, valve bodies, production fixtures, robotic parts, aluminum housings, transmission components, automation equipment, precision tooling, and custom-machined assemblies. Its ability to perform high-speed roughing and precision finishing makes it suitable for both prototype work and high-volume production.

TYPICAL PARTS HAAS VF2SS 2015 CAN PRODUCE

The HAAS VF2SS 2015 can manufacture aerospace brackets, mold inserts, die components, hydraulic manifolds, valve bodies, aluminum housings, robotic components, tooling fixtures, pump bodies, transmission components, medical device parts, electronic enclosures, industrial automation equipment, production tooling, and custom precision-machined assemblies.

The machine excels at face milling, contour milling, pocket milling, drilling, tapping, thread milling, engraving, interpolation, boring, and high-speed finishing. When equipped with a rotary table or fourth-axis system, it can efficiently machine multiple faces of a component in a single setup, improving productivity while maintaining excellent repeatability.

WHY CHOOSE HAAS VF2SS 2015

The HAAS VF2SS 2015 is an excellent choice for manufacturers seeking maximum machining efficiency without sacrificing reliability. Its 12,000 RPM spindle, high-speed side-mount tool changer, and 1,400 IPM rapid traverses significantly reduce cycle times while maintaining outstanding machining accuracy. The rigid cast-iron structure minimizes vibration, improving tool life and producing superior surface finishes across a wide variety of materials.

Another major advantage is the simplicity of the Haas CNC Control. Operators benefit from intuitive programming, easy setup, and straightforward maintenance, while owners appreciate the extensive worldwide parts network and affordable service costs. These qualities continue to make the VF2SS one of the most dependable high-speed machining centers available.

WHY BUY USED HAAS VF2SS 2015

Purchasing a used HAAS VF2SS 2015 allows manufacturers to acquire a premium high-speed machining center for significantly less than the cost of buying new. Many used machines include valuable factory-installed options such as Through-Spindle Coolant, WIPS probing, chip conveyor, rotary tables, 15,000 RPM spindle, and extensive tooling packages, providing excellent value while increasing machining capability.

Because the machine has a proven design and long production history, parts availability and service support remain excellent. Shops looking to expand production capacity can place a used VF2SS into operation quickly while avoiding lengthy factory lead times. With proper preventive maintenance, the VF2SS continues to provide dependable production for many years.

HOW MUCH DOES A USED HAAS VF2SS 2015 COST?

The value of a used HAAS VF2SS 2015 depends on spindle hours, maintenance history, tooling package, installed factory options, and overall machine condition. Machines equipped with Through-Spindle Coolant (TSC), WIPS probing, chip conveyor, rotary tables, low spindle hours, and documented maintenance records typically command higher resale values. Community feedback also indicates that well-maintained 2014–2015 VF2SS machines remain highly desirable because of their proven reliability and excellent machining performance.

Before purchasing, buyers should inspect spindle condition, tool changer operation, lubrication system, guideways, ballscrews, coolant equipment, electrical cabinet, servo drives, spindle taper wear, and machine diagnostics. For machines from the 2011–2017 period, it is also advisable to verify lubrication system updates and maintenance history to ensure long-term reliability.

Depending on spindle hours, condition, tooling, installed options, and included accessories, a used HAAS VF2SS 2015 typically sells within an estimated price range of $35,000 to $60,000 USD. Premium machines equipped with low operating hours, Through-Spindle Coolant, WIPS, rotary tables, chip conveyor, and complete maintenance documentation may exceed this range, while higher-hour machines with fewer options may be available at lower prices. A properly maintained HAAS VF2SS 2015 continues to deliver exceptional speed, productivity, reliability, and long-term manufacturing value, making it one of the best investments in the used high-speed CNC machining market.
