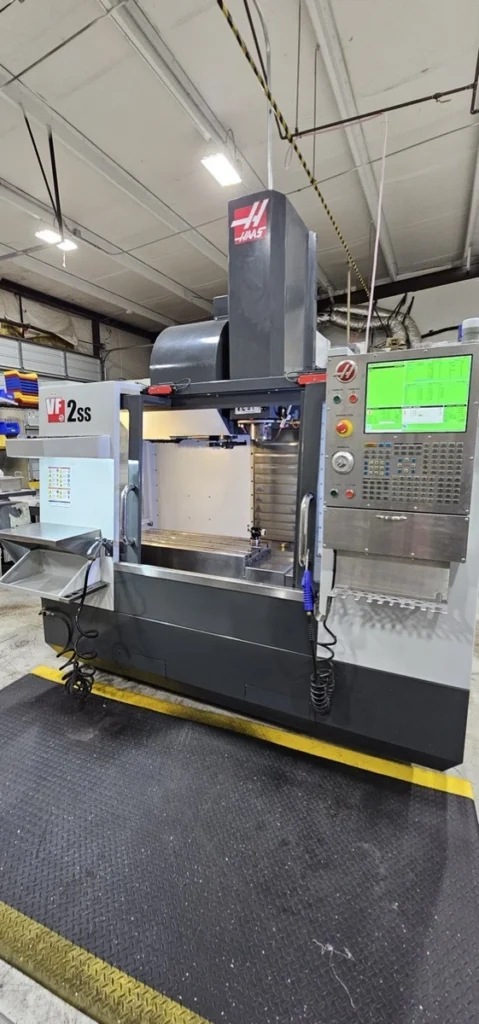

USED HAAS VF2SS 2014
The HAAS VF2SS 2014 is a high-performance CNC Vertical Machining Center (VMC) designed for manufacturers that require high spindle speeds, fast axis movement, rapid tool changes, and reliable production performance. The VF2SS belongs to the Haas Super-Speed series and provides enhanced productivity compared with standard VF-series machines. The 2014 HAAS VF2SS is well suited for aerospace, automotive, medical, electronics, defense, mold and die, tooling, robotics, and precision contract manufacturing. Its compact footprint combined with high-speed machining capability makes it particularly useful for shops that need to maximize production while conserving valuable floor space.
The VF2SS platform provides 762 mm (30″) X-axis travel, 406 mm (16″) Y-axis travel, and 508 mm (20″) Z-axis travel. It uses a 914 × 356 mm (36″ × 14″) table with a maximum evenly distributed table load of approximately 680 kg (1,500 lbs). The Super-Speed configuration is equipped with a 12,000 RPM inline direct-drive spindle, 30 HP (22.4 kW) spindle power, and a CT40/BT40 taper. Haas specifies a 30+1 high-speed side-mount tool changer, with approximately 1.8-second tool-to-tool and 2.4-second chip-to-chip times on the current VF2SS platform.
A used HAAS VF2SS 2014 can provide excellent high-speed milling capability at a substantially lower investment than newer equipment. Actual specifications can vary depending on the machine’s original build configuration and installed options, so spindle hours, control configuration, probing, coolant equipment, rotary capability, and maintenance history should be verified before purchase.
HAAS VF2SS 2014 – AXIS
| Specification | Value |
|---|---|
| X Axis | 762 mm (30″) |
| Y Axis | 406 mm (16″) |
| Z Axis | 508 mm (20″) |
| Number of Controlled Axes | 3 |
| 4th Axis Capability | Optional |
HAAS VF2SS 2014 – AXIS TRAVELS / WORK ENVELOPE
| Specification | Value |
|---|---|
| X Travel | 762 mm (30″) |
| Y Travel | 406 mm (16″) |
| Z Travel | 508 mm (20″) |
| Spindle Nose to Table Maximum | 610 mm (24″) |
| Spindle Nose to Table Minimum | 102 mm (4″) |
| Table Length | 914 mm (36″) |
| Table Width | 356 mm (14″) |
The VF2SS platform specifications list 30″ × 16″ × 20″ axis travels and a 36″ × 14″ table.
HAAS VF2SS 2014 – CAPACITY
| Specification | Value |
|---|---|
| Table Size | 914 × 356 mm (36″ × 14″) |
| Maximum Table Load | 680 kg (1,500 lbs) |
| Standard T-Slots | 3 |
| T-Slot Width | 15.9–16.0 mm |
| T-Slot Center Distance | 125 mm |
HAAS VF2SS 2014 – SPINDLE
| Specification | Value |
|---|---|
| Maximum Spindle Speed | 12,000 RPM |
| Spindle Motor | 30 HP (22.4 kW) |
| Maximum Torque | 90 ft-lb @ 2,000 RPM |
| Drive System | Inline Direct Drive |
| Spindle Taper | CT40 / BT40 |
| Bearing Lubrication | Air / Oil Injection |
| Spindle Cooling | Liquid Cooled |
| Through Spindle Coolant | Optional |
The VF2SS platform uses a 12,000 RPM, 30 HP inline direct-drive spindle.
HAAS VF2SS 2014 – TOOL CHANGER
| Specification | Value |
|---|---|
| Tool Capacity | 30+1 |
| Tool Changer Type | High-Speed Side-Mount |
| Maximum Tool Diameter | 64 mm (2.5″) |
| Maximum Tool Diameter With Adjacent Pocket Empty | 127 mm (5″) |
| Maximum Tool Length | 279 mm (11″) |
| Maximum Tool Weight | 5.4 kg (12 lbs) |
| Tool-to-Tool Time | Approximately 1.8 seconds |
| Chip-to-Chip Time | Approximately 2.4 seconds |
The high-speed side-mount tool changer helps reduce non-cutting time during multi-tool machining operations.
HAAS VF2SS 2014 – FEEDRATES
| Specification | Value |
|---|---|
| X Rapid Traverse | 35.6 m/min (1,400 IPM) |
| Y Rapid Traverse | 35.6 m/min (1,400 IPM) |
| Z Rapid Traverse | 35.6 m/min (1,400 IPM) |
| Maximum Cutting Feedrate | 21.2 m/min (833 IPM) |
The high rapid rates are particularly useful for production parts requiring frequent axis positioning.
HAAS VF2SS 2014 – CONTROL SYSTEM
| Specification | Value |
|---|---|
| CNC Control | Haas CNC Control |
| Programming | G-Code |
| Rigid Tapping | Available |
| High-Speed Machining | Configuration Dependent |
| Advanced Tool Management | Configuration Dependent |
| Ethernet | Configuration Dependent |
| USB | Configuration Dependent |
| 4th Axis Control | Option Dependent |
Because the 2014 HAAS VF2SS is an older machine, the exact control features should be confirmed from the individual machine’s control configuration.
HAAS VF2SS 2014 – COOLANT / CHIP MANAGEMENT
| Specification | Value |
|---|---|
| Coolant Tank Capacity | 208 Liters (55 gal) |
| Coolant System | Multi-Stage Pump |
| Flood Coolant | Standard |
| Window Air Blast | Standard |
| Chip Washdown | Standard |
| Chip Conveyor | Optional |
| Through Spindle Coolant | Optional |
| Chip Auger | Configuration Dependent |
The VF2SS platform uses a 55-gallon coolant tank and multi-stage coolant system.
HAAS VF2SS 2014 – POWER REQUIREMENTS
| Specification | Value |
|---|---|
| Standard Input Voltage | 220 VAC Three Phase |
| High-Voltage Configuration | 440 VAC Three Phase |
| Full Load Amps at 220 VAC | Approximately 70 A |
| Full Load Amps at 440 VAC | Approximately 35 A |
| Compressed Air Requirement | Approximately 4 SCFM @ 100 PSI |
| Minimum Air Pressure | Approximately 80 PSI |
Actual electrical requirements should be verified against the specific machine’s electrical configuration before installation.
HAAS VF2SS 2014 – DIMENSIONS
| Specification | Approximate Value |
|---|---|
| Shipping Length | 103 in |
| Shipping Width | 102 in |
| Shipping Height | 106 in |
| Shipping Weight | Approximately 7,800 lbs |
| Metric Shipping Weight | Approximately 3,550 kg |
Actual dimensions can vary according to machine configuration and accessories.
HAAS VF2SS 2014 – GENERAL INFORMATION
| Item | Details |
|---|---|
| Manufacturer | Haas Automation |
| Model | VF2SS |
| Year | 2014 |
| Machine Type | CNC Vertical Machining Center |
| Series | Super-Speed VF Series |
| CNC Control | Haas CNC Control |
| Spindle Taper | CT40 / BT40 |
| Spindle Speed | 12,000 RPM |
| Spindle Power | 30 HP |
| Tool Capacity | 30+1 |
| Controlled Axes | 3 |
| 4th Axis | Optional |
INDUSTRIES THAT USE HAAS VF2SS 2014
The HAAS VF2SS 2014 is suitable for aerospace, automotive, medical device manufacturing, electronics, defense, mold and die, tooling, robotics, industrial machinery, and precision contract machining.
Its high-speed spindle and rapid axis movement make it particularly effective for production applications where cycle time is important. It can machine aluminum, steel, stainless steel, titanium, engineering plastics, and other commonly machined materials when appropriate tooling and cutting parameters are used.
TYPICAL PARTS HAAS VF2SS 2014 CAN PRODUCE
The HAAS VF2SS 2014 can manufacture aerospace brackets, automotive components, mold inserts, fixture plates, medical components, electronic housings, robotics components, manifolds, tooling, machine components, and precision production parts.
Typical operations include high-speed milling, drilling, tapping, pocketing, contouring, boring, engraving, and finishing.
WHY CHOOSE HAAS VF2SS 2014
The HAAS VF2SS 2014 offers an excellent combination of 12,000 RPM spindle speed, 30 HP spindle power, 30+1 tool capacity, and rapid axis movement. These features make the machine especially useful for shops that need to reduce cycle times and increase throughput on complex, multi-operation components.
Its relatively compact footprint makes the VF2SS attractive for job shops and production facilities that need high-speed machining capability without dedicating excessive floor space. Optional equipment such as probing, through-spindle coolant, chip conveyors, and rotary equipment can further expand the machine’s capabilities.
WHY BUY USED HAAS VF2SS 2014
Purchasing a used HAAS VF2SS 2014 allows manufacturers to acquire a high-speed machining center at a significantly lower investment than purchasing newer equipment. The Super-Speed configuration provides strong production capabilities, while the VF2 platform remains versatile enough for prototype work, short-run manufacturing, and repetitive production.
A properly maintained VF2SS 2014 can continue delivering dependable machining performance for years. Buyers can also use the capital savings for tooling, workholding, probing, rotary equipment, automation, and other production requirements.
Before purchasing, buyers should inspect spindle condition, spindle hours, ballscrews, axis accuracy, tool changer operation, coolant systems, electrical components, control functionality, and maintenance records.
HOW MUCH DOES A USED HAAS VF2SS 2014 COST?
The price of a used HAAS VF2SS 2014 depends on spindle hours, machine condition, maintenance history, control configuration, tooling, and installed options. Equipment such as WIPS probing, through-spindle coolant, 4th-axis capability, rigid tapping, high-speed machining, chip conveyors, and extensive tooling can significantly affect the value.
As a market reference, a 2014 VF2SS discussed in a 2024 machining community listing was being offered at approximately $39,900 USD with WIPS probing, TSC-ready configuration, a 5C 4th axis, rigid tapping, and high-speed machining. Another recent discussion referenced approximately $35,000 for a 2014-era VF2SS. These examples show why actual pricing can vary considerably according to configuration and condition.
For SEO and used-equipment listing purposes, a reasonable estimated market range for a HAAS VF2SS 2014 is approximately $30,000 to $45,000 USD. Lower-hour machines with premium options and strong maintenance histories may command more, while higher-hour machines or machines requiring repairs may sell for less.
A well-maintained HAAS VF2SS 2014 remains an attractive used CNC investment for manufacturers seeking high-speed milling, fast tool changes, reliable production performance, and the flexibility of a compact vertical machining center.
