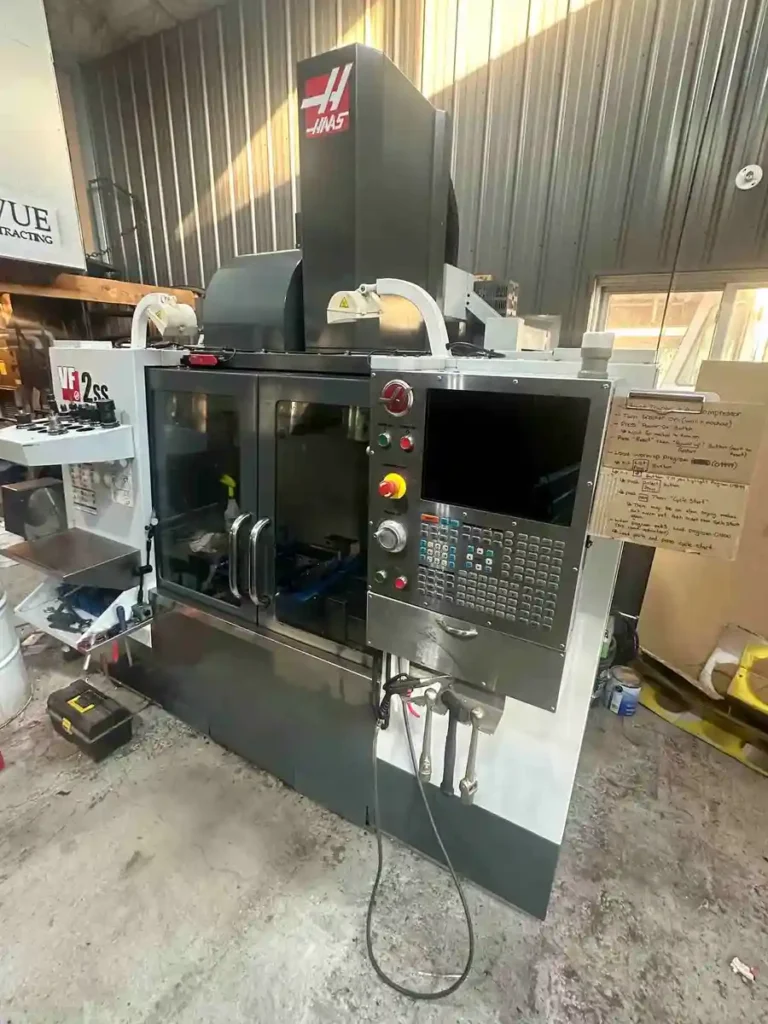

USED HAAS VF2SS 2013

The HAAS VF2SS 2013 is a high-performance CNC Vertical Machining Center (VMC) designed for manufacturers that need high spindle speeds, rapid axis movement, quick tool changes, and dependable production capability. The VF2SS is part of the Haas Super-Speed series and was developed to improve productivity by reducing machining cycle times and non-cutting movements. The 2013 HAAS VF2SS is well suited for aerospace, automotive, medical, electronics, defense, mold and die, tooling, robotics, and precision contract manufacturing. Its compact footprint makes it particularly attractive to shops that need high-speed machining capability without requiring the floor space of a larger VMC.

The VF2SS platform provides 762 mm (30″) X-axis travel, 406 mm (16″) Y-axis travel, and 508 mm (20″) Z-axis travel. It uses a 914 × 356 mm (36″ × 14″) table capable of supporting approximately 680 kg (1,500 lbs) when evenly distributed. The Super-Speed configuration features a 12,000 RPM inline direct-drive spindle, 30 HP (22.4 kW) spindle rating, and CT40/BT40 tooling. The machine is equipped with a high-speed 30+1 side-mount automatic tool changer, making it suitable for complex parts requiring numerous cutting tools. Current Haas specifications list rapid traverses of 1,400 IPM (35.6 m/min) on all three axes.

A used HAAS VF2SS 2013 can provide excellent high-speed milling performance at a significantly lower investment than newer CNC equipment. Since individual used machines can have different options and configurations, buyers should verify spindle hours, control configuration, probing, coolant systems, chip management, rotary capability, and maintenance history before purchasing.

---

HAAS VF2SS 2013 – AXIS

Specification	Value
X Axis	762 mm (30″)
Y Axis	406 mm (16″)
Z Axis	508 mm (20″)
Number of Controlled Axes	3
4th Axis Capability	Optional

---

HAAS VF2SS 2013 – AXIS TRAVELS / WORK ENVELOPE

Specification	Value
X Travel	762 mm (30″)
Y Travel	406 mm (16″)
Z Travel	508 mm (20″)
Spindle Nose to Table Maximum	610 mm (24″)
Spindle Nose to Table Minimum	102 mm (4″)
Table Length	914 mm (36″)
Table Width	356 mm (14″)

The VF2SS platform provides 30″ × 16″ × 20″ travels and a 36″ × 14″ worktable.

---

HAAS VF2SS 2013 – CAPACITY

Specification	Value
Table Size	914 × 356 mm (36″ × 14″)
Maximum Table Load	680 kg (1,500 lbs)
Standard T-Slots	3
T-Slot Width	Approximately 15.9–16.0 mm
T-Slot Center Distance	125 mm

---

HAAS VF2SS 2013 – SPINDLE

Specification	Value
Maximum Spindle Speed	12,000 RPM
Spindle Motor	30 HP (22.4 kW)
Maximum Torque	90 ft-lb @ 2,000 RPM
Drive System	Inline Direct Drive
Spindle Taper	CT40 / BT40
Bearing Lubrication	Air / Oil Injection
Spindle Cooling	Liquid Cooled
Through Spindle Coolant	Optional

Haas specifies the VF2SS with a 12,000 RPM, 30 HP inline direct-drive spindle, with a higher-speed spindle available as an option on the current platform.

---

HAAS VF2SS 2013 – TOOL CHANGER

Specification	Value
Tool Capacity	30+1
Tool Changer Type	High-Speed Side-Mount
Maximum Tool Diameter	64 mm (2.5″)
Maximum Tool Diameter With Adjacent Pocket Empty	127 mm (5″)
Maximum Tool Length	279 mm (11″)
Maximum Tool Weight	5.4 kg (12 lbs)
Tool-to-Tool Time	Approximately 1.8 seconds
Chip-to-Chip Time	Approximately 2.4 seconds

The 30+1 side-mount tool changer helps reduce downtime when machining parts that require numerous tools.

---

HAAS VF2SS 2013 – FEEDRATES

Specification	Value
X Rapid Traverse	35.6 m/min (1,400 IPM)
Y Rapid Traverse	35.6 m/min (1,400 IPM)
Z Rapid Traverse	35.6 m/min (1,400 IPM)
Maximum Cutting Feedrate	21.2 m/min (833 IPM)

The rapid traverse rates help reduce non-cutting time during production cycles.

---

HAAS VF2SS 2013 – CONTROL SYSTEM

Specification	Value
CNC Control	Haas CNC Control
Programming	G-Code
Rigid Tapping	Available
High-Speed Machining	Configuration Dependent
Advanced Tool Management	Configuration Dependent
Ethernet	Configuration Dependent
USB	Configuration Dependent
4th Axis Control	Option Dependent

Because this is a 2013 model, the exact control features should be verified from the individual machine’s serial number and build configuration.

---

HAAS VF2SS 2013 – COOLANT / CHIP MANAGEMENT

Specification	Value
Coolant Tank Capacity	208 Liters (55 gal)
Coolant System	Multi-Stage Pump
Flood Coolant	Standard
Window Air Blast	Standard
Chip Washdown	Standard
Chip Conveyor	Optional
Through Spindle Coolant	Optional
Chip Auger	Configuration Dependent

Haas lists a 55-gallon coolant tank, multi-stage coolant pump, window air blast, and chip washdown among VF2SS features.

---

HAAS VF2SS 2013 – POWER REQUIREMENTS

Specification	Value
Standard Input Voltage	220 VAC Three Phase
High-Voltage Configuration	380–480 VAC
Compressed Air Requirement	Approximately 4 SCFM @ 100 PSI
Minimum Air Pressure	Approximately 80 PSI

Electrical requirements should be verified against the specific machine’s electrical configuration before installation.

---

HAAS VF2SS 2013 – DIMENSIONS

Specification	Approximate Value
Shipping Length	Approximately 101–103″
Shipping Width	Approximately 99–102″
Shipping Height	Approximately 101–106″
Shipping Weight	Approximately 7,800 lbs
Shipping Weight With Conveyor	Configuration Dependent

Actual dimensions and weight can vary according to chip conveyors and other installed equipment.

---

HAAS VF2SS 2013 – GENERAL INFORMATION

Item	Details
Manufacturer	Haas Automation
Model	VF2SS
Year	2013
Machine Type	CNC Vertical Machining Center
Series	Super-Speed VF Series
CNC Control	Haas CNC Control
Spindle Taper	CT40 / BT40
Spindle Speed	12,000 RPM
Spindle Power	30 HP
Tool Capacity	30+1
Controlled Axes	3
4th Axis	Optional

---

INDUSTRIES THAT USE HAAS VF2SS 2013

The HAAS VF2SS 2013 is suitable for aerospace, automotive, medical device manufacturing, electronics, defense, mold and die, tooling, robotics, industrial machinery, and precision contract machining.

Its high-speed spindle, fast axis movement, and rapid tool changes make it especially effective for production work involving multiple tools and frequent positioning. The machine can process aluminum, steel, stainless steel, titanium, engineering plastics, and other commonly machined materials with appropriate tooling and cutting parameters.

---

TYPICAL PARTS HAAS VF2SS 2013 CAN PRODUCE

The HAAS VF2SS 2013 can manufacture aerospace brackets, automotive components, mold inserts, fixture plates, medical components, electronic housings, robotics components, manifolds, tooling, machine components, and precision production parts.

Typical operations include high-speed milling, drilling, tapping, pocketing, contouring, boring, engraving, and finishing.

---

WHY CHOOSE HAAS VF2SS 2013

The HAAS VF2SS 2013 provides an excellent combination of 12,000 RPM spindle speed, 30 HP spindle power, 30+1 tool capacity, and 1,400 IPM rapid traverses. These features allow manufacturers to reduce non-cutting time and increase productivity on complex parts that require frequent tool changes and axis movements.

The compact footprint makes the VF2SS especially useful for job shops and production facilities with limited floor space. Optional equipment such as probing, through-spindle coolant, chip conveyors, and rotary tables can further expand its production capabilities.

---

WHY BUY USED HAAS VF2SS 2013

Purchasing a used HAAS VF2SS 2013 allows manufacturers to acquire a high-speed machining center at a substantially lower investment than purchasing newer equipment. Its Super-Speed configuration provides excellent productivity for both short-run and repetitive production work.

A properly maintained VF2SS 2013 can continue delivering dependable machining performance for many years. The capital savings can also be allocated toward tooling, workholding, probing, rotary equipment, automation, and other production requirements.

Before purchasing, buyers should inspect spindle condition, spindle hours, axis accuracy, ballscrews, tool changer operation, coolant systems, electrical components, control functionality, and maintenance records.

---

HOW MUCH DOES A USED HAAS VF2SS 2013 COST?

The price of a used HAAS VF2SS 2013 depends on spindle hours, machine condition, maintenance history, control configuration, tooling, and installed options. Equipment such as WIPS probing, through-spindle coolant, 4th-axis capability, high-speed machining, chip conveyors, rigid tapping, and extensive tooling can significantly affect resale value.

Used-market discussions provide useful context for older VF2SS pricing. One 2025 discussion referenced a 2014-era VF2SS at around $35,000, while another 2025 buyer discussion cited approximately $35,000 for a 2014 VF2SS alongside other used Haas equipment. These figures are not direct 2013 sales, but they provide a useful reference point for machines of similar age.

For SEO and used-equipment listing purposes, a reasonable estimated market range for a HAAS VF2SS 2013 is approximately $28,000 to $42,000 USD, depending on hours, condition, options, tooling, and accessories. Lower-hour machines with premium options and strong maintenance records may command more, while higher-hour machines or machines requiring repairs may sell for less.

A well-maintained HAAS VF2SS 2013 remains an attractive used CNC investment for manufacturers seeking high-speed milling, rapid tool changes, reliable production performance, and the flexibility of a compact vertical machining center.
