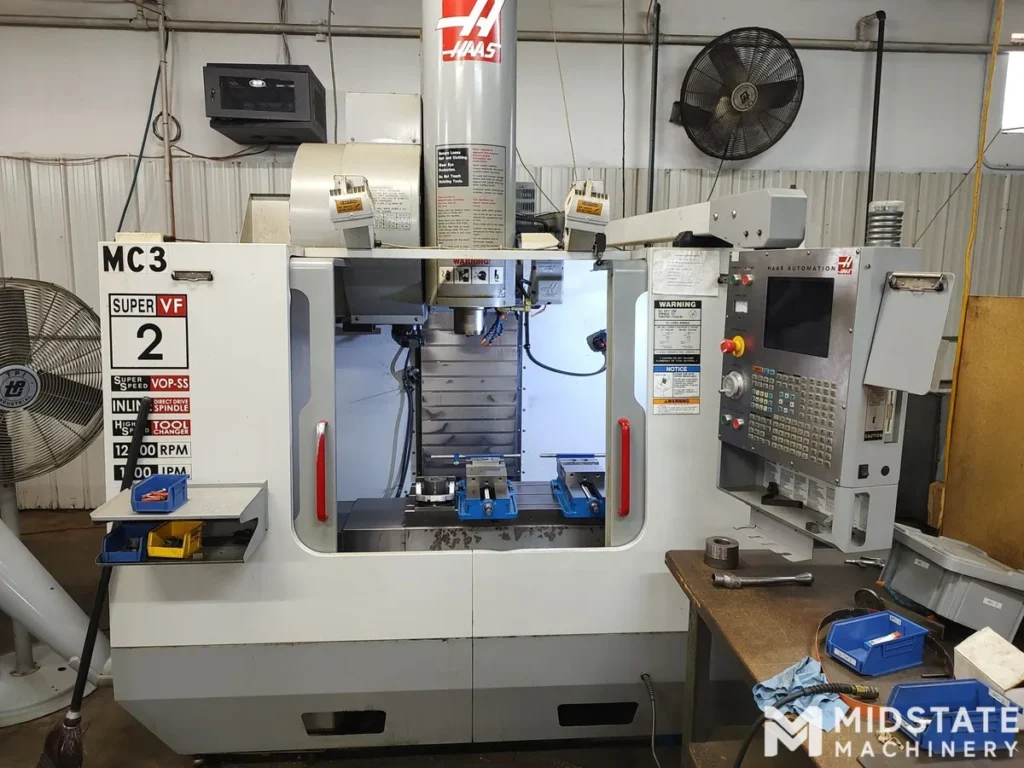

USED HAAS VF2SS – 2004

The Haas VF2SS is a high-speed vertical machining center that has become one of the most popular CNC mills in the manufacturing industry. Built by Haas Automation, the VF2SS is the Super Speed version of the standard VF2 and is specifically designed for shops that require faster spindle speeds, quicker tool changes, and higher productivity. The machine combines the proven reliability of the Haas VF Series with performance upgrades that make it particularly effective for machining aluminum, stainless steel, plastics, and other materials commonly used in modern manufacturing.

The Haas VF2SS is widely recognized for its versatility and ability to support both prototype and production machining environments. Equipped with a CAT 40 spindle, high-speed tool changer, rigid cast iron construction, and user-friendly Haas CNC control, the machine is capable of performing milling, drilling, tapping, boring, contouring, and finishing operations with excellent accuracy and repeatability. The Super Speed configuration delivers faster rapid traverse rates and shorter chip-to-chip tool change times compared to standard VF models, helping manufacturers reduce cycle times and increase throughput.

The 2004 Haas VF2SS remains a highly desirable machine in the used CNC market because it offers proven machining performance at an affordable price point. While newer VF2SS models include updated controls and technology, many shops continue to operate older machines successfully due to their robust construction and ease of maintenance. The machine is commonly found in aerospace, automotive, medical, electronics, mold manufacturing, contract machining, and general manufacturing facilities.

One of the primary reasons manufacturers continue to seek used Haas VF2SS machines is the balance between capability and affordability. Buyers gain access to a high-performance machining center with strong aftermarket support, widely available replacement parts, and a large operator base familiar with Haas controls. For companies looking to expand CNC capacity without the expense of a new machine, the 2004 Haas VF2SS remains a practical and cost-effective solution.

---

HAAS VF2SS – AXIS

Specification	Value
Number of Axes	3 Axis
Simultaneous Axis Control	3 Axis
Positioning Type	CNC Controlled

---

HAAS VF2SS – AXIS TRAVELS / WORK ENVELOPE

Specification	Value
X-Axis Travel	30″
Y-Axis Travel	16″
Z-Axis Travel	20″
Maximum Work Envelope	30″ x 16″ x 20″

---

HAAS VF2SS – CAPACITY / TABLE

Specification	Value
Table Length	36″
Table Width	14″
Maximum Table Load	1,500 lbs
T-Slots	5

---

HAAS VF2SS – SPINDLE

Specification	Value
Spindle Speed	12,000 RPM
Spindle Taper	CAT 40
Spindle Motor	30 HP
Drive Type	Inline Direct Drive

---

HAAS VF2SS – TOOL CHANGER

Specification	Value
Tool Capacity	24+1 Tools
Tool Changer Type	Side-Mount Tool Changer
Tool Change Time	Approx. 1.6 Seconds
Maximum Tool Weight	12 lbs

---

HAAS VF2SS – CONTROL SYSTEM

Specification	Value
CNC Control	Haas CNC Control
Programming Capability	Conversational and G-Code
Storage Media	Floppy Drive / Memory Card
Display	CRT/LCD Depending on Configuration

---

HAAS VF2SS – COOLANT / DUST / WATER MANAGEMENT

Specification	Value
Coolant System	Flood Coolant
Coolant Tank Capacity	Approx. 55 Gallons
Chip Removal	Chip Auger Optional
Enclosure	Fully Enclosed

---

HAAS VF2SS – POWER REQUIREMENTS

Specification	Value
Voltage	220V
Phase	3 Phase
Power Requirement	Approx. 35 kVA
Air Requirement	Shop Air Required

---

HAAS VF2SS – DIMENSIONS

Specification	Value
Length	Approx. 120″
Width	Approx. 102″
Height	Approx. 108″
Weight	Approx. 8,500 lbs

---

HAAS VF2SS – GENERAL INFORMATION

Specification	Value
Manufacturer	Haas Automation
Machine Type	Vertical Machining Center
Year	2004
Construction	Cast Iron
Country of Origin	USA

---

INDUSTRIES THAT USE HAAS VF2SS

The Haas VF2SS is widely used across numerous manufacturing industries because of its ability to combine speed, precision, and versatility. The machine is especially popular in environments where reducing cycle times and improving productivity are important objectives.

Industries commonly using the Haas VF2SS include:

• Aerospace Manufacturing
• Automotive Manufacturing
• Medical Device Manufacturing
• Defense Manufacturing
• Electronics Manufacturing
• Mold and Die Manufacturing
• Robotics Manufacturing
• Contract Machining
• Industrial Equipment Manufacturing
• Consumer Product Manufacturing
• Energy Industry Suppliers
• Tool and Fixture Manufacturing
• Research and Development Facilities
• Precision Engineering Companies
• General Machine Shops

Many manufacturers utilize the VF2SS for both prototype and production work because the machine provides an ideal balance between machining performance and operating costs.

---

TYPICAL PARTS HAAS VF2SS CAN PRODUCE

The Haas VF2SS is capable of producing a wide variety of precision-machined components requiring tight tolerances and high-quality surface finishes.

Typical parts include:

• Aerospace Brackets
• Aircraft Interior Components
• Medical Device Components
• Surgical Equipment Parts
• Mold Inserts
• Production Fixtures
• Custom Jigs
• Robotics Components
• Electronic Housings
• Heat Sinks
• Hydraulic Manifolds
• Pneumatic Components
• Automotive Components
• Prototype Parts
• Precision Aluminum Components
• Stainless Steel Components
• Tooling Components
• OEM Production Parts
• Custom Engineered Components
• Precision Machined Assemblies

The machine is particularly effective for aluminum machining applications where high spindle speeds can significantly improve productivity and surface finish quality.

---

WHY CHOOSE HAAS VF2SS

The Haas VF2SS has earned its reputation as one of the most popular vertical machining centers because it delivers high-speed machining performance without the complexity or cost associated with many premium machining centers. The machine’s combination of spindle speed, rapid tool changes, and proven reliability allows manufacturers to improve productivity while maintaining machining accuracy.

One of the biggest advantages of the VF2SS is its 12,000 RPM spindle. Higher spindle speeds enable faster material removal rates and improved surface finishes, particularly when machining aluminum and other non-ferrous materials. Combined with quick tool changes, the machine can significantly reduce overall cycle times.

The VF2SS also benefits from the widespread popularity of Haas equipment. Operators, programmers, and maintenance personnel are often familiar with Haas controls, reducing training requirements and simplifying implementation.

Another important advantage is long-term support. Even older Haas machines continue to benefit from strong parts availability and service support, helping extend machine life and protect the owner’s investment.

For manufacturers seeking a proven, productive, and dependable machining center, the Haas VF2SS remains one of the strongest choices in the used CNC marketplace.

---

WHY BUY USED HAAS VF2SS

Purchasing a used 2004 Haas VF2SS offers manufacturers an affordable opportunity to acquire a high-speed vertical machining center that has proven itself in thousands of machine shops worldwide. Although newer models include updated technology, the core machining platform remains highly capable and continues to deliver excellent performance for a wide range of applications.

One of the primary advantages of buying a used VF2SS is cost savings. A used machine can often be purchased for a fraction of the price of a new high-speed machining center while still providing the spindle speed, rigidity, and productivity required for modern manufacturing. This allows businesses to allocate more capital toward tooling, automation, inspection equipment, and other operational investments.

The machine’s proven design is another major benefit. The VF2SS has been used successfully across virtually every manufacturing sector, giving buyers confidence in its reliability and performance. Many shops continue operating 20-year-old Haas machines daily with proper maintenance and care.

The availability of replacement parts and service support further enhances ownership value. Haas maintains one of the largest support networks in the industry, making it easier to source parts and technical assistance when needed.

A used VF2SS is also highly versatile. It can support prototype development, short-run production, custom machining, fixture manufacturing, and production work. This flexibility allows businesses to maximize machine utilization across multiple projects and customer requirements.

For manufacturers seeking a dependable CNC machining center with high-speed capabilities and strong value, a used 2004 Haas VF2SS remains an excellent investment.

---

HOW MUCH DOES A USED HAAS VF2SS COST?

The cost of a used 2004 Haas VF2SS typically ranges between $18,000 and $40,000, depending on machine condition, spindle hours, installed options, tooling packages, maintenance history, and overall market demand.

Machines priced near the lower end of the range often have higher operating hours, older controls, cosmetic wear, or limited accessories. Machines near the upper end generally feature lower spindle hours, documented maintenance records, upgraded electronics, tooling packages, and additional options that enhance productivity.

Machine condition plays a major role in determining market value. Buyers frequently inspect spindle performance, axis backlash, lubrication systems, coolant systems, way covers, and overall machine appearance before making purchasing decisions. Well-maintained machines typically command higher prices because they present lower ownership risk.

Tooling and workholding packages can significantly increase the value of a machine package. Tool holders, vises, rotary tables, probes, fixture systems, and specialty tooling may add several thousand dollars to the overall transaction value while reducing setup costs for the buyer.

Regional demand can also influence pricing. Manufacturing regions with strong aerospace, medical, automotive, and contract machining sectors often experience greater demand for affordable high-speed machining centers like the VF2SS.

Compared to purchasing a new vertical machining center, a used 2004 Haas VF2SS offers substantial savings while still providing proven machining capability and reliable performance. For machine shops looking to expand production capacity without making a major capital investment, the VF2SS continues to represent one of the best values in the used CNC equipment market.
