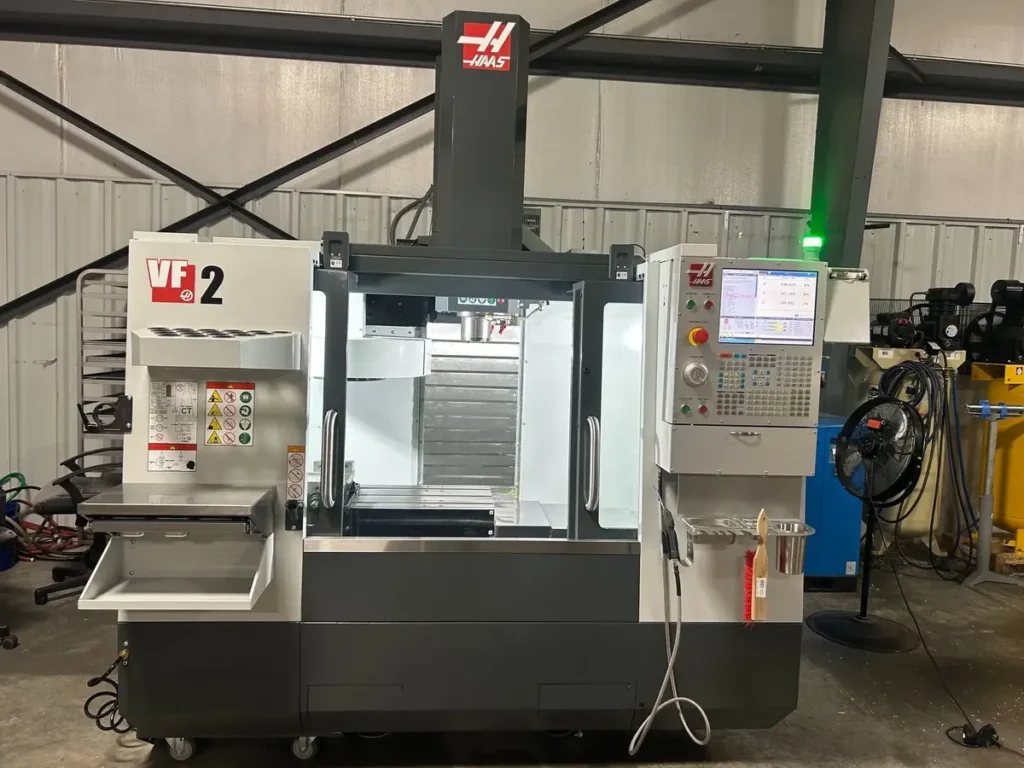

USED HAAS VF2 2024
The HAAS VF2 2024 is a modern CNC vertical machining center designed for precision milling, drilling, tapping, contouring, and production machining. The VF2 is one of Haas Automation’s most widely used vertical machining centers and is built around a compact, versatile platform suitable for both job-shop and production environments. The 2024 model combines a 30 × 16 × 20 inch machining envelope with a high-power direct-drive spindle, modern Haas CNC control, automatic tool changing, and integrated coolant and chip-management features.
The 2024 VF2 uses a 40-taper spindle with an 8,100 RPM maximum speed and 30 HP rating. It provides approximately 30 inches of X-axis travel, 16 inches of Y-axis travel, and 20 inches of Z-axis travel, with a 36 × 14 inch table capable of supporting up to approximately 3,000 pounds when evenly distributed. The standard machine includes a 20-pocket carousel tool changer and 55-gallon coolant capacity.
The HAAS VF2 2024 is suitable for aerospace, automotive, medical, defense, electronics, tooling, mold and die, robotics, and general contract manufacturing. Its combination of useful travels, high spindle power, rigid tapping, modern controls, and available automation options makes it suitable for both prototype and production applications.
A used HAAS VF2 2024 can be particularly attractive because it offers nearly current-generation capabilities while potentially costing considerably less than a brand-new machine. A 2024 VF2 currently listed on the used market was described as essentially unused and equipped with Haas touchscreen control, CT40 8,100 RPM spindle, rigid tapping, 55-gallon coolant tank, and 20-position automatic tool changer.
HAAS VF2 2024 – AXIS
| Specification | Value |
|---|---|
| X Axis | 762 mm (30″) |
| Y Axis | 406 mm (16″) |
| Z Axis | 508 mm (20″) |
| Controlled Axes | 3 |
| 4th Axis | Optional |
HAAS VF2 2024 – AXIS TRAVELS / WORK ENVELOPE
| Specification | Value |
|---|---|
| X Travel | 30″ |
| Y Travel | 16″ |
| Z Travel | 20″ |
| Spindle Nose to Table Minimum | 4″ |
| Spindle Nose to Table Maximum | 24″ |
| Table Length | 36″ |
| Table Width | 14″ |
The 30 × 16 × 20 inch travel envelope provides enough capacity for many small and medium-sized components while maintaining a relatively compact footprint.
HAAS VF2 2024 – CAPACITY
| Specification | Value |
|---|---|
| Table Size | 36″ × 14″ |
| Maximum Table Load | 3,000 lbs |
| T-Slots | 3 |
| T-Slot Width | 0.626″–0.630″ |
| T-Slot Center Distance | 4.92″ |
| Spindle Taper | CT40 / BT40 / HSK-A63 options |
| Workholding | Vises, Fixtures, Rotary Equipment |
The 36 × 14 inch worktable provides ample space for standard vises, fixtures, and production workholding.
HAAS VF2 2024 – SPINDLE
| Specification | Value |
|---|---|
| Spindle Type | Inline Direct Drive |
| Maximum Spindle Speed | 8,100 RPM |
| Spindle Power | 30 HP |
| Maximum Torque | 90 ft-lb @ 2,000 RPM |
| Spindle Taper | CT40 |
| Spindle Cooling | Liquid Cooled |
| Bearing Lubrication | Air / Oil Injection |
| Through Spindle Coolant | Optional |
The standard VF2 spindle is an 8,100 RPM, 30 HP direct-drive configuration. Haas also offers optional spindle configurations depending on the machine build.
HAAS VF2 2024 – TOOL CHANGER
| Specification | Value |
|---|---|
| Tool Changer Type | Carousel |
| Tool Capacity | 20 |
| Maximum Tool Diameter | 3.5″ |
| Maximum Tool Weight | 12 lbs |
| Average Tool-to-Tool Time | 4.2 seconds |
| Average Chip-to-Chip Time | 4.5 seconds |
| Tool Taper | CT40 |
The standard 20-pocket carousel tool changer allows multiple machining operations to be performed in a single setup while reducing manual tool changes.
HAAS VF2 2024 – FEEDRATES
| Specification | Value |
|---|---|
| X Rapid Traverse | 1,000 IPM |
| Y Rapid Traverse | 1,000 IPM |
| Z Rapid Traverse | 1,000 IPM |
| Maximum Cutting Feed | 650 IPM |
| X Maximum Thrust | 2,550 lbf |
| Y Maximum Thrust | 2,550 lbf |
| Z Maximum Thrust | 4,200 lbf |
The rapid traverse rates help minimize non-cutting time during positioning and multi-operation machining cycles.
HAAS VF2 2024 – CONTROL SYSTEM
| Specification | Value |
|---|---|
| CNC Control | Haas CNC Control |
| Control Display | Widescreen Monitor |
| Touchscreen | Configuration Dependent |
| Programming | G-Code |
| Program Memory | 1 GB Standard |
| Ethernet | Standard |
| Wi-Fi | Standard |
| HaasConnect | Standard |
| HaasDrop | Standard |
| Rigid Tapping | Standard |
| Advanced Tool Management | Standard |
| Safe Run | Standard |
| Media Display M-Code | M130 |
| ECO Mode | Standard |
The modern Haas control provides features designed to simplify programming, setup, monitoring, and machine connectivity. The standard specification includes 1 GB program memory, Ethernet, Wi-Fi, HaasConnect, HaasDrop, rigid tapping, Safe Run, and Advanced Tool Management.
HAAS VF2 2024 – COOLANT / CHIP MANAGEMENT
| Specification | Value |
|---|---|
| Coolant Capacity | 55 gal |
| Coolant Capacity | 208 L |
| Coolant Pump | Multi-Stage |
| Chip Washdown | Standard |
| Window Air Blast | Standard |
| Through Spindle Coolant | Optional |
| Chip Conveyor | Optional |
| Oil Skimmer | Optional |
The standard 55-gallon coolant system and chip-washdown capability support continuous machining and efficient removal of chips from the work area.
HAAS VF2 2024 – POWER REQUIREMENTS
| Specification | Value |
|---|---|
| Standard Input Voltage | 220 VAC |
| Phase | Three Phase |
| Standard Full Load Amps | 70 A |
| Optional High Voltage | 440 VAC |
| High-Voltage Full Load Amps | 35 A |
| Compressed Air | 4 SCFM @ 100 PSI |
| Minimum Air Pressure | 80 PSI |
Haas specifies 220 VAC three-phase operation for the standard configuration, with an optional high-voltage transformer available for compatible configurations.
HAAS VF2 2024 – DIMENSIONS
| Specification | Value |
|---|---|
| Domestic Shipping Dimensions | 101″ × 99″ × 101″ |
| Export Shipping Dimensions | 98″ × 91.5″ × 100″ |
| Shipping Weight | Approximately 7,800 lbs |
| Shipping Weight | Approximately 3,539 kg |
Actual transportation dimensions may vary depending on optional equipment and the individual machine configuration.
HAAS VF2 2024 – GENERAL INFORMATION
| Item | Details |
|---|---|
| Manufacturer | Haas Automation |
| Model | VF2 |
| Year | 2024 |
| Machine Type | CNC Vertical Machining Center |
| Spindle Type | Inline Direct Drive |
| Spindle Power | 30 HP |
| Spindle Speed | 8,100 RPM |
| Spindle Taper | CT40 |
| Tool Capacity | 20 |
| X Travel | 30″ |
| Y Travel | 16″ |
| Z Travel | 20″ |
| Table Size | 36″ × 14″ |
| Maximum Table Load | 3,000 lbs |
| Controlled Axes | 3 |
| 4th Axis | Optional |
| Coolant Capacity | 55 gal |
These specifications align with Haas’s standard VF2 specifications and documented 2024 used-machine listings.
INDUSTRIES THAT USE HAAS VF2 2024
The HAAS VF2 2024 is suitable for aerospace, automotive, medical, defense, electronics, robotics, industrial equipment, tooling, mold and die, and general contract manufacturing.
The machine can process aluminum, steel, stainless steel, plastics, and many other engineering materials using appropriate tooling and machining parameters.
TYPICAL PARTS HAAS VF2 2024 CAN PRODUCE
A HAAS VF2 2024 can manufacture aerospace brackets, automotive components, fixture plates, tooling, molds, manifolds, housings, machine components, robotics parts, medical components, and general precision-machined parts.
Typical operations include milling, drilling, tapping, pocketing, boring, contouring, chamfering, engraving, and finishing.
With optional rotary equipment, the VF2 can also be configured for indexed or multi-sided machining applications.
WHY CHOOSE HAAS VF2 2024
The HAAS VF2 2024 is a strong choice for manufacturers that need a compact but capable vertical machining center. Its 30 × 16 × 20 inch travels, 30 HP spindle, 8,100 RPM speed, 20-tool capacity, 3,000-pound table load, and modern Haas control provide a well-rounded combination of production capability and flexibility.
The machine is also highly configurable, allowing buyers to select options such as probing, rotary equipment, chip conveyors, through-spindle coolant, higher-performance spindles, and other productivity features.
WHY BUY USED HAAS VF2 2024
Buying a used HAAS VF2 2024 can provide access to a relatively recent CNC machining center while reducing the initial investment compared with purchasing a new machine.
A 2024 machine may also offer considerably newer electronics, controls, connectivity, and mechanical components than older used VF2 models. This can be valuable for shops that want modern production capabilities without purchasing brand-new equipment.
The condition of the specific machine should still be verified. Buyers should inspect spindle hours, power-on hours, servo hours, feed time, machine geometry, axis movement, tool changer operation, coolant system, control functions, and maintenance history.
A documented 2024 VF2 currently listed on the used market has very low recorded usage and includes a touchscreen Haas control, rigid tapping, 20-tool changer, 55-gallon coolant tank, Ethernet, Wi-Fi, HaasConnect, and HaasDrop.
HOW MUCH DOES A USED HAAS VF2 2024 COST?
The price of a used HAAS VF2 2024 depends heavily on machine hours, condition, installed options, tooling, rotary equipment, chip-management equipment, and whether the machine is being sold with remaining warranty coverage.
Recent used listings demonstrate that 2024 VF2 machines can vary significantly in configuration. One machine listed in 2026 was described as essentially unused, with only 256 power-on hours, 125 servo hours, and 29 feed hours, while another 2024 VF2 listing included a chip auger, oil skimmer, tooling, and vise.
For used-equipment listing purposes, a reasonable estimated market range for a HAAS VF2 2024 is approximately $45,000 to $65,000 USD, depending on hours, condition, options, tooling, and location. Extremely low-hour machines with desirable options can command more, while higher-hour machines or machines without valuable accessories may trade toward the lower end.
Because a 2024 machine is still relatively new, buyers should place particular emphasis on documented machine hours, remaining warranty, installed options, service history, and overall condition when determining the final purchase price.
Related Products
-

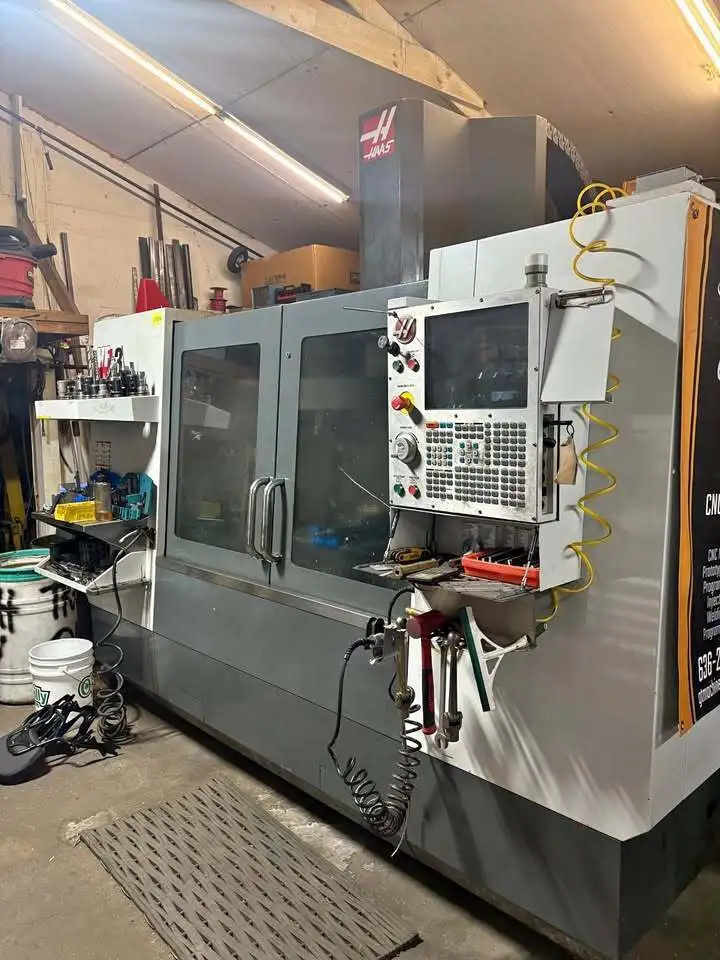

HAAS - VF3
