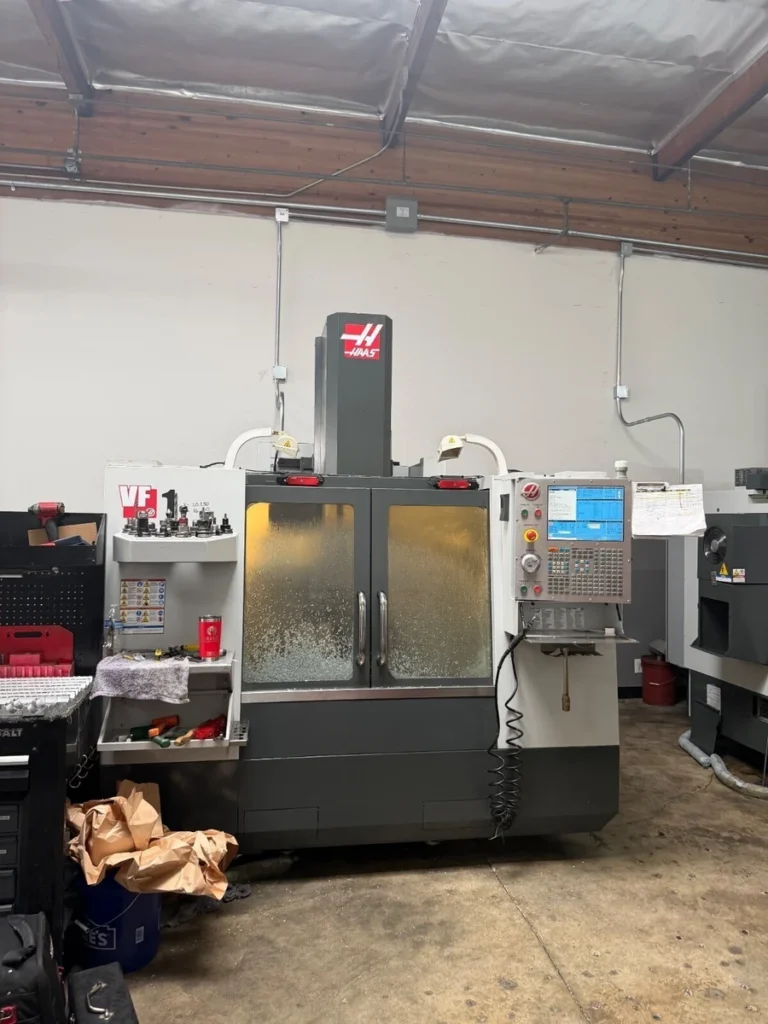

USED HAAS VF1 2013

The HAAS VF1 2013 is a compact 3-axis CNC vertical machining center designed for general-purpose milling, drilling, tapping, boring, contouring, and production machining. The VF1 is one of the foundational models in the Haas VF Series and is widely used by job shops, manufacturers, maintenance departments, educational facilities, and production environments because of its relatively compact footprint and practical machining envelope.

A documented 2013 Haas VF1 is equipped with 20″ × 16″ × 20″ X/Y/Z travels, an 8,100 RPM spindle, 20-station automatic tool changer, Haas CNC control, chip auger, rigid tapping, and USB connectivity.

The VF1 provides a 40-taper spindle and a table measuring approximately 26″ × 14″. Current Haas specifications for the VF1 platform identify a 30 HP spindle, 8,100 RPM maximum speed, 20-tool carousel, and 1,000 IPM rapid traverse rates. Because equipment and options changed over the years, specifications for a specific 2013 machine should be confirmed from its serial number and original build configuration.

The machine is well suited for machining aluminum, steel, stainless steel, plastics, and other common materials, depending on tooling, workholding, spindle configuration, and cutting conditions.

HAAS VF1 2013 – AXIS

The 20″ × 16″ × 20″ travel envelope provides useful capacity for small-to-medium machining jobs while keeping the VF1 relatively compact. A documented 2013 machine also included a 4th-axis interface.

HAAS VF1 2013 – WORK ENVELOPE

The table provides sufficient room for fixtures, vises, rotary devices, and multiple smaller workpieces. Haas currently lists a maximum evenly distributed table load of 3,000 pounds.

HAAS VF1 2013 – SPINDLE

The standard VF1 platform is built around a direct-drive 40-taper spindle. Haas currently specifies an 8,100 RPM, 30 HP spindle, while a documented 2013 machine lists a 20 HP spindle and 7,500 RPM configuration. This illustrates why the exact spindle specifications should be verified for the individual 2013 machine.

HAAS VF1 2013 – TOOL CHANGER

The 20-station automatic tool changer provides enough capacity for many general machining jobs without requiring frequent tool changes or manual intervention.

HAAS VF1 2013 – FEEDRATES

These rapid traverse rates allow efficient movement between machining operations and help reduce non-cutting time.

HAAS VF1 2013 – CONTROL SYSTEM

A documented 2013 VF1 includes 1 MB memory, rigid tapping, and USB ports, while another 2013 listing identifies a 4th-axis interface and remote handwheel among its equipment.

HAAS VF1 2013 – COOLANT AND CHIP MANAGEMENT

A documented 2013 machine includes a chip auger, coolant, programmable coolant nozzle, and low-voltage work light.

HAAS VF1 2013 – MACHINE DIMENSIONS

Dimensions and weight can vary according to chip-management equipment, coolant configuration, options, and electrical configuration. One documented 2013 VF1 is listed at 3,220 kg.

HAAS VF1 2013 – GENERAL INFORMATION

The exact configuration of an individual 2013 machine should be verified before publishing final specifications because Haas offered numerous options and machine configurations.

INDUSTRIES THAT USE HAAS VF1 2013

The HAAS VF1 is suitable for:

• General manufacturing
• Automotive
• Aerospace
• Industrial machinery
• Fabrication
• Tool and die
• Prototyping
• Maintenance and repair
• Job shops
• Education and technical training
• Small-batch production

Its compact footprint and 3-axis configuration make it particularly useful for shops machining smaller and medium-sized components.

TYPICAL PARTS HAAS VF1 2013 CAN PRODUCE

The machine can produce:

• Brackets
• Plates
• Fixtures
• Housings
• Mounting components
• Tooling components
• Machine components
• Automotive parts
• Aluminum components
• Prototype parts
• Production components
• Precision mechanical parts

Typical operations include face milling, pocketing, profiling, contouring, drilling, tapping, boring, reaming, chamfering, and 3D machining.

WHY CHOOSE HAAS VF1 2013

The main advantage of the HAAS VF1 2013 is its balance of machining capability, compact size, and straightforward operation.

With 20″ × 16″ × 20″ X/Y/Z travels, a 40-taper spindle, 20-tool automatic changer, and rapid traverse rates of up to approximately 1,000 IPM on the current VF1 platform, the machine is capable of handling a wide variety of general machining applications.

The VF1 is also practical for shops that do not require the larger work envelope of a VF2, VF3, or larger Haas model. Its 3-axis design is well suited to jobs involving plates, brackets, housings, fixtures, and other components that can be efficiently machined from a standard orientation.

A documented 2013 machine includes rigid tapping, USB connectivity, chip auger, coolant, programmable coolant nozzle, and a 4th-axis interface, making a properly equipped used example particularly versatile.

WHY BUY USED HAAS VF1 2013

Buying a used HAAS VF1 2013 can provide a manufacturer or job shop with a capable 3-axis vertical machining center without the capital expense of purchasing a new machine.

The machine’s 20″ X travel, 16″ Y travel, and 20″ Z travel provide a practical work envelope for a broad range of machining applications. Its 20-tool automatic changer allows multiple operations to be programmed into a single cycle, while the 40-taper spindle is suitable for common milling and drilling applications.

When evaluating a used 2013 VF1, buyers should inspect the spindle bearings, spindle taper, X/Y/Z ballscrews, linear guides, axis backlash, tool changer, drawbar, Haas control, coolant system, chip auger, lubrication system, and machine geometry.

A test cut should be performed to check positioning accuracy, repeatability, spindle vibration, surface finish, tool-change operation, and overall machine condition.

HOW MUCH DOES A USED HAAS VF1 2013 COST?

The price of a used HAAS VF1 2013 depends on spindle hours, cutting hours, overall mechanical condition, spindle configuration, control options, tool changer condition, coolant system, chip auger, fourth-axis interface, tooling, maintenance history, and location.

For used-equipment listing purposes, a reasonable broad estimate for a used HAAS VF1 2013 is approximately $20,000 to $35,000 USD, depending heavily on condition, hours, configuration, and included accessories.

A clean VF1 with a healthy spindle, functioning Haas control, 20-station tool changer, chip auger, coolant system, rigid tapping, USB connectivity, and good machine geometry can command a premium. Machines requiring spindle repairs, ballscrew replacement, control repairs, tool-changer service, or geometric correction can be worth considerably less.

Before determining the final selling price, buyers should verify spindle condition, X/Y/Z-axis accuracy, ballscrew backlash, tool changer operation, drawbar condition, control functionality, coolant system, chip auger, lubrication system, and machine geometry.
