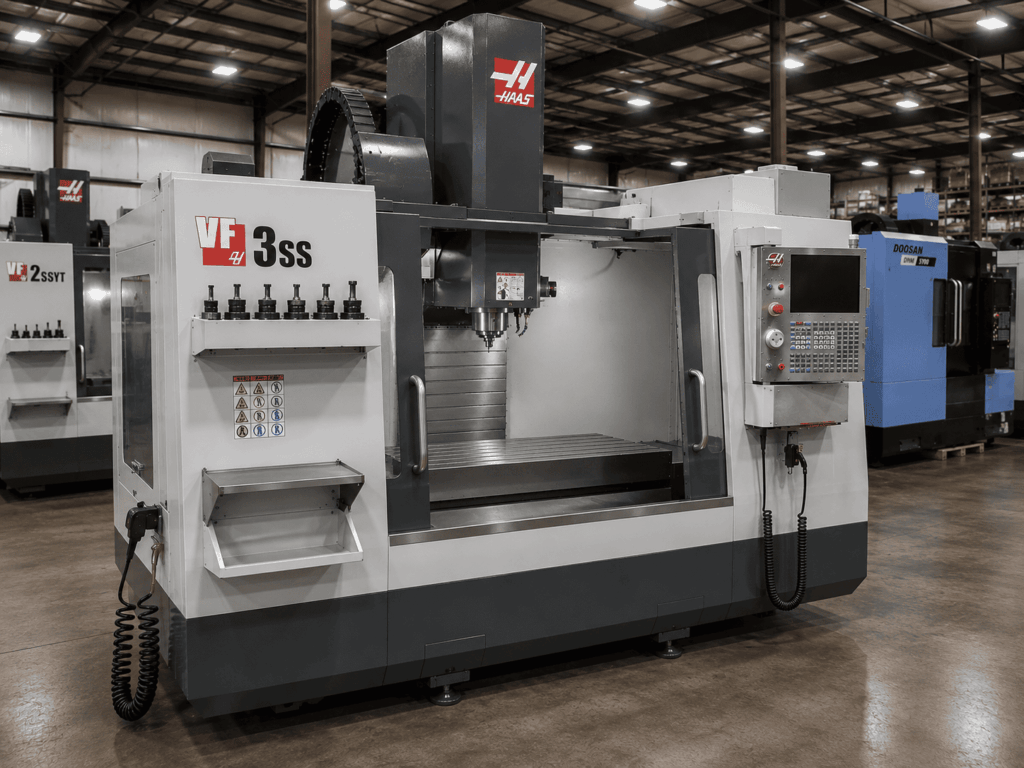

USED HAAS VF-3SS – 2004

The 2004 Haas VF-3SS is a high-speed 3-axis CNC vertical machining center (VMC) engineered for manufacturers that demand faster cycle times, exceptional machining accuracy, and maximum production efficiency. Manufactured by Haas Automation, the VF-3SS is the Super Speed version of the popular VF-3, combining a larger work envelope with a high-speed spindle, ultra-fast rapid traverses, and an advanced side-mount tool changer. These enhancements make the machine an excellent choice for high-volume production, precision machining, mold making, aerospace manufacturing, and medical component production.

Constructed with a rigid cast-iron frame and precision linear guideways, the Haas VF-3SS provides outstanding rigidity while maintaining the speed required for modern manufacturing. The machine offers 40 inches of X-axis travel, 20 inches of Y-axis travel, and 25 inches of Z-axis travel, allowing manufacturers to machine larger workpieces than the VF-2SS while maintaining the same high-speed performance. Equipped with a 12,000 RPM inline direct-drive CAT 40 spindle powered by a 30 HP vector motor, the VF-3SS delivers excellent surface finishes and outstanding material removal rates when machining aluminum, stainless steel, titanium, alloy steels, brass, engineering plastics, and composite materials. The inline spindle design minimizes vibration, improves thermal stability, and provides consistent cutting performance for both roughing and finishing operations.

The 2004 model is commonly equipped with the Classic Haas CNC Control, offering intuitive G-code programming, rigid tapping, programmable coolant, and reliable production performance. A 30+1 side-mount automatic tool changer enables exceptionally fast tool changes, while rapid traverse rates of up to 1,400 IPM (35.6 m/min) significantly reduce non-cutting time and increase spindle utilization. Optional features such as fourth-axis rotary tables, probing systems, through-spindle coolant, chip conveyors, and high-speed machining software further enhance the machine’s versatility for demanding production environments.

The Haas VF-3SS is widely used throughout the aerospace, automotive, defense, medical, mold and die, electronics, and precision manufacturing industries. Typical applications include aerospace brackets, hydraulic manifolds, molds, fixtures, tooling plates, medical implants, electronic housings, machine components, and production parts requiring tight tolerances. Its combination of high-speed machining, generous work envelope, and dependable reliability has made the VF-3SS one of the most desirable vertical machining centers in the used CNC equipment market.

Purchasing a used 2004 Haas VF-3SS allows manufacturers to obtain high-speed CNC milling capability at a significantly lower investment than purchasing a new machining center. Haas machines are recognized worldwide for their operator-friendly controls, readily available replacement parts, dependable performance, and economical maintenance costs. A properly maintained VF-3SS continues to deliver excellent machining accuracy, reduced cycle times, and long-term reliability, making it an outstanding investment for shops seeking maximum productivity.

HAAS VF-3SS – 2004 SPECIFICATIONS

Axis

Travels / Work Envelope

Table

Spindle

Tool Changer

CNC Control

Coolant / Chip Management

Power Requirements

Dimensions

General Information

HOW MUCH DOES A USED HAAS VF-3SS – 2004 COST?

A used 2004 Haas VF-3SS typically sells for $35,000 to $60,000 USD, depending on spindle hours, machine condition, maintenance history, tooling package, and optional equipment such as a fourth-axis rotary table, probing system, through-spindle coolant, chip conveyor, or additional tooling. Machines with documented maintenance records, low operating hours, and factory-installed options generally command higher resale values because of their production readiness and remaining service life.

Before purchasing a used Haas VF-3SS, buyers should inspect spindle bearings, axis accuracy, ballscrews, lubrication system, tool changer operation, and overall machine geometry. A properly maintained VF-3SS offers exceptional long-term value by combining high-speed machining, fast tool changes, and dependable Haas reliability, making it an excellent investment for manufacturers seeking increased productivity and precision at a competitive cost.

HAAS VF-3SS VS HAAS VF-3 – WHICH ONE TO BUY?

The Haas VF-3SS and Haas VF-3 are mid-size CNC vertical machining centers designed for manufacturers requiring increased machining capacity, rigidity, and dependable production performance. Both machines are part of the Haas VF Series and feature the Haas CNC control system, rigid cast-iron construction, CAT40 spindle tooling, and a large machining envelope. The primary difference between these models is spindle capability, with the Haas VF-3SS featuring a Super-Speed spindle that provides higher RPM, faster acceleration, and improved productivity compared with the standard VF-3.

The Haas VF-3 is a versatile CNC machining center widely used in job shops, aerospace, automotive, medical, mold making, and industrial manufacturing applications. It provides greater work capacity than smaller VF models and is suitable for machining medium-to-large components, fixtures, molds, housings, and production parts. Its combination of affordability, reliability, and performance makes it one of the most popular CNC mills in the industry.

The Haas VF-3SS improves production capability by adding a high-speed Super-Speed spindle designed for faster machining cycles and improved surface finishes. It is especially beneficial for aluminum machining, complex contouring, mold work, small precision components, and production environments where cycle time reduction is important.

Both machines provide excellent accuracy and Haas reliability. The VF-3 is ideal for general-purpose machining applications involving steel, aluminum, plastics, and other materials. The VF-3SS is better suited for manufacturers requiring faster spindle speeds, higher productivity, and improved performance in high-speed machining applications.

For shops focused on standard milling operations, the Haas VF-3 offers excellent value. However, manufacturers looking for increased production efficiency and faster machining performance will benefit from choosing the Haas VF-3SS.

HAAS VF-3SS SPINDLE NOT TURNING – CAUSES AND TROUBLESHOOTING

If the spindle on a Haas VF-3SS does not turn, the problem may be caused by spindle drive faults, electrical issues, machine safety conditions, lubrication failures, cooling problems, or CNC programming errors. Because the VF-3SS uses a high-speed Super-Speed spindle system, proper troubleshooting is necessary to determine whether the failure is electrical, mechanical, or software related.

Begin by checking the Haas CNC control for active alarms. Emergency stop activation, open enclosure doors, spindle drive faults, lubrication warnings, servo alarms, thermal overload conditions, or tool changer problems can prevent spindle operation. Clear all alarms and confirm that the machine is ready before restarting the spindle.

Inspect the spindle drive system for electrical problems. Loose wiring connections, damaged encoder cables, faulty spindle amplifiers, blown fuses, overheating conditions, or spindle motor overloads may stop spindle rotation. Verify spindle lubrication, cooling systems, compressed air supply, coolant flow, and machine power because these systems protect the spindle and ensure safe operation.

Review the CNC program and machining setup. Missing M03 or M04 spindle commands, incorrect RPM settings, spindle orientation errors, interrupted tool changes, or incorrect machining modes may prevent spindle startup. If maintenance, software updates, or parameter changes have recently occurred, verify spindle-related settings.

If the spindle starts but stops immediately, inspect mechanical components including spindle bearings, tool holders, spindle taper cleanliness, drawbar operation, and excessive cutting loads. High vibration, overheating, or abnormal spindle noise may indicate spindle bearing wear or mechanical damage.

Regular spindle inspections, proper lubrication, clean electrical cabinets, and scheduled maintenance significantly reduce unexpected spindle failures. If spindle alarms continue after basic checks, professional Haas service diagnostics may be required.

HAAS VF-3SS MAINTENANCE AND PREVENTIVE CARE GUIDE

The Haas VF-3SS is a high-performance CNC vertical machining center designed for precision manufacturing and high-speed machining applications. Due to its Super-Speed spindle system and larger machining capacity, regular preventive maintenance is essential for maintaining spindle performance, accuracy, and long-term reliability.

Daily maintenance should include removing chips from the enclosure, spindle taper, tool changer, table, and guideways. Operators should inspect coolant levels, coolant concentration, lubrication oil levels, compressed air supply, spindle cleanliness, and tool holder condition before production begins. Proper cleaning prevents contamination that can affect machine accuracy.

Weekly maintenance should include cleaning electrical cabinet filters, inspecting coolant pumps, coolant nozzles, chip management systems, automatic lubrication systems, spindle air purge systems, and tool changer operation. Guideways, covers, and moving components should be checked for smooth operation.

Monthly inspections should focus on spindle runout, tool retention force, ball screws, linear guideways, encoder cables, electrical connections, coolant filtration systems, lubrication lines, and machine leveling. Coolant tanks should be cleaned regularly to prevent contamination that reduces tool life and machining quality.

Additional preventive maintenance includes monitoring spindle vibration, checking axis backlash, inspecting spindle bearings, replacing filters, maintaining lubrication systems, and verifying machine geometry. Detailed maintenance records allow operators to identify potential problems before they become major repairs.

A consistent maintenance program improves spindle life, machining accuracy, surface finish quality, and production efficiency. The Haas VF-3SS is designed for demanding manufacturing environments, and proper preventive care ensures dependable performance throughout its operating life.

FAQ

What is the Haas VF-3SS?

The Haas VF-3SS is a Super-Speed CNC vertical machining center designed for manufacturers requiring faster machining cycles, increased productivity, and reliable precision milling capability. It features a high-speed spindle, CAT40 tooling system, Haas CNC control, automatic tool changer, rigid cast-iron construction, and a large work envelope for machining medium-to-large components.

The VF-3SS is widely used in aerospace, automotive, medical, mold making, electronics, and general manufacturing industries. It is suitable for producing precision components, fixtures, molds, prototypes, and production parts where speed and accuracy are critical. The Super-Speed spindle makes it especially valuable for aluminum machining, high-speed contouring, and applications requiring shorter cycle times.

What are the most common problems with the Haas VF-3SS?

The most common problems with the Haas VF-3SS include spindle alarms, automatic tool changer faults, lubrication system warnings, encoder errors, servo drive alarms, coolant contamination, spindle orientation issues, drawbar problems, tool retention issues, electrical communication faults, and axis positioning errors.

Because the VF-3SS operates with a high-speed spindle, proper lubrication, cooling, and maintenance are especially important. Problems may develop due to insufficient lubrication, coolant contamination, excessive cutting loads, component wear, or improper operating procedures. Regular spindle inspections, coolant management, lubrication checks, and scheduled preventive maintenance help minimize downtime and maintain reliable machine performance.
