Used HAAS VF2SS 2025 CNC Machine For Sale -Illinois - USA

HAAS VF2SS

MAKE: HAAS
MODEL: VF2SS
TYPE: Vertical Machines
YEAR: 2025
SKU: 102036
DEALER: 520 Machinery Sales
COUNTRY: USA
STATE: Illinois

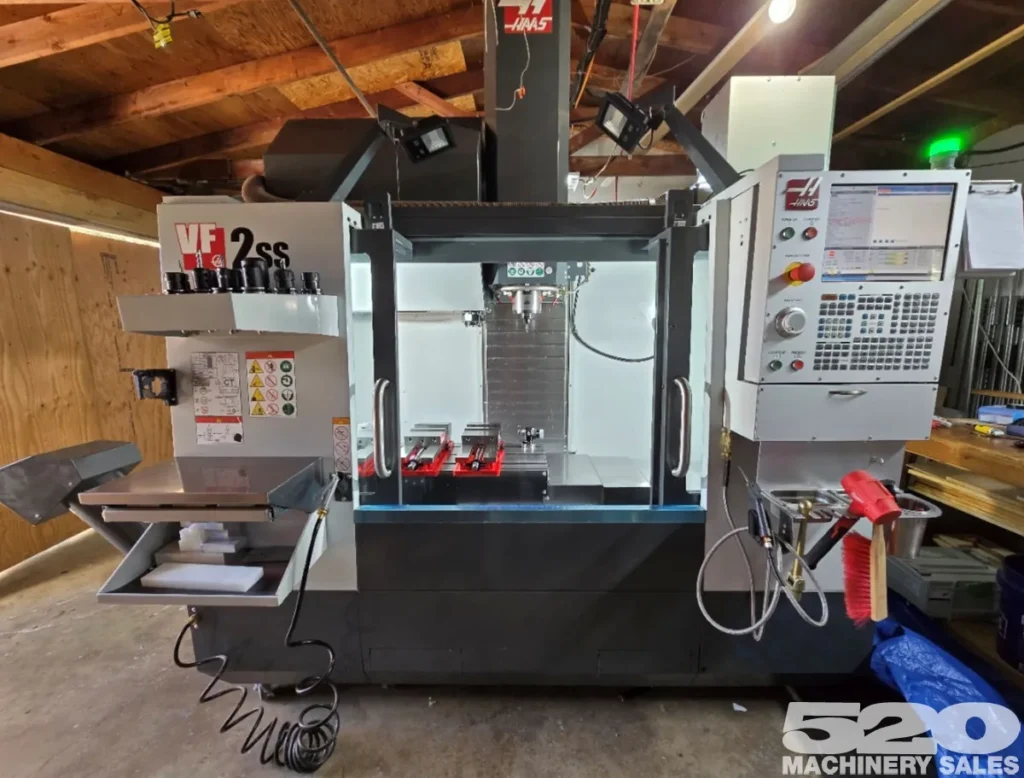

USED HAAS VF-2SS – 2025

The HAAS VF-2SS (Super Speed) is one of the most widely used high-speed vertical machining centers manufactured by Haas Automation. The 2025 model offers exceptional productivity, precision, and ease of use for machine shops engaged in prototype work, short-run production, and high-volume manufacturing. Designed for rapid tool changes and fast axis movements, the VF-2SS is ideal for aerospace, medical, automotive, electronics, and general precision machining applications.

Built on a rigid cast-iron frame, the VF-2SS features linear guideways, digital servo drives, and the latest Haas CNC control. Standard equipment includes a 12,000 RPM inline direct-drive spindle, a 30+1 side-mount automatic tool changer, and rapid traverse rates up to 1,400 inches per minute. These features minimize non-cutting time and significantly improve throughput in demanding machining environments.

The machine is capable of machining aluminum, steel, stainless steel, titanium, plastics, and composites with excellent surface finish and repeatability. Optional features such as through-spindle coolant, wireless probing, rotary tables, and automation interfaces expand its capabilities even further. The VF-2SS is commonly used to manufacture aerospace brackets, mold components, medical parts, fixtures, and custom precision components.

The 2025 model includes advanced networking, remote monitoring, and improved software functionality. With strong global support, abundant parts availability, and a user-friendly control system, the HAAS VF-2SS remains one of the most dependable and cost-effective machining centers available.


HAAS VF-2SS SPECIFICATIONS

HAAS VF-2SS – AXIS
Number of Axes3-Axis Vertical Machining Center
Optional Rotary Axes4th and 5th Axis Compatible
Axis ConfigurationX, Y, Z
Positioning AccuracyHigh Precision
RepeatabilityExcellent
Machine TypeVertical Machining Center
HAAS VF-2SS – AXIS TRAVELS
X-Axis Travel30 in (762 mm)
Y-Axis Travel16 in (406 mm)
Z-Axis Travel20 in (508 mm)
Spindle Nose to Table4 – 24 in
Rapid Traverse Rate1,400 ipm (35.6 m/min)
Guideway TypeLinear Guideways
HAAS VF-2SS – CAPACITY
Maximum Table Load1,500 lb (680 kg)
Maximum Workpiece SizeMedium Precision Components
Material CapabilityAluminum, Steel, Titanium, Plastics
Production TypePrototype to High-Volume
Workholding CompatibilityVises, Fixtures, Rotary Tables
Industrial UsagePrecision Manufacturing
HAAS VF-2SS – SPINDLE
Standard Spindle Speed12,000 RPM
Optional Spindle Speed15,000 RPM
Spindle Motor Power30 hp (22.4 kW)
Spindle TaperCAT 40
Spindle TypeInline Direct Drive
Cooling SystemAir/Oil Lubricated
HAAS VF-2SS – TABLE
Table Size36 x 14 in (914 x 356 mm)
T-Slots3
Maximum Table Load1,500 lb (680 kg)
Table Surface HeightApprox. 34 in
Workholding SupportStandard Fixtures
Rotary Table CompatibleYes
HAAS VF-2SS – TOOL TURRET
Tool Changer Capacity30+1 Side-Mount
Tool Change SystemAutomatic
Tool-to-Tool TimeApprox. 1.6 sec
Chip-to-Chip TimeApprox. 2.4 sec
Maximum Tool Diameter3.5 in Standard
Maximum Tool Weight12 lb (5.4 kg)
HAAS VF-2SS – FEEDRATES
Maximum Cutting Feed Rate833 ipm (21.2 m/min)
X-Axis Rapid Feed1,400 ipm
Y-Axis Rapid Feed1,400 ipm
Z-Axis Rapid Feed1,400 ipm
Servo SystemBrushless Digital Servo
High-Speed MachiningYes
HAAS VF-2SS – COOLANT & CHIP MANAGEMENT
Flood Coolant SystemStandard
Through Spindle CoolantOptional
Programmable Coolant NozzleStandard
Chip AugerStandard
Chip ConveyorOptional
Coolant FiltrationIntegrated
HAAS VF-2SS – CONTROL SYSTEM
CNC Control BrandHaas CNC Control
Touchscreen InterfaceYes
Wireless NetworkingStandard
USB PortsYes
Remote MonitoringHaasConnect Compatible
Conversational ProgrammingVPS Templates
HAAS VF-2SS – POWER & AIR REQUIREMENTS
Power Requirement3-Phase
Voltage220V / 380V / 440V
Air Pressure Requirement100 psi
Frequency50 / 60 Hz
Pneumatic RequirementYes
Connected LoadIndustrial Shop Power
HAAS VF-2SS – DIMENSIONS
Machine LengthApprox. 2,540 mm
Machine WidthApprox. 2,300 mm
Machine HeightApprox. 2,700 mm
Machine WeightApprox. 3,600 kg
Floor Space RequirementMedium Footprint
Installation TypeStandard Shop Floor
HAAS VF-2SS – GENERAL INFORMATION
Machine TypeVertical Machining Center
ManufacturerHaas Automation
Country of OriginUSA
Model Year2025
Production EnvironmentPrecision Manufacturing
Automation ReadyYes
INDUSTRIES THAT USE HAAS VF-2SS
AerospaceBrackets and Structural Parts
MedicalSurgical Instruments and Implants
AutomotivePrototype and Production Components
ElectronicsPrecision Housings
Tool & DieMolds and Fixtures
General ManufacturingCustom Machined Parts
TYPICAL PARTS HAAS VF-2SS CAN PRODUCE
Aerospace BracketsYes
Medical ComponentsYes
Mold InsertsYes
Automotive PartsYes
Custom FixturesYes
Precision HousingsYes
WHY CHOOSE HAAS VF-2SS
High-Speed ProductivityExcellent
Ease of ProgrammingOutstanding
Broad Industry AcceptanceVery High
Automation CompatibilityExcellent
Service SupportExtensive
Cost EfficiencyExcellent

WHY BUY USED HAAS VF-2SS

Purchasing a used HAAS VF-2SS is an excellent way to acquire a high-speed vertical machining center with proven reliability and strong aftermarket support at a significantly lower cost than buying new. The VF-2SS is among the most recognized CNC machines in the industry, making it easy to find trained operators, spare parts, and service support.

Many used VF-2SS machines include valuable options such as through-spindle coolant, probing systems, chip conveyors, and rotary tables. These accessories can substantially improve productivity and reduce setup time. Buying used also eliminates long factory lead times, allowing manufacturers to increase capacity quickly.

The machine’s user-friendly control and broad application range make it ideal for both experienced machinists and newer operators. Because of its popularity and dependable performance, the HAAS VF-2SS maintains strong resale value and remains one of the best investments in the used CNC machinery market.


HOW MUCH DOES A USED HAAS VF-2SS COST?

MACHINE AGE / CONDITIONESTIMATED PRICE RANGE (USD)
2000 – 2008 Models$20,000 – $40,000
2009 – 2015 Models$35,000 – $65,000
2016 – 2020 Models$60,000 – $95,000
2021 – 2024 Models$90,000 – $140,000
2025 Models$130,000 – $180,000+
Low Cutting HoursPremium Pricing
Well-Maintained MachinesHigher Market Value
High Production UsageLower Market Value
Refurbished Machines15% – 30% Higher
Fully Equipped MachinesSignificant Premium

The cost of a used HAAS VF-2SS varies based on machine age, spindle hours, installed options, and maintenance history. Machines from the early 2000s remain affordable and are popular among smaller shops and educational institutions. Newer machines with advanced options and low cutting hours command substantially higher prices.

A lightly used 2025 model with premium options such as probing, through-spindle coolant, and automation interfaces may sell close to the cost of a new machine. Cutting hours are one of the most important pricing factors; machines used mainly for aluminum and prototype work generally retain higher value than those used continuously for heavy steel production.

Additional tooling, vises, rotary tables, and inspection equipment can significantly increase package value. For buyers seeking speed, reliability, and easy operation, the HAAS VF-2SS continues to be one of the most desirable vertical machining centers in the used CNC market.
