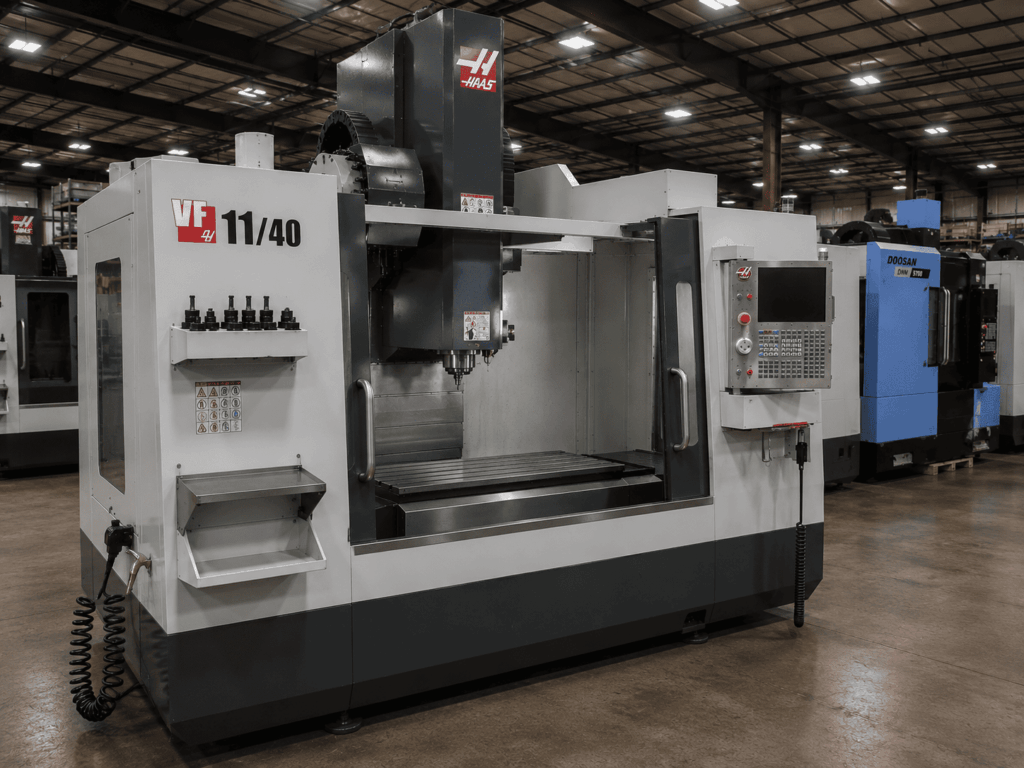

USED HAAS VF-11/40 – 2005

The 2005 Haas VF-11/40 is a large-format 3-axis CNC vertical machining center (VMC) designed for machining oversized workpieces that require long travel, high precision, and exceptional rigidity. Manufactured by Haas Automation, the VF-11/40 is part of the company’s large-frame VF Series and is widely used for machining large weldments, structural components, tooling, fixtures, molds, aerospace assemblies, and heavy industrial parts. Its expansive work envelope and proven Haas reliability make it a valuable asset for manufacturers handling large-scale machining applications.

Built on a heavily ribbed cast-iron structure, the Haas VF-11/40 delivers outstanding rigidity and vibration damping during heavy milling operations. The machine offers an impressive 120 inches of X-axis travel, 40 inches of Y-axis travel, and 30 inches of Z-axis travel, making it capable of machining long and oversized components in a single setup. Equipped with a CAT 40 spindle, the 2005 model typically features an 8,100 RPM inline direct-drive spindle powered by a 30 HP vector drive, providing excellent performance for machining aluminum, steel, stainless steel, cast iron, titanium, and engineering plastics. Its rigid spindle design enables efficient roughing while maintaining the precision required for finishing operations.

The machine is commonly equipped with the Classic Haas CNC Control, offering intuitive G-code programming, rigid tapping, programmable coolant, Ethernet connectivity, and user-friendly operation. A 30+1 side-mount automatic tool changer minimizes non-cutting time and supports long machining cycles with multiple tools readily available. Optional features such as a programmable coolant nozzle, chip auger, chip conveyor, probing system, rotary tables, and fourth-axis integration further enhance productivity and machining flexibility for demanding manufacturing environments.

The Haas VF-11/40 is widely used throughout the aerospace, defense, transportation, energy, agricultural equipment, mold and die, and general manufacturing industries. Typical applications include aircraft structural components, machine bases, tooling plates, molds, fixtures, chassis components, heavy equipment parts, and large fabricated assemblies. Its generous travel capacity reduces the need for multiple setups, improving machining accuracy and production efficiency.

Purchasing a used 2005 Haas VF-11/40 allows manufacturers to acquire a large-capacity CNC machining center at a significantly lower investment than purchasing new equipment. Haas machines are recognized worldwide for their dependable performance, straightforward maintenance, widely available replacement parts, and operator-friendly controls. A properly maintained VF-11/40 continues to deliver reliable production, excellent machining accuracy, and long-term value, making it one of the most desirable large-frame vertical machining centers in the used CNC market.

HAAS VF-11/40 – 2005 SPECIFICATIONS

Axis

Travels / Work Envelope

Table

Spindle

Tool Changer

CNC Control

Coolant / Chip Management

Power Requirements

Dimensions

General Information

HOW MUCH DOES A USED HAAS VF-11/40 – 2005 COST?

A used 2005 Haas VF-11/40 typically sells for $70,000 to $130,000 USD, depending on spindle hours, overall machine condition, maintenance history, tooling package, and installed options such as rotary tables, probing systems, chip conveyors, high-pressure coolant, or gearbox upgrades. Machines with documented maintenance records, low operating hours, and factory-installed options generally command higher resale values because of their production readiness and remaining service life.

Before purchasing a used Haas VF-11/40, buyers should inspect spindle condition, axis accuracy, ballscrews, guideways, lubrication system, tool changer operation, and overall machine geometry. A well-maintained VF-11/40 provides outstanding value by offering an exceptionally large machining envelope, reliable performance, and the flexibility to produce oversized precision components while significantly reducing setup time compared to smaller machining centers.

HAAS VF-11/40 VS HAAS VF-10/40 – WHICH ONE TO BUY?

The Haas VF-11/40 and Haas VF-10/40 are large-format CNC vertical machining centers designed for manufacturers requiring extended machining capacity, high rigidity, and reliable production performance. Both machines are part of the Haas VF Series and feature Haas CNC control technology, rigid cast-iron construction, CAT40 spindle tooling, and powerful machining capabilities. The main difference between these two models is machining envelope, with the Haas VF-11/40 providing greater X-axis travel and additional workpiece capacity compared with the VF-10/40.

The Haas VF-10/40 is designed for manufacturers producing medium-to-large components that require precision milling, drilling, tapping, and contouring. It provides a large work envelope while maintaining the reliability and ease of operation associated with Haas vertical machining centers. It is commonly used in aerospace, automotive, industrial equipment, mold making, and general manufacturing applications.

The Haas VF-11/40 expands machining capability with additional X-axis travel, allowing manufacturers to handle longer workpieces, larger fixtures, and more complex machining operations. The increased capacity makes it suitable for large plates, molds, structural components, housings, and industrial parts requiring extended machining areas.

Both machines deliver strong cutting performance, accurate positioning, and dependable Haas control operation. The VF-10/40 is suitable for shops requiring large machining capability but with slightly smaller part requirements, while the VF-11/40 is better suited for manufacturers working with larger components and demanding applications.

For companies expecting future growth or regularly machining oversized workpieces, the Haas VF-11/40 is often the better investment because the larger work envelope provides greater flexibility and reduces limitations when handling complex jobs.

HAAS VF-11/40 SPINDLE NOT TURNING – CAUSES AND TROUBLESHOOTING

If the spindle on a Haas VF-11/40 does not turn, the issue may be caused by spindle drive faults, electrical problems, machine safety conditions, lubrication failures, or CNC programming errors. Because the VF-11/40 is a large vertical machining center designed for heavy-duty applications, proper troubleshooting is important to prevent production delays and component damage.

Begin by checking the Haas CNC control for active alarms. Emergency stop activation, open enclosure doors, spindle drive faults, lubrication warnings, servo alarms, thermal overload conditions, or tool changer issues can prevent spindle operation. Clear all alarms and confirm that the machine is ready before restarting the spindle.

Inspect the spindle drive system for electrical issues. Loose wiring connections, damaged encoder cables, faulty spindle amplifiers, blown fuses, overheating conditions, or spindle motor overloads may prevent spindle rotation. Verify spindle lubrication, cooling systems, compressed air supply, coolant flow, and machine power because these systems are critical for protecting the spindle assembly.

Review the CNC program and setup conditions. Incorrect M03 or M04 spindle commands, improper RPM settings, spindle orientation problems, interrupted tool changes, or incorrect machining modes may prevent spindle startup. If maintenance, software updates, or parameter changes have recently been performed, verify spindle settings.

If the spindle attempts to start but stops immediately, inspect mechanical components such as spindle bearings, tool holders, spindle taper cleanliness, drawbar operation, and excessive cutting forces. Excessive vibration, overheating, or unusual spindle noise may indicate spindle wear.

Regular preventive maintenance, proper lubrication, electrical inspections, and spindle monitoring significantly reduce unexpected failures. If spindle alarms continue after basic troubleshooting, professional Haas service diagnostics should be performed.

HAAS VF-11/40 MAINTENANCE AND PREVENTIVE CARE GUIDE

The Haas VF-11/40 is a large CNC vertical machining center designed for demanding production environments. Due to its extended travels, heavy cutting capability, and large work envelope, regular preventive maintenance is essential for maintaining accuracy, reliability, and long-term performance.

Daily maintenance should include removing chips from the enclosure, spindle taper, tool changer, table, and guideways. Operators should inspect coolant levels, coolant concentration, lubrication oil levels, compressed air supply, spindle cleanliness, and tool holder condition before starting production. Proper chip removal is especially important on large machines to prevent contamination of moving components.

Weekly maintenance should include cleaning electrical cabinet filters, checking coolant pumps, coolant nozzles, chip management systems, automatic lubrication systems, spindle air purge systems, and tool changer operation. Guideways and covers should be inspected to ensure smooth axis movement.

Monthly inspections should focus on spindle runout, tool retention force, ball screws, linear guideways, encoder cables, electrical connections, coolant filtration systems, lubrication lines, and machine leveling. Coolant tanks should be cleaned regularly to prevent contamination that affects tool life and machining quality.

Additional preventive maintenance includes monitoring spindle vibration, checking axis backlash, inspecting spindle bearings, replacing filters, maintaining lubrication systems, and verifying machine geometry. Detailed maintenance records help identify developing issues before they become expensive repairs.

A consistent maintenance program improves spindle life, machining accuracy, surface finish quality, and overall machine productivity. The Haas VF-11/40 is built for large-scale precision machining, and proper preventive care ensures reliable operation throughout its service life.

FAQ

What is the Haas VF-11/40?

The Haas VF-11/40 is a large-format CNC vertical machining center designed for machining large and complex components requiring extended axis travel and high rigidity. It features a CAT40 spindle system, rigid cast-iron construction, Haas CNC control, automatic tool changer, and large machining envelope for handling oversized workpieces.

The VF-11/40 is commonly used in aerospace, automotive, industrial equipment, energy, mold making, and heavy manufacturing industries. It is suitable for producing large plates, fixtures, molds, housings, structural components, and precision industrial parts requiring accurate milling, drilling, tapping, and contouring operations.

What are the most common problems with the Haas VF-11/40?

The most common problems with the Haas VF-11/40 include spindle alarms, automatic tool changer faults, lubrication system warnings, encoder errors, servo drive alarms, coolant contamination, spindle orientation issues, tool retention problems, axis positioning errors, electrical communication faults, and chip management problems.

Due to its large size and heavy-duty machining capability, issues may also develop from improper lubrication, excessive cutting loads, insufficient maintenance, or component wear. Regular preventive maintenance, proper coolant management, lubrication checks, spindle inspections, and scheduled service help reduce downtime and maintain reliable machine performance.
