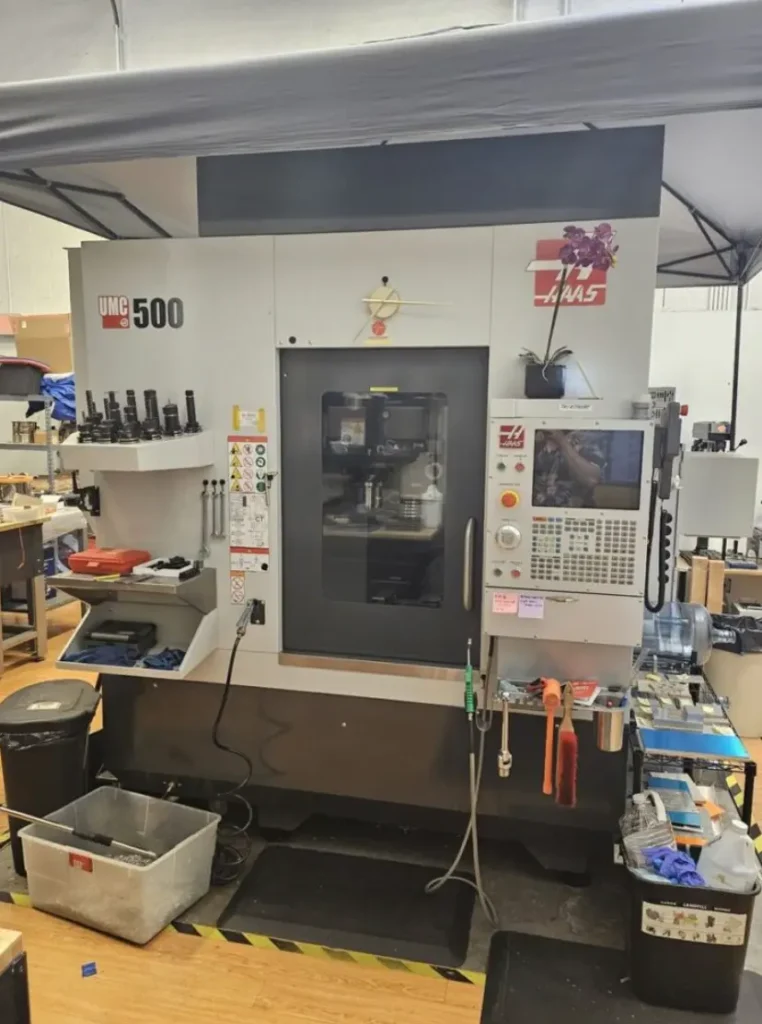

USED HAAS UMC 500 2023

The HAAS UMC 500 2023 is a compact 5-axis CNC universal machining center designed for manufacturers that need simultaneous multi-axis machining, reduced setups, and accurate machining of complex multi-sided components. The UMC 500 belongs to Haas Automation’s UMC Series and is particularly suited to shops machining smaller and medium-sized parts where 3+2 positioning and simultaneous 5-axis interpolation can provide significant productivity advantages. Haas describes the UMC 500 as a solution for complex parts where reducing setups can improve accuracy and production efficiency.

The machine provides 24″ × 16″ × 16″ X/Y/Z travels, a 400 mm diameter platter, and a dual-axis trunnion incorporating a tilting B-axis and rotating C-axis. The standard machine has an 8,100 RPM, 30 HP inline direct-drive spindle, 40-taper tooling, and a 30+1 side-mount tool changer.

The B-axis tilts from approximately -35° to +120°, while the C-axis provides 360° rotation, allowing the machine to reach multiple surfaces and complex angular features without repeatedly repositioning the workpiece. This makes the UMC 500 especially valuable for aerospace, automotive, medical, defense, energy, mold and die, precision engineering, and general job-shop applications.

HAAS UMC 500 2023 – AXIS

The UMC 500’s five-axis configuration allows both indexed 3+2 machining and simultaneous five-axis operations.

HAAS UMC 500 2023 – WORK ENVELOPE

The 400 mm platter and 500-pound standard workholding capacity make the UMC 500 well suited to relatively compact but complex components.

HAAS UMC 500 2023 – SPINDLE

The standard UMC 500 uses an 8,100 RPM, 30 HP direct-drive spindle. The available tooling interface can include CT40, BT40, or HSK-A63 depending on configuration.

HAAS UMC 500 2023 – B AND C AXES

The dual-axis trunnion is one of the defining features of the UMC 500, allowing the workpiece to be tilted and rotated for multi-sided and simultaneous five-axis machining.

HAAS UMC 500 2023 – TOOL CHANGER

The standard 30+1 side-mount tool changer provides substantial tool capacity for multi-operation machining, while larger tool-changer configurations are available.

HAAS UMC 500 2023 – FEEDRATES

The rapid traverse rates help minimize positioning time between machining operations, while the machine’s five-axis architecture reduces the need for additional setups.

HAAS UMC 500 2023 – CONTROL SYSTEM

The UMC 500 includes Haas’ modern CNC control architecture with features such as Dynamic Work Offsets, Tool Center Point Control, rigid tapping, wireless probing, Ethernet, Wi-Fi, and 1 GB program memory.

HAAS UMC 500 2023 – COOLANT AND CHIP MANAGEMENT

The standard machine includes a 55-gallon coolant tank and multi-stage coolant pump, while chip conveyors and advanced coolant options can be specified depending on configuration.

HAAS UMC 500 2023 – MACHINE DIMENSIONS

The standard machine is listed at approximately 11,900 pounds, with overall shipping dimensions and weight increasing when options such as chip conveyors and larger tool changers are installed.

HAAS UMC 500 2023 – GENERAL INFORMATION

These are standard UMC 500 platform specifications; a specific 2023 machine should still be checked for installed options and serial-number-specific configuration.

INDUSTRIES THAT USE HAAS UMC 500 2023

The HAAS UMC 500 is suitable for:

• Aerospace
• Automotive
• Medical
• Defense
• Energy
• Electronics
• Precision engineering
• Tool and die
• General manufacturing
• CNC job shops
• Prototyping
• Small-batch production

Its five-axis capability is particularly useful for industries producing complex components with multiple angled surfaces and tight positional requirements.

TYPICAL PARTS HAAS UMC 500 2023 CAN PRODUCE

The machine can produce:

• Aerospace components
• Medical components
• Automotive parts
• Impellers
• Housings
• Brackets
• Fixtures
• Manifolds
• Valve components
• Tooling
• Complex prototypes
• Precision mechanical components

Typical operations include 3+2 machining, simultaneous 5-axis contouring, face milling, pocketing, drilling, tapping, boring, profiling, chamfering, and multi-sided machining.

WHY CHOOSE HAAS UMC 500 2023

The primary advantage of the HAAS UMC 500 2023 is its ability to perform complex machining with fewer setups.

Instead of manually repositioning a component to machine multiple faces, the B-axis and C-axis can position the workpiece automatically. This can improve consistency, reduce setup time, and minimize errors created by moving the component between separate fixtures or machines.

The machine’s 24″ × 16″ × 16″ travels, 400 mm platter, 30 HP spindle, 8,100 RPM speed, 30+1 tool capacity, and full 5-axis capability provide a strong combination of productivity and versatility.

The UMC 500 is also compact compared with many larger five-axis machining centers, making it attractive to manufacturers that need advanced multi-axis capability without dedicating floor space to a much larger machine.

WHY BUY USED HAAS UMC 500 2023

Buying a used HAAS UMC 500 2023 can provide manufacturers with access to relatively modern five-axis machining technology while avoiding the cost of purchasing a new machine.

A 2023 machine can be especially attractive when it has low spindle hours, low cutting hours, complete maintenance records, and desirable options such as probing, rotary scales, through-spindle coolant, chip conveyor, high-pressure coolant, and expanded tool capacity.

The five-axis architecture allows a single setup to handle multiple sides and complex angles, which can reduce fixture requirements and improve overall production efficiency.

When inspecting a used UMC 500, buyers should pay particular attention to spindle condition, B-axis and C-axis accuracy, rotary-axis backlash, trunnion bearings, linear-axis positioning, ballscrews, tool changer operation, probing system, drawbar, coolant system, lubrication, and machine geometry.

A five-axis test cut should ideally be performed before purchase. Rotary-axis accuracy and simultaneous interpolation should be checked carefully because these areas have a direct impact on complex-part accuracy.

HOW MUCH DOES A USED HAAS UMC 500 2023 COST?

The price of a used HAAS UMC 500 2023 depends on spindle hours, cutting hours, machine condition, installed options, tool capacity, probing, coolant system, chip conveyor, rotary scales, maintenance history, tooling, and geographic location.

For used-equipment listing purposes, a reasonable broad estimate for a used HAAS UMC 500 2023 is approximately $100,000 to $160,000 USD, depending heavily on configuration and condition.

A low-hour machine with a healthy 8,100 RPM spindle, 30+1 or larger tool changer, wireless probing, rotary scales, through-spindle coolant, chip conveyor, and excellent five-axis accuracy can command a premium. Machines with significant spindle hours or requiring rotary-axis, spindle, control, or geometric repairs can sell for considerably less.

Before establishing a final selling price, buyers should verify spindle hours, cutting hours, B/C-axis accuracy, rotary-axis backlash, trunnion condition, spindle taper, tool changer operation, probe calibration, axis positioning, coolant system, chip management, control functionality, and overall machine geometry.
