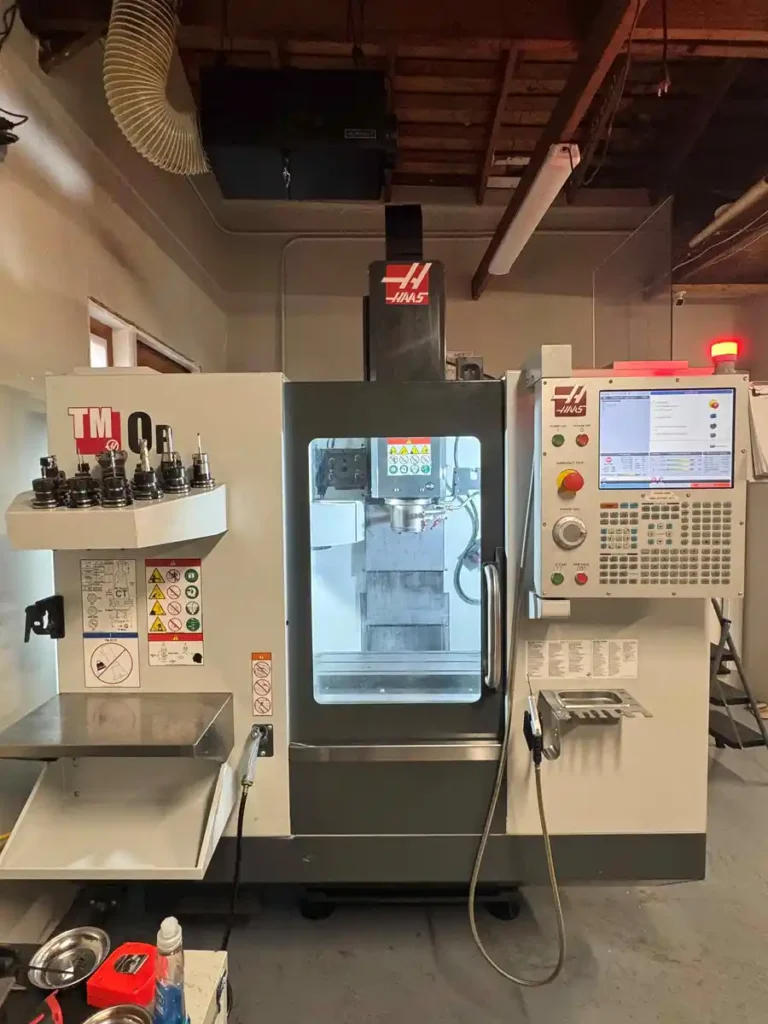

USED HAAS TM0P 2022

The HAAS TM0P 2022 is a compact 3-axis CNC toolroom mill designed for shops that need modern CNC capability in a relatively small footprint. Manufactured by Haas Automation, the TM-0P is the smallest model in the Haas TM-P series and combines the convenience of a toolroom mill with a 10-pocket automatic tool changer, 6,000 RPM spindle, 40-taper tooling, and Haas CNC control. Haas positions the TM-P series for job shops, schools, companies transitioning to CNC, prototyping, tooling, and general-purpose production.

The TM-0P provides 20″ X-axis travel, 12″ Y-axis travel, and 16″ Z-axis travel. Its 38.4″ × 10.5″ table provides a practical work surface for small and medium-size fixtures, brackets, plates, tooling, and prototype components. The machine uses a 7.5 HP direct-speed belt-drive spindle capable of 6,000 RPM, with BT40 or CT40 tooling.

The TM-0P is particularly useful for businesses that require more automation than a manual toolroom mill while still wanting a compact machine. The 10-tool carousel allows several tools to remain loaded, while Haas’ conversational programming system makes the machine accessible even for operators who are not experienced G-code programmers.

HAAS TM0P 2022 – AXIS

Haas lists the TM-0P with 20″ × 12″ × 16″ axis travels and 400 IPM rapid traverse rates.

HAAS TM0P 2022 – WORK ENVELOPE

The TM-0P’s table is designed for compact workholding arrangements while still providing enough space for vises, fixtures, rotary equipment, and tooling plates. Haas lists a 350-pound evenly distributed maximum table load.

HAAS TM0P 2022 – SPINDLE

The 7.5 HP, 6,000 RPM spindle provides a useful balance between cutting power and speed for general-purpose machining. The 40-taper spindle also allows the use of standard industrial tooling.

HAAS TM0P 2022 – TOOL CHANGER

The 10-pocket automatic tool changer is one of the main differences between the TM-0P and a basic manual toolroom mill. It allows machining programs to automatically switch between milling cutters, drills, taps, and other tools.

HAAS TM0P 2022 – FEEDRATES

The 400 IPM rapid rates allow the machine to reposition quickly between machining operations and contribute to the productivity advantage of the TM-P series.

HAAS TM0P 2022 – CONTROL SYSTEM

The TM-0P is equipped around Haas’ user-friendly CNC control and supports conversational programming. Haas also lists Visual Programming System, 1 GB program memory, USB, Ethernet, HaasConnect, a 15-inch color LCD, and power-failure detection for the TM-0P configuration.

HAAS TM0P 2022 – COOLANT AND CHIP MANAGEMENT

The TM-0P platform includes a 76-liter flood coolant system and chip auger, helping manage chips and coolant during automated machining.

HAAS TM0P 2022 – AIR REQUIREMENTS

Adequate compressed air is required for the machine’s pneumatic systems and automatic tool-changing functions.

HAAS TM0P 2022 – ELECTRICAL SPECIFICATIONS

The TM-0P can operate with single- or three-phase power, depending on configuration. Haas lists 220 VAC single-phase and 220/440 VAC three-phase configurations.

HAAS TM0P 2022 – MACHINE DIMENSIONS

Haas lists shipping dimensions of approximately 100″ × 78″ × 99.5″ and a shipping weight of approximately 3,660 pounds.

HAAS TM0P 2022 – GENERAL INFORMATION

These specifications reflect the TM-0P platform specifications published by Haas. Exact options on an individual 2022 used machine should be verified from its serial number and build sheet.

INDUSTRIES THAT USE HAAS TM0P 2022

The HAAS TM0P 2022 is suitable for:

• General manufacturing
• Tool and die
• Aerospace
• Automotive
• Industrial machinery
• Maintenance and repair
• Mold making
• Fabrication
• CNC job shops
• Prototyping
• Educational facilities
• Small-batch production

The compact dimensions make the TM-0P especially attractive to smaller shops and facilities where floor space is limited.

TYPICAL PARTS HAAS TM0P 2022 CAN PRODUCE

The machine can produce:

• Tooling plates
• Fixtures
• Jigs
• Brackets
• Mounting plates
• Prototype components
• Molds
• Dies
• Machine components
• Automotive components
• Industrial components
• Repair components
• Custom tooling

Typical operations include face milling, pocketing, drilling, tapping, boring, contouring, profiling, slotting, chamfering, and reaming.

WHY CHOOSE HAAS TM0P 2022

The HAAS TM0P 2022 offers a strong combination of compact size and CNC capability. Its 20″ X-axis, 12″ Y-axis, and 16″ Z-axis travels provide useful capacity while keeping the machine considerably smaller than many conventional VMCs.

The 7.5 HP, 6,000 RPM spindle gives the machine sufficient power for many general-purpose milling applications while providing the speed needed for smaller tools and finishing operations. The BT40/CT40 taper also gives users access to a large selection of standard tooling.

The 10-tool automatic changer, chip auger, flood coolant, Haas control, conversational programming, Ethernet, USB, and HaasConnect further enhance its usefulness. Haas specifically describes the TM-P machines as easy to learn and suitable for schools and companies transitioning to CNC.

WHY BUY USED HAAS TM0P 2022

Buying a used HAAS TM0P 2022 can provide a relatively modern CNC toolroom mill without the investment required for a brand-new machine.

A 2022 machine can be particularly attractive when it has low spindle hours, good axis condition, a clean electrical cabinet, a properly functioning 10-tool ATC, and a documented maintenance history.

The TM-0P combines 6,000 RPM spindle speed, 7.5 HP spindle power, 40-taper tooling, 400 IPM rapid movement, automatic tool changing, flood coolant, and chip management in a compact platform.

When evaluating a used TM-0P, buyers should inspect the spindle bearings, spindle taper, drawbar, X/Y/Z ballscrews, linear guides, axis backlash, automatic tool changer, CNC control, coolant system, chip auger, lubrication system, electrical cabinet, and overall machine geometry.

A test cut is recommended to verify spindle vibration, surface finish, positioning accuracy, repeatability, axis movement, tool changes, and control functionality.

HOW MUCH DOES A USED HAAS TM0P 2022 COST?

The price of a used HAAS TM0P 2022 depends on spindle hours, cutting hours, condition, options, tooling, probing, fourth-axis equipment, coolant configuration, maintenance history, and geographic location.

The TM-0P was already an established Haas model by 2022, and Haas’ IMTS 2022 material shows the TM-0P being demonstrated at the factory.

There is limited reliable public transaction data specifically for 2022 TM-0P used machines, so pricing should not be treated as a fixed number. For used-equipment listing purposes, a reasonable working estimate is approximately $25,000 to $40,000 USD, depending heavily on condition, hours, installed options, tooling, and location.

A low-hour 2022 machine with a healthy 6,000 RPM spindle, accurate axes, working 10-tool ATC, probing, fourth-axis capability, chip auger, coolant system, and good maintenance history can command a premium.

Before establishing a final selling price, buyers should verify spindle hours, cutting hours, spindle condition, X/Y/Z-axis accuracy, ballscrew backlash, linear-guide condition, ATC operation, drawbar condition, control functionality, probing, coolant system, chip auger, electrical system, lubrication system, tooling, and overall machine geometry.
