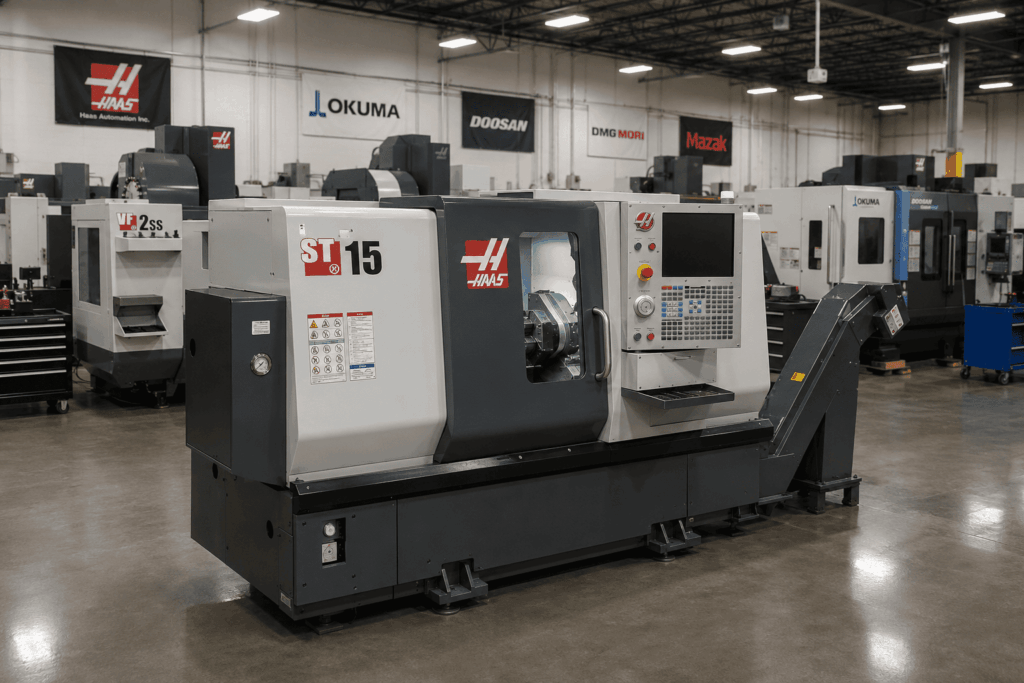

USED HAAS ST-15 – 2018

The 2018 Haas ST-15 is a compact, high-performance CNC turning center designed for precision turning applications where floor space, productivity, and machining accuracy are equally important. Manufactured by Haas Automation, the ST-15 combines a rigid cast-iron construction, high-speed spindle, and user-friendly CNC control to deliver reliable performance for both job shops and high-volume production facilities. With its compact footprint and generous machining capabilities, the ST-15 has become a popular solution for manufacturers producing small to medium-sized precision components across a wide range of industries.

Built on a heavy-duty slant-bed platform, the Haas ST-15 offers excellent rigidity and vibration damping, resulting in improved surface finishes and longer tool life. The machine features a 2.5-inch bar capacity, a 6.5-inch hydraulic chuck, and a powerful spindle capable of reaching 4,000 RPM, making it suitable for machining steel, stainless steel, aluminum, brass, cast iron, titanium, and engineering plastics. Its efficient design enables turning, facing, boring, threading, grooving, drilling, and tapping operations with exceptional repeatability and accuracy. Optional live tooling and C-axis configurations further expand the machine’s capability for secondary milling operations in a single setup.

The 2018 model is equipped with the Haas Next Generation Control (NGC), providing faster processing speeds, improved graphics, intuitive programming, Ethernet connectivity, USB support, and advanced tool management features. The machine also incorporates a 12-station bolt-on turret, high-speed rapid traverses, automatic lubrication, and optional accessories including a chip conveyor, programmable tailstock, parts catcher, and bar feeder interface. These features contribute to shorter setup times, reduced cycle times, and increased overall productivity.

The Haas ST-15 is widely used throughout the aerospace, automotive, medical, electronics, hydraulic, firearms, energy, and general precision manufacturing industries. Typical applications include shafts, bushings, hydraulic fittings, valve components, threaded adapters, medical implants, precision pins, couplings, electrical connectors, and custom-machined parts. Its combination of compact size, robust construction, and dependable performance makes it well suited for both prototype work and continuous production machining.

Purchasing a used 2018 Haas ST-15 provides manufacturers with access to modern CNC turning technology at a significantly lower investment than purchasing new equipment. Haas machines are known worldwide for their ease of operation, dependable performance, readily available replacement parts, and low maintenance costs. A properly maintained ST-15 continues to deliver years of reliable service, making it one of the most sought-after compact CNC lathes on the used equipment market.

HAAS ST-15 – 2018 SPECIFICATIONS

Axis

Travels / Work Envelope

Table / Workholding

Spindle

Tool Changer

CNC Control

Coolant / Chip Management

Power Requirements

Dimensions

General Information

HOW MUCH DOES A USED HAAS ST-15 – 2018 COST?

A used 2018 Haas ST-15 typically sells for $45,000 to $75,000 USD, depending on spindle hours, machine condition, maintenance history, tooling package, and installed options such as live tooling, C-axis, programmable tailstock, bar feeder, parts catcher, chip conveyor, or high-pressure coolant. Machines with low operating hours and documented maintenance records generally command higher prices due to their remaining service life and production readiness.

When purchasing a used Haas ST-15, buyers should inspect spindle bearings, turret indexing accuracy, axis backlash, lubrication system, and overall machine geometry. A well-maintained ST-15 delivers excellent value by providing dependable CNC turning performance, modern control technology, and high production efficiency at a fraction of the cost of a new turning center, making it an outstanding investment for manufacturers seeking reliable and versatile machining capabilities.

HAAS ST-15 VS HAAS ST-15Y – WHICH ONE TO BUY?

The Haas ST-15 and the Haas ST-15Y are compact CNC turning centers built for precision machining, reliability, and high-production efficiency. Both machines share the same rigid cast-iron construction, high-performance spindle, Haas CNC control, and compact footprint. The key difference is that the ST-15Y includes a Y-axis and live tooling capability, allowing milling, drilling, tapping, slotting, and off-center machining to be completed in a single setup. This added functionality makes the ST-15Y a true multitasking turning center, while the ST-15 is optimized for conventional turning operations.

The Haas ST-15 is an excellent choice for manufacturers producing shafts, bushings, pins, sleeves, threaded components, fittings, and other standard turned parts. Its compact size, high spindle speed, and reliable turret make it ideal for job shops, production facilities, and contract manufacturers seeking dependable turning performance at a competitive cost.

The Haas ST-15Y expands the machine’s capabilities by integrating Y-axis motion and live tooling. This enables cross drilling, keyway milling, tapping, pocket milling, and other secondary operations to be performed without transferring the workpiece to another machine. Eliminating multiple setups improves dimensional accuracy, shortens cycle times, and reduces labor costs, making the ST-15Y particularly attractive for complex parts.

If your production consists primarily of traditional turning operations, the Haas ST-15 offers excellent value with lower purchase and maintenance costs. However, if your components require milling or drilling features, the Haas ST-15Y provides significantly greater flexibility and productivity. Although the initial investment is higher, the ability to complete parts in a single setup often results in faster production and improved overall efficiency.

HAAS ST-15 SPINDLE NOT TURNING – CAUSES AND TROUBLESHOOTING

If the spindle on your Haas ST-15 fails to rotate, the issue is usually related to machine safety systems, spindle drive faults, lubrication problems, electrical issues, or CNC programming errors rather than complete spindle failure. A structured troubleshooting process can help identify the cause quickly while minimizing production downtime.

Begin by checking the Haas control for active alarms. Emergency stop activation, open enclosure doors, chuck clamp interlocks, spindle drive alarms, lubrication warnings, or servo faults can automatically prevent spindle operation. Ensure all alarms are cleared before attempting to restart the spindle.

Next, inspect the spindle drive system. Loose electrical connections, faulty spindle amplifiers, damaged encoder cables, blown fuses, or spindle motor overloads may prevent spindle rotation. Verify that lubrication systems, compressed air supply, coolant flow, and machine power are functioning correctly, as insufficient lubrication or electrical faults can disable spindle operation.

Review the CNC program carefully. Missing M03 or M04 spindle commands, incorrect spindle speed settings, spindle orientation commands, chuck clamp conditions, or interrupted tool change cycles may prevent spindle startup. If the machine has recently undergone maintenance or battery replacement, verify spindle parameters and machine reference positions.

If the spindle attempts to rotate but immediately stops, inspect for mechanical issues such as worn spindle bearings, damaged chuck mechanisms, contaminated spindle taper, excessive workpiece loading, or tooling interference. Abnormal spindle vibration, overheating, or unusual noises often indicate bearing wear that requires professional inspection.

Routine spindle inspections, proper lubrication, clean electrical cabinets, and scheduled preventive maintenance significantly reduce unexpected spindle failures. If spindle alarms continue after completing these checks, advanced diagnostics by an authorized Haas service technician are recommended.

HAAS ST-15 MAINTENANCE AND PREVENTIVE CARE GUIDE

Proper preventive maintenance is essential for maximizing the performance, accuracy, and service life of the Haas ST-15. Designed for continuous production, the machine relies on properly maintained spindle systems, turret assemblies, lubrication circuits, coolant systems, and hydraulic components to deliver consistent machining performance.

Daily maintenance should include removing chips from the machine enclosure, chuck, spindle nose, turret, and guideways. Operators should inspect coolant levels, coolant concentration, lubrication oil levels, compressed air supply, hydraulic pressure, and spindle cleanliness before starting production. Chuck jaws, tool holders, and workholding devices should also be inspected for wear and contamination.

Weekly maintenance should include cleaning electrical cabinet filters, inspecting coolant pumps, chip conveyors or chip trays, coolant nozzles, automatic lubrication systems, spindle air purge systems, and turret indexing mechanisms. Chuck clamping performance and turret operation should be verified to ensure reliable machining throughout production.

Monthly inspections should focus on spindle runout, turret alignment, ball screws, linear guideways, encoder cables, electrical connections, coolant filtration systems, lubrication lines, hydraulic hoses, and machine leveling. Coolant tanks should be cleaned regularly to prevent sludge buildup and bacterial contamination that can reduce coolant performance.

Additional preventive maintenance includes monitoring spindle vibration, checking backlash, inspecting spindle bearings, replacing worn filters, maintaining lubrication systems, and verifying machine geometry. Keeping detailed maintenance records helps identify recurring issues before they become expensive repairs. Shops that consistently follow preventive maintenance schedules typically experience longer spindle life, improved machining accuracy, higher productivity, and lower operating costs.

FAQ

What is the Haas ST-15?

The Haas ST-15 is a compact CNC turning center designed for precision turning of small to medium-sized workpieces. It features a rigid cast-iron construction, high-performance spindle, 12-station bolt-on turret, and the intuitive Haas CNC control system. The machine is widely used in aerospace, automotive, medical, electronics, oil and gas, and general manufacturing industries for producing shafts, bushings, fittings, threaded components, and other precision turned parts.

What are the most common problems with the Haas ST-15?

The most common problems include spindle alarms, turret indexing faults, lubrication system warnings, chuck clamping issues, encoder errors, servo drive alarms, coolant contamination, spindle orientation errors, pneumatic pressure problems, electrical communication faults, and chip evacuation issues. Most of these problems can be minimized through regular preventive maintenance, proper lubrication, scheduled inspections, coolant management, and timely replacement of wear components, ensuring dependable long-term machine performance.
