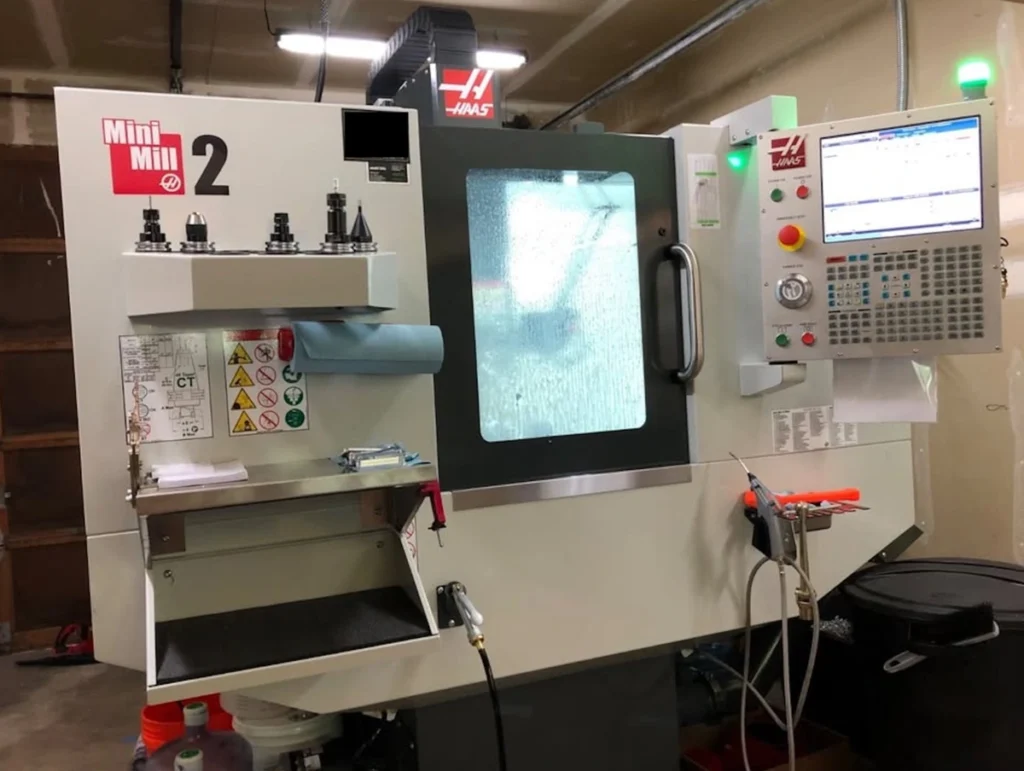

USED HAAS MINI MILL 2 – 2019

The HAAS MINI MILL 2 – 2019 is a compact CNC vertical machining center designed for job shops, production machining, prototyping, tooling, aerospace, automotive, medical, and general industrial applications. The Mini Mill 2 provides a larger machining envelope than earlier Mini Mill configurations while retaining the compact footprint that makes the machine practical for shops with limited floor space.

A 2019 Mini Mill 2 configuration is commonly found with approximately 16 inches of X-axis travel, 14 inches of Y-axis travel, and 15 inches of Z-axis travel, although some 2019 used listings identify a 16 x 12 x 10-inch configuration. This makes it important to verify the exact machine configuration from the serial number before publishing specifications. A documented 2019 Haas Mini Mill listing has a 16 x 12 x 10-inch travel configuration, 7.5 HP spindle, 6,000 RPM spindle speed, CAT 40 taper, and 10-tool ATC.

For inventory purposes, the Mini Mill 2 designation should be retained exactly as supplied, without inserting a hyphen between HAAS and the model.

---

HAAS MINI MILL 2 – 2019 – AXIS

Specification	Details
Machine Type	CNC Vertical Machining Center
Axis Configuration	3-Axis
X-Axis Travel	16″ / 406 mm
Y-Axis Travel	14″ / 356 mm
Z-Axis Travel	15″ / 381 mm
CNC Interpolation	3-Axis
4th-Axis Capability	Optional
Rotary Integration	Available
Rigid Tapping	Available
Spindle Orientation	Available

---

HAAS MINI MILL 2 – 2019 – AXIS TRAVELS / WORK ENVELOPE

Specification	Details
X-Axis Travel	16″ / 406 mm
Y-Axis Travel	14″ / 356 mm
Z-Axis Travel	15″ / 381 mm
Work Envelope	Approx. 16″ x 14″ x 15″
Spindle Nose to Table	Approx. 4″ – 19″
Table Length	Approx. 36″ / 914 mm
Table Width	Approx. 12″ / 305 mm
Maximum Table Load	Approx. 500 lbs / 227 kg

The published Haas Mini Mill specifications identify the 16 x 14 x 15-inch travel configuration and 500-lb evenly distributed table-load capacity.

---

HAAS MINI MILL 2 – 2019 – CAPACITY / TABLE

Specification	Details
Table Length	36″ / 914 mm
Table Width	12″ / 305 mm
Number of Standard T-Slots	3
T-Slot Width	Approx. 0.626–0.630″
T-Slot Center Distance	Approx. 4.33″
Maximum Table Load	500 lbs / 227 kg
Workholding	Vise / Fixture / Rotary
4th-Axis Integration	Optional
Table Type	Fixed T-Slot

The compact table is suitable for vises, fixtures, production tooling, and rotary-axis equipment while keeping the overall machine footprint relatively small.

---

HAAS MINI MILL 2 – 2019 – SPINDLE

Specification	Details
Spindle Type	Direct-Speed Belt Drive
Spindle Taper	CAT 40
Maximum Spindle Speed	6,000–8,000 RPM, Configuration Dependent
Spindle Motor	7.5 HP / 5.6 kW
Maximum Torque	Approx. 45 ft-lb
Drive System	Direct-Speed Belt Drive
Spindle Cooling	Air Cooled
Bearing Lubrication	Configuration Dependent
Spindle Orientation	Available
Rigid Tapping	Available

A documented 2019 Mini Mill is equipped with a 7.5 HP, 6,000 RPM CAT 40 spindle. Haas’ current Mini Mill specifications list an 8,000 RPM, 10 HP configuration, so the exact spindle package should be verified on an individual 2019 machine.

---

HAAS MINI MILL 2 – 2019 – TOOL CHANGER

Specification	Details
Tool Changer Type	Automatic Carousel
Standard Tool Capacity	10 Stations
Optional Tool Capacity	20 Stations
Tool Taper	CAT 40
Automatic Tool Change	Standard
Maximum Tool Diameter	Approx. 3.5″
Maximum Tool Length	Approx. 12″
Maximum Tool Weight	Approx. 12 lbs
Average Tool-to-Tool Time	Approx. 4.2 sec
Average Chip-to-Chip Time	Approx. 5 sec

A 2019 Mini Mill listing confirms a 10-tool automatic tool changer and CAT 40 spindle configuration. Haas also lists 10- and 20-tool carousel options for the Mini Mill platform.

---

HAAS MINI MILL 2 – 2019 – CONTROL SYSTEM

Specification	Details
CNC Control	Haas CNC Control
Programming	G-Code / Conversational
Conversational Programming	Available
Intuitive Programming	Available
Display	Color LCD
USB Connectivity	Available
Ethernet	Available
Rigid Tapping	Available
Coordinate Rotation	Available
Scaling	Available
Remote Jog Handle	Optional
4th-Axis Programming	Available

The Haas CNC control provides both conventional G-code programming and conversational functionality, making the Mini Mill suitable for experienced CNC programmers as well as job-shop environments where quick programming is important.

---

HAAS MINI MILL 2 – 2019 – FEEDRATES

Specification	Details
X-Axis Rapid Traverse	Up to 800 IPM
Y-Axis Rapid Traverse	Up to 800 IPM
Z-Axis Rapid Traverse	Up to 800 IPM
Maximum Cutting Feedrate	Up to 650 IPM
Feedrate Override	Standard
Linear Interpolation	Yes
Circular Interpolation	Yes
High-Speed Machining	Available
Feed Optimization	Configuration Dependent

Haas’ current Mini Mill specifications list up to 800 IPM rapid traverse on X, Y, and Z and up to 650 IPM maximum cutting feedrate. Exact rates on a 2019 machine depend on its installed configuration.

---

HAAS MINI MILL 2 – 2019 – COOLANT & CHIP MANAGEMENT

Specification	Details
Flood Coolant	Standard
Coolant Pump	Standard
Coolant Tank	Standard
Coolant Capacity	Approx. 45 gal / 170 L
Chip Auger	Optional / Configuration Dependent
Chip Conveyor	Optional
Air Blast	Available
Through-Spindle Coolant	Optional
High-Pressure Coolant	Optional
Mist Collector	Optional
Programmable Coolant	Available

One documented 2019 Mini Mill is equipped with a chip auger and standard coolant system.

---

HAAS MINI MILL 2 – 2019 – AUTOMATION / PROBING

Specification	Details
Automatic Tool Changer	Standard
Work Probe	Optional
Tool Probe	Optional
Wireless Probing	Available
4th-Axis Drive	Optional
4th-Axis Ready	Configuration Dependent
Rotary Table Integration	Available
Rigid Tapping	Available
Automatic Tool Measurement	Available
Production Automation	Available

A 2019 Mini Mill example is specifically advertised as 4th-axis ready, demonstrating the availability of rotary-axis preparation on individual machines.

---

HAAS MINI MILL 2 – 2019 – POWER REQUIREMENTS

Specification	Details
Spindle Motor	Approx. 7.5 HP
Electrical Input	220 VAC
Electrical Service	Configuration Dependent
Shop Air	Required
Air Requirement	Approx. 4 SCFM @ 100 PSI
Minimum Air Pressure	Approx. 80 PSI
Electrical Cabinet	Haas CNC
Power Configuration	Machine Specific

The Haas Mini Mill platform specifies approximately 4 SCFM at 100 PSI compressed-air requirements. Electrical requirements should be confirmed against the specific 2019 machine and options.

---

HAAS MINI MILL 2 – 2019 – DIMENSIONS

Specification	Details
Machine Footprint	Compact
Approximate Table Height	Configuration Dependent
Approximate Machine Width	Configuration Dependent
Approximate Machine Depth	Configuration Dependent
Machine Height	Configuration Dependent
Machine Weight	Configuration Dependent
Floor Space	Compact VMC
Installation	Industrial
Rigging	Required

Exact shipping dimensions and weight should be confirmed from the machine’s serial number and installed options, particularly if the machine has a chip conveyor, enclosure options, or rotary equipment.

---

HAAS MINI MILL 2 – 2019 – GENERAL INFORMATION

Specification	Details
Manufacturer	Haas
Model	Mini Mill 2
Year	2019
Machine Category	Vertical Machining Center
Machine Type	Compact CNC VMC
Axis Configuration	3-Axis
X-Axis Travel	16″
Y-Axis Travel	14″
Z-Axis Travel	15″
Table Size	Approx. 36″ x 12″
Spindle Speed	6,000–8,000 RPM, Configuration Dependent
Spindle Power	Approx. 7.5 HP
Spindle Taper	CAT 40
Tool Changer	Automatic
Tool Capacity	10 Stations Standard
CNC Control	Haas CNC
4th-Axis Capability	Optional
Coolant	Flood
Chip Removal	Optional / Configuration Dependent

---

INDUSTRIES THAT USE HAAS MINI MILL 2

The HAAS MINI MILL 2 is suitable for:

• Aerospace
• Automotive
• Medical
• Defense
• Electronics
• General machine shops
• Contract manufacturing
• Prototype manufacturing
• Tool and die
• Mold manufacturing
• Industrial machinery
• Precision engineering
• Job shops
• Small-batch production

---

TYPICAL PARTS HAAS MINI MILL 2 CAN PRODUCE

The Mini Mill 2 can produce:

• Brackets
• Mounting plates
• Fixtures
• Jigs
• Housings
• Flanges
• Tooling components
• Prototype parts
• Machine components
• Automotive components
• Aerospace components
• Medical components
• Industrial brackets
• Custom production parts

Typical operations include face milling, pocketing, contouring, drilling, boring, tapping, reaming, slotting, thread milling, and 3-axis profiling.

---

WHY CHOOSE HAAS MINI MILL 2

The main advantage of the HAAS MINI MILL 2 is its combination of compact size, CAT 40 tooling, automatic tool changing, useful axis travel, and Haas CNC control.

The approximately 16 x 14 x 15-inch travel configuration gives the machine substantially more working room than many small-format CNC mills while keeping the machine suitable for shops with limited floor space. The 40-taper spindle provides rigidity for general machining, while the available 6,000–8,000 RPM configurations make the machine useful for aluminum, steel, plastics, and a wide variety of production materials.

The automatic tool changer also allows several tools to remain loaded, reducing operator intervention and allowing drilling, milling, tapping, boring, and finishing operations to be completed within a single program.

---

WHY BUY USED HAAS MINI MILL 2 – 2019

A used 2019 HAAS MINI MILL 2 offers an attractive combination of relatively modern CNC technology and lower acquisition cost compared with purchasing a new machine.

Because a 2019 machine is considerably newer than many used Haas machines on the market, buyers can potentially find examples with relatively low spindle hours and limited mechanical wear. One documented 2019 Haas Mini Mill has only 490 cutting hours, showing that low-hour examples can exist.

Before purchasing, buyers should verify spindle hours, power-on hours, axis backlash, spindle runout, positioning accuracy, tool changer operation, control alarms, coolant condition, lubrication system, and crash history.

The options installed can also have a substantial effect on value. A machine equipped with 4th-axis readiness, probing, rigid tapping, chip auger, high-pressure coolant, additional tooling, and production accessories can be considerably more desirable than a basic configuration.

---

HOW MUCH DOES A USED HAAS MINI MILL 2 – 2019 COST?

The price of a 2019 HAAS MINI MILL 2 depends heavily on spindle hours, condition, options, tooling, maintenance history, and whether the machine is ready for immediate production.

A current used-machine market source estimates $30,000–$50,000 for used 2019 Mini Mill 2 machines, with low-hour and well-equipped examples toward the upper end.

For inventory valuation, I would use:

USED HAAS MINI MILL 2 – 2019 PRICE RANGE	ESTIMATED COST
High Hours / Basic Configuration	$25,000 – $30,000
Functional Used Machine	$30,000 – $35,000
Good Condition / Production Ready	$35,000 – $40,000
Low Hours / Well Equipped	$40,000 – $45,000
Very Low Hours / Premium Configuration	$45,000 – $50,000+

For a 2019 HAAS MINI MILL 2 in good working condition, I would estimate approximately $35,000–$45,000 USD.

For your inventory listing, I would recommend a practical asking-price range of $39,000–$45,000 USD for a clean, operational machine with low-to-moderate hours.

A low-hour example equipped with 4th-axis capability, probing, chip auger, rigid tapping, additional tooling, and high-pressure coolant could potentially command $45,000–$50,000+.

A higher-hour base machine with fewer options could be closer to $28,000–$35,000.

Best estimated listing value: $39,000–$45,000 USD.
