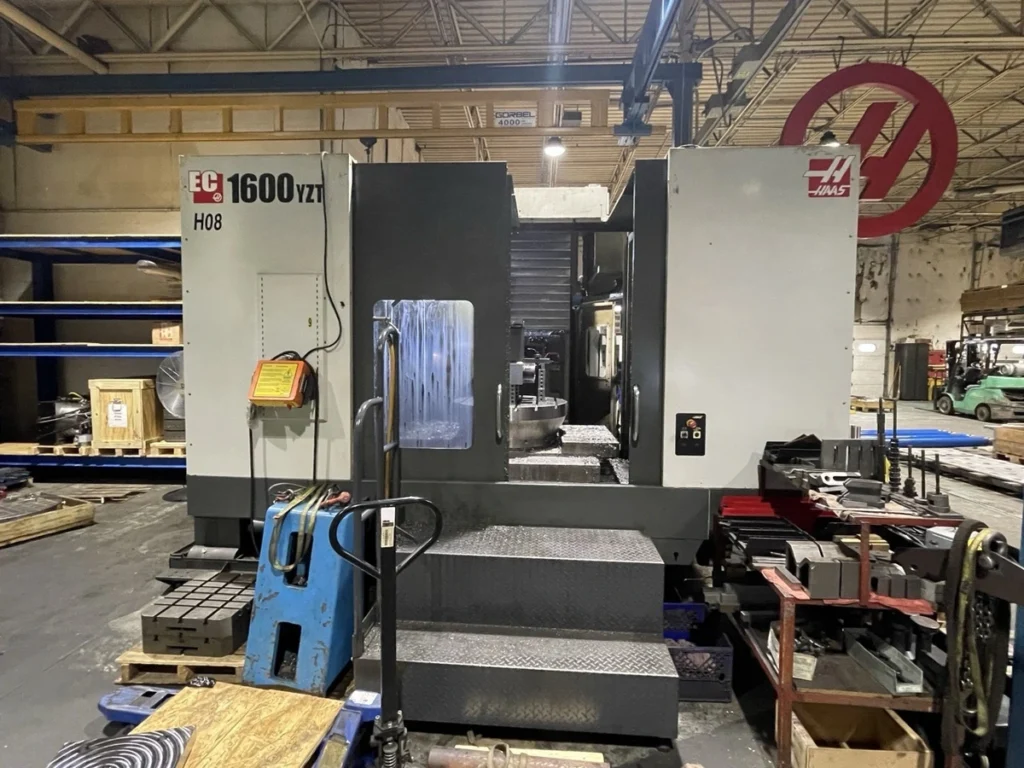

USED HAAS EC1600YZT – 2014
The HAAS EC1600YZT is a large-format horizontal machining center engineered for manufacturers that require exceptional machining capacity, heavy-duty cutting performance, and advanced multi-axis capability. As part of the highly respected Haas EC Series, the EC1600YZT combines the proven reliability of the standard EC1600 platform with expanded Y-axis travel, integrated rotary table functionality, and advanced machining flexibility for handling oversized and complex workpieces. The 2014 HAAS EC1600YZT remains a highly desirable machine in the used CNC market due to its ability to efficiently machine large components while maintaining excellent accuracy, repeatability, and productivity.
Designed around a rigid cast iron structure, the EC1600YZT delivers the stability necessary for demanding machining operations involving steel, stainless steel, cast iron, aluminum, titanium, and exotic alloys. Its horizontal spindle orientation provides superior chip evacuation compared to vertical machining centers, allowing chips to fall away from the workpiece naturally and reducing the possibility of chip recutting. This improves tool life, enhances surface finish quality, and contributes to more consistent machining performance.
The machine’s large machining envelope allows manufacturers to process oversized components commonly found in aerospace, energy, mining, transportation, heavy equipment, defense, and industrial machinery industries. The integrated rotary table and expanded axis configuration enable multiple-sided machining in fewer setups, reducing handling time and improving part accuracy. Combined with a dual-pallet system, the EC1600YZT significantly increases spindle utilization by allowing operators to load and unload parts while machining continues on the opposite pallet.
The 2014 HAAS EC1600YZT is particularly valuable for manufacturers producing large structural components, heavy castings, fabricated assemblies, and precision-machined industrial parts. Its combination of spindle power, large work envelope, and advanced machining capability allows shops to improve throughput while maintaining tight tolerances.
Today, the EC1600YZT continues to offer excellent value in the used CNC equipment market. Companies seeking a versatile large-frame horizontal machining center can benefit from the machine’s proven performance, robust design, and lower acquisition cost compared to a new machine with similar capabilities.
HAAS EC1600YZT – AXIS
| Specification | Details |
|---|---|
| Machine Type | Horizontal Machining Center |
| Axis Configuration | 4-Axis |
| X-Axis Travel | 64″ |
| Y-Axis Travel | 50″ |
| Z-Axis Travel | 40″ |
| B-Axis Rotary Table | 360° Programmable |
| Simultaneous Machining Capability | Yes |
HAAS EC1600YZT – AXIS TRAVELS / WORK ENVELOPE
| Specification | Details |
|---|---|
| X-Axis Travel | 64″ |
| Y-Axis Travel | 50″ |
| Z-Axis Travel | 40″ |
| Maximum Part Diameter | 78″ |
| Maximum Part Height | 55″ |
| Pallet Size | 63″ x 55″ |
| Maximum Workpiece Weight | 10,000 lbs |
HAAS EC1600YZT – CAPACITY / TABLE
| Specification | Details |
|---|---|
| Pallet Quantity | 2 |
| Pallet Dimensions | 63″ x 55″ |
| Maximum Pallet Load | 10,000 lbs |
| Rotary Table Type | Integrated B-Axis |
| Table Positioning | Programmable |
| Heavy Workpiece Capability | Yes |
HAAS EC1600YZT – SPINDLE
| Specification | Details |
|---|---|
| Maximum Spindle Speed | 7,500 RPM |
| Spindle Motor Power | 30 HP |
| Peak Spindle Power | 40 HP |
| Spindle Taper | CAT 50 |
| Drive Type | Inline Direct Drive |
| Heavy-Duty Cutting Performance | Yes |
HAAS EC1600YZT – TOOL CHANGER
| Specification | Details |
|---|---|
| Tool Capacity | 30 Tools |
| Tool Changer Type | Side-Mount Automatic Tool Changer |
| Maximum Tool Diameter | 5″ |
| Maximum Tool Length | 16″ |
| Maximum Tool Weight | 30 lbs |
| Random Tool Selection | Standard |
HAAS EC1600YZT – CONTROL SYSTEM
| Specification | Details |
|---|---|
| CNC Control | Haas CNC Control |
| Programming Format | G-Code |
| User Interface | Color LCD Display |
| Ethernet Connectivity | Standard |
| USB Program Transfer | Standard |
| Advanced Diagnostics | Yes |
HAAS EC1600YZT – COOLANT / DUST / WATER MANAGEMENT
| Specification | Details |
|---|---|
| Flood Coolant System | Standard |
| Chip Auger System | Standard |
| Coolant Filtration | Standard |
| Through-Spindle Coolant | Optional |
| Coolant Tank Capacity | Large Capacity |
| Automatic Chip Removal | Yes |
HAAS EC1600YZT – POWER REQUIREMENTS
| Specification | Details |
|---|---|
| Voltage | 220V / 440V |
| Electrical Requirement | 3 Phase |
| Connected Load | Approx. 55 kVA |
| Air Requirement | Shop Air Required |
HAAS EC1600YZT – DIMENSIONS
| Specification | Details |
|---|---|
| Length | Approx. 300″ |
| Width | Approx. 220″ |
| Height | Approx. 140″ |
| Machine Weight | Approx. 43,000 lbs |
HAAS EC1600YZT – GENERAL INFORMATION
| Specification | Details |
|---|---|
| Manufacturer | Haas Automation |
| Model | EC1600YZT |
| Year | 2014 |
| Machine Category | Horizontal Machining Center |
| Country of Origin | USA |
| Primary Application | Large-Part Milling & Multi-Sided Machining |
| Production Environment | Heavy Manufacturing |
INDUSTRIES THAT USE HAAS EC1600YZT
The HAAS EC1600YZT is widely used by manufacturers producing large and complex components that require multi-sided machining. Aerospace companies utilize the machine for structural assemblies, bulkheads, engine support structures, fixture plates, landing gear components, and large aluminum or titanium parts. The machine’s rotary table and large work envelope allow multiple surfaces to be machined in fewer setups, improving precision and productivity.
Energy and power generation manufacturers frequently machine turbine housings, compressor casings, pump bodies, generator frames, valve assemblies, and power transmission components. The machine’s rigidity and CAT 50 spindle allow efficient machining of large castings and difficult materials.
Heavy equipment manufacturers use the EC1600YZT for gearbox housings, axle carriers, hydraulic system components, machine frames, mining equipment structures, and construction machinery parts. The dual-pallet system helps maximize machine uptime and production efficiency.
Additional industries include defense manufacturing, oil and gas production, marine equipment, transportation equipment manufacturing, agricultural machinery, industrial automation, and contract machining facilities. The machine’s versatility makes it suitable for both high-volume production and custom-engineered applications.
TYPICAL PARTS HAAS EC1600YZT CAN PRODUCE
The HAAS EC1600YZT is capable of producing a broad range of large precision-machined components. Aerospace manufacturers commonly machine bulkheads, engine support structures, aircraft brackets, landing gear components, and large aerospace housings.
Energy-sector applications include turbine casings, compressor housings, generator frames, pump bodies, valve blocks, and structural support assemblies. The machine’s large pallet capacity enables efficient machining of oversized castings and fabricated structures.
Heavy equipment manufacturers frequently produce gearbox housings, transmission casings, axle components, machine bases, hydraulic manifolds, mining equipment structures, and industrial support frames. The rotary table capability allows multiple surfaces to be machined in fewer operations.
Other applications include marine propulsion components, oilfield equipment, agricultural machinery structures, robotic automation bases, defense system components, transportation equipment assemblies, and custom industrial products.
WHY CHOOSE HAAS EC1600YZT
The HAAS EC1600YZT offers manufacturers an outstanding combination of capacity, flexibility, and productivity. One of the machine’s greatest advantages is its ability to machine very large workpieces while maintaining tight tolerances and excellent surface finishes.
The horizontal spindle design improves chip evacuation and coolant access, helping reduce tool wear and improve machining consistency. This is particularly valuable when machining large castings and heavy steel components.
The integrated rotary table expands machining capability by allowing multiple-sided machining in fewer setups. This reduces setup time, improves part accuracy, and increases overall production efficiency. The dual-pallet system further enhances productivity by minimizing idle time between machining cycles.
The CAT 50 spindle delivers the power and rigidity required for heavy-duty machining applications, while the Haas CNC Control provides a user-friendly programming environment and dependable machine operation.
For manufacturers seeking a proven large-frame horizontal machining center capable of handling oversized components and complex machining operations, the HAAS EC1600YZT remains an excellent choice.
WHY BUY USED HAAS EC1600YZT
Purchasing a used HAAS EC1600YZT allows manufacturers to obtain advanced large-part machining capabilities at a significantly lower cost than purchasing a new machine. This enables companies to expand production capacity while maintaining greater financial flexibility.
The 2014 model incorporates many modern manufacturing features that remain highly valuable today, including a large machining envelope, dual-pallet system, integrated rotary table, CAT 50 spindle, and reliable CNC control. These features help the machine remain competitive across a broad range of industries.
Many used EC1600YZT machines are available with valuable options such as through-spindle coolant, probing systems, upgraded tooling packages, enhanced chip management systems, and additional software functionality. These options can significantly increase productivity and reduce future upgrade expenses.
Another important advantage is availability. New large-frame horizontal machining centers often require substantial lead times, whereas used machines can frequently be delivered and installed much more quickly.
For businesses seeking large-part machining capability, multi-sided machining flexibility, and strong return on investment, a used HAAS EC1600YZT offers exceptional value.
HOW MUCH DOES A USED HAAS EC1600YZT COST?
The value of a used HAAS EC1600YZT depends on machine condition, maintenance history, spindle hours, installed options, tooling inventory, and current market demand. Machines with lower operating hours and comprehensive maintenance records generally command higher resale values due to their expected longevity and reliability.
Optional equipment such as through-spindle coolant, probing systems, expanded tool capacity, chip conveyors, rotary table enhancements, tooling packages, and software upgrades can significantly influence machine pricing. Buyers often place greater value on machines that are fully equipped and production-ready.
Demand for large horizontal machining centers remains strong across aerospace, defense, energy, transportation, mining, oil and gas, and industrial manufacturing sectors. This sustained demand helps support healthy resale values for machines like the EC1600YZT.
In addition to the purchase price, buyers should consider transportation, rigging, installation, electrical infrastructure, tooling, and operator training expenses. These factors contribute to the overall cost of ownership and should be evaluated during the purchasing process.
Compared to purchasing a new large-capacity horizontal machining center, a used 2014 HAAS EC1600YZT can provide significant savings while still delivering excellent machining capacity, advanced flexibility, and long-term reliability. For manufacturers seeking a proven solution for large-part and multi-sided machining, the EC1600YZT remains one of the strongest values available in the used CNC machinery market.
