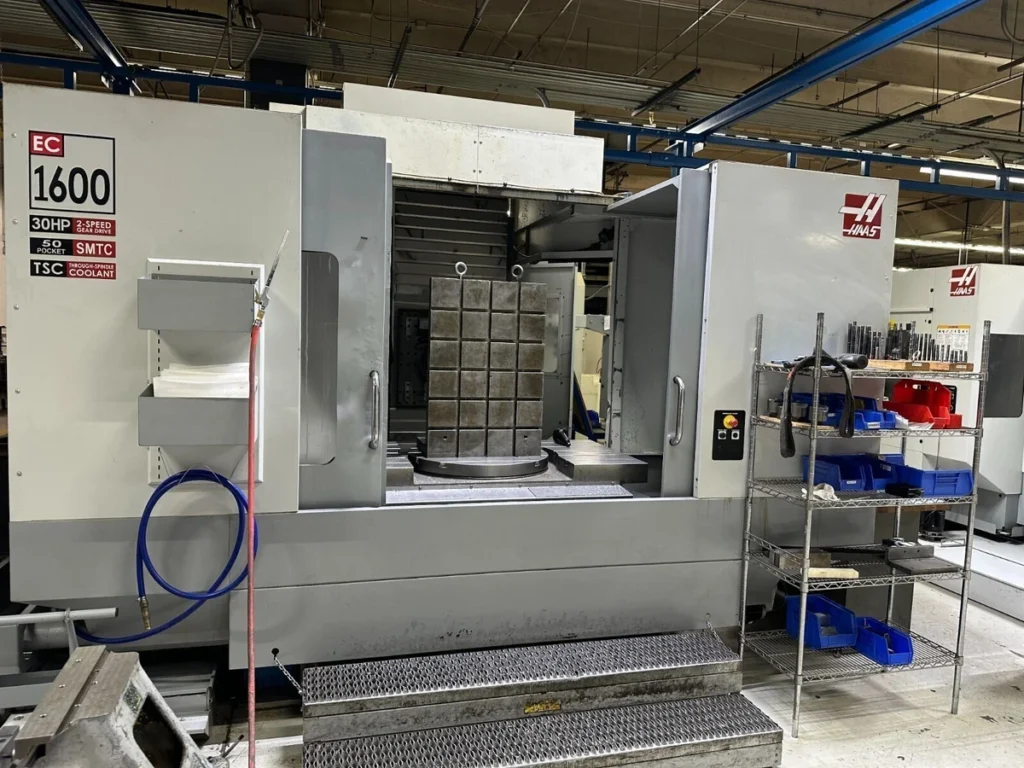

USED HAAS EC1600 – 2008

The HAAS EC1600 is a large-capacity horizontal machining center designed for manufacturers that require exceptional machining capability for oversized workpieces. Built by Haas Automation, one of the most recognized CNC machine tool manufacturers in the world, the EC1600 was developed to handle large castings, fabricated structures, heavy equipment components, aerospace assemblies, and industrial machinery parts with outstanding precision and productivity. The 2008 HAAS EC1600 continues to be one of the most sought-after large-frame horizontal machining centers in the used CNC equipment market due to its rugged construction, expansive work envelope, powerful spindle, and proven reliability.

The EC1600 features a horizontal spindle design that offers significant advantages over traditional vertical machining centers. By positioning the spindle horizontally, chips naturally fall away from the cutting zone, reducing chip recutting and improving overall machining efficiency. This results in better surface finishes, longer tool life, and more consistent production performance, particularly during heavy-duty roughing operations. The machine’s heavy cast iron construction provides exceptional rigidity and vibration dampening, allowing it to maintain tight tolerances even when machining large steel and cast iron components.

One of the defining features of the EC1600 is its dual-pallet system. This configuration allows operators to load and unload parts on one pallet while machining operations continue on the second pallet. The result is increased spindle utilization, reduced downtime, and improved overall productivity. Combined with a large rotary table and generous axis travels, the machine is capable of handling workpieces weighing several tons while maintaining excellent machining accuracy.

The 2008 HAAS EC1600 is widely used throughout aerospace, defense, power generation, oil and gas, mining, transportation, industrial equipment, and heavy machinery manufacturing sectors. Its ability to process large workpieces in fewer setups helps manufacturers improve throughput while maintaining consistent quality standards.

Today, the EC1600 remains a highly valuable machine in the used CNC marketplace because it offers substantial machining capacity at a significantly lower investment than a new horizontal machining center. For manufacturers seeking a dependable solution for large-part machining, the HAAS EC1600 continues to deliver exceptional value and performance.

---

HAAS EC1600 – AXIS

Specification	Details
Machine Type	Horizontal Machining Center
Axis Configuration	4-Axis
X-Axis Travel	64″
Y-Axis Travel	50″
Z-Axis Travel	40″
B-Axis Rotary Table	360° Programmable
Simultaneous Machining Capability	Yes

---

HAAS EC1600 – AXIS TRAVELS / WORK ENVELOPE

Specification	Details
X-Axis Travel	64″
Y-Axis Travel	50″
Z-Axis Travel	40″
Pallet Size	63″ x 55″
Maximum Workpiece Diameter	78″
Maximum Workpiece Height	55″
Maximum Table Load Capacity	10,000 lbs

---

HAAS EC1600 – CAPACITY / TABLE

Specification	Details
Number of Pallets	2
Pallet Dimensions	63″ x 55″
Maximum Pallet Load	10,000 lbs
Rotary Table Type	Integrated B-Axis
Table Indexing	Programmable
Heavy Part Machining Capability	Yes

---

HAAS EC1600 – SPINDLE

Specification	Details
Maximum Spindle Speed	7,500 RPM
Spindle Motor Power	30 HP
Peak Power	40 HP
Spindle Taper	CAT 50
Drive Type	Inline Direct Drive
Heavy-Duty Cutting Capability	Yes

---

HAAS EC1600 – TOOL CHANGER

Specification	Details
Tool Capacity	30 Tools
Tool Changer Type	Side Mount Automatic Tool Changer
Maximum Tool Diameter	5″
Maximum Tool Length	16″
Maximum Tool Weight	30 lbs
Random Tool Selection	Standard

---

HAAS EC1600 – CONTROL SYSTEM

Specification	Details
CNC Control	Haas CNC Control
Programming Format	G-Code
User Interface	Color LCD Display
Ethernet Capability	Available
USB Program Transfer	Available
Advanced Diagnostics	Yes

---

HAAS EC1600 – COOLANT / DUST / WATER MANAGEMENT

Specification	Details
Flood Coolant System	Standard
Chip Auger System	Standard
Coolant Filtration	Standard
Through-Spindle Coolant	Optional
Coolant Tank Capacity	Large Capacity
Automatic Chip Removal	Yes

---

HAAS EC1600 – POWER REQUIREMENTS

Specification	Details
Voltage	220V / 440V
Electrical Requirement	3 Phase
Connected Load	Approx. 55 kVA
Air Requirement	Shop Air Required

---

HAAS EC1600 – DIMENSIONS

Specification	Details
Length	Approx. 300″
Width	Approx. 220″
Height	Approx. 140″
Machine Weight	Approx. 42,000 lbs

---

HAAS EC1600 – GENERAL INFORMATION

Specification	Details
Manufacturer	Haas Automation
Model	EC1600
Year	2008
Machine Category	Horizontal Machining Center
Country of Origin	USA
Primary Application	Large-Part Milling & Machining
Production Environment	Heavy Manufacturing

---

INDUSTRIES THAT USE HAAS EC1600

The HAAS EC1600 is widely used in industries that require large-part machining with high accuracy and efficiency. Aerospace manufacturers utilize the machine for producing structural components, bulkheads, engine support structures, landing gear assemblies, fixture plates, and large aluminum or titanium aerospace parts. Its expansive work envelope allows many large components to be machined in a single setup, reducing production time and improving accuracy.

Power generation companies frequently rely on the EC1600 for machining turbine housings, generator frames, compressor casings, pump bodies, and large valve assemblies. The machine’s rigid construction and CAT 50 spindle make it well-suited for machining large castings and heavy-duty materials used in energy production equipment.

Heavy equipment and mining manufacturers commonly produce gearbox housings, transmission casings, axle carriers, machine frames, hydraulic components, and mining equipment structures on the EC1600. The machine’s horizontal design improves chip evacuation during heavy roughing operations and contributes to greater productivity.

Additional industries include defense manufacturing, transportation equipment production, marine applications, agricultural machinery manufacturing, oil and gas production, industrial automation, and contract machining services. The machine’s versatility allows it to support both high-volume production and custom-engineered machining projects.

---

TYPICAL PARTS HAAS EC1600 CAN PRODUCE

The HAAS EC1600 is capable of machining a broad range of large and complex components. Aerospace applications include structural aircraft components, engine mounts, landing gear supports, bulkheads, fixture plates, and large precision-machined housings.

Energy-sector manufacturers commonly machine turbine casings, compressor housings, pump bodies, generator frames, valve blocks, and structural support components. The machine’s large table capacity allows oversized castings to be machined efficiently and accurately.

Heavy equipment manufacturers frequently produce gearbox housings, transmission cases, hydraulic manifolds, axle components, machine bases, mining equipment parts, and structural fabrication components. The machine’s spindle power and rigidity support both aggressive material removal and precision finishing operations.

Other common applications include marine propulsion components, defense system structures, oilfield equipment parts, agricultural machinery components, robotic automation bases, transportation equipment assemblies, and custom industrial products requiring large-scale machining capabilities.

---

WHY CHOOSE HAAS EC1600

The HAAS EC1600 offers manufacturers a highly productive platform for machining oversized workpieces while maintaining exceptional accuracy and repeatability. One of the machine’s greatest strengths is its ability to process large parts in fewer setups, reducing handling time and improving dimensional consistency.

The horizontal spindle design provides superior chip management by allowing chips to fall away from the workpiece naturally. This helps reduce tool wear, improve surface finishes, and enhance overall machining efficiency, particularly during heavy-duty operations.

The dual-pallet system is another major advantage. By allowing setup and loading operations to occur while machining continues on the opposite pallet, manufacturers can maximize spindle utilization and significantly improve productivity. This feature is especially valuable in production environments where machine uptime is critical.

The CAT 50 spindle provides the rigidity and torque required for machining large steel and cast iron components, while the Haas CNC Control offers a user-friendly interface that simplifies programming and machine operation. Together, these features make the EC1600 a reliable and efficient solution for large-part manufacturing.

For companies seeking a proven horizontal machining center capable of handling demanding applications, the HAAS EC1600 remains one of the best choices available.

---

WHY BUY USED HAAS EC1600

Purchasing a used HAAS EC1600 allows manufacturers to acquire large-scale horizontal machining capabilities at a significantly lower cost than purchasing a new machine. This provides an opportunity to expand production capacity without making the substantial capital investment required for new equipment.

The 2008 model continues to offer many features that remain highly relevant in modern manufacturing environments, including a large work envelope, dual-pallet productivity system, CAT 50 spindle, and dependable CNC control. These capabilities allow the machine to remain competitive across a wide range of industries.

Many used EC1600 machines are available with valuable options such as through-spindle coolant, probing systems, upgraded tooling packages, enhanced chip management systems, and additional rotary table functionality. These features can significantly increase productivity and reduce future upgrade costs.

Another advantage is immediate availability. New horizontal machining centers often involve extended lead times, whereas used machines can frequently be delivered and placed into production much faster. This allows manufacturers to respond quickly to new contracts and production demands.

For businesses seeking large-part machining capability and strong return on investment, a used HAAS EC1600 represents an outstanding value.

---

HOW MUCH DOES A USED HAAS EC1600 COST?

The value of a used HAAS EC1600 depends on several factors, including machine condition, maintenance history, spindle hours, tooling inventory, installed options, and market demand. Machines with documented service records and lower operating hours generally command higher prices due to their lower operational risk and expected longevity.

Optional equipment such as through-spindle coolant, probing systems, chip conveyors, expanded tool capacity, rotary table upgrades, pallet enhancements, and tooling packages can significantly influence resale value. Buyers often prefer machines that are fully equipped and ready for immediate production.

Demand for large horizontal machining centers remains strong across aerospace, defense, energy, transportation, heavy equipment, mining, and industrial manufacturing sectors. This ongoing demand helps maintain stable resale values for machines like the EC1600.

Beyond the machine purchase price, buyers should consider transportation, rigging, installation, electrical infrastructure, tooling, and operator training costs. Evaluating these expenses alongside the machine’s production capabilities provides a clearer understanding of total ownership costs.

Compared to purchasing a new large-capacity horizontal machining center, a used 2008 HAAS EC1600 can provide substantial savings while still delivering exceptional machining capacity, productivity, and reliability. For manufacturers seeking a proven platform for large-part machining, the EC1600 continues to be one of the strongest values available in the used CNC equipment market.
