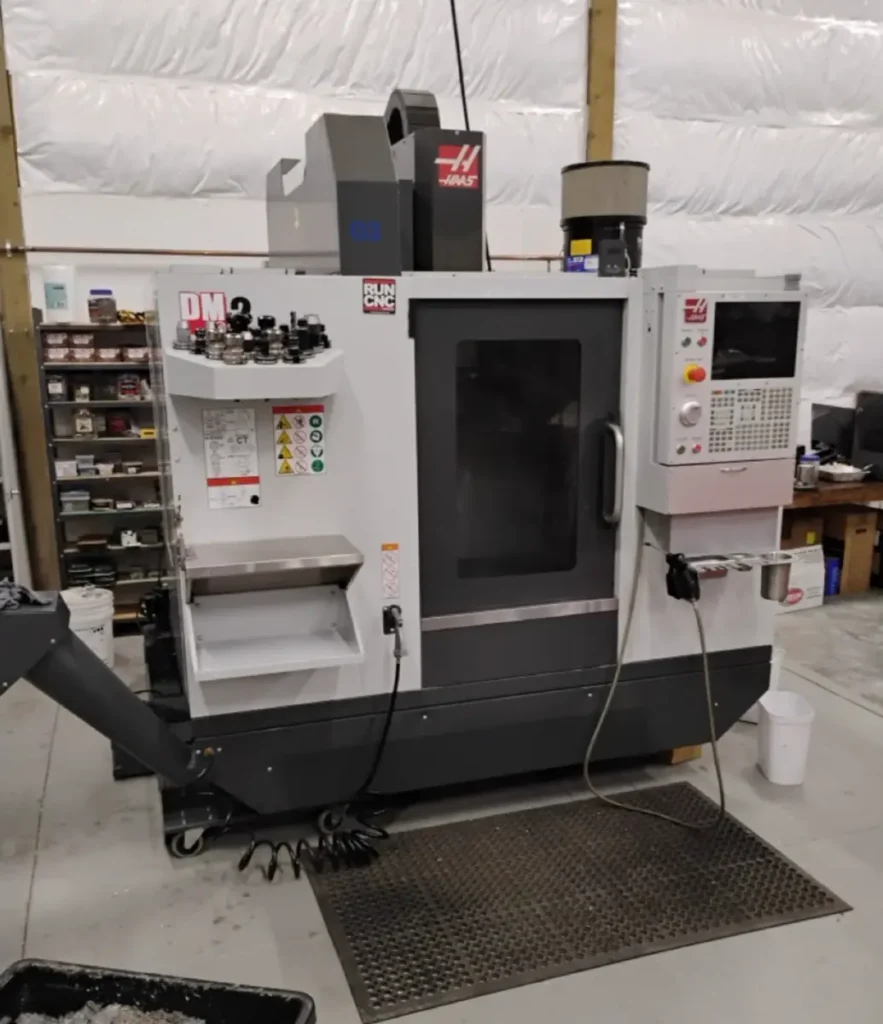

USED HAAS DM-2 – 2021

The 2021 Haas DM-2 is a compact, high-speed 3-axis CNC drill/mill machining center designed for manufacturers requiring fast drilling, tapping, milling, and production machining in a space-efficient package. Manufactured by Haas Automation, the DM-2 is built around a rigid 40-taper platform and is particularly well suited for high-volume production of small and medium-sized components. Its compact footprint, rapid axis movement, high-speed inline direct-drive spindle, and fast side-mount tool changer make it an excellent choice for job shops, production facilities, and manufacturers seeking high productivity without the floor space requirements of a larger VMC.

The 2021 Haas DM-2 provides 28″ (711 mm) X-axis travel, 16″ (406 mm) Y-axis travel, and 15.5″ (394 mm) Z-axis travel. The 34″ × 15″ (864 × 381 mm) table supports up to 500 lbs (226.8 kg) when operating at reduced rapid rates. Its 10,000 RPM, 15 HP (11.2 kW) inline direct-drive spindle uses a CT40 or BT40 taper and provides excellent performance for aluminum, steel, stainless steel, brass, and other engineering materials. An 18+1 side-mount automatic tool changer provides approximately 1.75-second tool-to-tool changes, while rapid axis speeds of up to 2,400 ipm (61 m/min) help reduce cycle times.

The machine is equipped with the modern Haas CNC Control, including a widescreen monitor, Ethernet, Wi-Fi connectivity, 1 GB standard program memory, rigid tapping, Advanced Tool Management, HaasConnect, Safe Run, and HaasDrop. These features make the 2021 DM-2 an efficient and user-friendly machining platform for both production and job-shop environments.

Purchasing a used 2021 Haas DM-2 allows manufacturers to obtain a relatively modern, high-speed CNC machining center at a significantly lower investment than buying new equipment.

HAAS DM-2 – 2021 – AXIS

HAAS DM-2 – 2021 – AXIS TRAVELS / WORK ENVELOPE

HAAS DM-2 – 2021 – CAPACITY / TABLE

HAAS DM-2 – 2021 – SPINDLE

HAAS DM-2 – 2021 – TOOL CHANGER

HAAS DM-2 – 2021 – CONTROL SYSTEM

HAAS DM-2 – 2021 – COOLANT / CHIP MANAGEMENT

HAAS DM-2 – 2021 – FEEDRATES

HAAS DM-2 – 2021 – POWER REQUIREMENTS

HAAS DM-2 – 2021 – DIMENSIONS

HAAS DM-2 – 2021 – GENERAL INFORMATION

WHY BUY USED HAAS DM-2 – 2021

Purchasing a used 2021 Haas DM-2 provides manufacturers with access to a modern, compact, and highly productive CNC machining center at a lower cost than purchasing new equipment. Its combination of rapid axis movement, high-speed spindle performance, and fast tool changes makes it especially valuable for production environments where cycle time and floor-space efficiency are important.

The 10,000 RPM, 15 HP inline direct-drive spindle provides excellent versatility for drilling, tapping, pocketing, contouring, and general milling operations. The 18+1 side-mount tool changer reduces non-cutting time, while the machine’s 2,400 ipm rapid traverse rate allows fast positioning between machining operations. These features make the DM-2 particularly effective for repetitive production work and high-volume component manufacturing.

The compact design is another major advantage. Compared with larger 40-taper vertical machining centers, the DM-2 requires significantly less floor space while still providing a substantial 28″ × 16″ × 15.5″ machining envelope. This makes it ideal for facilities seeking to increase machining capacity without expanding their production area.

The modern Haas CNC Control provides Wi-Fi, Ethernet, remote monitoring through HaasConnect, rigid tapping, Advanced Tool Management, Safe Run, and 1 GB standard program memory. These features improve ease of operation, production monitoring, and programming flexibility.

For manufacturers producing small and medium-sized precision components, the 2021 Haas DM-2 offers an excellent combination of speed, reliability, compact design, and modern CNC technology.

HOW MUCH DOES A USED HAAS DM-2 – 2021 COST?

The price of a used 2021 Haas DM-2 depends on spindle hours, machine condition, maintenance history, installed options, tooling packages, probing systems, coolant configuration, and the machine’s previous production environment. Because a 2021 model is relatively modern, machines with low operating hours and complete maintenance records can retain strong resale value.

When evaluating a used DM-2, buyers should inspect spindle performance, axis accuracy, ball screws, linear guideways, automatic tool changer operation, coolant system, lubrication system, electrical components, and Haas CNC diagnostics. Spindle hours and overall machine usage should be carefully compared with the asking price.

Additional costs such as transportation, rigging, installation, electrical connection, tooling, calibration, and operator training should also be included when calculating the total investment. Machines equipped with probing, additional tooling, automation accessories, and enhanced coolant systems may command higher prices but can also reduce the time and expense required to place the machine into production.

With its 711 × 406 × 394 mm travels, 10,000 RPM spindle, 15 HP drive motor, 18+1 tool changer, and modern Haas CNC Control, the 2021 Haas DM-2 offers excellent value for manufacturers seeking a compact and high-speed used machining center.

INDUSTRIES THAT USE HAAS DM-2 – 2021

• Aerospace Manufacturing
• Automotive Manufacturing
• Medical Device Manufacturing
• Electronics Manufacturing
• Precision Engineering
• Contract Manufacturing
• Industrial Equipment
• Tool and Fixture Manufacturing
• Prototype Manufacturing
• General CNC Production

TYPICAL PARTS HAAS DM-2 – 2021 CAN PRODUCE

• Precision Brackets
• Aluminum Housings
• Fixture Components
• Medical Components
• Automotive Parts
• Electronic Enclosures
• Small Mold Components
• Hydraulic Components
• Precision Plates
• Prototype Parts
• Machine Components
• Custom Production Parts

WHY CHOOSE HAAS DM-2 – 2021

The 2021 Haas DM-2 combines a 10,000 RPM, 15 HP inline direct-drive spindle, 18+1 side-mount tool changer, 2,400 ipm rapid traverse rates, compact construction, and a modern Haas CNC Control to deliver excellent productivity in a space-efficient package. Its 28″ × 16″ × 15.5″ travels provide a versatile work envelope for small and medium-sized components, while features such as rigid tapping, Wi-Fi, Ethernet, HaasConnect, Advanced Tool Management, and Safe Run make it a highly capable modern CNC drill/mill center.
