Used FANUC ROBODRILL ALPHA D14MiA5 - 2013 Drill and Tap Center For Sale - Arizona - USA

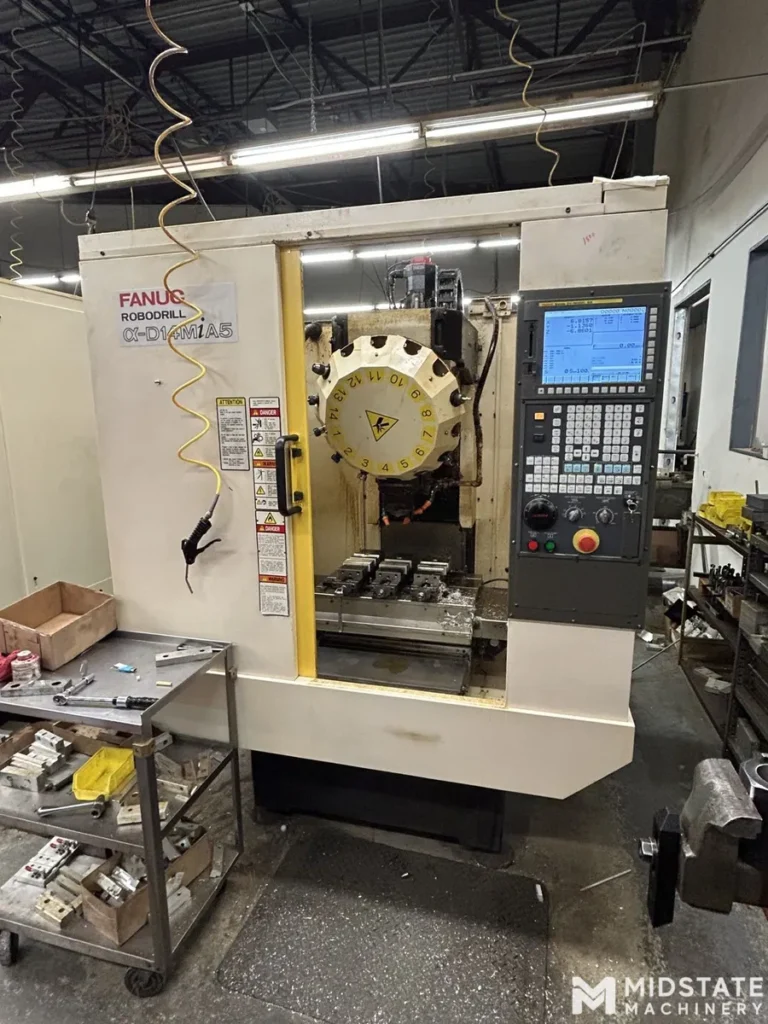

FANUC ROBODRILL ALPHA D14MiA5 – 2013

FANUC ROBODRILL ALPHA D14MiA5 – 2013

MAKE: FANUC
MODEL: ROBODRILL ALPHA D14MIA5
TYPE: Drill/Tap Center
YEAR: 2013
SKU: 109044
DEALER: Midstate Machinery
COUNTRY: USA
STATE: Arizona

USED FANUC ROBODRILL ALPHA D14MiA5 – 2013

The 2013 FANUC ROBODRILL Alpha D14MiA5 is a compact high-speed vertical machining center designed for precision drilling, tapping, and light milling operations. As part of FANUC’s globally proven ROBODRILL series, the D14MiA5 is built to deliver exceptional speed, repeatability, and long-term reliability in high-production manufacturing environments.

This model is widely used across automotive, aerospace, electronics, medical, and general engineering industries where fast cycle times and tight tolerances are critical. Its compact footprint and high-speed machining capability make it especially suitable for production cells, multi-machine setups, and automated manufacturing systems.

The D14MiA5 is engineered around a rigid cast-iron structure that minimizes vibration and ensures stability during high-speed operations. Combined with FANUC’s advanced servo technology and precision spindle system, the machine delivers consistent machining accuracy across a wide range of materials including aluminum, steel, stainless steel, brass, and engineering plastics.

A key strength of the ROBODRILL platform is its extremely low non-cutting time. Rapid axis acceleration, fast tool change capability, and optimized CNC processing allow the machine to significantly reduce cycle times and increase overall productivity. This makes it highly effective in environments focused on mass production and efficiency.

Because of its durability, strong support network, and long service life, the used 2013 FANUC ROBODRILL Alpha D14MiA5 continues to be a highly desirable option in the global CNC machinery market.

FANUC ROBODRILL ALPHA D14MiA5 – AXIS

SPECIFICATIONDETAILS
Axis Configuration3-Axis Vertical Machining Center
X-Axis Travel19.7″
Y-Axis Travel15.7″
Z-Axis Travel13″
Rapid Traverse Rate1,417–2,126 IPM (model dependent)
Control SystemFANUC Digital Servo System

FANUC ROBODRILL ALPHA D14MiA5 – AXIS TRAVELS / WORK ENVELOPE

SPECIFICATIONDETAILS
Maximum X Travel19.7″
Maximum Y Travel15.7″
Maximum Z Travel13″
Table to Spindle NoseApprox. 5.9″ – 19.7″
Machining StyleHigh-Speed Precision Production

FANUC ROBODRILL ALPHA D14MiA5 – TABLE

SPECIFICATIONDETAILS
Table Size19.7″ × 19.7″
Max Table Load~550–660 lbs (configuration dependent)
T-Slots3
WorkholdingVises, Fixtures, Rotary Tables
Table TypePrecision Ground Cast Table

FANUC ROBODRILL ALPHA D14MiA5 – SPINDLE

SPECIFICATIONDETAILS
Spindle Speed10,000 RPM
Optional SpindleUp to 15,000 RPM (variant dependent)
Spindle TaperBT30
Spindle Power~10–14.8 HP
Spindle TypeDirect Drive High-Speed Spindle

FANUC ROBODRILL ALPHA D14MiA5 – TOOL CHANGER

SPECIFICATIONDETAILS
Tool Capacity12–14 Tools (variant dependent)
Tool Change TypeAutomatic Tool Changer
Tool-to-Tool TimeApprox. 1.5–2.0 Seconds
Max Tool Diameter3.1″
Tool SystemRandom Access Magazine

FANUC ROBODRILL ALPHA D14MiA5 – CONTROL SYSTEM

SPECIFICATIONDETAILS
CNC ControlFANUC 31i Series (varies by build)
ProgrammingStandard G-code
InterfaceLCD Display
ConnectivityUSB / Ethernet (option dependent)
FeaturesDiagnostics, Tool Management

FANUC ROBODRILL ALPHA D14MiA5 – COOLANT / CHIP MANAGEMENT

SPECIFICATIONDETAILS
Coolant SystemFlood Coolant
Through-Spindle CoolantOptional
Chip RemovalChip Conveyor Ready
Coolant TankIntegrated System
FiltrationMulti-stage filtration (optional)

FANUC ROBODRILL ALPHA D14MiA5 – POWER REQUIREMENTS

SPECIFICATIONDETAILS
Voltage200–240V
Phase3 Phase
Air Requirement~80 PSI
Power Consumption~15–20 kVA
InstallationIndustrial Setup

FANUC ROBODRILL ALPHA D14MiA5 – DIMENSIONS

SPECIFICATIONDETAILS
Machine SizeApprox. 85″ × 72″ × 89″
Machine Weight~5,000 lbs
FootprintCompact CNC Cell Design
Layout TypeFloor-mounted

FANUC ROBODRILL ALPHA D14MiA5 – GENERAL INFORMATION

SPECIFICATIONDETAILS
ManufacturerFANUC
ModelROBODRILL Alpha D14MiA5
Year2013
Machine TypeVertical Machining Center
OriginJapan

INDUSTRIES THAT USE FANUC ROBODRILL D14MiA5

INDUSTRYAPPLICATIONS
AutomotivePrecision Production Parts
AerospaceSmall Structural Components
ElectronicsPrecision Housings
MedicalDevice Components
DefenseLight Precision Machining
General ManufacturingHigh-Volume Parts

TYPICAL PARTS FANUC ROBODRILL D14MiA5 CAN PRODUCE

PART TYPEDESCRIPTION
Aluminum HousingsElectronic Enclosures
BracketsAutomotive & Aerospace
Mold InsertsPrecision Tooling
Connector BlocksElectronics Industry
Hydraulic ComponentsSmall Fluid Systems
FixturesProduction Tooling

WHY CHOOSE FANUC ROBODRILL D14MiA5

FEATUREBENEFIT
High-Speed MotionReduced Cycle Time
Compact FootprintEfficient Shop Layout
BT30 SpindleFast Material Removal
FANUC ControlIndustry Reliability
Fast Tool ChangesHigher Productivity
Automation ReadyCell Manufacturing Compatible

WHY BUY USED FANUC ROBODRILL D14MiA5

Purchasing a used 2013 FANUC ROBODRILL D14MiA5 offers manufacturers a highly efficient and cost-effective entry into high-speed CNC production machining. The machine is widely recognized for its ability to deliver excellent productivity in a compact footprint, making it ideal for both job shops and dedicated production environments.

The biggest advantage of this model is its speed. With rapid axis movement and fast tool change cycles, the D14MiA5 minimizes idle time and maximizes spindle utilization. This directly translates into lower cost per part and higher throughput in production runs.

Its rigid cast construction ensures stability during machining, while FANUC’s servo and control systems provide excellent repeatability and accuracy. This makes it suitable for precision components where tight tolerances are required consistently over long production runs.

Another key benefit is its flexibility in automation. The ROBODRILL platform is widely used in robotic cells and palletized systems, making it an excellent choice for manufacturers looking to move toward lights-out production.

Overall, the used FANUC ROBODRILL D14MiA5 remains a strong investment for manufacturers seeking a reliable, fast, and compact CNC machining solution.

HOW MUCH DOES A USED FANUC ROBODRILL D14MiA5 COST?

The price of a used 2013 FANUC ROBODRILL D14MiA5 depends heavily on condition, spindle hours, maintenance history, tooling, and installed options such as through-spindle coolant or automation interfaces.

Machines in good running condition with standard tooling typically fall in the $20,000 to $55,000 range. Well-equipped units with rotary tables, probing systems, conveyors, and low operating hours may reach higher pricing.

Buyers typically evaluate spindle wear, axis accuracy, tool changer condition, and servo performance before purchase. Transport and installation costs should also be considered due to the machine’s industrial setup requirements.

Even with additional costs included, the D14MiA5 remains a strong value proposition for high-speed precision manufacturing due to its productivity, reliability, and long service life.
