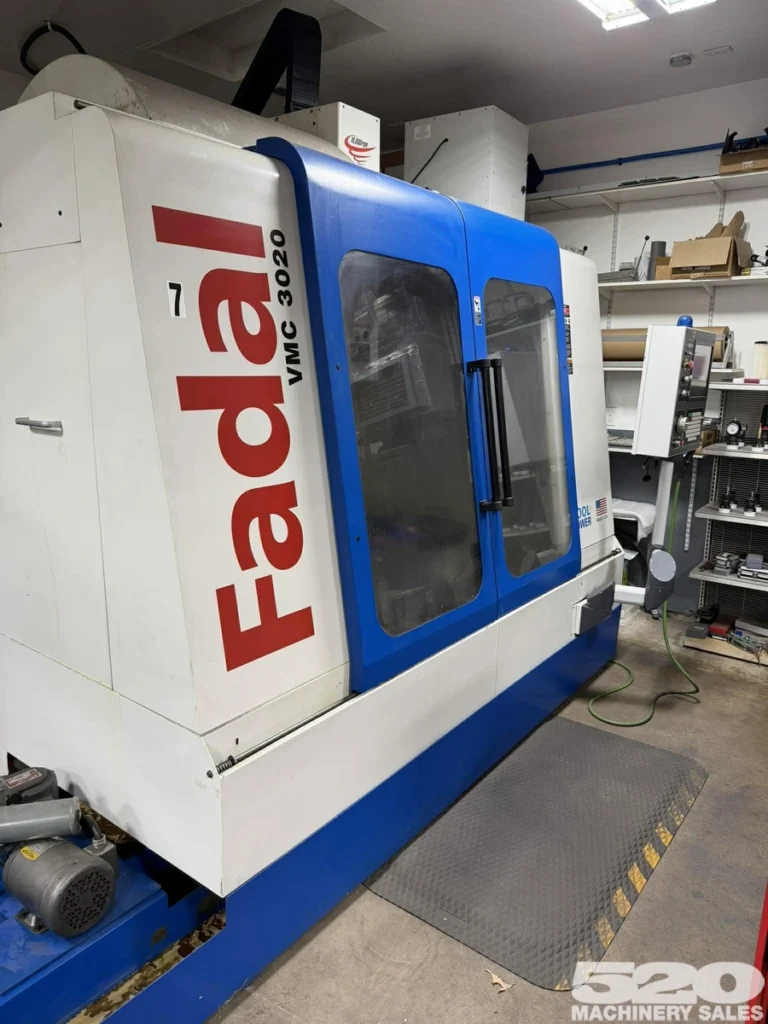

The FADAL VMC 3020HT is a versatile CNC vertical machining center designed for precision milling, prototyping, and production machining. Manufactured by Fadal Engineering, the 3020HT combines a compact footprint with a generous work envelope and high-speed spindle capability. The 2006 model remains a popular choice in the used CNC market because it offers proven reliability, straightforward maintenance, and excellent value for small to medium-sized machine shops.
The 2006 FADAL VMC 3020HT typically features 30 inches of X-axis travel, 20 inches of Y-axis travel, and 20 inches of Z-axis travel. It is commonly equipped with a CAT 40 spindle rated up to 10,000 RPM and a 15 to 22.5 hp spindle motor. A 21-position automatic tool changer supports a broad range of machining operations. The machine is suitable for machining aluminum, steel, stainless steel, cast iron, plastics, and tooling materials.
The VMC 3020HT is widely used in aerospace, automotive, mold making, education, and general manufacturing. Typical applications include brackets, fixture plates, housings, mold components, and prototype parts.
The 2006 FADAL VMC 3020HT remains an excellent investment because it combines dependable performance, widely available replacement parts, and low ownership costs.
FADAL VMC 3020HT SPECIFICATIONS
FADAL VMC 3020HT – AXIS
Number of Axes
3-Axis CNC Vertical Machining Center
Axis Configuration
X, Y, Z
Optional 4th Axis
Yes
Positioning Accuracy
High Precision
Repeatability
Excellent
Machine Type
Vertical Machining Center
FADAL VMC 3020HT – AXIS TRAVELS
X-Axis Travel
30 in (762 mm)
Y-Axis Travel
20 in (508 mm)
Z-Axis Travel
20 in (508 mm)
Rapid Traverse Rate
Up to 900 ipm
Spindle Nose to Table
Approx. 4 – 24 in
Guideway Type
Box Ways
FADAL VMC 3020HT – CAPACITY
Table Size
36 x 20 in (914 x 508 mm)
Maximum Table Load
1,500 lb (680 kg)
Maximum Workpiece Size
Medium Components
Maximum Tool Weight
15 lb (6.8 kg)
Industrial Usage
General-Purpose Milling
Workpiece Materials
Aluminum, Steel, Plastics
FADAL VMC 3020HT – SPINDLE
Spindle Taper
CAT 40
Maximum Spindle Speed
10,000 RPM
Spindle Motor Power
15 – 22.5 hp
Drive System
Belt Drive
Cooling System
Air/Oil
Rigid Tapping
Standard
FADAL VMC 3020HT – TABLE
Table Length
36 in (914 mm)
Table Width
20 in (508 mm)
Number of T-Slots
5
Workholding Compatibility
Vises, Fixtures, Rotary Tables
Table Construction
Precision Ground Cast Iron
Maximum Load
1,500 lb (680 kg)
FADAL VMC 3020HT – TOOL TURRET
Tool Changer Capacity
21 Tools
Tool Changer Type
Automatic Carousel
Tool Taper
CAT 40
Tool Selection
Random Access
Maximum Tool Weight
15 lb (6.8 kg)
Tool Change Time
Fast Automatic Change
FADAL VMC 3020HT – FEEDRATES
Maximum Cutting Feed Rate
Programmable
Rapid Traverse Rate
Up to 900 ipm
Servo System
AC Servo Drives
Contouring Performance
Excellent
Surface Finish Capability
Excellent
High-Speed Machining
Good
FADAL VMC 3020HT – COOLANT & CHIP MANAGEMENT
Flood Coolant System
Standard
Coolant Tank
Integrated
Chip Tray
Standard
Chip Conveyor
Optional
Coolant Filtration
Standard
Washdown Hose
Standard
FADAL VMC 3020HT – CONTROL SYSTEM
CNC Control Brand
Fadal CNC 88HS / MP32
Programming Method
Standard G-Code
Memory Capacity
Depends on Configuration
DNC Capability
Yes
RS-232 Communication
Standard
User Interface
Conversational and G-Code
FADAL VMC 3020HT – POWER & AIR REQUIREMENTS
Power Requirement
3-Phase
Voltage
220V / 440V
Air Pressure Requirement
80 – 100 psi
Air Consumption
Moderate
Frequency
50 / 60 Hz
Connected Load
Standard Industrial Power
FADAL VMC 3020HT – DIMENSIONS
Machine Weight
Approx. 8,500 lb (3,855 kg)
Machine Length
Approx. 105 in (2,667 mm)
Machine Width
Approx. 90 in (2,286 mm)
Machine Height
Approx. 110 in (2,794 mm)
Floor Space Requirement
Medium Footprint
Installation Type
Standard Shop Floor
FADAL VMC 3020HT – GENERAL INFORMATION
Machine Type
CNC Vertical Machining Center
Manufacturer
Fadal Engineering
Country of Origin
USA
Model Year
2006
Primary Application
Precision Milling and Production
Automation Ready
Yes
INDUSTRIES THAT USE FADAL VMC 3020HT
Aerospace
Precision Components
Automotive
Brackets and Housings
Mold Making
Mold Components
Tooling
Fixtures and Plates
Education
Training and Research
General Manufacturing
Custom Parts
TYPICAL PARTS FADAL VMC 3020HT CAN PRODUCE
Fixture Plates
Yes
Brackets
Yes
Housings
Yes
Mold Components
Yes
Prototype Parts
Yes
Precision Blocks
Yes
WHY CHOOSE FADAL VMC 3020HT
Proven Reliability
Excellent
Easy Maintenance
Outstanding
Widely Available Parts
Excellent
Affordable Used Pricing
Excellent
Strong Cutting Capability
Excellent
Resale Value
Good
WHY BUY USED FADAL VMC 3020HT
Purchasing a used 2006 FADAL VMC 3020HT is an excellent way to obtain a dependable and versatile machining center without the cost of a new machine. Its generous work envelope and high-speed spindle make it suitable for both prototype and production applications.
Many used machines include tooling packages, rotary tables, probing systems, and upgraded controls. These accessories can significantly increase productivity and reduce setup costs. Because Fadal machines are well known and easy to service, maintenance and spare parts remain accessible.
Buyers should inspect spindle bearings, way condition, lubrication systems, and CNC control performance. Machines with documented maintenance histories and good accuracy offer the best long-term value.
For manufacturers seeking an affordable and proven CNC machining center, the 2006 FADAL VMC 3020HT remains one of the best values in the used CNC market.
HOW MUCH DOES A USED FADAL VMC 3020HT COST?
MACHINE AGE / CONDITION
ESTIMATED PRICE RANGE (USD)
2004 – 2007 Models
$8,000 – $22,000
2008 – 2012 Models
$12,000 – $28,000
Low Spindle Hours
Premium Pricing
Machines with 4th Axis
Significant Premium
Machines with Tooling and Fixtures
Added Value
Refurbished Machines
15% – 30% Higher
Upgraded MP32 Controls
Added Value
Excellent Mechanical Condition
Premium Pricing
Fully Operational Under Power
Higher Buyer Confidence
Complete Maintenance Records
Higher Market Value
The cost of a used 2006 FADAL VMC 3020HT depends on spindle condition, machine accuracy, maintenance history, and included accessories. Most machines sell between $8,000 and $22,000, while exceptionally clean machines with low hours and tooling packages can command higher prices.
Machines with upgraded controls, probing systems, and rotary tables offer additional value and improved productivity. Buyers should also budget for rigging, transportation, and installation costs.
For shops seeking a reliable and economical CNC vertical machining center, the FADAL VMC 3020HT provides excellent performance and outstanding return on investment.
