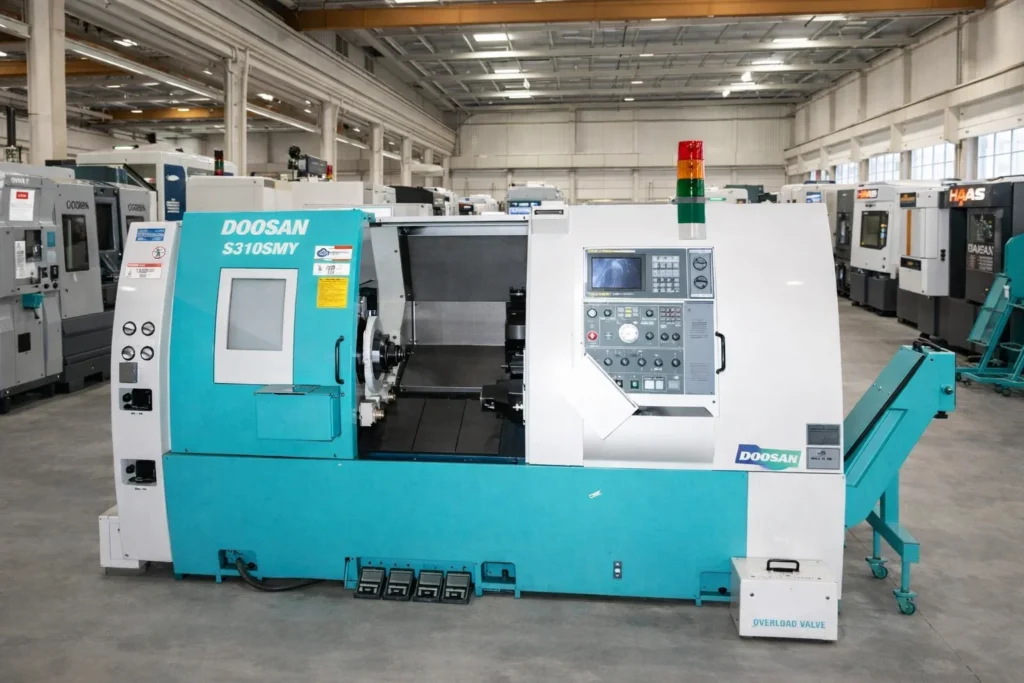

The Doosan S310MLY is an advanced CNC turning center designed for high-precision and multi-tasking machining. Manufactured by Doosan Machine Tools, this model combines traditional turning with milling capabilities through live tooling and Y-axis functionality, making it ideal for complex parts production.
The S310MLY typically offers a maximum turning diameter of around 310 mm and a turning length up to 750 mm. It is equipped with a high-speed spindle capable of reaching up to 4,500 RPM and a spindle motor in the 15–22 HP range. The machine includes a 12-station turret and sub-spindle capability, allowing simultaneous machining and reduced cycle times.
A key feature of the S310MLY is its Y-axis capability, which enables off-center milling, drilling, and tapping operations. Combined with a sub-spindle, it allows complete machining of parts in a single setup, significantly improving productivity and accuracy.
Overall, the S310MLY is a versatile and efficient solution for shops requiring both turning and milling capabilities in one machine, especially for complex and high-precision components.
DOOSAN S310MLYSPECIFICATIONS
DOOSAN S310MLY – AXIS
X-Axis
Y-Axis
Z-Axis
C-Axis (Spindle Indexing)
Sub-Spindle (Optional)
DOOSAN S310MLY – AXIS TRAVELS
X-Axis Travel: ~200 mm
Y-Axis Travel: ~100 mm (approx for milling)
Z-Axis Travel: ~570 mm
DOOSAN S310MLY – CAPACITY
Maximum Turning Diameter: ~310 mm
Maximum Turning Length: ~750 mm
Maximum Swing Over Bed: ~500 mm
Bar Capacity: ~77 mm
DOOSAN S310MLY – SPINDLE
Spindle Nose: A2-6 (ASA 6)
Spindle Bore: ~77 mm
Maximum Spindle Speed: ~4,500 RPM
Main Motor Power: ~15–22 HP
High Precision Main Spindle
DOOSAN S310MLY – SUB SPINDLE
Sub-Spindle Available
Enables Complete Part Machining
Ideal for Front & Back Operations
Reduces Secondary Operations
DOOSAN S310MLY – TOOL TURRET
Turret Type: Live Tool Turret
Number of Stations: 12
Live Tooling for Milling, Drilling & Tapping
High-Speed Indexing
DOOSAN S310MLY – FEEDRATES
Rapid Traverse (X/Z): ~20 / 24 m/min
Y-Axis Feed: Precision Controlled
Cutting Feed Rate: Programmable
DOOSAN S310MLY – COOLANT & CHIP MANAGEMENT
Coolant System: Flood Coolant
Chip Disposal: Chip Conveyor
Efficient Chip Evacuation System
DOOSAN S310MLY – CONTROL SYSTEM
CNC Control: FANUC Series
Multi-Axis Programming Capability
User-Friendly Interface
Reliable CNC Performance
DOOSAN S310MLY – POWER & AIR REQUIREMENTS
Power Requirement: ~380–415V, 3 Phase
Connected Load: ~30–40 kVA
Air Requirement: ~5–6 bar
DOOSAN S310MLY – DIMENSIONS
Machine Footprint: ~3.4 m x 1.8 m
Machine Height: ~1.9 m
Machine Weight: ~3,500–4,800 kg
DOOSAN S310MLY – GENERAL INFORMATION
Machine Type: CNC Turn-Mill Center
Multi-Tasking Machine (Turning + Milling)
Y-Axis Enables Off-Center Machining
Compact Yet Powerful Design
Ideal for Complex Components
INDUSTRIES THAT USE DOOSAN S310MLY
Automotive Industry
Aerospace Industry
Medical Equipment
General Engineering
Precision Manufacturing
TYPICAL PARTS DOOSAN S310MLY CAN PRODUCE
Shafts with Keyways
Complex Bushings
Flanges with Milling Features
Valve Components
Precision Multi-Operation Parts
WHY CHOOSE DOOSAN S310MLY
Turning + Milling in One Setup
Y-Axis for Complex Machining
Reduced Setup Time
High Precision and Productivity
Reliable FANUC Control
Ideal for Complex Part Manufacturing
WHY BUY USED DOOSAN S310MLY
Buying a used Doosan S310MLY is a strategic investment for manufacturers looking to expand multi-tasking capabilities without the cost of a new machine. One of the biggest advantages is cost savings—used machines provide turning, milling, and sub-spindle functionality at a significantly lower investment compared to new multi-axis systems.
The S310MLY is built on a rigid and durable platform from Doosan Machine Tools, ensuring long-term reliability. Even machines with higher cutting hours can continue to perform efficiently when properly maintained, making them suitable for long production cycles.
Another key benefit is productivity. With live tooling, Y-axis, and sub-spindle capability, the machine can complete complex parts in a single setup. This reduces handling time, minimizes errors, and improves overall throughput—especially valuable in batch production and precision industries.
Additionally, used machines are typically available immediately, avoiding long lead times. Widely used CNC systems like Fanuc also make maintenance easier, with readily available spare parts and service support.
For businesses aiming to increase capability while controlling costs, a used S310MLY offers excellent value and flexibility.
HOW MUCH DOES A USED DOOSAN S310MLYCOST?
The cost of a used Doosan S310MLY depends on factors such as year of manufacture, condition, configuration, and cutting hours. Machines built before 2000 are rare for this model, but when available, they typically range from $15,000 to $35,000. These units usually have high cutting hours and older CNC systems.
Machines from 2000 to 2010 are the most common and generally fall within the $30,000 to $70,000 range. These machines often include Fanuc controls, live tooling, and moderate to high cutting hours (typically 8,000–20,000+ hours). They offer a strong balance between price and multi-tasking capability.
For machines produced between 2010 and 2025, prices usually range from $70,000 to $130,000 or more, depending on configuration, tooling, and condition. Machines with lower cutting hours (under 5,000–8,000 hours) command premium pricing, especially if equipped with sub-spindle and advanced live tooling.
Cutting time is a critical pricing factor—low-hour machines retain higher value, while high-hour machines are more affordable but may require maintenance, particularly in live tooling systems, spindle assemblies, and Y-axis components.
