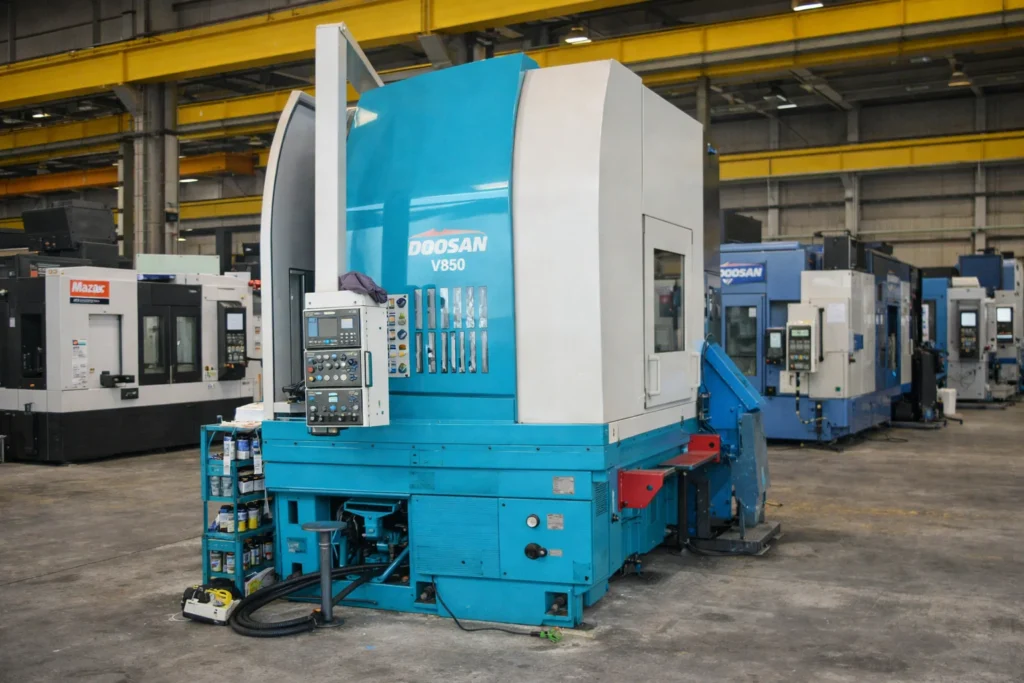

The Doosan Puma V850 is a heavy-duty CNC vertical turning center designed for machining large-diameter components with high precision and stability. Manufactured by Doosan Machine Tools (now DN Solutions), the V850 is part of the advanced V-series and is widely used in industries such as automotive, energy, railways, and heavy equipment manufacturing.
The machine typically offers a maximum turning diameter of around 850 mm and a turning height of approximately 800 mm, making it ideal for large components such as brake discs, flanges, and housings. It is equipped with a powerful spindle motor in the range of 37–45 kW and spindle speeds up to 2,000 RPM, delivering strong torque for heavy-duty cutting operations.
The V850 features a rigid Meehanite cast iron structure with box guideways, ensuring excellent vibration damping, thermal stability, and long-term accuracy. It is commonly fitted with a 12-station turret and advanced CNC controls such as Fanuc or Siemens, providing precision, repeatability, and ease of operation.
Overall, the Puma V850 is designed for durability, high material removal rates, and consistent performance in demanding vertical turning applications.
DOOSAN PUMA V850SPECIFICATIONS
DOOSAN V850 – AXIS
X-Axis
Z-Axis
C-Axis (Spindle Indexing)
DOOSAN V850 – AXIS TRAVELS
X-Axis Travel: ~450 mm
Z-Axis Travel: ~850 mm
DOOSAN V850 – CAPACITY
Maximum Turning Diameter: ~850 mm
Maximum Turning Length: ~850 mm
Maximum Swing Over Bed: ~1,050 mm
Chuck Size: ~24–32 inch
DOOSAN V850 – SPINDLE
Spindle Nose: A2-15
Spindle Bore: ~230 mm
Maximum Spindle Speed: ~1,000–1,200 RPM
Main Motor Power: ~45–55 kW
High Torque Heavy-Duty Spindle
DOOSAN V850 – TABLE
Table Type: Vertical Turning Table
Chuck Size: ~24–32 inch
Hydraulic Clamping System
Suitable for Large & Heavy Workpieces
DOOSAN V850 – TOOL TURRET
Turret Type: Heavy-Duty Servo Turret
Number of Stations: 12
High Rigidity Tooling System
Fast Indexing
DOOSAN V850 – FEEDRATES
Rapid Traverse (X/Z): ~16 / 16 m/min
Cutting Feed Rate: Programmable
Heavy-Duty Feed Drive System
DOOSAN V850 – COOLANT & CHIP MANAGEMENT
Coolant System: High Flow Flood Coolant
Chip Disposal: Heavy-Duty Chip Conveyor
Designed for Large Chip Removal
DOOSAN V850 – CONTROL SYSTEM
CNC Control: FANUC Series
User-Friendly Interface
High Reliability for Industrial Use
DOOSAN V850 – POWER & AIR REQUIREMENTS
Power Requirement: ~380–415V, 3 Phase
Connected Load: ~70–90 kVA
Air Requirement: ~5–6 bar
DOOSAN V850 – DIMENSIONS
Machine Footprint: ~4.5 m x 3.5 m
Machine Height: ~3.5–4.0 m
Machine Weight: ~20,000–28,000 kg
DOOSAN V850 – GENERAL INFORMATION
Machine Type: Heavy-Duty Vertical Turning Center (VTL)
Designed for Large Diameter Components
High Rigidity Structure
Ideal for Heavy Cutting Applications
Stable Vertical Design for Large Parts
INDUSTRIES THAT USE DOOSAN V850
Oil & Gas Industry
Energy & Power Sector
Heavy Equipment Manufacturing
Aerospace Industry
Shipbuilding Industry
TYPICAL PARTS DOOSAN V850 CAN PRODUCE
Large Flanges
Heavy Bearing Rings
Wind Turbine Components
Large Housings
Industrial Rollers
WHY CHOOSE DOOSAN V850
Very Large Turning Capacity
High Torque for Heavy Machining
Excellent Stability for Big Parts
Robust and Durable Design
Reliable FANUC Control
Ideal for Heavy Industrial Applications
WHY BUY USED DOOSAN PUMA V850
Purchasing a used Doosan Puma V850 is a smart investment for manufacturers needing large-part machining capability at a reduced cost. One of the biggest advantages is cost savings—used machines can deliver heavy-duty performance at a fraction of the price of new vertical turning centers.
The V850 is built on a highly rigid and durable platform from Doosan Machine Tools, ensuring long service life. Even machines with high cutting hours can continue to perform reliably when properly maintained, making them suitable for demanding production environments.
Another key benefit is stability. The vertical design naturally supports heavy workpieces, reducing vibration and improving machining accuracy. This is especially important when machining large and heavy components where precision is critical.
Used machines are also typically available for immediate delivery, reducing downtime compared to new equipment lead times. Maintenance is straightforward due to widely used CNC systems like Fanuc, with strong global support and readily available spare parts.
Overall, a used Puma V850 offers a strong combination of capacity, reliability, and cost efficiency for heavy-duty machining operations.
HOW MUCH DOES A USED DOOSAN PUMA V850COST?
The cost of a used Doosan Puma V850 depends on year of manufacture, condition, configuration, and cutting hours. Machines built before 2000 are rare but may be available in older vertical turning center configurations, typically ranging from $30,000 to $60,000. These units often have higher cutting hours and older CNC controls but can still handle heavy-duty operations.
Machines from 2000 to 2010 are more commonly available and generally fall within the $60,000 to $120,000 range. These machines typically include Fanuc controls, improved spindle performance, and moderate to high cutting hours (often 8,000–20,000+ hours), offering a solid balance between cost and capability.
For machines produced between 2010 and 2025, prices typically range from $120,000 to $250,000 or more, depending on configuration, tooling, and condition. Machines with lower cutting hours (under 5,000–8,000 hours) command premium pricing due to reduced wear and better overall performance.
Cutting time is a key factor—low-hour machines retain higher value, while high-hour machines are more affordable but may require maintenance such as spindle servicing, turret alignment, or guideway inspection to maintain optimal performance.
