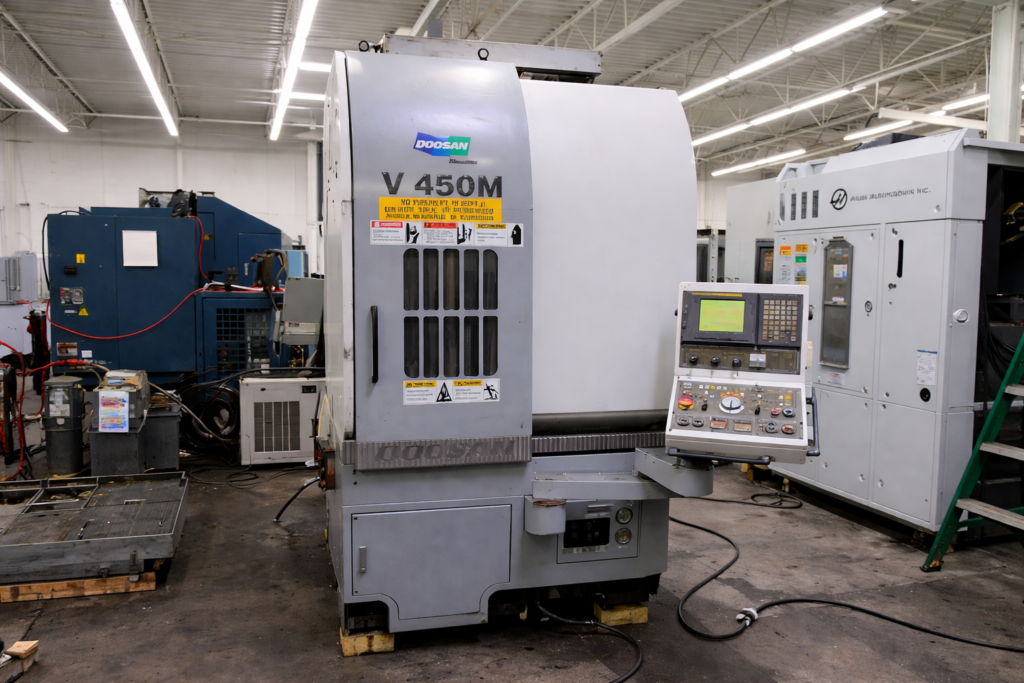

The Doosan Puma V450 is a compact and high-performance CNC vertical turning center designed for precision machining of medium-sized components. Built by Doosan Machine Tools (now DN Solutions), this model is part of the V-series and is widely used in automotive, aerospace, and general engineering industries.
The V450 typically offers a maximum turning diameter of around 450–580 mm and a turning height of approximately 450 mm, making it suitable for components such as flanges, brake discs, and housings. It is equipped with a high-speed spindle capable of up to 2,500 RPM and a spindle motor around 18.5–30 kW, delivering reliable cutting performance for both roughing and finishing operations.
The machine features a rigid cast iron structure with box guideways, ensuring excellent vibration damping and long-term accuracy. A 12-station turret and CNC controls—commonly from Fanuc—provide flexibility and ease of programming. The vertical design allows gravity to stabilize the workpiece, improving machining consistency.
Overall, the Puma V450 is known for its reliability, compact footprint, and efficient performance in vertical turning applications.
DOOSAN PUMA V450SPECIFICATIONS
DOOSAN V450 – AXIS
X-Axis
Z-Axis
C-Axis (Spindle Indexing)
DOOSAN V450 – AXIS TRAVELS
X-Axis Travel: ~240 mm
Z-Axis Travel: ~450 mm
DOOSAN V450 – CAPACITY
Maximum Turning Diameter: ~450 mm
Maximum Turning Length: ~450 mm
Maximum Swing Over Bed: ~580 mm
Chuck Size: ~12–15 inch
DOOSAN V450 – SPINDLE
Spindle Nose: A2-8
Spindle Bore: ~62 mm
Maximum Spindle Speed: ~2,500 RPM
Main Motor Power: ~30–37 kW
High Torque Vertical Spindle
DOOSAN V450 – TABLE
Table Type: Vertical Turning Table
Chuck Size: ~12–15 inch
Hydraulic Clamping System
Suitable for Disc-Type Components
DOOSAN V450 – TOOL TURRET
Turret Type: Servo / VDI Turret
Number of Stations: 12
Fast Indexing
Heavy-Duty Tooling Capability
DOOSAN V450 – FEEDRATES
Rapid Traverse (X/Z): ~20 / 20 m/min
Cutting Feed Rate: Programmable
Precision Feed Drive System
DOOSAN V450 – COOLANT & CHIP MANAGEMENT
Coolant System: Flood Coolant
Chip Disposal: Chip Conveyor
Efficient Chip Evacuation Design
DOOSAN V450 – CONTROL SYSTEM
CNC Control: FANUC 21i-TB
User-Friendly Interface
Reliable CNC Performance
DOOSAN V450 – POWER & AIR REQUIREMENTS
Power Requirement: ~380–415V, 3 Phase
Connected Load: ~40–45 kVA
Air Requirement: ~5–6 bar
DOOSAN V450 – DIMENSIONS
Machine Footprint: ~2.6–2.9 m x 2.6 m
Machine Height: ~2.7–2.8 m
Machine Weight: ~6,000–12,000 kg
DOOSAN V450 – GENERAL INFORMATION
Machine Type: Vertical Turning Center (VTL)
Compact Vertical Design
High Rigidity Structure
Designed for Medium to Heavy Duty Cutting
High Productivity and Stability
INDUSTRIES THAT USE DOOSAN V450
Automotive Industry
Aerospace Industry
Oil & Gas Industry
Heavy Engineering
General Manufacturing
TYPICAL PARTS DOOSAN V450 CAN PRODUCE
Brake Discs
Flywheels
Flanges
Bearing Rings
Housings
WHY CHOOSE DOOSAN V450
Compact Vertical Design Saves Space
High Torque for Heavy Cutting
Excellent Stability for Disc-Type Parts
Fast Tool Indexing Improves Productivity
Reliable FANUC Control
Ideal for Medium to Heavy Components
WHY BUY USED DOOSAN PUMA V450
Buying a used Doosan Puma V450 is a practical choice for manufacturers looking to access vertical turning capability at a lower investment. One of the main advantages is cost savings—used machines can deliver strong performance at a fraction of the cost of new equipment.
The V450 is built on a rigid and durable platform from Doosan Machine Tools, ensuring long service life. Even machines with higher cutting hours can remain productive with proper maintenance, making them a dependable option for long-term use.
Another key benefit is machining stability. The vertical configuration naturally supports the workpiece, reducing vibration and improving accuracy—especially when machining round components like rings, discs, and housings.
Used machines are also typically available for immediate delivery, helping reduce downtime compared to new machine lead times. Maintenance is straightforward due to widely used CNC systems like Fanuc, with readily available spare parts and service support.
Overall, a used Puma V450 offers a strong combination of reliability, performance, and cost efficiency for a wide range of machining applications.
HOW MUCH DOES A USED DOOSAN PUMA V450COST?
The cost of a used Doosan Puma V450 varies depending on year of manufacture, condition, configuration, and cutting hours. Machines built before 2000 are less common but typically range from $20,000 to $40,000. These units usually have higher cutting hours and older CNC controls but can still perform standard turning operations effectively.
Machines from 2000 to 2010 are the most commonly available and generally fall within the $40,000 to $85,000 range. These machines often include Fanuc controls, improved spindle performance, and moderate to high cutting hours (typically 8,000–20,000+ hours).
For machines produced between 2010 and 2025, prices typically range from $85,000 to $160,000 or more, depending on configuration and condition. Machines with lower cutting hours (under 5,000–8,000 hours) command premium pricing due to reduced wear and better overall performance.
Cutting time is a critical factor in valuation—low-hour machines retain higher value, while high-hour machines are more affordable but may require maintenance such as spindle servicing, turret alignment, or guideway inspection to maintain optimal performance.
