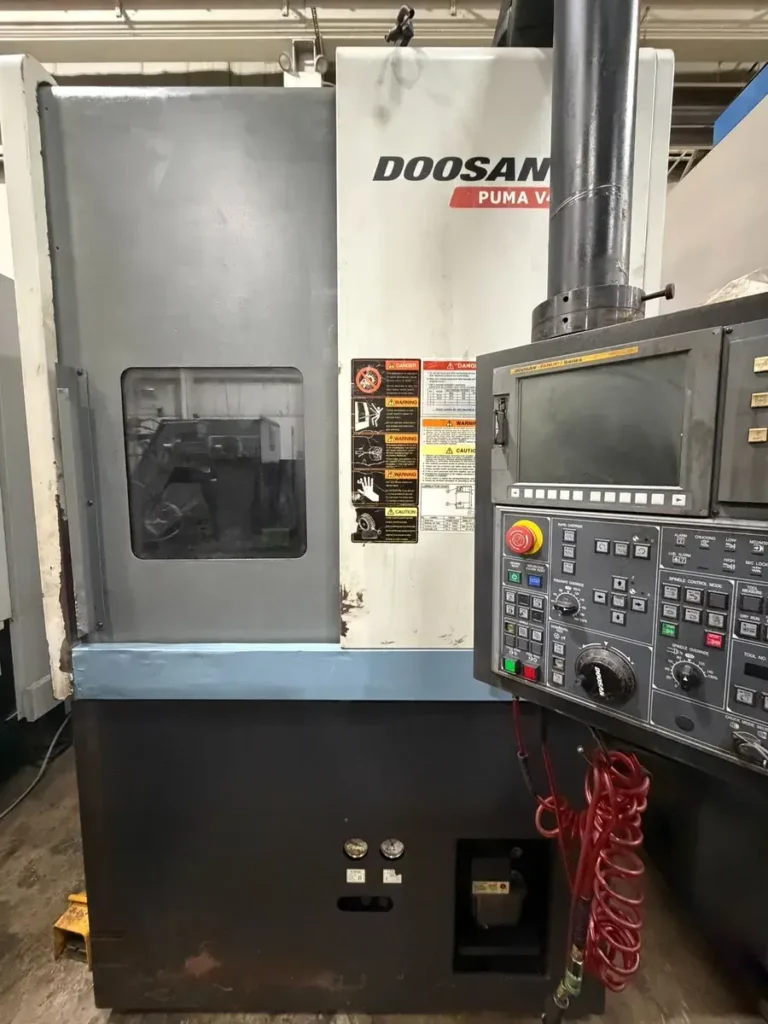

USED DOOSAN PUMA V400M – 2012

The DOOSAN PUMA V400M is a high-performance vertical turning center designed for manufacturers that require efficient machining of medium to large diameter components with exceptional rigidity, accuracy, and productivity. Manufactured by Doosan Machine Tools, now operating under DN Solutions, the PUMA V400M combines the advantages of vertical turning technology with live tooling capabilities, allowing manufacturers to perform turning, milling, drilling, tapping, and secondary machining operations in a single setup. This versatility has made the machine highly popular across industries such as automotive, aerospace, energy, heavy equipment, transportation, and general precision engineering.

The vertical lathe design of the PUMA V400M offers significant advantages when machining large and heavy workpieces. Unlike horizontal turning centers, gravity naturally stabilizes the workpiece on the chuck, reducing clamping stress and improving machining accuracy. This configuration is particularly beneficial when machining large flanges, rings, housings, brake components, bearing assemblies, and industrial castings. The machine’s rigid structure and heavy-duty spindle design allow it to handle demanding cutting operations while maintaining excellent dimensional consistency.

One of the key features of the PUMA V400M is its milling capability. Equipped with live tooling and C-axis functionality, the machine can perform milling, drilling, tapping, and contouring operations without requiring secondary machining centers. This reduces setup time, improves accuracy, and increases productivity by allowing complete part machining on a single platform. Manufacturers can significantly reduce work-in-process inventory while shortening production cycles.

The machine is typically equipped with a powerful spindle, automatic tool changer, live tooling turret, and Fanuc CNC control system. These features provide the flexibility needed to handle both low-volume, high-mix production and larger production runs. The machine’s enclosed design also enhances chip control and operator safety.

Industries that machine large rotational components frequently choose the PUMA V400M because of its durability, versatility, and ability to combine multiple machining processes in one setup. In the used CNC machine market, the 2012 DOOSAN PUMA V400M remains highly desirable because it offers modern turning and milling capabilities at a significantly lower investment than purchasing a comparable new machine.

---

DOOSAN PUMA V400M – AXIS

Specification	Details
Number of Axes	3 Axis + C Axis
X-Axis Travel	315 mm
Z-Axis Travel	500 mm
C-Axis Positioning	0.001°
Live Tool Capability	Yes

---

DOOSAN PUMA V400M – AXIS TRAVELS / WORK ENVELOPE

Specification	Details
Maximum Turning Diameter	550 mm
Maximum Turning Height	500 mm
X-Axis Travel	315 mm
Z-Axis Travel	500 mm
Maximum Machining Envelope	Large Vertical Turning Capacity

---

DOOSAN PUMA V400M – CAPACITY / TABLE

Specification	Details
Chuck Size	15″
Maximum Swing Diameter	650 mm
Maximum Workpiece Diameter	550 mm
Maximum Workpiece Height	500 mm
Maximum Workpiece Weight	500 kg

---

DOOSAN PUMA V400M – SPINDLE

Specification	Details
Spindle Speed	2,000 RPM
Spindle Motor	30 HP (22 kW)
Spindle Torque	High Torque Design
Spindle Nose	A2-11
Spindle Bearing System	Heavy-Duty Precision Bearings

---

DOOSAN PUMA V400M – TOOL CHANGER

Specification	Details
Turret Capacity	12 Stations
Live Tool Positions	12
Tool Selection	Automatic
Tool Type	VDI / BMT Configuration
Milling Capability	Yes

---

DOOSAN PUMA V400M – CONTROL SYSTEM

Specification	Details
CNC Control	Fanuc 18i-TB
Programming	G-Code
Conversational Functions	Available
Networking	Optional
DNC Capability	Supported

---

DOOSAN PUMA V400M – COOLANT / DUST / WATER MANAGEMENT

Specification	Details
Coolant System	Flood Coolant
Coolant Capacity	Approx. 300 Liters
Chip Removal	Automatic Chip Conveyor
Through-Tool Coolant	Optional
Enclosure	Fully Enclosed Design

---

DOOSAN PUMA V400M – POWER REQUIREMENTS

Specification	Details
Voltage	220V / 380V / 440V
Phase	3 Phase
Frequency	50/60 Hz
Connected Load	Approx. 40 kVA

---

DOOSAN PUMA V400M – DIMENSIONS

Specification	Details
Length	Approx. 3,100 mm
Width	Approx. 2,400 mm
Height	Approx. 3,300 mm
Machine Weight	Approx. 11,000 kg (24,250 lbs)

---

DOOSAN PUMA V400M – GENERAL INFORMATION

Specification	Details
Manufacturer	Doosan Machine Tools
Model	PUMA V400M
Year	2012
Machine Type	Vertical Turning Center
Country of Manufacture	South Korea
Primary Function	CNC Turning and Milling

---

INDUSTRIES THAT USE DOOSAN PUMA V400M

The DOOSAN PUMA V400M is widely utilized in industries that manufacture large rotational components requiring both turning and milling operations. Automotive manufacturers frequently use the machine for brake drums, brake discs, wheel hubs, transmission components, bearing housings, and drivetrain parts. The machine’s vertical design makes it ideal for handling heavy castings while maintaining accuracy.

The energy sector utilizes the machine for valve bodies, pump housings, turbine components, compressor parts, and power generation equipment. Aerospace manufacturers use the PUMA V400M for structural rings, engine casings, landing gear components, and precision-machined rotational parts.

Heavy equipment manufacturers rely on the machine for hydraulic components, gearbox housings, bearing carriers, and industrial drive assemblies. Transportation industries utilize the machine for railway wheels, axle components, marine parts, and industrial vehicle components.

Additional industries include oil and gas, defense, contract machining, industrial machinery manufacturing, and general engineering. The machine’s ability to perform multiple operations in a single setup helps manufacturers improve efficiency and reduce production costs.

---

TYPICAL PARTS DOOSAN PUMA V400M CAN PRODUCE

The DOOSAN PUMA V400M is capable of producing a broad range of medium and large rotational components. Automotive applications include brake rotors, wheel hubs, bearing housings, transmission cases, differential carriers, and suspension components. The machine’s turning and milling capabilities allow complex parts to be completed efficiently.

Energy industry applications include pump housings, valve bodies, compressor casings, turbine components, and power generation equipment. Aerospace manufacturers use the machine to produce structural rings, engine components, support housings, and precision-machined assemblies.

Heavy equipment manufacturers machine gearbox housings, hydraulic cylinders, bearing carriers, industrial rollers, and large flanges. Transportation applications include railway wheels, axle housings, marine propulsion components, and industrial drive systems.

Additional products include machine tool components, industrial castings, automation equipment parts, defense components, oil and gas equipment, and custom-engineered rotational assemblies. The machine’s versatility allows manufacturers to support a wide variety of industries and applications.

---

WHY CHOOSE DOOSAN PUMA V400M

The DOOSAN PUMA V400M offers manufacturers a highly efficient solution for machining large rotational components. One of its greatest advantages is the vertical spindle configuration, which uses gravity to stabilize heavy workpieces and improve machining accuracy. This design simplifies loading and unloading while reducing fixture complexity.

The machine’s live tooling capability allows milling, drilling, tapping, and contouring operations to be performed without moving the part to another machine. This reduces setup time, improves accuracy, and increases productivity by enabling complete machining in a single setup.

The machine’s rigid construction and powerful spindle provide excellent performance when machining cast iron, steel, stainless steel, and other demanding materials. The heavy-duty structure helps maintain precision even during aggressive cutting operations.

The Fanuc control system offers proven reliability, widespread operator familiarity, and excellent support availability. Combined with Doosan’s reputation for durable machine construction, the PUMA V400M provides dependable long-term performance.

For manufacturers seeking a productive and versatile vertical turning center capable of handling complex rotational parts, the DOOSAN PUMA V400M remains an excellent choice.

---

WHY BUY USED DOOSAN PUMA V400M

Purchasing a used DOOSAN PUMA V400M allows manufacturers to acquire advanced vertical turning and milling capabilities at a substantially lower cost than purchasing a new machine. This cost advantage makes the machine particularly attractive for companies seeking to increase production capacity while controlling capital expenditures.

One of the primary benefits of buying a used machine is access to live tooling and C-axis technology without the high cost associated with modern new equipment. Manufacturers can perform complete part machining in a single setup while significantly reducing equipment investment.

The PUMA V400M is known for its robust construction and long operational life. Properly maintained machines can continue producing accurate parts for many years, providing excellent return on investment. The machine’s heavy-duty spindle, rigid structure, and reliable control system contribute to its long-term durability.

Many used machines include valuable accessories such as tooling packages, chip conveyors, probes, live tooling holders, hydraulic systems, and coolant upgrades. Purchasing these options with the machine can generate substantial cost savings.

Another important advantage is faster availability. New machine lead times can be lengthy, while used machines are often available for immediate purchase and installation. This allows manufacturers to quickly respond to new contracts and production requirements.

For companies seeking efficient turning and milling capabilities with excellent value, a used DOOSAN PUMA V400M represents a smart investment.

---

HOW MUCH DOES A USED DOOSAN PUMA V400M COST?

The value of a used DOOSAN PUMA V400M depends on machine condition, spindle hours, maintenance history, installed options, tooling packages, and overall machine configuration. Machines equipped with live tooling, C-axis functionality, and additional accessories generally command higher market values.

Machines with documented maintenance records, low operating hours, and excellent mechanical condition typically achieve premium pricing. Buyers often evaluate spindle performance, turret condition, axis accuracy, control reliability, and overall operational history before determining value.

Installed options such as through-tool coolant, upgraded tooling packages, automatic tool measurement systems, chip conveyors, bar feed integration, and additional live tooling can significantly increase machine value. Machines with extensive tooling and accessories often provide greater overall value to buyers.

Demand remains strong among automotive suppliers, energy companies, heavy equipment manufacturers, aerospace suppliers, and contract machining facilities. The machine’s combination of vertical turning and milling capabilities continues to support healthy resale values.

As a general guideline, a used 2012 DOOSAN PUMA V400M typically sells within a range of approximately $45,000 to $110,000, depending on machine condition, spindle hours, installed options, tooling packages, and overall configuration. Machines with extensive live tooling packages and exceptional maintenance histories may command premium pricing.

In addition to the purchase price, buyers should budget for transportation, rigging, installation, tooling, training, and commissioning expenses. Even after accounting for these costs, a used DOOSAN PUMA V400M often delivers outstanding value by providing advanced turning and milling capability at a fraction of the cost of comparable new equipment.
