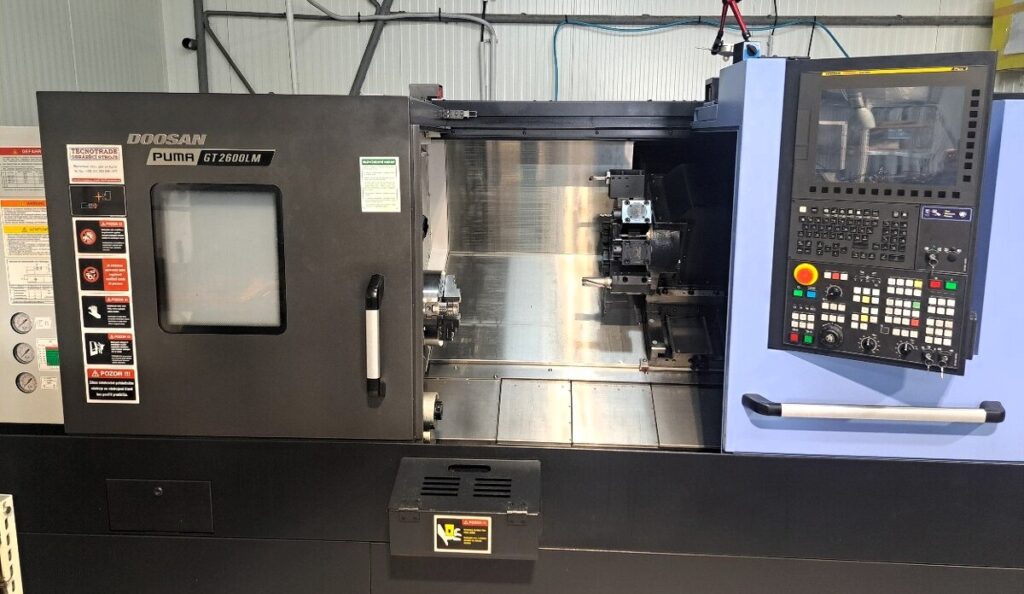

DOOSAN PUMA GT2600 LM – 2022
USED DOOSAN PUMA GT2600 LM – 2022
The DOOSAN PUMA GT2600 LM – 2022 is a heavy-duty CNC turning center designed for precision turning combined with live-tool machining. The GT series uses a rigid box-guideway construction and is designed to provide cutting performance, accuracy, repeatability, and process reliability for demanding production applications. The LM configuration adds driven tooling and C-axis capability, allowing manufacturers to perform turning, drilling, milling, and other secondary operations on the same machine.
The documented 2022 PUMA GT2600 LM provides 265 mm of X-axis travel and 1,100 mm of Z-axis travel, with a maximum turning diameter of approximately 410 mm and maximum turning length of approximately 1,030 mm. The machine has an 81 mm spindle through-hole, making it suitable for relatively large-diameter bar work. A 12-inch hydraulic chuck and MT5 tailstock further expand its capability for both chucking and supported long-part applications.
The main spindle operates at up to 3,500 RPM and uses an A2-8 spindle nose, with a documented continuous spindle motor rating of 18.5 kW and 22 kW at the 30-minute rating. The BMT55 turret provides 12 tool stations, while driven tools can operate at up to 5,000 RPM. The documented 2022 machine is equipped with a FANUC i Series Plus control, C-axis capability, LNS chip conveyor, tool measuring probe, and driven tooling.
With its large bar capacity, 12-station live-tool turret, rigid guideways, and C-axis capability, the used DOOSAN PUMA GT2600 LM is well suited for manufacturers that want to combine turning and milling operations and reduce the number of setups required for complex cylindrical components.
DOOSAN PUMA GT2600 LM 2022 – AXIS
| Specification | Details |
|---|---|
| Machine Type | CNC Turning Center with Driven Tools |
| Number of Controlled Axes | 3 |
| X-Axis Travel | 265 mm / 10.4 in. |
| Z-Axis Travel | 1,100 mm / 43.3 in. |
| C-Axis | ±360° |
| X-Axis Rapid Traverse | 24 m/min |
| Z-Axis Rapid Traverse | 30 m/min |
| Guideway Type | Box / Prismatic Guideways |
| Control | FANUC i Series Plus |
The documented 2022 machine uses X/Z/C controlled axes with 265 mm X travel and 1,100 mm Z travel.
DOOSAN PUMA GT2600 LM 2022 – AXIS TRAVELS / WORK ENVELOPE
| Specification | Details |
|---|---|
| Swing Over Bed | 630 mm / 24.8 in. |
| Swing Over Support | 460 mm / 18.1 in. |
| Maximum Turning Diameter | 410 mm |
| Maximum Turning Length | 1,030 mm / 40.6 in. |
| X-Axis Travel | 265 mm / 10.4 in. |
| Z-Axis Travel | 1,100 mm / 43.3 in. |
| Maximum Bar Diameter | 81 mm / 3.2 in. |
| Maximum Workpiece Weight Without Tailstock | 260 kg |
| Maximum Workpiece Weight With Tailstock | 520 kg |
These dimensions and capacities are documented for the 2022 PUMA GT2600 LM configuration.
DOOSAN PUMA GT2600 LM 2022 – CAPACITY
| Specification | Details |
|---|---|
| Chuck Size | 12 in. |
| Chuck Type | Hydraulic 3-Jaw |
| Maximum Turning Diameter | 410 mm |
| Maximum Turning Length | 1,030 mm |
| Spindle Through Hole | 91 mm |
| Maximum Bar Working Diameter | 81 mm |
| Tailstock | Yes |
| Tailstock Taper | MT5 |
| Tailstock Quill Diameter | 100 mm |
| Tailstock Quill Stroke | 100 mm |
The documented machine is equipped with a 12-inch Samchully hydraulic chuck, MT5 tailstock, and 81-mm maximum bar capacity.
DOOSAN PUMA GT2600 LM 2022 – SPINDLE
| Specification | Details |
|---|---|
| Maximum Spindle Speed | 3,500 RPM |
| Spindle Nose | ASA A2-8 |
| Spindle Through Hole | 91 mm |
| Maximum Bar Diameter | 81 mm |
| Spindle Motor | 18.5 / 22 kW |
| Maximum Spindle Torque | Up to 622 Nm documented |
| Chuck | 12 in. Hydraulic 3-Jaw |
| Spindle Type | Belt Drive |
The 2022 machine specification lists a 3,500-RPM main spindle, A2-8 spindle nose, 91-mm spindle opening, and 18.5/22-kW continuous/30-minute motor ratings.
DOOSAN PUMA GT2600 LM 2022 – MILLING SPINDLE
| Specification | Details |
|---|---|
| Driven Tooling | Yes |
| Driven Tool Speed | 5,000 RPM |
| Driven Tool Motor | 5.5 kW |
| Driven Tool Torque | Approx. 47 Nm |
| Turret Interface | BMT55 |
| C-Axis | ±360° |
| Driven Tool Collets | ER25 |
| Maximum Milling Cutter Diameter | Approx. 16 mm documented |
| Maximum Drill Diameter | Approx. 16 mm documented |
The LM configuration allows live-tool machining in addition to conventional turning, making it possible to perform operations such as cross drilling and milling without removing the workpiece from the chuck.
DOOSAN PUMA GT2600 LM 2022 – TOOL CHANGER
| Specification | Details |
|---|---|
| Turret Type | BMT55 |
| Number of Tool Stations | 12 |
| Turning Tool Size | 25 x 25 mm |
| Boring Bar Diameter | 40 mm |
| Driven Tool Speed | 5,000 RPM |
| Tool Indexing Time | Approx. 0.15 / 0.6 sec. |
| Driven Tool Holders | Included on documented machine |
| Fixed Tool Holders | Included on documented machine |
The 2022 machine has a 12-position BMT55 turret. One documented example includes four driven holders and eight fixed holders, providing a complete 12-tool setup.
DOOSAN PUMA GT2600 LM 2022 – CONTROL SYSTEM
| Specification | Details |
|---|---|
| CNC Control | FANUC i Series Plus |
| Touchscreen | Yes, documented configuration |
| C-Axis Control | Yes |
| Controlled Axes | X, Z and C |
| Programming | CNC Turning and Live-Tool Programming |
| Tool Measurement | Yes |
| Positioning Accuracy | X 0.01 mm / Z 0.02 mm documented |
The 2022 machine is documented with a FANUC i Series Plus control and C-axis capability.
DOOSAN PUMA GT2600 LM 2022 – COOLANT / CHIP MANAGEMENT
| Specification | Details |
|---|---|
| Coolant System | Standard Machine Coolant |
| Chip Conveyor | LNS |
| Chip Removal | Automatic |
| Coolant Pump | Included |
| Chip Management | Automatic Conveyor |
| Tool Cooling | Machine Coolant System |
The documented 2022 machine is equipped with an LNS chip conveyor, providing automatic removal of chips during production.
DOOSAN PUMA GT2600 LM 2022 – POWER REQUIREMENTS
| Specification | Details |
|---|---|
| Main Spindle Motor | 18.5 kW continuous |
| Main Spindle Motor | 22 kW / 30-minute rating |
| Driven Tool Motor | 5.5 kW |
| Electrical Supply | 3-Phase AC 380 V / 50 Hz documented |
| Connected Power | Approx. 34.58 kVA documented |
| Compressed Air | 0.5 MPa / 50 NL/min documented |
Electrical requirements can vary according to the machine’s destination and installed options, so the electrical nameplate and documentation for the individual machine should be verified before installation.
DOOSAN PUMA GT2600 LM 2022 – DIMENSIONS
| Specification | Details |
|---|---|
| Machine Length | Approx. 3,841 mm |
| Machine Width | Approx. 1,707 mm |
| Machine Height | Approx. 1,830 mm |
| Machine Weight | Approx. 4,950 kg |
| Machine Type | Horizontal CNC Turning Center |
| Guideway Construction | Box / Prismatic |
The documented 2022 machine has an approximate footprint of 3,841 x 1,707 x 1,830 mm and weighs approximately 4,950 kg.
DOOSAN PUMA GT2600 LM 2022 – GENERAL INFORMATION
| Specification | Details |
|---|---|
| Manufacturer | DOOSAN |
| Model | PUMA GT2600 LM |
| Year | 2022 |
| Machine Type | CNC Turning Center with Live Tooling |
| Number of Controlled Axes | 3 |
| Control | FANUC i Series Plus |
| X Travel | 265 mm |
| Z Travel | 1,100 mm |
| C-Axis | ±360° |
| Maximum Turning Diameter | 410 mm |
| Maximum Turning Length | 1,030 mm |
| Maximum Bar Diameter | 81 mm |
| Main Spindle Speed | 3,500 RPM |
| Spindle Nose | A2-8 |
| Chuck | 12 in. Hydraulic |
| Turret | 12-Position BMT55 |
| Driven Tool Speed | 5,000 RPM |
| Tailstock | MT5 |
| Chip Conveyor | LNS |
| Machine Weight | Approx. 4,950 kg |
Specifications are based primarily on documented 2022 PUMA GT2600 LM machines; individual machines can have different options and accessories.
INDUSTRIES THAT USE DOOSAN PUMA GT2600 LM
The DOOSAN PUMA GT2600 LM is designed for production environments where manufacturers need both turning and secondary milling operations. Its rigid box-guideway construction, large 81-mm bar capacity, 12-inch chuck, live tooling, and C-axis control make it particularly useful for machining components that require multiple operations in a single setup.
Common industries include:
- Automotive manufacturing
- Aerospace manufacturing
- Oil and gas
- Energy equipment
- Industrial machinery
- Hydraulic equipment
- Pump and valve manufacturing
- Heavy equipment
- General precision machining
- Contract manufacturing
The LM configuration is especially useful for manufacturers producing parts that require turning combined with cross holes, flats, slots, or milled features.
TYPICAL PARTS DOOSAN PUMA GT2600 LM CAN PRODUCE
The combination of a 12-inch chuck, 81-mm bar capacity, C-axis, and driven tooling allows the PUMA GT2600 LM to produce a broad range of cylindrical and multi-operation components.
Typical parts include:
- Shafts
- Flanges
- Hydraulic components
- Pump components
- Valve bodies
- Bushings
- Couplings
- Automotive components
- Oil and gas components
- Rollers
- Drive components
- Precision mechanical components
The live tooling system can perform milling and drilling operations while the component remains secured in the chuck, helping reduce additional setups and improve production efficiency.
WHY CHOOSE DOOSAN PUMA GT2600 LM
The DOOSAN PUMA GT2600 LM combines the rigidity of a heavy-duty box-guideway turning center with live-tool and C-axis capabilities. Its 410-mm maximum turning diameter, 1,030-mm maximum turning length, and 81-mm bar capacity provide substantial capacity for medium and larger turned components.
The 12-position BMT55 turret and 5,000-RPM driven-tool system allow manufacturers to perform additional machining operations without transferring the workpiece to another machine. This can reduce setup time, improve part consistency, and simplify production of complex turned-and-milled components.
WHY BUY USED DOOSAN PUMA GT2600 LM
Buying a used DOOSAN PUMA GT2600 LM – 2022 can provide access to a relatively recent CNC turning center with modern FANUC control technology and substantial live-tooling capability. A documented 2022 example is described as being in new-machine condition, with only 400 engine hours, while another 2022 listing reports approximately 1,800 operating hours, demonstrating that machine condition and hours can vary considerably between individual machines.
Many used machines include valuable options such as:
- FANUC i Series Plus control
- 12-inch hydraulic chuck
- 12-position BMT55 turret
- Driven tooling
- C-axis
- MT5 tailstock
- LNS chip conveyor
- Tool measuring probe
- Four driven tool holders
- Eight fixed tool holders
- Machine documentation
- 81-mm bar capacity
Before purchasing, buyers should inspect spindle condition, chuck operation, turret indexing, driven-tool operation, C-axis accuracy, tailstock alignment, guideways, ball screws, coolant system, chip conveyor, probing system, and CNC control. Operating hours and spindle hours should also be verified because they can have a major effect on the value of a relatively recent used machine.
HOW MUCH DOES A USED DOOSAN PUMA GT2600 LM COST?
The asking price for a used DOOSAN PUMA GT2600 LM – 2022 varies according to operating hours, machine condition, tooling, chuck configuration, live-tool holders, chip conveyor, probing equipment, and location. Current documented 2022 listings are generally Price on Request rather than publishing a fixed asking price.
As a reference point, another DOOSAN GT2600LM listing on the used market is advertised at $89,500, although that listing does not establish a comparable value for a 2022 machine and should not be treated as a direct price for this model year.
For a 2022 PUMA GT2600 LM, price on request is therefore the safest description unless the exact machine’s current asking price is available. Buyers should compare spindle and operating hours, included driven tooling, control configuration, chuck, tailstock, chip conveyor, probing equipment, and overall machine condition before determining the final purchase value.
