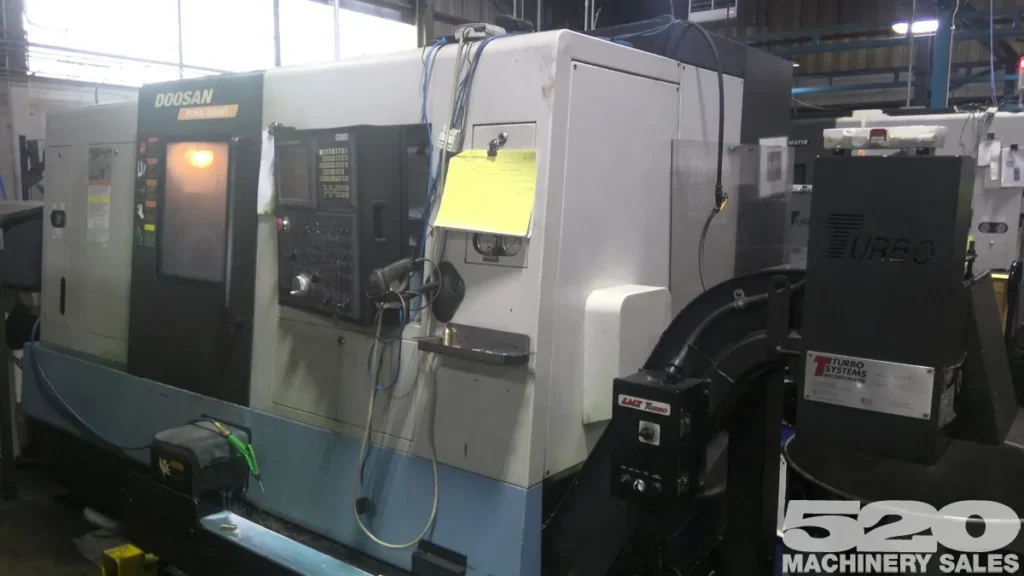

DOOSAN PUMA 1500SY – 2007
USED DOOSAN PUMA 1500SY – 2007
The DOOSAN PUMA 1500SY – 2007 is a 5-axis CNC turning center designed for precision production machining with a main spindle, sub-spindle, Y-axis movement, C-axis capability, and live tooling. This configuration allows turning, milling, drilling, and other secondary operations to be completed on the same machine, reducing the need for multiple setups. The machine uses a FANUC CNC control and a 12-station turret.
The PUMA 1500SY provides a 23.6″ swing over the bed, 21.6″ swing over the carriage, 13″ maximum turning diameter, and 1.75″ maximum bar capacity. The main spindle is equipped with a 6″ chuck and has a 2.08″ spindle bore. The main and sub-spindle are both capable of speeds up to 6,000 RPM.
The machine provides 9.84″ of X-axis travel, 4.0″ of Y-axis travel (±2.0″), and 22.8″ of Z-axis travel. The live tooling system operates from 50 to 5,000 RPM and uses a 7.5 HP rotating-tool motor. The 12-station BMT 55P turret provides additional flexibility for turning and driven-tool operations.
The DOOSAN PUMA 1500SY is well suited for manufacturers producing complex, small- to medium-sized components for automotive, aerospace, medical, electronics, industrial equipment, and general precision machining applications. Its sub-spindle and Y-axis live tooling make it particularly useful when multiple machining operations need to be completed in a single cycle.
DOOSAN PUMA 1500SY 2007 – AXIS
| Parameter | Specification |
|---|---|
| Machine Type | CNC Turning Center |
| Controlled Axes | 5 |
| X-Axis | Yes |
| Y-Axis | Yes |
| Z-Axis | Yes |
| C-Axis | Main and Sub-Spindle |
| Sub-Spindle | Yes |
| Live Tooling | Yes |
| Turret | 12 Station / 24 Index Positions |
| Tailstock | No |
| CNC Control | FANUC CNC |
The PUMA 1500SY is configured as a 5-axis turning center with Y-axis movement, live tooling, C-axis control, and a sub-spindle.
DOOSAN PUMA 1500SY 2007 – AXIS TRAVELS / WORK ENVELOPE
| Parameter | Specification |
|---|---|
| Swing Over Bed | 23.6″ |
| Swing Over Carriage | 21.6″ |
| Maximum Turning Diameter | 13.0″ |
| X-Axis Travel | 9.84″ |
| Y-Axis Travel | 4.0″ ± 2.0″ |
| Z-Axis Travel | 22.8″ |
| Sub-Spindle Travel | 22.8″ |
| X Rapid Traverse | 790 IPM |
| Y Rapid Traverse | 295 IPM |
| Z Rapid Traverse | 945 IPM |
| Distance Between Main/Sub-Spindle Noses | 33.8″ |
The documented 2007 specifications provide 9.84″ X-axis travel, 4.0″ Y-axis travel and 22.8″ Z-axis travel, with 33.8″ between the main and sub-spindle noses.
DOOSAN PUMA 1500SY 2007 – CAPACITY
| Parameter | Specification |
|---|---|
| Maximum Turning Diameter | 13.0″ |
| Swing Over Bed | 23.6″ |
| Swing Over Carriage | 21.6″ |
| Maximum Bar Capacity | 1.75″ |
| Main Chuck | 6″ |
| Main Spindle Bore | 2.08″ |
| Sub-Spindle Bore | 1.77″ |
| Main/Sub-Spindle | Twin Spindle |
| Tailstock | No |
| Turret | 12 Station |
The machine’s 1.75″ bar capacity and 13″ maximum turning diameter make it particularly appropriate for smaller precision turned components and production work.
DOOSAN PUMA 1500SY 2007 – SPINDLE
| Parameter | Specification |
|---|---|
| Main Spindle Speed | 60–6,000 RPM |
| Main Spindle Motor | 10 HP |
| Main Spindle Torque | 99 ft-lb |
| Main Spindle Nose | ASA A2-5 |
| Main Spindle Bore | 2.08″ |
| Main C-Axis | Yes |
| C-Axis Minimum Programmable Angle | 0.001° |
| C-Axis Repeatability | ±0.006° |
| Sub-Spindle Speed | 60–6,000 RPM |
| Sub-Spindle Motor | 10 HP |
| Sub-Spindle Nose | A2-5 |
| Sub-Spindle Bore | 1.77″ |
| Sub-Spindle C-Axis | Yes |
Both the main and sub-spindle are specified at up to 6,000 RPM, with 10 HP motors. The main spindle provides 99 ft-lb of maximum torque.
DOOSAN PUMA 1500SY 2007 – MILLING SPINDLE
| Parameter | Specification |
|---|---|
| Live Tooling | Yes |
| Rotating Tool Speed | 50–5,000 RPM |
| Rotating Tool Motor | 7.5 HP |
| Rotating Tool Torque | 34.7 ft-lb |
| Collet Type | ER25 |
| Milling Collet Capacity | 1/16″–5/8″ |
| Y-Axis | ±2.0″ |
| C-Axis | Yes |
| Driven Tools | Included |
The live-tool system is designed for milling and drilling operations and provides 50–5,000 RPM with a 7.5 HP rotating-tool motor.
DOOSAN PUMA 1500SY 2007 – TOOL CHANGER
| Parameter | Specification |
|---|---|
| Turret Type | BMT 55P |
| Tool Stations | 12 |
| Index Positions | 24 |
| Indexing | Bi-Directional |
| Turret Index Time | 0.1 sec. |
| Turning Tool Shank | 0.75″ Standard / 1.0″ Optional |
| Main Boring Bar | 1.25″ Standard / 1.5″ Optional |
| Sub-Spindle Boring Bar | 1.0″ |
| Live Tool Holders | ER25 |
| Turret Index Repeatability | ±0.0005° |
The BMT 55P turret provides 12 tools with 24 indexing positions and a documented 0.1-second next-station swivel time.
DOOSAN PUMA 1500SY 2007 – CONTROL SYSTEM
| Parameter | Specification |
|---|---|
| CNC Control | FANUC CNC |
| Documented Control | FANUC Series 18i-TB |
| Main C-Axis Control | Yes |
| Sub C-Axis Control | Yes |
| Tool Offsets | Yes |
| Y-Axis Control | Yes |
| Live Tool Control | Yes |
| Programmable Sub-Spindle | Yes |
A documented 2007 PUMA 1500SY uses a FANUC Series 18i-TB CNC control, while current listings identify the machine as equipped with FANUC CNC control.
DOOSAN PUMA 1500SY 2007 – COOLANT / CHIP MANAGEMENT
| Parameter | Specification |
|---|---|
| Coolant Pump Pressure | 65 PSI |
| Coolant Pump Motor | 1.2 HP |
| Coolant Tank Capacity | 39 gallons |
| Chip Conveyor | Yes |
| Chip Removal | Automatic Conveyor |
| Spindle Oil Chiller | Yes |
| Oil Chiller Tank | 6.1 gallons |
| Hydraulic Tank | 2.6 gallons |
| Way Lubrication Tank | 0.5 gallon |
The documented machine includes a 39-gallon coolant tank, 65 PSI coolant pump, chip conveyor, and separate spindle oil-chiller system.
DOOSAN PUMA 1500SY 2007 – POWER REQUIREMENTS
| Parameter | Specification |
|---|---|
| Main Spindle Motor | 10 HP |
| Sub-Spindle Motor | 10 HP |
| Live Tool Motor | 7.5 HP |
| Required Voltage | 205–235 V |
| Electrical Phase | 3 Phase |
| Power Requirement | 40 KVA |
| Current at 220 V | 104 Amps |
The documented electrical specification calls for 205–235 V, 3-phase power and approximately 40 KVA, or 104 amps at 220 V.
DOOSAN PUMA 1500SY 2007 – DIMENSIONS
| Parameter | Specification |
|---|---|
| Floor Space | 123″ × 70″ |
| Net Weight | 13,200 lb |
| Machine Configuration | Slant-Bed CNC Turning Center |
| Slant Bed Angle | 30° |
The published specifications list a floor space of approximately 123″ × 70″ and a net machine weight of 13,200 lb.
DOOSAN PUMA 1500SY 2007 – GENERAL INFORMATION
| Parameter | Specification |
|---|---|
| Manufacturer | DOOSAN |
| Model | PUMA 1500SY |
| Year | 2007 |
| Machine Type | CNC Turning Center |
| Number of Axes | 5 |
| Main Spindle | 6,000 RPM |
| Sub-Spindle | 6,000 RPM |
| Main Motor | 10 HP |
| Sub Motor | 10 HP |
| Live Tool Motor | 7.5 HP |
| Maximum Turning Diameter | 13″ |
| Bar Capacity | 1.75″ |
| Chuck Size | 6″ |
| Turret | 12 Station |
| CNC Control | FANUC |
| Y-Axis | ±2.0″ |
| Sub-Spindle | Yes |
| Chip Conveyor | Yes |
| Live Tooling | Yes |
INDUSTRIES THAT USE DOOSAN PUMA 1500SY
The DOOSAN PUMA 1500SY is designed for complex production turning where multiple operations can be performed without transferring the workpiece between machines. Its Y-axis, C-axis, live tooling, and sub-spindle make it suitable for components requiring turning combined with cross drilling, milling, and secondary features.
Common industries include:
- Automotive
- Aerospace
- Medical equipment
- Electronics
- Industrial machinery
- Hydraulic equipment
- Precision manufacturing
- Defense
- General machining
- Contract manufacturing
For production shops, the sub-spindle and live tooling can help reduce secondary operations and improve overall part-processing efficiency.
TYPICAL PARTS THE DOOSAN PUMA 1500SY CAN PRODUCE
The machine’s combination of turning, Y-axis movement, C-axis control, live tooling, and sub-spindle makes it suitable for producing complex small- and medium-sized components.
Typical parts include:
- Shafts
- Bushings
- Pins
- Fittings
- Sleeves
- Hydraulic components
- Valve components
- Flanges
- Couplings
- Medical components
- Precision automotive components
- Small aerospace components
- Threaded components
- Components requiring cross holes
- Components requiring milled flats or slots
With the live-tool system and Y-axis, milling and drilling features can be machined directly into turned components rather than requiring a separate machining operation.
WHY CHOOSE DOOSAN PUMA 1500SY?
The DOOSAN PUMA 1500SY offers a strong combination of turning and milling capabilities in a relatively compact production machine. The 5-axis configuration, twin spindles, Y-axis, C-axis, and live tooling allow manufacturers to perform multiple operations in a single setup.
The machine also provides high spindle speeds of up to 6,000 RPM, a 12-station turret, 1.75″ bar capacity, and a 13″ maximum turning diameter. For shops producing smaller complex components, these specifications provide useful production flexibility without requiring a larger turning center.
WHY BUY USED DOOSAN PUMA 1500SY?
Buying a used DOOSAN PUMA 1500SY – 2007 can provide access to multi-axis turning and milling capabilities at a significantly lower acquisition cost than purchasing a comparable new machine. The used market also includes machines equipped with live-tool holders, main and sub-spindle chucks, chip conveyors, and FANUC controls.
Many used machines include valuable options such as:
- FANUC CNC control
- 6″ main spindle chuck
- Sub-spindle chuck
- 12-station turret
- Y-axis
- C-axis
- Live tooling
- X-axis live toolholders
- Z-axis live toolholders
- Chip conveyor
- Parts conveyor
- Bar feeder
- Pick-off system
One documented 2007 machine was equipped with an LNS Quick Load Servo 65 bar feeder, parts conveyor, sub-spindle, and FANUC Series 18i-TB control.
Before purchasing a used PUMA 1500SY, buyers should inspect the main and sub-spindles, C-axis positioning, Y-axis movement, turret indexing, live tooling, axis backlash, FANUC control, hydraulic and coolant systems, chip conveyor, and included tooling. Running the machine under power is particularly useful for verifying spindle condition and multi-axis functionality.
HOW MUCH DOES A USED DOOSAN PUMA 1500SY COST?
Used DOOSAN PUMA 1500SY – 2007 machines can vary significantly in price depending on condition, spindle hours, tooling, bar feeder, chip conveyor, control condition, and maintenance history. Current listings include both machines offered at Request a Quote and a documented 2007 machine advertised at $44,900 USD.
The $44,900 asking price provides a useful current market reference for a 2007 PUMA 1500SY, but it should not be treated as a universal value. A machine with a bar feeder, additional live-tool holders, low hours, or extensive tooling can command a different price than a machine sold without accessories.
When evaluating a used PUMA 1500SY, buyers should compare year, spindle hours, cutting hours, FANUC control, main and sub-spindle condition, Y-axis accuracy, C-axis performance, live tooling, turret condition, bar feeder, chip conveyor, tooling package, and maintenance history to determine the machine’s actual value.
