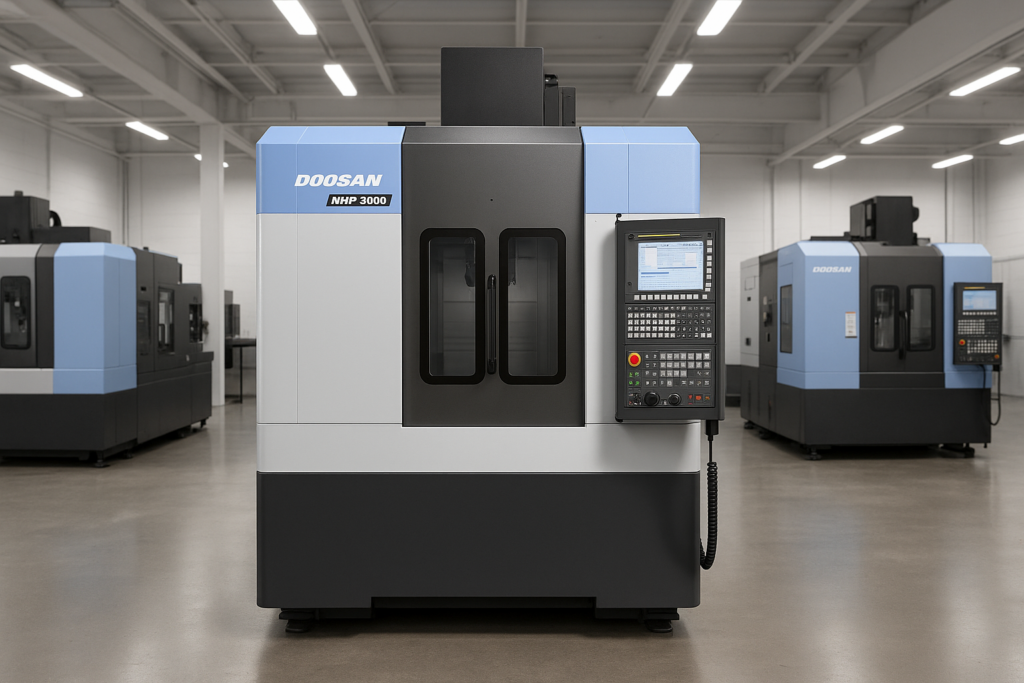

The DOOSAN NHP 5000 is a high-performance horizontal machining center designed for precision, productivity, and reliability in high-volume manufacturing environments. Built with a rigid cast-iron structure and advanced thermal stability design, the NHP 5000 delivers excellent accuracy, vibration damping, and long-term dimensional stability, making it suitable for demanding machining applications. Its horizontal spindle configuration and pallet system enable efficient chip evacuation and continuous production, improving machining quality and operational efficiency.
The machine is equipped with a powerful high-speed spindle that provides strong torque for heavy cutting and fine surface finishing across a wide range of materials, including steel, cast iron, and high-performance alloys. Controlled by Fanuc or Siemens CNC systems, the NHP 5000 offers intuitive programming, high-speed processing, and seamless integration with CAD/CAM software. A dual-pallet system, large-capacity tool magazine, and fast rapid traverse rates help minimize idle time and maximize throughput, while optional automation and probing systems support unattended operation and process optimization.
The DOOSAN NHP 5000 is widely used in automotive, aerospace, and general engineering industries for producing complex and high-precision components in large production runs. Its combination of horizontal machining efficiency, robust construction, and advanced control capabilities makes it a reliable and cost-effective solution for manufacturers seeking high productivity, consistent accuracy, and reduced cycle times in modern machining operations.
DOOSAN NHP 5000SPECIFICATIONS
TRAVEL & CAPACITY
X-Axis Travel: 800 mm (31.5 in)
Y-Axis Travel: 700 mm (27.6 in)
Z-Axis Travel: 800 mm (31.5 in)
Pallet Size: 500 mm × 500 mm
Max Workpiece Size: Ø800 mm × 1,000 mm
Max Workpiece Weight: 800 kg (1,764 lbs)
SPINDLE
Spindle Taper: CAT 40 (optional HSK-A63)
Max Speed: 15,000 rpm (standard), 12,000 rpm high-torque
Power: 37 kW (49.6 hp)
Max Torque: 300 Nm (high torque)
Spindle Type: Direct Drive or Gear Drive (configurable)
TOOL MAGAZINE
Capacity: 40 tools standard (optional 60 / 120 / 240)
Tool Type: CAT 40 or HSK
Max Tool Dia: 76 mm (adjacent), 125 mm (non-adjacent)
Max Tool Length: 400 mm
Max Tool Weight: 12 kg
PALLET SYSTEM
Pallet Change Time: ~9 seconds
Pallet Indexing: 1° (optional 0.001° full 4th axis)
Pallet Quantity: 2 (standard)
AXES & FEEDRATES
Rapid Traverse (X/Y/Z): 60 / 60 / 60 m/min
Cutting Feedrate: Up to 20 m/min
Axis Guideways: Linear (roller type)
COOLANT & CHIP MANAGEMENT
Coolant Tank: ~400 liters
Through-Spindle Coolant: 20–70 bar (optional)
Chip Conveyor: Hinged belt or scraper type
Air Blow, Washdown, Oil Skimmer: Available
CONTROL SYSTEM
FANUC 31i-B CNC (standard)
Optional: Siemens 840D SL
USB, Ethernet, RS232, conversational programming
Tool life management, thermal compensation, probing support
DOOSAN NHP 5000 – GENERAL INFORMATION
Model: Doosan NHP 5000
Machine Type: Horizontal Machining Center (4-Axis)
Structure: Rigid box-type construction with dual pallet system
Control: FANUC 31i-B (standard); Siemens optional
Application: Multi-surface precision machining of medium-to-large parts
DOOSAN NHP 5000 – KEY CAPABILITIES
High-speed pallet changer for uninterrupted operation
Large work envelope with powerful spindle torque
Superior chip evacuation and coolant flow
Thermal compensation system for dimensional accuracy
Compatible with automation systems for lights-out manufacturing
