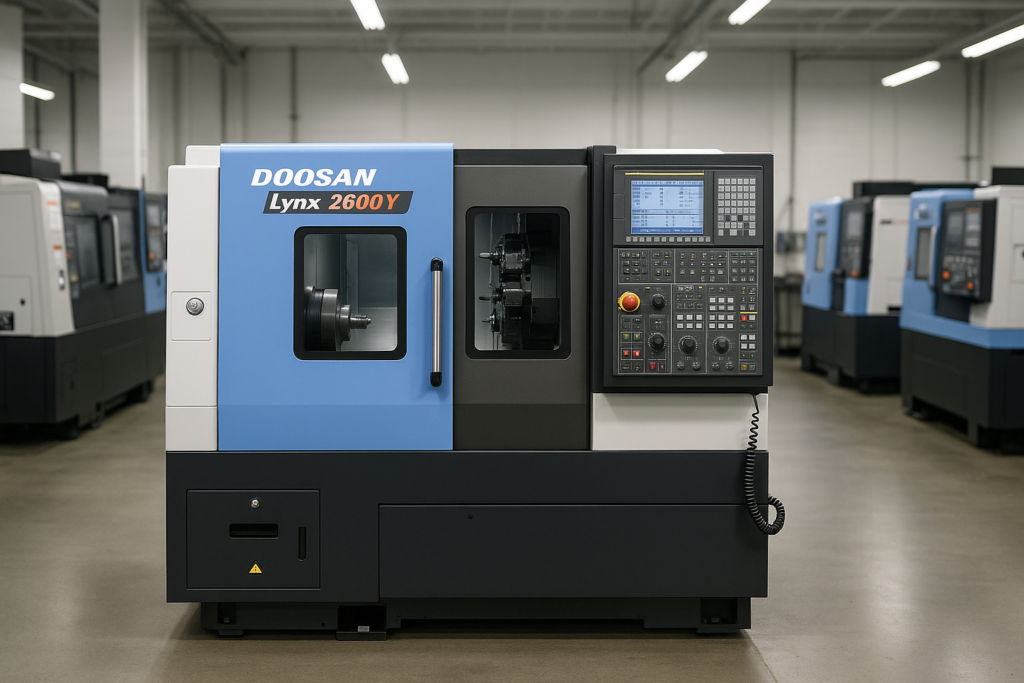

The DOOSAN LYNX 2600Y is a high-performance CNC turning center designed for precision turning and milling operations in a compact and efficient platform. Built with a rigid slant-bed structure and high-quality linear guideways, the LYNX 2600Y delivers excellent stability, smooth motion, and reliable dimensional accuracy during high-speed and heavy cutting operations. Its compact footprint makes it suitable for job shops and production facilities that require advanced machining capability without excessive floor space.
The machine is equipped with a powerful spindle and an integrated Y-axis with live tooling, allowing milling, drilling, and tapping operations to be performed directly on the lathe. This capability reduces secondary operations and setup times while improving part accuracy and productivity. Controlled by Fanuc or Siemens CNC systems, the LYNX 2600Y provides intuitive programming, high-speed data processing, and seamless integration with CAD/CAM software for optimized machining cycles. A fast turret system, rapid traverse speeds, and optional automation features such as bar feeders and chip conveyors further enhance production efficiency.
The DOOSAN LYNX 2600Y is widely used in automotive, general engineering, and precision component manufacturing for producing complex and high-tolerance parts. Its combination of turning and milling capabilities, compact design, and user-friendly operation makes it a cost-effective and reliable solution for manufacturers seeking high productivity, accuracy, and flexibility in modern CNC machining environments.
DOOSAN LYNX 2600YSPECIFICATIONS
CAPACITIES
Max Turning Diameter: Ø376 mm (14.8 in)
Max Turning Length: 550 mm (21.6 in)
Bar Capacity: 76 mm (3.0 in)
MAIN SPINDLE
Spindle Nose: A2-8
Max Speed: 3,500 rpm
Power: 22 kW (29.5 hp)
Max Torque: ~370 Nm
C-Axis Resolution: 0.001° (full contouring)
TURRET & TOOLING
Type: BMT-65P live tooling turret
Tool Stations: 12 (all live)
Y-Axis Travel: ±55 mm (±2.16 in)
Live Tool Speed: 5,000 rpm
Milling Power: 5.5 kW (7.4 hp)
AXES & FEEDRATES
X-Axis Travel: 260 mm
Z-Axis Travel: 600 mm
Y-Axis Travel: ±55 mm
Rapid Traverse (X/Z/Y): 30 / 36 / 10 m/min
COOLANT & CHIP MANAGEMENT
Coolant Tank Capacity: ~250 liters
Through-Spindle Coolant: Optional
Chip Conveyor: Standard (hinged or scraper type)
Air Blow & Washdown: Included
CONTROL SYSTEM
FANUC 0i-TF Plus with touchscreen
Conversational programming and tool monitoring
USB, Ethernet, RS232 support
Optional: Tool probing, adaptive feed control
DOOSAN LYNX 2600Y – GENERAL INFORMATION
Model: Doosan Lynx 2600Y
Machine Type: Y-Axis CNC Turning Center with Live Tooling
Structure: 30° slant bed with linear guideways
Control: FANUC 0i-TF Plus (standard)
Application: Precision machining of complex, multi-operation parts
DOOSAN LYNX 2600Y – KEY CAPABILITIES
Y-axis milling for complex off-center features
Powerful spindle for heavy-duty turning
Compact footprint with generous turning capacity
Fast servo turret with BMT-style live tooling
Excellent chip evacuation and thermal stability
INDUSTRIES THAT USE DOOSAN LYNX 2600Y
Automotive (sensors, pulleys, transmission parts)
Aerospace (mounts, actuator parts, bushings)
Medical (orthopedic implants, surgical components)
Hydraulics & Pneumatics (fittings, valves)
General Job Shops (multi-op components, bushings)
TYPICAL PARTS DOOSAN LYNX 2600Y CAN PRODUCE
Precision shafts with side-milled flats
Turned parts with cross-holes or slotting
Threaded components with milled features
Fittings requiring Y-axis interpolation
Mid-sized flanges and housings with multiple features
WHY CHOOSE THE DOOSAN LYNX 2600Y
Reduces secondary setups with true multi-axis capability
Delivers outstanding rigidity and surface finish
FANUC control makes it easy to program and operate
Supports automated production with bar feeders and conveyors
Compact yet powerful for small to medium part production
Summary Table
PARAMETER
VALUE
Max Turning Dia
Ø376 mm (14.8 in)
Max Turning Length
550 mm (21.6 in)
Bar Capacity
76 mm (3.0 in)
Spindle Power
22 kW (29.5 hp)
Live Tool Speed
5,000 rpm
Y-Axis Travel
±55 mm (±2.16 in)
Tool Stations
12 (BMT Live Tooling)
Control System
FANUC 0i-TF Plus
How much does used DOOSAN LYNX 2600Y cost? Used Machine Price Range (Approximate)
CONFIGURATION
ESTIMATED PRICE (USD)
Base (live tooling + Y-axis)
$80,000 – $95,000
Mid-Spec (chip conveyor, probing, HP coolant)
$95,000 – $110,000
High-Spec (automation-ready, low spindle hours)
$110,000 – $125,000+
Prices vary depending on build year, spindle hours, tool count, and installed options.
