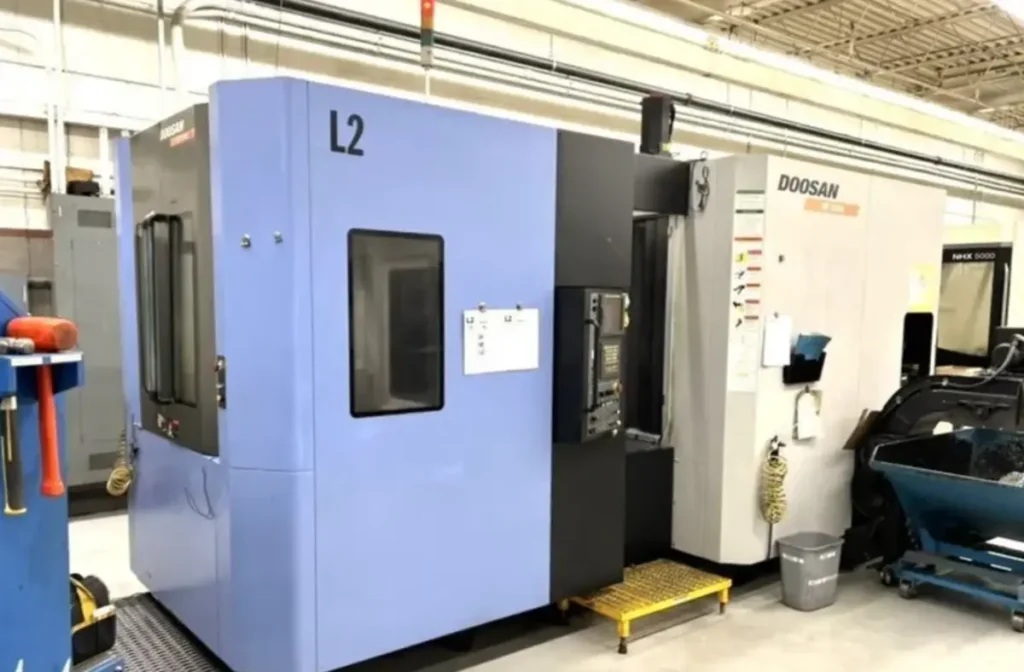

USED DOOSAN HP 5100 – 2008

The DOOSAN HP 5100 – 2008 is a heavy-duty horizontal machining center engineered for high-volume production environments that require exceptional reliability, accuracy, and machining efficiency. Designed to handle demanding machining applications across a wide range of industries, the HP 5100 combines rigid construction, powerful spindle performance, large workpiece capacity, and automated pallet-changing technology to maximize productivity and minimize downtime.

As part of Doosan’s highly successful HP Series horizontal machining centers, the HP 5100 was developed to provide manufacturers with a robust platform capable of handling complex multi-sided machining operations. The machine’s horizontal spindle orientation offers significant advantages over traditional vertical machining centers by allowing chips to naturally fall away from the cutting zone. This improves chip evacuation, reduces heat buildup, minimizes tool wear, and helps maintain superior surface finishes throughout long production cycles.

The HP 5100 features a heavily ribbed cast iron structure designed to provide exceptional rigidity and thermal stability. This construction allows the machine to perform aggressive roughing operations while maintaining the accuracy required for precision finishing. Combined with high-speed axis movement and a powerful spindle system, the machine delivers excellent productivity across a wide range of materials including steel, cast iron, stainless steel, aluminum, and various alloy materials.

One of the machine’s most valuable productivity features is its dual-pallet automatic pallet changer. While one pallet is actively being machined, operators can load and unload workpieces on the second pallet. This dramatically reduces idle time and increases spindle utilization, making the machine particularly effective for production environments where throughput is critical.

Typically equipped with a CAT 50 spindle, large-capacity automatic tool changer, and Fanuc CNC control system, the HP 5100 offers the performance and flexibility required for both dedicated production applications and flexible manufacturing operations. Industries that commonly utilize this machine include automotive manufacturing, aerospace production, agricultural equipment manufacturing, energy equipment production, industrial machinery manufacturing, and heavy equipment component machining.

The 2008 DOOSAN HP 5100 remains highly desirable in the used CNC market because it offers proven reliability, strong metal removal capability, and exceptional long-term value for manufacturers seeking a productive horizontal machining center.

---

DOOSAN HP 5100 – AXIS

Specification	Value
Number of Axes	4 Axis
Axis Configuration	X, Y, Z, B
Machine Type	Horizontal Machining Center
B-Axis Indexing	1° Increment
Simultaneous Machining	3+1 Axis
Guideway Type	Box Ways

---

DOOSAN HP 5100 – AXIS TRAVELS / WORK ENVELOPE

Specification	Value
X-Axis Travel	31.5 in
Y-Axis Travel	27.6 in
Z-Axis Travel	29.5 in
B-Axis Rotation	360°
Rapid Traverse Rate	1,575 IPM
Positioning Accuracy	±0.0002 in

---

DOOSAN HP 5100 – CAPACITY / TABLE

Specification	Value
Pallet Size	19.7 in x 19.7 in
Number of Pallets	2
Maximum Pallet Load	2,200 lbs
Maximum Workpiece Diameter	31 in
Maximum Workpiece Height	39 in
Pallet Change System	Automatic

---

DOOSAN HP 5100 – SPINDLE

Specification	Value
Maximum Spindle Speed	12,000 RPM
Spindle Power	40 HP
Spindle Taper	CAT 50
Spindle Type	Gear Driven
Through-Spindle Coolant	Optional
Spindle Cooling	Integrated

---

DOOSAN HP 5100 – TOOL CHANGER

Specification	Value
Tool Capacity	60 Tools
Optional Capacity	120 Tools
Tool Change Type	Automatic
Tool Selection	Random Access
Maximum Tool Weight	44 lbs
Tool Magazine Type	Chain Style

---

DOOSAN HP 5100 – CONTROL SYSTEM

Specification	Value
CNC Control	Fanuc 18i-MB
Program Storage	Expanded Memory
Ethernet Capability	Optional
USB Connectivity	Available
Macro Programming	Supported
Network Integration	Available

---

DOOSAN HP 5100 – COOLANT / DUST / WATER MANAGEMENT

Specification	Value
Flood Coolant System	Standard
Through-Spindle Coolant	Optional
Chip Conveyor	Standard
Coolant Filtration	Integrated
Coolant Tank Capacity	Large Capacity
Automatic Chip Removal	Standard

---

DOOSAN HP 5100 – POWER REQUIREMENTS

Specification	Value
Electrical Supply	220V – 480V
Phase	3 Phase
Frequency	50/60 Hz
Connected Load	Approx. 75 kVA

---

DOOSAN HP 5100 – DIMENSIONS

Specification	Value
Machine Length	Approx. 245 in
Machine Width	Approx. 145 in
Machine Height	Approx. 125 in
Machine Weight	Approx. 40,000 lbs

---

DOOSAN HP 5100 – GENERAL INFORMATION

Specification	Value
Manufacturer	Doosan
Model	HP 5100
Year	2008
Machine Category	Horizontal Machining Center
Control System	Fanuc 18i-MB
Construction	Heavy-Duty Cast Iron
Typical Materials	Steel, Cast Iron, Stainless Steel, Aluminum
Production Type	Medium to High-Volume Manufacturing

---

INDUSTRIES THAT USE DOOSAN HP 5100

• Automotive Manufacturing
• Aerospace Manufacturing
• Defense Manufacturing
• Agricultural Equipment Manufacturing
• Industrial Machinery Manufacturing
• Energy Equipment Manufacturing
• Oil & Gas Equipment Production
• Construction Equipment Manufacturing
• Mining Equipment Manufacturing
• Precision Contract Machining

---

TYPICAL PARTS DOOSAN HP 5100 CAN PRODUCE

• Transmission Housings
• Gearbox Cases
• Hydraulic Manifolds
• Pump Housings
• Valve Bodies
• Engine Components
• Differential Housings
• Aerospace Structural Components
• Industrial Equipment Components
• Agricultural Equipment Parts
• Construction Equipment Components
• Large Precision Castings

---

WHY CHOOSE DOOSAN HP 5100

The DOOSAN HP 5100 remains a highly respected horizontal machining center because it combines heavy-duty cutting capability, exceptional reliability, and outstanding production efficiency. Designed for demanding industrial applications, the machine excels in environments where consistent throughput and long-term durability are essential.

One of the machine’s most significant advantages is its rigid box-way construction. Unlike lighter machines designed primarily for high-speed machining, the HP 5100 is built to handle heavy material removal while maintaining excellent dimensional accuracy. This makes it ideal for machining large castings, forgings, and structural components commonly found in automotive, energy, and industrial equipment manufacturing.

The automatic pallet changer dramatically improves machine utilization by allowing setup operations to occur while machining continues. This reduces downtime, improves productivity, and maximizes return on investment. For production environments, this capability can significantly increase output without increasing labor requirements.

The CAT 50 spindle provides exceptional torque for heavy-duty machining applications. Combined with the machine’s rigid structure and advanced control system, the HP 5100 can efficiently perform both roughing and finishing operations across a wide range of materials.

The Fanuc control system further enhances machine value through reliable operation, straightforward programming, and global service support. Replacement parts and technical expertise remain readily available, helping to ensure long-term machine productivity.

For manufacturers seeking a powerful and dependable horizontal machining center, the DOOSAN HP 5100 continues to be an excellent choice.

---

WHY BUY USED DOOSAN HP 5100

Purchasing a used DOOSAN HP 5100 provides manufacturers with access to industrial-grade horizontal machining capability at a significantly lower cost than purchasing a comparable new machine. Because horizontal machining centers often require substantial capital investment, the used equipment market offers excellent opportunities for companies looking to expand production capacity while maintaining financial flexibility.

One of the biggest advantages is value. A properly maintained HP 5100 can continue producing high-quality parts for many years while costing substantially less than a new machine with similar capabilities. The resulting savings can be invested in tooling, automation, inspection equipment, workforce development, or additional machinery.

The machine’s heavy-duty construction contributes significantly to its popularity in the used market. Built with robust cast iron components, box guideways, and industrial-grade mechanical systems, many HP 5100 machines remain productive decades after installation. This durability helps reduce ownership risk and supports strong long-term value.

Availability is another important advantage. New horizontal machining centers often involve lengthy lead times, while used HP 5100 machines may be available for immediate purchase and installation. This allows manufacturers to quickly respond to increased customer demand or new production opportunities.

Many used machines are equipped with valuable factory options such as through-spindle coolant, expanded tool magazines, probing systems, chip management upgrades, and automation interfaces. Purchasing these features as part of a used machine package can significantly reduce future capital expenditures.

For manufacturers seeking reliable production capability and excellent value, a used DOOSAN HP 5100 remains a smart investment.

---

HOW MUCH DOES A USED DOOSAN HP 5100 COST?

The price of a used DOOSAN HP 5100 depends on machine condition, spindle hours, maintenance history, tooling packages, installed options, and overall market demand. Because the HP 5100 is a large-capacity horizontal machining center designed for production environments, well-maintained machines continue to retain strong value in the used CNC marketplace.

Machine condition is generally the most important factor affecting pricing. Machines with documented maintenance records, lower spindle hours, and excellent mechanical condition typically command premium prices. Buyers often prioritize machines with comprehensive service histories because they reduce uncertainty and future maintenance costs.

Installed options can significantly impact value. Features such as through-spindle coolant, probing systems, expanded tooling capacity, automation interfaces, pallet management systems, and high-pressure coolant systems often increase market pricing. These options improve productivity and reduce future upgrade requirements.

Demand from industries such as automotive, aerospace, defense, energy, and industrial equipment manufacturing also supports pricing. Horizontal machining centers with pallet changers remain highly sought after because they provide measurable improvements in production efficiency and spindle utilization.

Additional ownership costs should also be considered. Transportation, rigging, installation, tooling, electrical work, and operator training can contribute significantly to the total investment required to place the machine into production.

In today’s used CNC machinery market, a 2008 DOOSAN HP 5100 typically sells within a range of approximately $50,000 to $140,000, depending on condition, spindle hours, tooling inventory, installed options, and maintenance history. Machines equipped with expanded tooling packages, probing systems, and documented service records generally command values near the upper end of the range.

For manufacturers seeking a powerful and proven horizontal machining center capable of supporting demanding production requirements, the DOOSAN HP 5100 continues to offer excellent long-term value and productivity.
