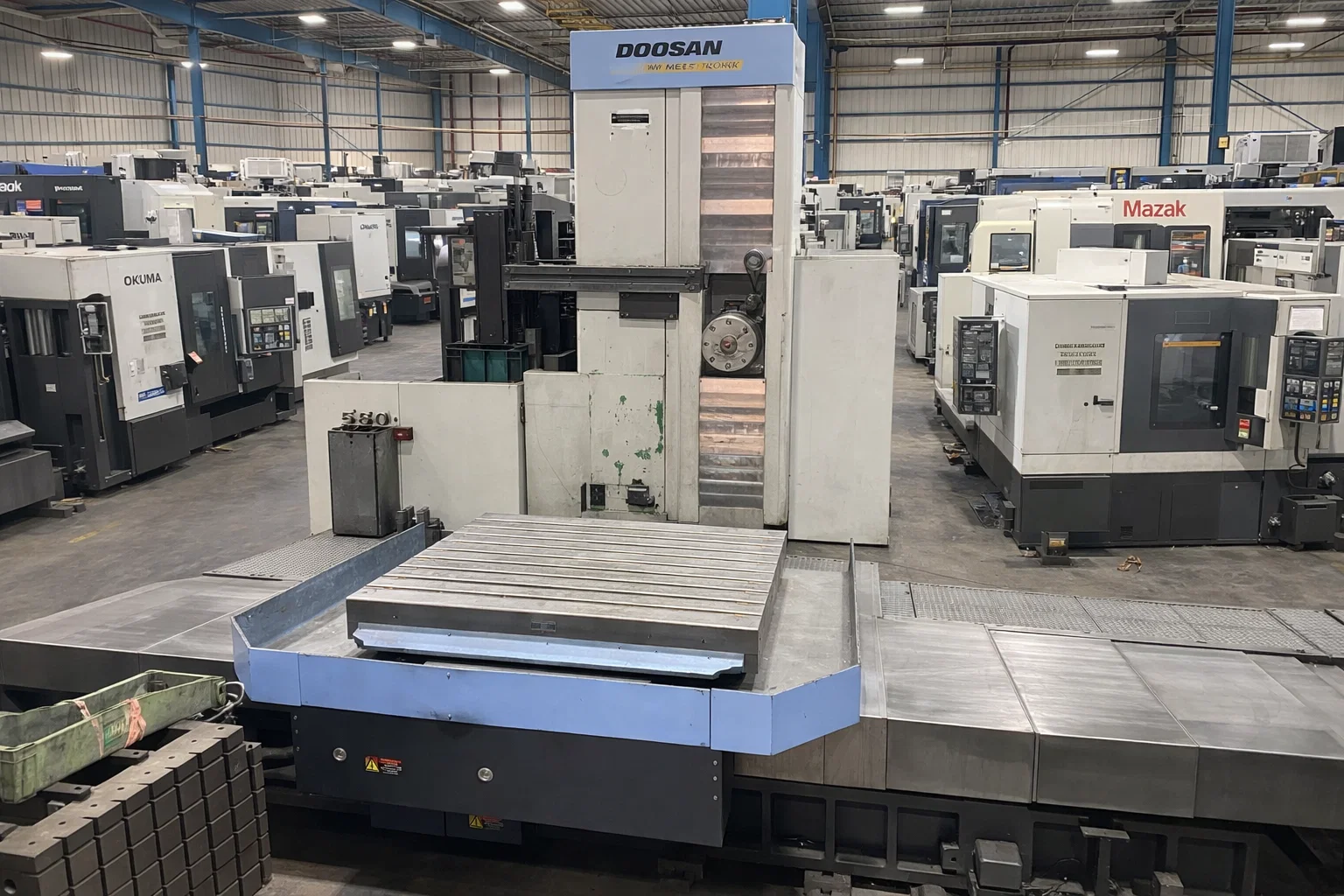

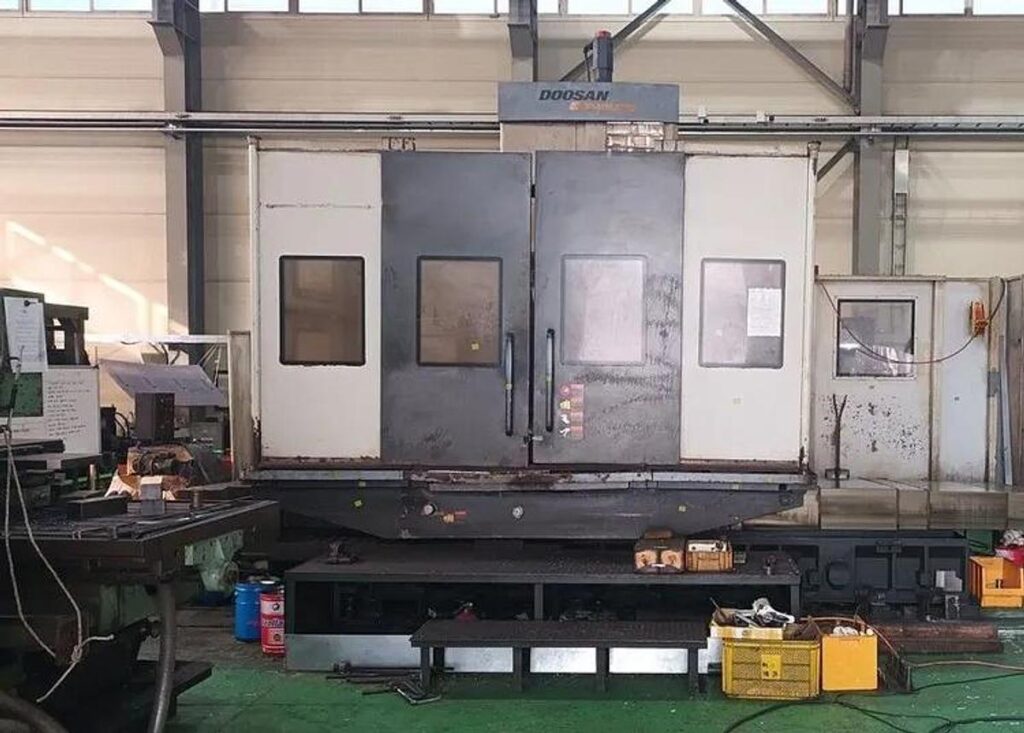

USED DOOSAN DBC 130CX – 2008
The 2008 Doosan DBC 130CX is a large-capacity CNC table-type horizontal boring mill engineered for precision machining of oversized and heavy workpieces. Manufactured by Doosan Machine Tools, now part of DN Solutions, the DBC 130CX is designed for demanding applications involving boring, milling, drilling, and tapping in a single setup. This machine is widely used by manufacturers that produce large structural components, gearbox housings, valve bodies, turbine parts, and heavy fabricated assemblies.
The DBC 130CX is built around a 130 mm (5.12″) spindle and a rigid table-type design that delivers excellent stability and geometric accuracy. Typical travel specifications include approximately 118″ to 157″ of X-axis travel, 78.7″ of Y-axis travel, 63″ of Z-axis column travel, and 27.6″ of spindle quill travel (W-axis). The integrated B-axis rotary table provides 0.001° indexing for precise multi-face machining. Table sizes are commonly around 70.9″ × 63″ to larger extended configurations, with load capacities up to 15 tons.
Most 2008 models are equipped with a FANUC 18i-MB control, CAT 50 spindle taper, 2,500–3,000 RPM spindle speed, and 35–40 HP spindle motor. Tool changers range from 40 to 90 tools depending on machine configuration. Common options include through-spindle coolant, chip conveyor, spindle oil chiller, probing systems, and portable handwheels.
Industries that rely on the DOOSAN DBC 130CX include aerospace, oil and gas, mining, energy, defense, and heavy equipment manufacturing. Typical parts include pump housings, transmission cases, machine frames, and precision castings.
The 2008 DOOSAN DBC 130CX remains highly sought after in the used CNC market because it offers exceptional machining capacity, precision, and productivity at a fraction of the cost of a new horizontal boring mill.
DOOSAN DBC 130CX – AXIS
| Parameter | Specification |
|---|---|
| Number of Controlled Axes | 4 Axis (X, Y, Z, W) + B Rotary Table |
| X Axis | Table Cross Travel |
| Y Axis | Headstock Vertical Travel |
| Z Axis | Column In/Out Travel |
| W Axis | Spindle Quill Travel |
| B Axis | Full Rotary Table (0.001° Indexing) |
DOOSAN DBC 130CX – AXIS TRAVELS / WORK ENVELOPE
| Parameter | Specification |
|---|---|
| X Axis Travel | 118.1″ – 157.5″ (3,000 – 4,000 mm) |
| Y Axis Travel | 78.7″ (2,000 mm) |
| Z Axis Travel | 63.0″ (1,600 mm) |
| W Axis Travel | 27.6″ (700 mm) |
| B Axis Rotation | 360° Continuous / Indexed |
DOOSAN DBC 130CX – CAPACITY / TABLE
| Parameter | Specification |
|---|---|
| Table Size | 70.9″ × 63.0″ to 78.7″ × 86.6″ |
| Maximum Table Load | 28,600 – 33,000 lbs (13,000 – 15,000 kg) |
| Table Indexing Resolution | 0.001° |
| Workpiece Capacity | Large Castings and Weldments |
DOOSAN DBC 130CX – SPINDLE
| Parameter | Specification |
|---|---|
| Spindle Diameter | 5.12″ (130 mm) |
| Maximum Spindle Speed | 2,500 – 3,000 RPM |
| Spindle Motor | 35 – 40 HP |
| Spindle Taper | CAT 50 / BT 50 |
| Drive Type | Geared Head |
DOOSAN DBC 130CX – TOOL CHANGER
| Parameter | Specification |
|---|---|
| Standard Tool Capacity | 40 Tools |
| Optional Tool Capacity | 60 – 90 Tools |
| Maximum Tool Weight | 55 lbs (25 kg) |
| Tool Change Type | Automatic Tool Changer |
DOOSAN DBC 130CX – CONTROL SYSTEM
| Parameter | Specification |
|---|---|
| CNC Control | FANUC 18i-MB |
| Programming | ISO G-Code |
| Networking | Ethernet / RS-232 |
| Custom Macro | Commonly Included |
| Rigid Tapping | Standard |
DOOSAN DBC 130CX – COOLANT / DUST / WATER MANAGEMENT
| Parameter | Specification |
|---|---|
| Flood Coolant System | Standard |
| Through-Spindle Coolant | Common (20 Bar) |
| Chip Conveyor | Standard |
| Spindle Oil Chiller | Standard |
| Probing System | Optional |
DOOSAN DBC 130CX – POWER REQUIREMENTS
| Parameter | Specification |
|---|---|
| Electrical Requirement | 480V / 3 Phase |
| Connected Load | 60 – 100 kVA |
| Air Requirement | 90 PSI |
DOOSAN DBC 130CX – DIMENSIONS
| Parameter | Specification |
|---|---|
| Floor Space | Approximately 353″ × 300″ × 200″ H |
| Machine Weight | 94,500 – 98,600 lbs (42,865 – 44,724 kg) |
DOOSAN DBC 130CX – GENERAL INFORMATION
| Parameter | Specification |
|---|---|
| Manufacturer | Doosan Machine Tools |
| Model | DBC 130CX |
| Year | 2008 |
| Machine Type | CNC Table-Type Horizontal Boring Mill |
| Country of Manufacture | South Korea |
| Typical Condition | Production Ready |
INDUSTRIES THAT USE DOOSAN DBC 130CX
- Aerospace
- Oil and Gas
- Mining
- Energy
- Heavy Equipment
- Defense
- Power Generation
- Shipbuilding
- Steel Manufacturing
- Precision Contract Machining
TYPICAL PARTS DOOSAN DBC 130CX CAN PRODUCE
- Gearbox Housings
- Pump Bodies
- Turbine Casings
- Large Valve Bodies
- Machine Frames
- Mining Components
- Transmission Cases
- Structural Weldments
- Bearing Housings
- Energy Equipment Components
WHY CHOOSE DOOSAN DBC 130CX
The DOOSAN DBC 130CX is an ideal machine for manufacturers that require precision machining of very large and heavy components. Its 130 mm spindle, CAT 50 tooling, and high-capacity rotary table allow complete machining of multiple faces without repositioning.
The rigid table-type design delivers excellent accuracy and repeatability over long travel distances. The geared spindle provides high torque for roughing large castings and forgings, while the FANUC control ensures dependable operation and easy integration into existing production environments.
For companies involved in heavy machining, the DBC 130CX offers a powerful combination of capacity, precision, and productivity.
WHY BUY USED DOOSAN DBC 130CX – 2008
Purchasing a used DOOSAN DBC 130CX – 2008 is a cost-effective way to acquire world-class horizontal boring capability without the multimillion-dollar expense associated with a new large CNC boring mill. New machines of this size and specification often cost $750,000 to well over $2,000,000 depending on configuration.
Many used machines are sold with through-spindle coolant, chip conveyors, large tool magazines, probing systems, and substantial tooling packages. These included accessories can significantly reduce setup costs and make the machine production-ready.
The DBC 130CX is known for exceptional rigidity and long-term reliability. Well-maintained machines continue to hold tight tolerances and deliver consistent performance in demanding heavy machining environments.
For manufacturers machining large castings, weldments, and structural components, the used DOOSAN DBC 130CX – 2008 offers outstanding capacity and exceptional return on investment.
HOW MUCH DOES A USED DOOSAN DBC 130CX – 2008 COST?
The price of a used DOOSAN DBC 130CX – 2008 depends on travel configuration, spindle condition, control options, tooling package, and overall maintenance history.
USED DOOSAN DBC 130CX – 2008 PRICE GUIDE
| Condition | Estimated Price Range (USD) |
|---|---|
| Excellent, Fully Equipped | $250,000 – $600,000 |
| Very Good Condition | $175,000 – $350,000 |
| Standard Production Condition | $100,000 – $225,000 |
| Higher Hours or Needs Repair | $50,000 – $125,000 |
NEW VS USED COST COMPARISON
| Purchase Type | Estimated Cost (USD) |
|---|---|
| New Comparable Horizontal Boring Mill | $750,000 – $2,500,000+ |
| Used 2008 Model | $50,000 – $600,000 |
Pricing is heavily influenced by travel size, tool magazine capacity, spindle health, and included accessories such as through-spindle coolant and probing. Buyers should inspect axis geometry, spindle bearings, rotary table accuracy, and CNC diagnostics before purchase.
For manufacturers seeking a large-capacity, high-precision horizontal boring mill, the used DOOSAN DBC 130CX – 2008 is an exceptional investment with long-term production value.
Related Products
-

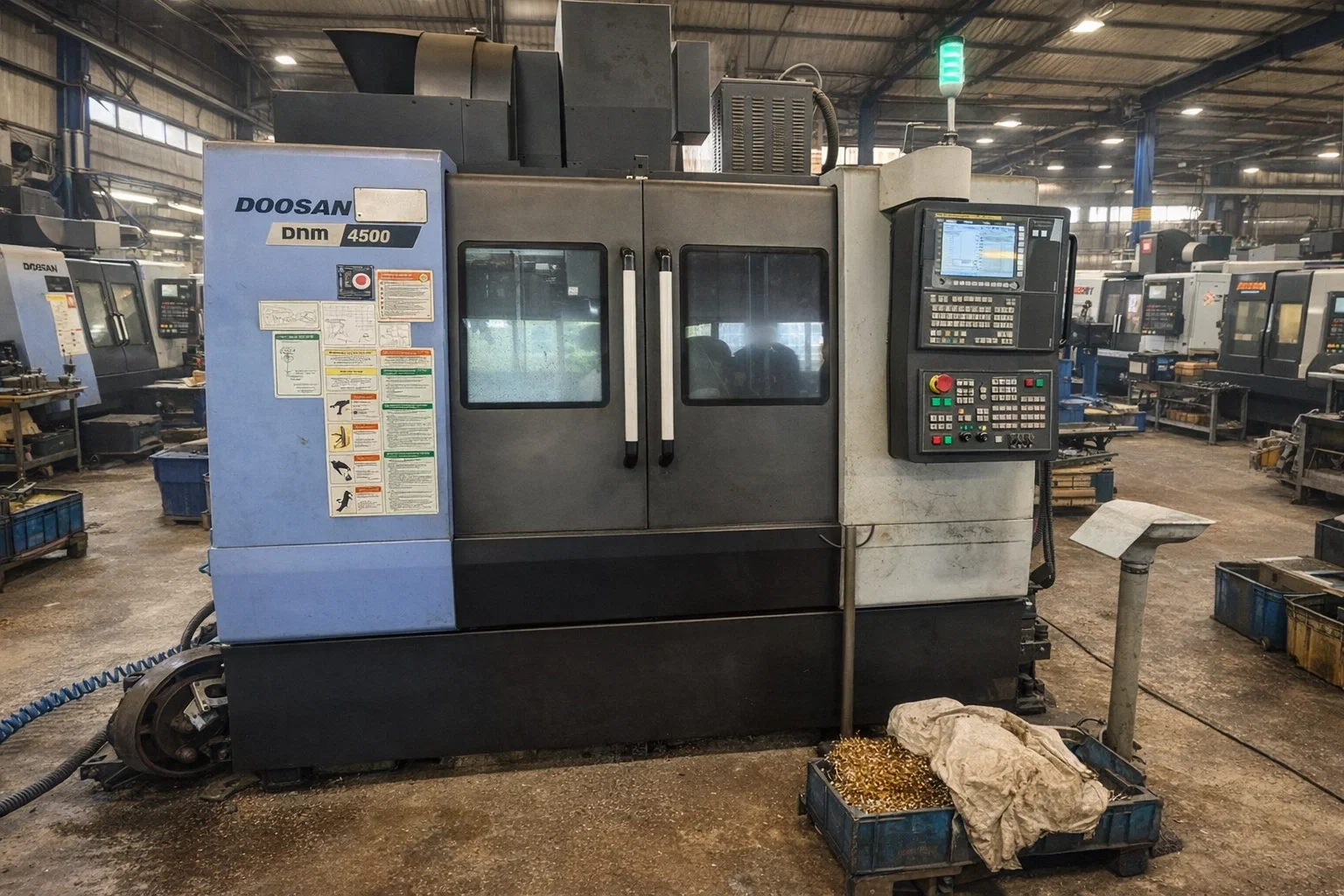

DOOSAN - DNM 4500
VIEW MACHINE -

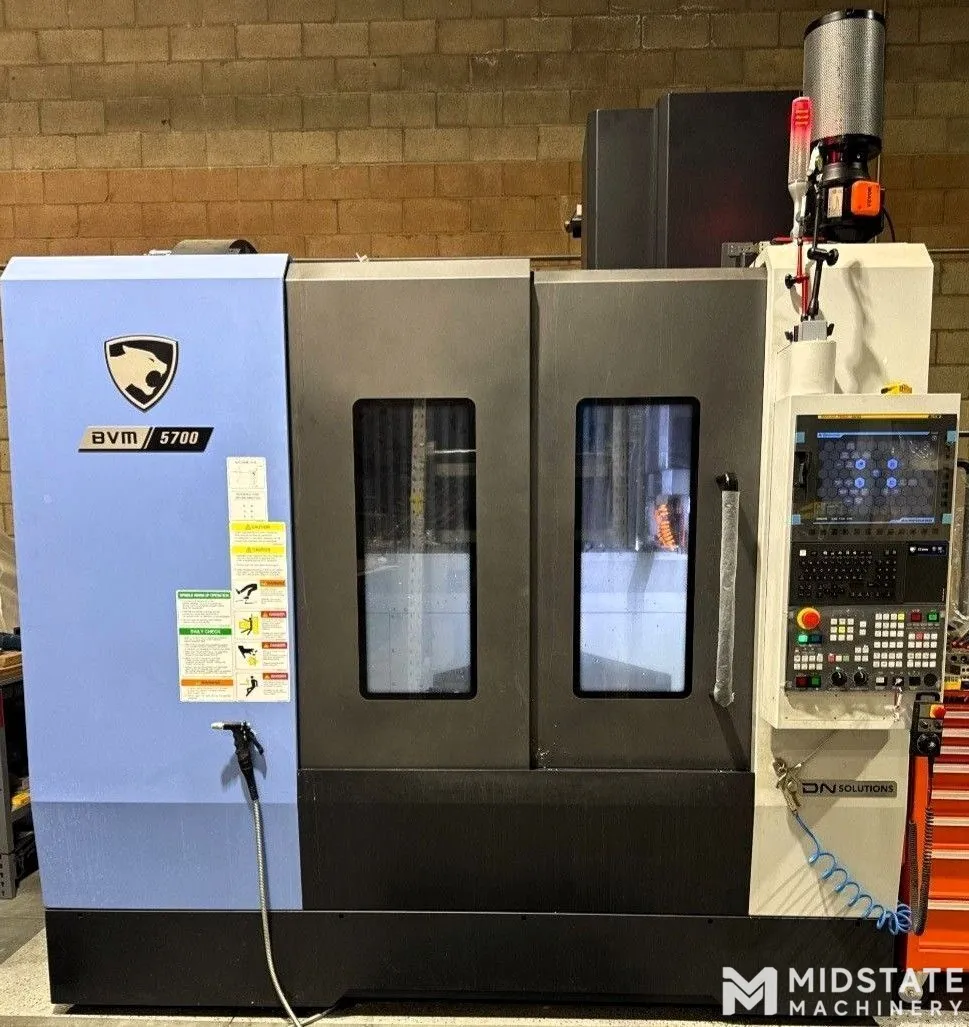

DOOSAN - BVM 5700
VIEW MACHINE -

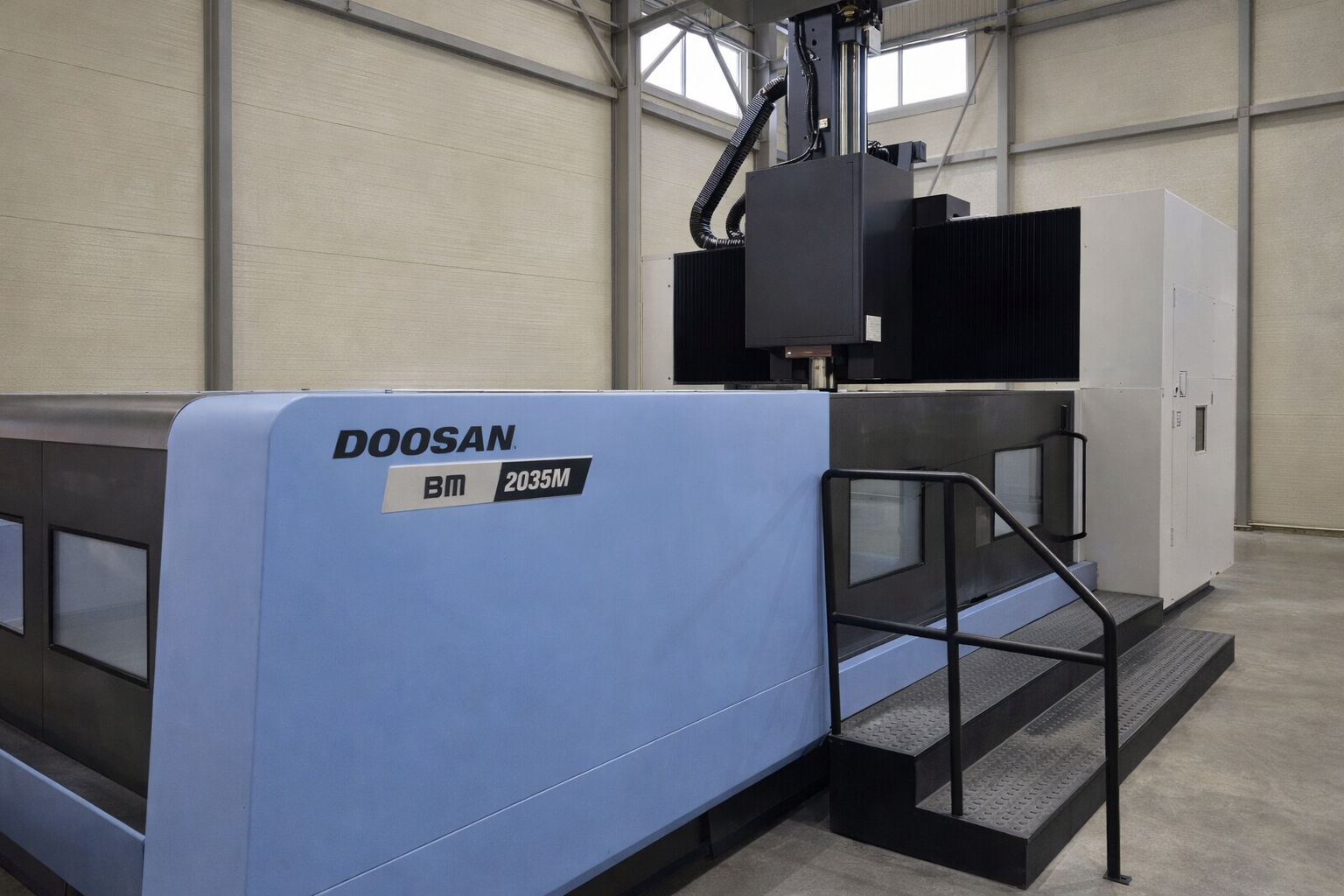

DOOSAN - BM 2035M
VIEW MACHINE -

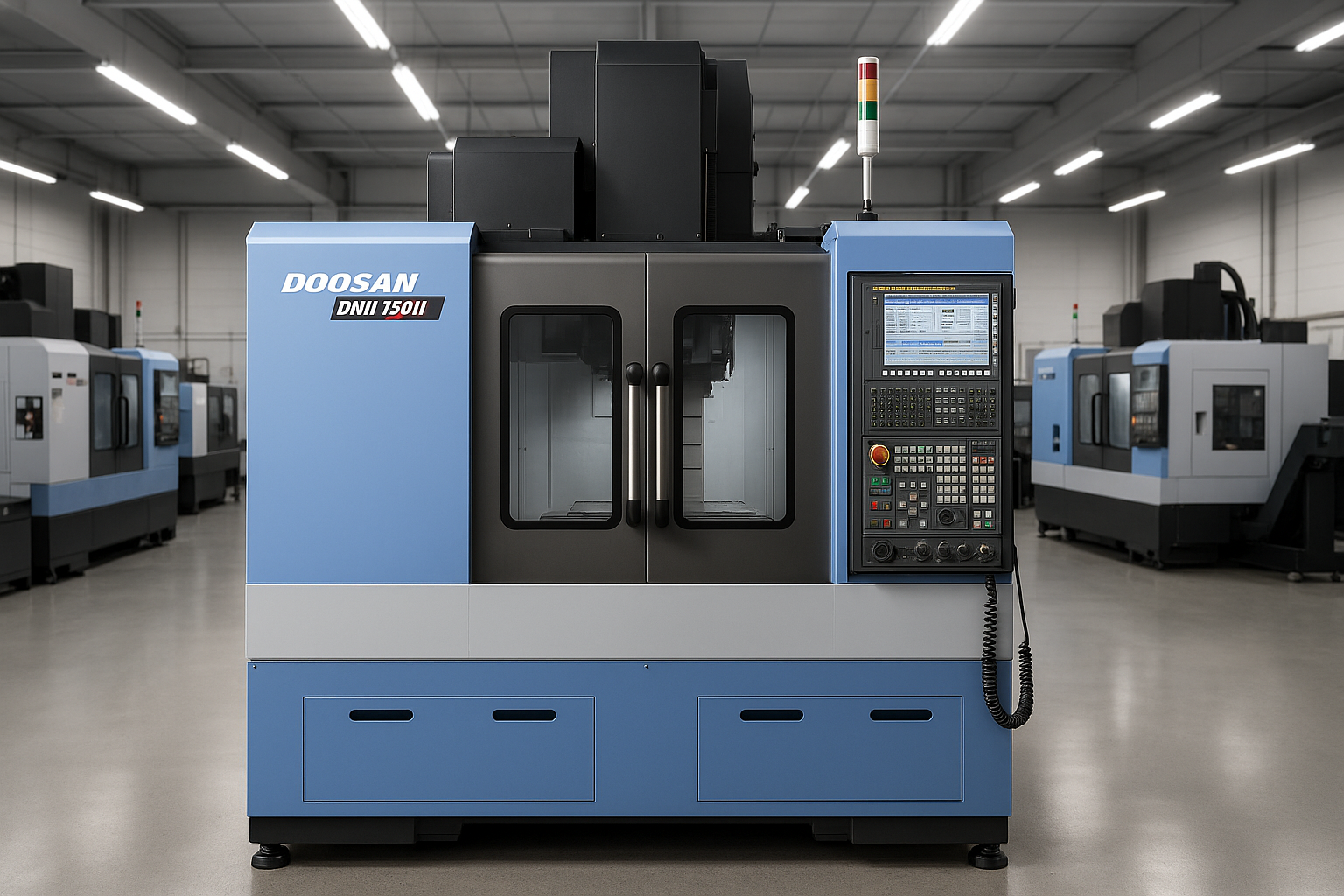

DOOSAN - DNM 750 II
