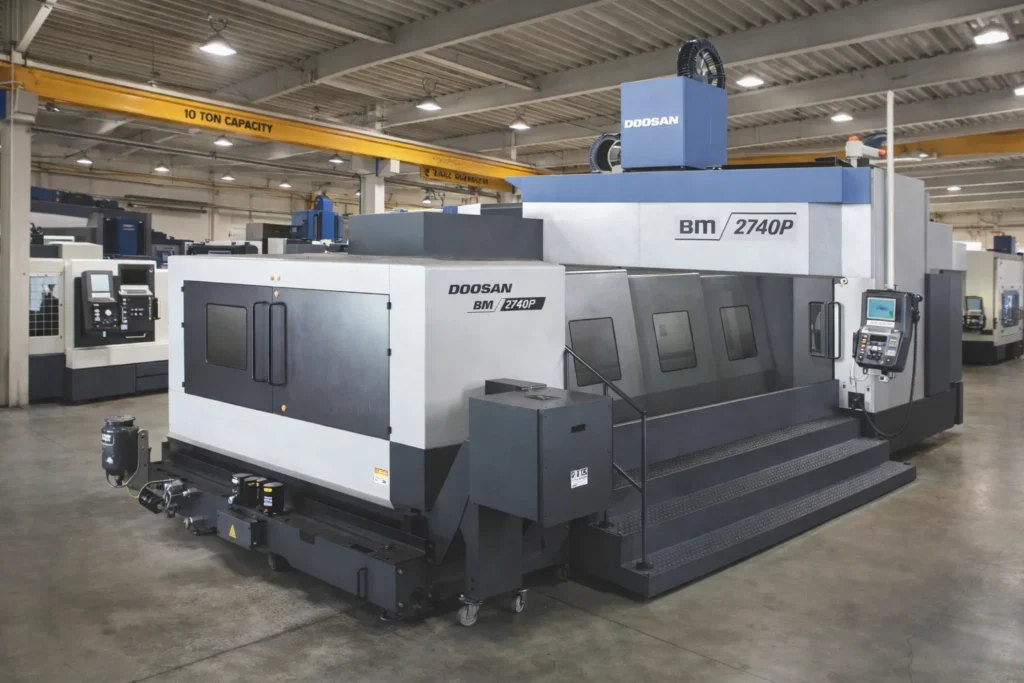

The used Doosan BM 2740P is a high-speed double-column (bridge-type) CNC vertical machining center specifically optimized for machining large plate materials and medium-weight components with high precision. Unlike the heavier BM and BM “M” variants, the “P” version is designed with a focus on speed, surface finish, and efficient machining of thinner or lighter workpieces.
It features a rigid fixed cross-rail double-column structure with LM roller guideways and thermal stability enhancements to maintain accuracy during long machining cycles. The machine is equipped with a high-speed 12,000 RPM spindle and a lighter-duty configuration that makes it ideal for applications such as panel machining, aluminum components, and precision plates.
When buying a used BM 2740P, it is important to evaluate spindle condition, axis accuracy over long travels, and tool changer reliability, especially since these machines are often used in high-speed production environments.
DOOSAN BM 2740PSPECIFICATIONS
DOOSAN BM 2740P – AXIS TRAVELS
X-Axis Travel: 4000 mm
Y-Axis Travel: 2700 mm
Z-Axis Travel: 500 mm
Large Bridge-Type Travel Range
Optimized for Plate Machining
Verify Accuracy Across Full Stroke
DOOSAN BM 2740P – CAPACITY
Max Workpiece Weight: ~3000 kg
Max Workpiece Height: ~580 mm
Distance Between Columns: ~2700 mm
Designed for Medium-Weight Components
Ideal for Plates & Panels
Inspect Table Condition Carefully
DOOSAN BM 2740P – SPINDLE
Max Spindle Speed: 12,000 RPM
Spindle Taper: BIG PLUS CAT 40
Motor Power: ~22–25 kW
Torque: ~200 Nm
High-Speed Spindle for Finishing
Inspect Spindle Condition Carefully
DOOSAN BM 2740P – TABLE
Table Size: 4000 × 2500 mm
Table Load Capacity: ~3000 kg
Large Work Surface Area
Suitable for Multi-Part Fixtures
Ideal for Thin/Large Plates
Inspect Flatness and Wear
DOOSAN BM 2740P – TOOL TURRET
Tool Changer Type: Automatic Tool Changer (ATC)
Tool Capacity: 30–40 Tools
Tool Taper: CAT 40
Max Tool Length: ~300–350 mm
Arm-Type Tool Changer
Check Tool Changer Operation
DOOSAN BM 2740P – FEEDRATES
Rapid Traverse X: ~16 m/min
Rapid Traverse Y: ~24 m/min
Rapid Traverse Z: ~36 m/min
Optimized for High-Speed Machining
Smooth Motion for Large Surfaces
Verify Axis Performance
DOOSAN BM 2740P – COOLANT & CHIP MANAGEMENT
Chip Conveyor Typically Included
Designed for High Chip Volume
Flood Coolant Standard
Through-Spindle Coolant Optional
Efficient Chip Evacuation
Ideal for Continuous Production
DOOSAN BM 2740P – CONTROL SYSTEM
CNC Control: Fanuc / Siemens / Heidenhain
High-Speed Machining Capabilities
Advanced Look-Ahead Functions
User-Friendly Interface
Reliable Industrial Control
Verify Control Condition
DOOSAN BM 2740P – POWER & AIR REQUIREMENTS
Power Requirement: 3 Phase
Typical Voltage: 220–440 VAC
Approx Power: ~40–60 kVA
Air Requirement: ~6–8 bar
Stable Power Supply Required
Verify Facility Compatibility
DOOSAN BM 2740P – DIMENSIONS
Machine Length: ~10,825 mm
Machine Width: ~5,700 mm
Machine Height: ~3,760 mm
Machine Weight: ~38,000 kg
Requires Large Floor Space
Ensure Proper Installation Area
DOOSAN BM 2740P – GENERAL INFORMATION
Machine Type: Double Column CNC Vertical Machining Center
Series: BM Series
Bridge-Type Construction
Fixed Cross-Rail Design
Optimized for Plate Machining
High-Speed Capability
Designed for Large Surface Accuracy
INDUSTRIES THAT USE DOOSAN BM 2740P
Aerospace
Automotive
Electronics
Energy
Mold & Die
General Manufacturing
TYPICAL PARTS DOOSAN BM 2740P CAN PRODUCE
Aluminum Plates
Structural Panels
Machine Base Plates
Mold Plates
Aerospace Panels
Large Flat Components
WHY CHOOSE DOOSAN BM 2740P
High-Speed Machining Capability
Large Work Envelope
Excellent Surface Finish
Efficient for Plate Work
Lower Weight Handling vs M Version
Ideal for Production Environments
WHY BUY USED DOOSAN BM 2740P
Buying a used Doosan BM 2740P is ideal for shops that need large-format machining capability but do not require extremely high load capacity.
Its biggest advantage is speed and efficiency. Compared to heavier BM models, the “P” version allows faster machining of plate materials while maintaining excellent surface finish.
The large work envelope combined with high spindle speed enables fewer setups and improved throughput, making it well suited for production-oriented environments.
HOW MUCH DOES A USED DOOSAN BM 2740PCOST?
Pricing depends on year, condition, spindle hours, and installed options.
Typical pricing ranges:
2010–2015 models: around $180,000 to $300,000
2015–2020 models: around $250,000 to $400,000
2020–2025 models: around $350,000 to $500,000+
Machines with high-speed options, through-spindle coolant, and automation systems will command higher prices.
