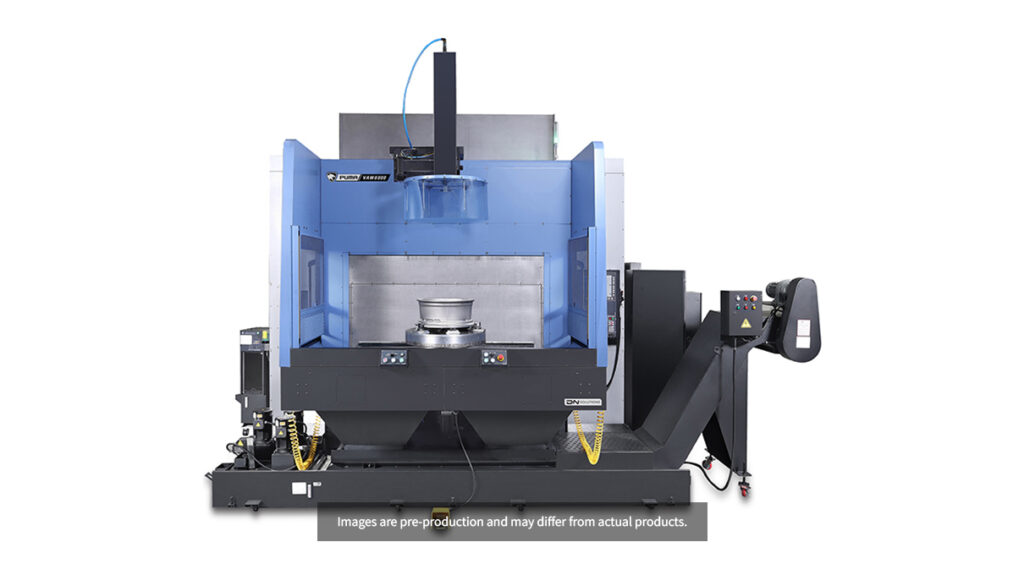

USED DN SOLUTIONS PUMA AW560MF II

The DN Solutions PUMA AW560MF II is a high-performance CNC turning center specifically engineered for large-part machining applications that require both turning and milling capabilities within a single machine platform. Designed for manufacturers producing complex, high-value components, the PUMA AW560MF II combines heavy-duty turning performance with advanced multitasking functionality, enabling operators to complete multiple machining processes in a single setup. This significantly improves productivity, reduces handling time, and enhances overall part accuracy.

DN Solutions, formerly known as Doosan Machine Tools, has built a global reputation for manufacturing robust and reliable machine tools that deliver exceptional performance in demanding production environments. The PUMA AW560MF II continues this tradition by offering a rigid machine structure, powerful spindle system, live tooling capability, and advanced CNC control technology designed for continuous industrial operation.

The machine is particularly suited for large-diameter and heavy workpieces commonly found in industries such as oil and gas, power generation, aerospace, mining, marine, and heavy equipment manufacturing. Its large work envelope allows manufacturers to process substantial components while maintaining high levels of accuracy and repeatability. The integrated milling functionality further expands the machine’s capabilities by allowing drilling, tapping, slotting, and contour milling operations without transferring the workpiece to another machine.

The PUMA AW560MF II is designed to maximize efficiency by reducing setup times and eliminating secondary operations. Its robust spindle and turret systems provide the rigidity necessary for aggressive material removal while maintaining excellent surface finishes. Advanced control systems support complex programming and automation integration, making the machine suitable for both low-volume high-mix production and large-scale manufacturing environments.

Manufacturers appreciate the PUMA AW560MF II for its ability to combine flexibility, power, and precision into a single machine platform. In the used CNC machine market, this model remains highly desirable because it offers substantial machining capacity and multitasking functionality at a fraction of the cost of purchasing a new machine. Its proven reliability and strong performance history make it a valuable asset for shops seeking to expand their machining capabilities while controlling capital expenditures.

---

DN SOLUTIONS PUMA AW560MF II – AXIS

Specification	Value
Number of Axes	4 Axis (X, Z, C, Milling Axis)
X-Axis Travel	20 in
Z-Axis Travel	45 in
C-Axis Positioning	0.001°
Rapid Traverse X	945 IPM
Rapid Traverse Z	1,181 IPM

---

DN SOLUTIONS PUMA AW560MF II – AXIS TRAVELS / WORK ENVELOPE

Specification	Value
Maximum Turning Diameter	30 in
Maximum Turning Length	43 in
Swing Over Bed	38 in
Swing Over Carriage	28 in
Maximum Machining Diameter	22 in

---

DN SOLUTIONS PUMA AW560MF II – CAPACITY / TABLE

Specification	Value
Chuck Size	21 in
Maximum Workpiece Weight	4,400 lbs
Bar Capacity	5.2 in
Tailstock	Hydraulic Programmable
Workpiece Support	Heavy-Duty Tailstock

---

DN SOLUTIONS PUMA AW560MF II – SPINDLE

Specification	Value
Maximum Spindle Speed	2,000 RPM
Spindle Motor	50 HP
Maximum Torque	High-Torque Gear Drive
Spindle Nose	A2-11
Spindle Type	Gear-Driven Heavy Duty

---

DN SOLUTIONS PUMA AW560MF II – TOOL CHANGER

Specification	Value
Turret Stations	12
Live Tooling	Yes
Live Tool Speed	Up to 4,000 RPM
Tool Capacity	12 Tools
Turret Type	Servo Indexing Turret

---

DN SOLUTIONS PUMA AW560MF II – CONTROL SYSTEM

Specification	Value
CNC Control	Fanuc
Programming Format	ISO G-Code
Ethernet Connectivity	Yes
USB Interface	Yes
Conversational Features	Available

---

DN SOLUTIONS PUMA AW560MF II – COOLANT / DUST / WATER MANAGEMENT

Specification	Value
Coolant System	Flood Coolant
High Pressure Coolant	Optional
Chip Conveyor	Standard
Automatic Lubrication	Standard
Coolant Tank	Integrated

---

DN SOLUTIONS PUMA AW560MF II – POWER REQUIREMENTS

Specification	Value
Voltage	220 / 440 VAC
Frequency	50 / 60 Hz
Connected Load	Approx. 75 kVA

---

DN SOLUTIONS PUMA AW560MF II – DIMENSIONS

Specification	Value
Length	Approx. 220 in
Width	Approx. 105 in
Height	Approx. 95 in
Weight	Approx. 30,000 lbs

---

DN SOLUTIONS PUMA AW560MF II – GENERAL INFORMATION

Specification	Value
Manufacturer	DN Solutions
Model	PUMA AW560MF II
Machine Type	CNC Turn-Mill Center
Configuration	Heavy-Duty Multitasking Lathe
Country of Origin	South Korea

---

INDUSTRIES THAT USE DN SOLUTIONS PUMA AW560MF II

The PUMA AW560MF II is commonly used in industries that require large-part machining with multiple operations performed in a single setup. Oil and gas manufacturers utilize the machine for valve bodies, drilling components, couplings, and pipeline equipment. Power generation companies rely on the machine for turbine parts, pump housings, and rotating equipment components.

Aerospace suppliers use the machine for structural components requiring turning and milling operations, while marine manufacturers produce propulsion and drivetrain parts. Mining and heavy equipment manufacturers frequently machine large housings, shafts, and transmission components using the AW560MF II. General contract manufacturers also benefit from the machine’s versatility when handling complex jobs with demanding accuracy requirements.

---

TYPICAL PARTS DN SOLUTIONS PUMA AW560MF II CAN PRODUCE

• Valve bodies
• Pump housings
• Turbine components
• Gear housings
• Drilling equipment parts
• Oilfield connectors
• Aerospace structural components
• Marine drivetrain components
• Hydraulic cylinders
• Mining equipment parts
• Large flanges
• Industrial couplings
• Bearing housings
• Precision machined castings
• Heavy-duty industrial components

---

WHY CHOOSE DN SOLUTIONS PUMA AW560MF II

The DN Solutions PUMA AW560MF II provides manufacturers with a highly capable multitasking platform that combines turning and milling operations in one machine. This reduces setup times, improves accuracy, and increases overall production efficiency. The machine’s rigid construction supports aggressive cutting while maintaining excellent dimensional control.

Its live tooling capabilities eliminate the need for multiple machine setups, allowing manufacturers to complete complex parts faster and more accurately. The large work envelope and heavy-duty spindle make it suitable for machining large, high-value components across numerous industries.

For manufacturers seeking flexibility, productivity, and long-term reliability, the PUMA AW560MF II delivers exceptional performance and value.

---

WHY BUY USED DN SOLUTIONS PUMA AW560MF II

Purchasing a used DN Solutions PUMA AW560MF II offers manufacturers access to advanced multitasking machining technology at a significantly lower investment compared to purchasing a new machine. New CNC turn-mill centers can require a substantial capital expenditure, making used equipment an attractive solution for companies seeking to increase production capacity while maintaining budget flexibility.

One of the biggest advantages of buying a used PUMA AW560MF II is the ability to acquire a premium heavy-duty machine with proven performance history. DN Solutions machines are known throughout the manufacturing industry for their robust construction, reliability, and long operational lifespan. A properly maintained used machine can continue producing high-quality parts for many years while delivering excellent return on investment.

Another major benefit is reduced lead time. New machine orders often involve lengthy manufacturing and delivery schedules, whereas used equipment can frequently be inspected, purchased, and installed much faster. This allows manufacturers to respond quickly to increased production demands, new contracts, or capacity constraints.

The multitasking capability of the PUMA AW560MF II also creates substantial cost savings by reducing the need for multiple machines and secondary operations. Turning, drilling, milling, tapping, and other operations can often be completed in a single setup, reducing labor costs and minimizing workpiece handling.

Used machines that include tooling packages, chip conveyors, tailstocks, live tooling holders, and high-pressure coolant systems can provide even greater value. These accessories would otherwise represent significant additional investments when purchasing a new machine.

For manufacturers seeking large-part machining capability, advanced multitasking performance, and long-term reliability, a used DN Solutions PUMA AW560MF II represents a cost-effective solution that can immediately improve productivity, efficiency, and profitability.

---

HOW MUCH DOES A USED DN SOLUTIONS PUMA AW560MF II COST?

The price of a used DN Solutions PUMA AW560MF II can vary significantly depending on several factors including machine age, overall condition, maintenance history, spindle hours, control configuration, tooling packages, and included accessories. Because the AW560MF II is a sophisticated multitasking machine designed for heavy industrial applications, it generally commands higher values than standard CNC lathes.

Machines with lower spindle hours and documented maintenance records typically achieve higher market prices because buyers view them as lower-risk investments. Equipment that has been regularly serviced and maintained according to manufacturer recommendations often retains better accuracy and reliability, making it more desirable in the used machinery market.

Additional options can also influence pricing considerably. Features such as live tooling packages, C-axis functionality, high-pressure coolant systems, chip conveyors, automatic tool measurement systems, and extensive tooling inventories can add substantial value. Machines equipped for automation integration or specialized production applications may also command premium pricing.

Market conditions play an important role as well. Demand from industries such as oil and gas, aerospace, power generation, mining, and heavy equipment manufacturing can affect pricing depending on overall manufacturing activity and available inventory levels.

As a general guideline, a used DN Solutions PUMA AW560MF II typically sells within a range of $125,000 to $450,000 USD depending on age, specifications, condition, and included accessories. Newer machines with low operating hours, extensive tooling, and excellent maintenance histories often command prices toward the upper end of the range. Older machines or units requiring refurbishment may be available at lower price points.

For many manufacturers, purchasing a used PUMA AW560MF II provides access to advanced multitasking machining technology at a fraction of the cost of a new machine while still delivering the performance, reliability, and productivity required for demanding industrial applications.
