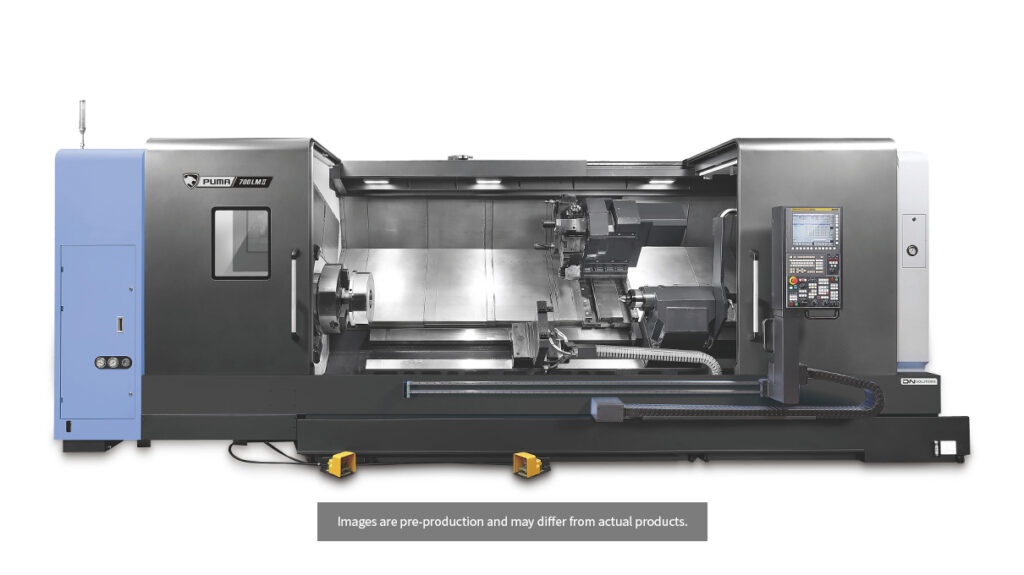

USED DN SOLUTIONS PUMA 700XLY II

The DN SOLUTIONS PUMA 700XLY II is a high-capacity CNC turning center featuring an integrated Y-axis, C-axis spindle control, and extended-bed configuration designed for machining large, long, and highly complex components in a single setup. As part of the advanced PUMA 700 II Series from DN SOLUTIONS, formerly known as Doosan Machine Tools, the PUMA 700XLY II combines heavy-duty turning performance with advanced milling, drilling, tapping, and off-center machining capabilities. This powerful machine is engineered to meet the demanding requirements of industries such as oil and gas, aerospace, power generation, shipbuilding, mining, heavy equipment manufacturing, and industrial machinery production.

Built on a robust Meehanite cast iron structure with hardened box guideways, the PUMA 700XLY II delivers exceptional rigidity, thermal stability, and vibration absorption. These design features allow the machine to perform aggressive roughing operations while maintaining outstanding dimensional accuracy and surface finish quality. The machine’s extended-bed configuration provides nearly 200 inches of turning length, making it ideal for machining oversized shafts, rollers, hydraulic cylinders, marine components, and other long workpieces in a single setup.

What distinguishes the PUMA 700XLY II from conventional CNC lathes is its integrated Y-axis capability. While standard live-tool lathes allow radial drilling and milling, the Y-axis enables true off-center machining, complex milling operations, angled features, pockets, slots, and precision contouring without repositioning the workpiece. Combined with C-axis spindle positioning and live tooling, the machine becomes a highly versatile mill-turn platform capable of producing intricate components with fewer setups and shorter cycle times.

The machine is typically equipped with a FANUC CNC control system that provides advanced turning and milling functions, tool management, diagnostics, spindle synchronization, and production monitoring. Its high-torque gearbox spindle delivers exceptional cutting performance when machining stainless steel, alloy steel, cast iron, titanium, Inconel, and other demanding materials commonly found in heavy industrial applications.

Industries worldwide rely on the PUMA 700XLY II for manufacturing turbine shafts, marine propulsion systems, oilfield equipment, hydraulic cylinders, pump shafts, heavy-duty rollers, valve components, and complex structural assemblies. The machine’s ability to combine turning, milling, drilling, and Y-axis machining in a single platform significantly improves productivity and reduces overall manufacturing costs.

The used CNC machine market continues to show strong demand for the DN SOLUTIONS PUMA 700XLY II due to its advanced multi-tasking capabilities, massive work envelope, and long-term reliability. For manufacturers requiring a large-capacity mill-turn solution with Y-axis functionality, the PUMA 700XLY II remains one of the most capable machines available.

---

DN SOLUTIONS PUMA 700XLY II – AXIS

Specification	Details
Number of Controlled Axes	4 Axis + C-Axis
X-Axis	Cross Slide Axis
Y-Axis	Milling and Off-Center Machining Axis
Z-Axis	Longitudinal Turning Axis
C-Axis	Spindle Positioning and Interpolation
Live Tool Capability	Yes

---

DN SOLUTIONS PUMA 700XLY II – AXIS TRAVELS / WORK ENVELOPE

Specification	Details
X-Axis Travel	18.5 in (470 mm)
Y-Axis Travel	±4.1 in (105 mm)
Z-Axis Travel	201 in (5,100 mm)
X-Axis Rapid Traverse	472 IPM (12 m/min)
Y-Axis Rapid Traverse	394 IPM (10 m/min)
Z-Axis Rapid Traverse	394 IPM (10 m/min)
Maximum Turning Diameter	35.4 in (900 mm)
Maximum Turning Length	199 in (5,050 mm)

---

DN SOLUTIONS PUMA 700XLY II – CAPACITY / TABLE

Specification	Details
Chuck Size	24 in Hydraulic Chuck
Maximum Swing Over Bed	41.3 in (1,050 mm)
Maximum Turning Diameter	35.4 in (900 mm)
Maximum Turning Length	199 in (5,050 mm)
Spindle Bore Capacity	Up to 14.7 in (375 mm)
Work Holding	Hydraulic Chucks, Faceplates, Soft Jaws, Hard Jaws, and Custom Fixtures

---

DN SOLUTIONS PUMA 700XLY II – SPINDLE

Specification	Details
Maximum Spindle Speed	1,500 RPM
Spindle Power	74 HP (55 kW)
Maximum Torque	5,957 ft-lb (8,076 Nm)
Spindle Type	High-Torque Gearbox Spindle
Spindle Nose	A2-15

---

DN SOLUTIONS PUMA 700XLY II – TOOL CHANGER

Specification	Details
Turret Type	Servo-Driven Live Tool Turret
Number of Tool Stations	12 Stations
Live Tool Speed	4,000 RPM
Tool Configuration	Static and Rotary Tool Holders
Tool Indexing	Automatic Servo Turret Indexing

---

DN SOLUTIONS PUMA 700XLY II – CONTROL SYSTEM

Specification	Details
CNC Control	FANUC Series Control
Programming	G-Code Programming with Turning and Milling Functions
Operator Interface	Color LCD Display
Features	Y-Axis Machining, C-Axis Control, Tool Management, Diagnostics, and Production Monitoring

---

DN SOLUTIONS PUMA 700XLY II – COOLANT / DUST / WATER MANAGEMENT

Specification	Details
Coolant System	Flood Coolant System
High-Pressure Coolant	Optional
Chip Removal	Automatic Chip Conveyor
Coolant Filtration	Multi-Stage Filtration System
Enclosure	Fully Enclosed Heavy-Duty Machining Area

---

DN SOLUTIONS PUMA 700XLY II – POWER REQUIREMENTS

Specification	Details
Electrical Requirement	220V / 380V / 440V Three Phase
Connected Load	Approximately 90–115 kVA
Pneumatic Requirement	Clean Dry Compressed Air

---

DN SOLUTIONS PUMA 700XLY II – DIMENSIONS

Specification	Details
Machine Length	Approximately 390 in (9,904 mm)
Machine Width	Approximately 122 in (3,100 mm)
Machine Height	Approximately 112 in (2,855 mm)
Machine Weight	Approximately 61,700 lbs (28,000 kg)

---

DN SOLUTIONS PUMA 700XLY II – GENERAL INFORMATION

Specification	Details
Manufacturer	DN SOLUTIONS
Model	PUMA 700XLY II
Machine Type	Long-Bed CNC Turning Center with Y-Axis and Live Tooling
Machine Condition	Used
Typical Operations	Turning, Boring, Threading, Milling, Drilling, Tapping, Slotting, Pocketing, and Profiling
Automation Compatibility	Tailstocks, Steady Rests, Chip Conveyors, Gantry Systems, and Robotic Automation

---

INDUSTRIES THAT USE DN SOLUTIONS PUMA 700XLY II

The DN SOLUTIONS PUMA 700XLY II is widely used by manufacturers producing large and highly complex components that require both turning and advanced milling operations. Oil and gas companies utilize the machine for drilling equipment, valve assemblies, pressure-control systems, couplings, pump shafts, and large threaded components. The machine’s extended turning length and Y-axis functionality make it ideal for producing parts with multiple machined features in a single setup.

Power generation companies rely on the PUMA 700XLY II for turbine shafts, generator components, and rotating equipment requiring exceptional precision. Aerospace manufacturers use the machine for structural shafts, landing gear components, and high-strength alloy parts that require advanced contouring and off-center machining.

Additional industries include marine propulsion manufacturing, mining equipment production, heavy construction equipment, agricultural machinery, steel processing, and general industrial manufacturing. The machine’s versatility allows shops to reduce production costs while increasing throughput and part quality.

---

TYPICAL PARTS DN SOLUTIONS PUMA 700XLY II CAN PRODUCE

The DN SOLUTIONS PUMA 700XLY II can produce a broad range of large and complex parts including turbine shafts, hydraulic cylinder rods, marine propulsion shafts, industrial rollers, valve bodies, pump shafts, drilling components, couplings, bearing housings, and structural industrial assemblies.

The integrated Y-axis allows machining of pockets, keyways, angled holes, milled flats, slots, and off-center features that would otherwise require secondary machining operations. This significantly improves productivity while maintaining superior dimensional accuracy.

The machine is ideal for prototype work, repair applications, custom manufacturing, and high-volume production environments. Its combination of large work capacity and advanced multi-tasking capability enables manufacturers to process challenging parts efficiently and consistently.

---

WHY CHOOSE DN SOLUTIONS PUMA 700XLY II

The DN SOLUTIONS PUMA 700XLY II offers a unique combination of large-part machining capability and advanced Y-axis functionality. Its nearly 200-inch turning length allows oversized components to be machined in a single setup, reducing alignment errors and improving production efficiency.

The machine’s high-torque gearbox spindle, rigid box guideways, and live tooling turret provide exceptional cutting performance for both turning and milling operations. The Y-axis expands machining flexibility by allowing true off-center milling and contouring operations directly on the machine.

Manufacturers benefit from reduced setup times, improved accuracy, lower labor costs, and shorter production cycles. The machine’s compatibility with automation systems, programmable tailstocks, steady rests, and chip management solutions further enhances productivity.

The PUMA series is known worldwide for durability, precision, and reliability. The PUMA 700XLY II continues that tradition by delivering exceptional performance for demanding large-part manufacturing applications.

---

WHY BUY USED DN SOLUTIONS PUMA 700XLY II

Purchasing a used DN SOLUTIONS PUMA 700XLY II allows manufacturers to obtain an advanced large-frame Y-axis mill-turn machine at a significantly lower cost than purchasing a new machine. Machines of this size and capability represent a major capital investment, making the used market an attractive option for companies seeking high-performance equipment while managing budgets effectively.

One of the primary advantages of a used PUMA 700XLY II is its ability to complete multiple machining operations in a single setup. By combining turning, drilling, milling, tapping, and Y-axis machining, manufacturers can reduce setup times, improve accuracy, and increase throughput.

The machine’s heavy-duty cast iron construction, gearbox spindle, live tooling turret, and FANUC control system are designed for years of continuous industrial operation. Properly maintained machines continue to deliver excellent performance and productivity long after their initial installation.

Used equipment is often available immediately, eliminating long lead times associated with new machine purchases. The capital savings achieved through buying used equipment can be invested in tooling, automation systems, inspection equipment, and facility improvements.

Because of its reputation for reliability and performance, the PUMA 700XLY II remains highly sought after in the used CNC machinery market and maintains strong resale value.

---

HOW MUCH DOES A USED DN SOLUTIONS PUMA 700XLY II COST?

The cost of a used DN SOLUTIONS PUMA 700XLY II depends on several factors including manufacturing year, machine condition, operating hours, CNC control version, tooling package, maintenance history, and optional equipment. Machines equipped with additional live tooling, steady rests, programmable tailstocks, high-pressure coolant systems, and automation packages generally command higher market values.

A used DN SOLUTIONS PUMA 700XLY II typically ranges between $300,000 and $750,000, depending on age, condition, configuration, and included accessories. Newer machines with lower operating hours, documented maintenance records, and extensive tooling packages generally achieve premium pricing.

Before purchasing a used PUMA 700XLY II, buyers should inspect spindle condition, Y-axis performance, C-axis accuracy, live tooling operation, turret indexing, guideway wear, hydraulic systems, lubrication systems, and CNC control functionality. A comprehensive inspection helps ensure reliable operation and identifies any potential maintenance requirements.

Additional expenses such as transportation, rigging, installation, electrical setup, tooling, operator training, and preventive maintenance should also be considered when calculating total ownership costs. Even after accounting for these expenses, a used PUMA 700XLY II remains significantly more affordable than purchasing a comparable new large-capacity Y-axis mill-turn machine.

For manufacturers requiring exceptional turning length, advanced Y-axis machining, powerful spindle performance, and proven reliability, the used DN SOLUTIONS PUMA 700XLY II provides an outstanding combination of productivity, versatility, precision, and long-term value.
