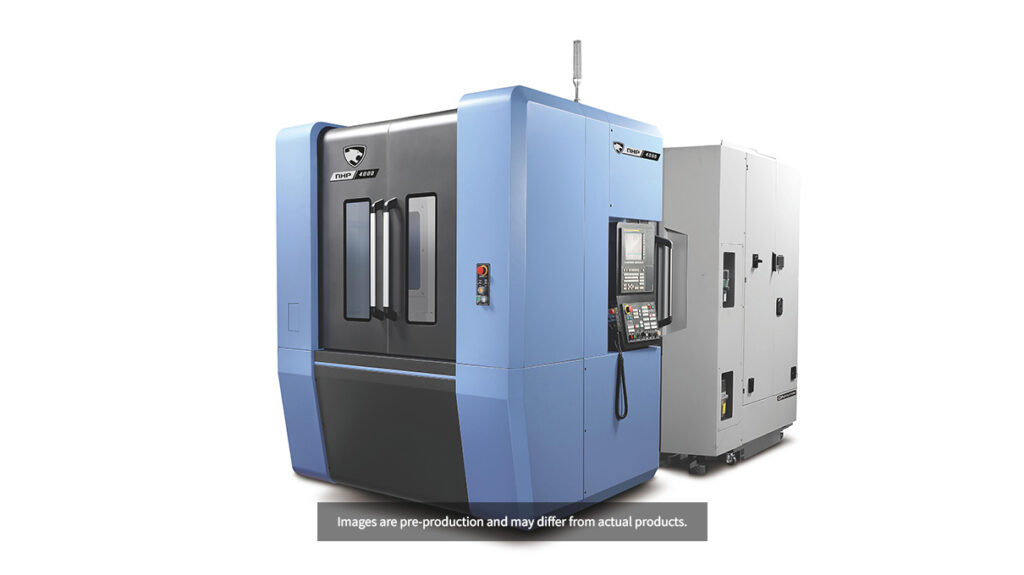

USED DN SOLUTIONS NHP 8000

The DN Solutions NHP 8000 is a large-capacity CNC horizontal machining center engineered for heavy-duty machining, maximum productivity, and fully automated manufacturing. Designed for machining oversized and high-value workpieces, the NHP 8000 combines a highly rigid step-guide cast iron structure, precision roller linear guideways, a servo-driven automatic pallet changer (APC), and a high-speed automatic tool changer (ATC) to deliver exceptional cutting performance, long-term accuracy, and outstanding reliability. Its horizontal spindle configuration provides superior chip evacuation, allowing longer unattended machining cycles, improved tool life, and excellent surface finishes during continuous production. The machine is ideally suited for demanding industries such as aerospace, energy, heavy equipment, automotive, mining, oil & gas, and industrial machinery manufacturing.

The machine offers 55 inches (1,400 mm) of X-axis travel, 47 inches (1,200 mm) of Y-axis travel, and 54 inches (1,370 mm) of Z-axis travel, providing a massive machining envelope for large components. It features a 31 × 31 inch (800 × 800 mm) twin-pallet system capable of supporting workpieces weighing up to 4,409 lbs (2,000 kg). The standard 10,000 RPM ISO 50 spindle delivers 60 HP (45 kW) with optional 15,000 RPM and 74 HP (55 kW) configurations for higher-speed machining applications. Maximum spindle torque reaches 443 ft-lb (600 Nm), with an optional 597 ft-lb (809 Nm) configuration for aggressive heavy cutting. A 40-tool automatic tool changer comes standard and can be expanded for highly automated production systems. Rapid traverse rates of 1,969 IPM (50 m/min) minimize non-cutting time while maximizing spindle utilization. The NHP 8000 is widely used for machining engine blocks, transmission housings, wind energy components, heavy hydraulic manifolds, mining equipment, aerospace structures, and large industrial castings. In the used CNC machinery market, the DN Solutions NHP 8000 is highly regarded for its exceptional rigidity, automation capability, heavy cutting performance, and outstanding long-term value.

DN SOLUTIONS NHP 8000 – AXIS

DN SOLUTIONS NHP 8000 – AXIS TRAVELS / WORK ENVELOPE

DN SOLUTIONS NHP 8000 – CAPACITY / TABLE

DN SOLUTIONS NHP 8000 – SPINDLE

DN SOLUTIONS NHP 8000 – TOOL CHANGER

DN SOLUTIONS NHP 8000 – CONTROL SYSTEM

DN SOLUTIONS NHP 8000 – COOLANT / DUST / WATER MANAGEMENT

DN SOLUTIONS NHP 8000 – POWER REQUIREMENTS

DN SOLUTIONS NHP 8000 – DIMENSIONS

DN SOLUTIONS NHP 8000 – GENERAL INFORMATION

WHY BUY USED DN SOLUTIONS NHP 8000

Purchasing a used DN Solutions NHP 8000 provides manufacturers with one of the largest and most capable horizontal machining centers available while significantly reducing capital investment. The automatic twin-pallet system enables continuous production by allowing operators to prepare the next workpiece while machining continues on the second pallet, dramatically improving spindle utilization and reducing setup time.

The machine’s massive cast iron construction, roller guideways, and ISO 50 spindle deliver exceptional rigidity for heavy-duty machining of steel, cast iron, titanium, and high-strength alloys. Excellent thermal stability ensures consistent machining accuracy during extended production runs, while the horizontal spindle orientation naturally evacuates chips to improve tool life and machining quality.

Many used NHP 8000 machines are equipped with premium factory-installed options including high-pressure through-spindle coolant, Renishaw probing systems, pallet pool automation, expanded tool magazines, automatic tool measurement, and factory automation interfaces. These features improve productivity while minimizing future capital expenditures.

The Fanuc CNC control offers intuitive programming, worldwide service support, and excellent long-term reliability. Combined with DN Solutions’ proven engineering and heavy-duty machine construction, the NHP 8000 delivers dependable performance with low maintenance requirements across demanding production environments.

HOW MUCH DOES A USED DN SOLUTIONS NHP 8000 COST?

The price of a used DN Solutions NHP 8000 depends on machine age, spindle hours, maintenance history, CNC configuration, tooling packages, automation options, and overall machine condition. Machines equipped with optional 15,000 RPM spindles, expanded tool magazines, pallet systems, high-pressure through-spindle coolant, probing systems, and low operating hours generally command higher resale values.

Most used DN Solutions NHP 8000 machines typically sell between $350,000 and $850,000, depending on the year of manufacture, spindle configuration, machine condition, and installed factory options. Machines with documented service histories, verified geometric accuracy, and premium automation packages typically achieve the highest resale values.

Before purchasing a used NHP 8000, buyers should inspect spindle condition, pallet changer performance, B-axis indexing accuracy, guideway wear, automatic tool changer operation, lubrication systems, coolant equipment, and CNC functionality. Transportation, rigging, installation, electrical work, tooling, operator training, and preventive maintenance should also be included when budgeting for ownership.

Thanks to its exceptional machining envelope, heavy-duty spindle, advanced automation capability, and proven long-term reliability, the DN Solutions NHP 8000 continues to command strong resale values and remains one of the industry’s premier large-frame horizontal machining centers.

INDUSTRIES THAT USE DN SOLUTIONS NHP 8000

• Aerospace Manufacturing
• Automotive Manufacturing
• Heavy Equipment Manufacturing
• Energy Industry
• Wind Power Equipment
• Oil & Gas Industry
• Mining Equipment Manufacturing
• Industrial Machinery
• Defense Manufacturing
• Precision Engineering

TYPICAL PARTS DN SOLUTIONS NHP 8000 CAN PRODUCE

• Engine Blocks
• Transmission Housings
• Wind Turbine Components
• Hydraulic Manifolds
• Gearbox Housings
• Mining Equipment Components
• Aerospace Structural Parts
• Industrial Machine Frames
• Heavy Pump Housings
• Valve Bodies
• Large Precision Castings
• Mechanical Assemblies

WHY CHOOSE DN SOLUTIONS NHP 8000

The DN Solutions NHP 8000 is a flagship heavy-duty horizontal machining center built for manufacturers requiring maximum rigidity, large work capacity, and advanced automation. Its powerful ISO 50 spindle, expansive 800 mm twin-pallet system, high-speed roller guideways, expandable tool magazine, and advanced Fanuc CNC control make it an outstanding solution for demanding heavy-machining applications.

Whether machining aerospace structures, automotive powertrain components, mining equipment, heavy industrial machinery, energy equipment, or precision-engineered castings, the NHP 8000 delivers the power, precision, reliability, and productivity required for today’s most demanding manufacturing operations. Its robust construction, automation-ready design, and excellent resale value continue to make it one of the world’s most desirable used CNC horizontal machining centers.
