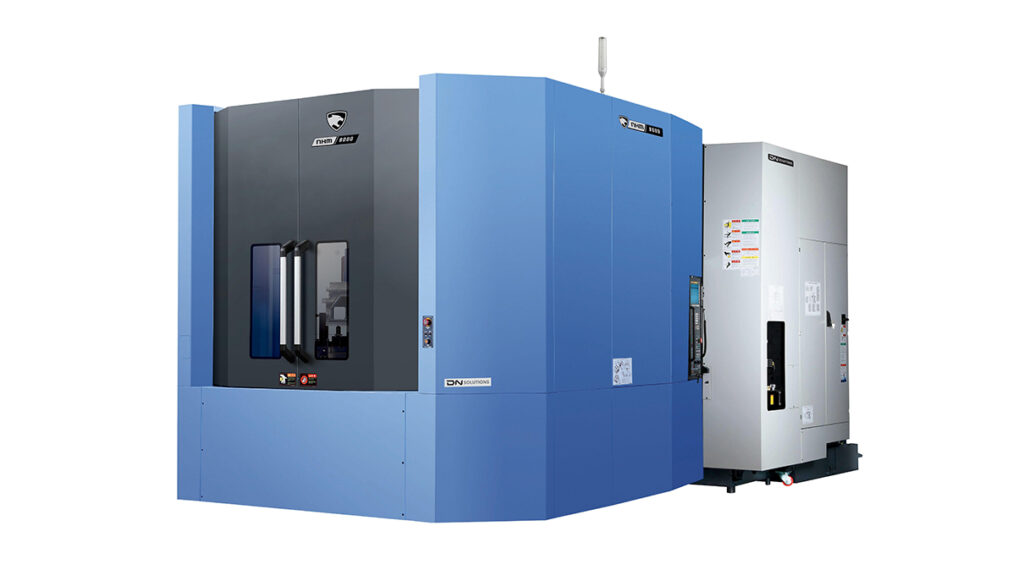

The DN Solutions NHM 8000 is a flagship heavy-duty CNC horizontal machining center designed for manufacturers that require exceptional rigidity, massive cutting power, and reliable high-volume machining of large and complex components. As the largest model in the NHM Series, the NHM 8000 is built around a rigid one-piece cast iron bed with precision box guideways, providing superior vibration damping and outstanding stability during aggressive roughing and heavy-duty machining. Equipped with a servo-driven automatic pallet changer (APC), high-capacity automatic tool changer (ATC), and advanced spindle cooling system, the NHM 8000 delivers excellent machining accuracy, long-term reliability, and maximum productivity even in the most demanding production environments. It is specifically engineered for machining steel, cast iron, stainless steel, titanium, Inconel, and other difficult-to-machine materials used throughout the aerospace, energy, mining, heavy equipment, oil & gas, and industrial machinery industries.
The machine offers 55 inches (1,400 mm) of X-axis travel, 41 inches (1,050 mm) of Y-axis travel, and 47 inches (1,200 mm) of Z-axis travel, providing a large machining envelope for oversized workpieces. The 31 × 31 inch (800 × 800 mm) twin-pallet system supports workpieces weighing up to 4,409 lbs (2,000 kg). A powerful 6,000 RPM ISO 50 gear-driven spindle comes standard, while an optional 8,000 RPM spindle provides additional machining flexibility. The spindle produces up to 47 HP (35 kW) and 1,278 ft-lb (1,732 Nm) of torque, with an optional high-torque configuration delivering 1,065 ft-lb (1,444 Nm) at higher spindle speeds. A 60-tool automatic tool changer is standard, with optional larger magazines available for highly automated manufacturing systems. Rapid traverse rates of 945 IPM (24 m/min) ensure efficient positioning while maintaining maximum machine rigidity. The NHM 8000 is widely used for machining engine blocks, transmission housings, mining equipment, wind energy components, aerospace structures, heavy hydraulic manifolds, and large industrial castings. It remains one of the most capable heavy-duty horizontal machining centers available in the used CNC market.
DN SOLUTIONS NHM 8000 – AXIS
Specification
Details
X-Axis Travel
55 in (1,400 mm)
Y-Axis Travel
41 in (1,050 mm)
Z-Axis Travel
47 in (1,200 mm)
Axis Configuration
4-Axis Horizontal Machining Center
Rapid Traverse (X/Y/Z)
945 IPM (24 m/min)
Guideway Type
Heavy-Duty Box Guideways
DN SOLUTIONS NHM 8000 – AXIS TRAVELS / WORK ENVELOPE
Purchasing a used DN Solutions NHM 8000 provides manufacturers with one of the industry’s most capable heavy-duty horizontal machining centers while significantly reducing capital investment. The rigid box guideway construction delivers exceptional damping characteristics, allowing aggressive roughing operations with excellent dimensional accuracy and long tool life. The powerful gear-driven spindle is specifically designed for heavy cutting applications where high torque is more important than extremely high spindle speed.
The automatic twin-pallet system allows operators to prepare the next workpiece while machining continues on the second pallet, dramatically improving spindle utilization and reducing setup time. Many used NHM 8000 machines are equipped with valuable factory-installed options including high-pressure through-spindle coolant, automatic probing systems, pallet pool automation, expanded tool magazines, and automatic tool measurement systems, providing exceptional flexibility for high-volume manufacturing.
HOW MUCH DOES A USED DN SOLUTIONS NHM 8000 COST?
The price of a used DN Solutions NHM 8000 depends on machine age, spindle hours, maintenance history, installed options, tooling packages, automation systems, and overall machine condition.
Most used DN Solutions NHM 8000 machines typically sell between $300,000 and $700,000, depending on year of manufacture, spindle configuration, machine condition, and installed factory options. Machines equipped with optional 8,000 RPM spindles, pallet pool systems, expanded tool magazines, high-pressure through-spindle coolant, and documented maintenance histories generally command higher resale values.
Before purchasing a used NHM 8000, buyers should inspect spindle condition, box guideway wear, pallet changer operation, B-axis indexing accuracy, lubrication systems, automatic tool changer performance, coolant equipment, and overall machine geometry. Machines with complete maintenance records and verified accuracy typically provide the greatest long-term value while minimizing unexpected repair costs.
INDUSTRIES THAT USE DN SOLUTIONS NHM 8000
Aerospace Manufacturing
Heavy Equipment Manufacturing
Mining Equipment Manufacturing
Oil & Gas Industry
Energy Equipment Manufacturing
Automotive Manufacturing
Industrial Machinery
Defense Manufacturing
Wind Energy
General Heavy Machining
TYPICAL PARTS DN SOLUTIONS NHM 8000 CAN PRODUCE
Engine Blocks
Transmission Housings
Mining Equipment Components
Wind Turbine Components
Hydraulic Manifolds
Pump Housings
Valve Bodies
Aerospace Structural Components
Heavy Machine Frames
Industrial Castings
Energy Equipment Components
Precision Fixtures
WHY CHOOSE DN SOLUTIONS NHM 8000
The DN Solutions NHM 8000 is engineered for manufacturers requiring maximum rigidity, exceptional torque, and dependable heavy-duty machining performance. Its one-piece box guideway construction, powerful ISO 50 gear-driven spindle, automatic twin-pallet system, expandable tool magazine, and advanced Fanuc CNC control make it one of the industry’s premier solutions for machining large and difficult materials.
Whether machining heavy steel fabrications, aerospace structures, mining equipment, oil & gas components, industrial machinery, or energy equipment, the NHM 8000 delivers outstanding cutting power, machining accuracy, long-term durability, and production efficiency. Its rugged construction, automation-ready design, and excellent resale value continue to make it one of the most desirable heavy-duty CNC horizontal machining centers in the global used CNC marketplace.
