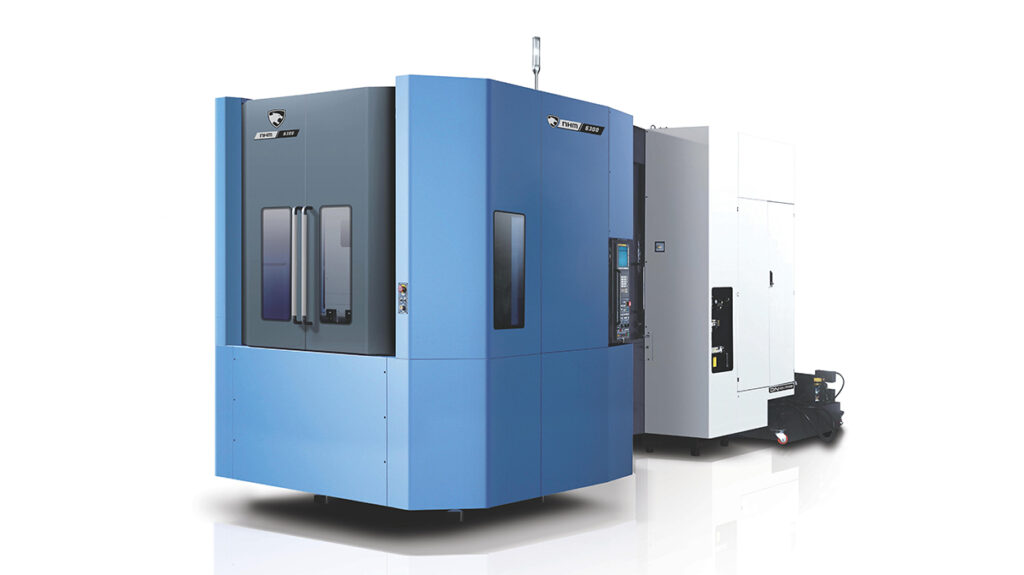

The DN Solutions NHM 6300 is a heavy-duty CNC horizontal machining center designed for manufacturers requiring maximum rigidity, high torque, and exceptional machining performance for large and difficult-to-machine components. Unlike high-speed linear guideway machines, the NHM 6300 utilizes precision box guideways that provide superior vibration damping, outstanding cutting stability, and excellent long-term durability during aggressive roughing operations. Combined with a rigid one-piece cast iron bed, servo-driven automatic pallet changer (APC), servo-driven automatic tool changer (ATC), and advanced thermal compensation technology, the NHM 6300 delivers consistent accuracy and reliability in demanding production environments. It is ideally suited for machining steel, cast iron, stainless steel, titanium, Inconel, and other high-strength materials used in heavy industry.
The machine features 41 inches (1,050 mm) of X-axis travel, 33 inches (850 mm) of Y-axis travel, and 39 inches (1,000 mm) of Z-axis travel, providing a generous work envelope for medium to large workpieces. It utilizes a 25 × 25 inch (630 × 630 mm) twin-pallet system capable of supporting workpieces weighing up to 2,646 lbs (1,200 kg). A powerful 6,000 RPM ISO 50 spindle comes standard, with an optional 8,000 RPM spindle available for greater machining flexibility. The spindle delivers up to 47 HP (35 kW) and an impressive 1,278 ft-lb (1,732 Nm) of torque, making the machine ideal for heavy metal removal. A 60-tool automatic tool changer is standard, while optional larger tool magazines support highly automated manufacturing systems. Rapid traverse rates of 1,181 IPM (30 m/min) ensure efficient positioning while maintaining maximum machine rigidity. The NHM 6300 is widely used in aerospace, heavy equipment, automotive, oil & gas, mining, energy, mold & die, and industrial machinery manufacturing where heavy-duty machining capability is essential.
DN SOLUTIONS NHM 6300 – AXIS
Specification
Details
X-Axis Travel
41 in (1,050 mm)
Y-Axis Travel
33 in (850 mm)
Z-Axis Travel
39 in (1,000 mm)
Axis Configuration
4-Axis Horizontal Machining Center
Rapid Traverse (X/Y/Z)
1,181 IPM (30 m/min)
Guideway Type
Box Guideways
DN SOLUTIONS NHM 6300 – AXIS TRAVELS / WORK ENVELOPE
Purchasing a used DN Solutions NHM 6300 provides manufacturers with one of the industry’s most capable heavy-duty horizontal machining centers at a fraction of the cost of a new machine. The box guideway construction offers exceptional damping characteristics, making the machine ideal for roughing large castings, forgings, and heavy steel fabrications while maintaining excellent dimensional accuracy. Unlike linear guideway machines optimized for speed, the NHM 6300 is built specifically for high-torque machining and maximum material removal rates.
The automatic twin-pallet system enables continuous production by allowing operators to set up one workpiece while machining continues on the second pallet, maximizing spindle utilization and reducing non-cutting time. Many used NHM 6300 machines are equipped with premium factory options such as high-pressure through-spindle coolant, Renishaw probing systems, expanded tool magazines, pallet pool automation, and automatic tool measurement systems, providing excellent production flexibility and reducing future upgrade costs.
HOW MUCH DOES A USED DN SOLUTIONS NHM 6300 COST?
The price of a used DN Solutions NHM 6300 depends on the machine’s year of manufacture, spindle hours, maintenance history, CNC control, tooling packages, installed options, and overall condition.
Most used DN Solutions NHM 6300 machines typically sell between $225,000 and $525,000, depending on machine age, spindle configuration, installed automation, and maintenance history. Machines equipped with the optional 8,000 RPM spindle, larger tool magazines, high-pressure through-spindle coolant, pallet systems, and documented service records generally command higher resale values.
Before purchasing a used NHM 6300, buyers should inspect spindle condition, box guideway wear, pallet changer operation, B-axis indexing accuracy, lubrication systems, automatic tool changer performance, coolant equipment, and overall machine geometry. Machines with verified maintenance histories and calibration records generally provide the greatest long-term value while minimizing unexpected repair costs.
INDUSTRIES THAT USE DN SOLUTIONS NHM 6300
Heavy Equipment Manufacturing
Aerospace Industry
Automotive Manufacturing
Oil & Gas Equipment
Mining Equipment
Energy Industry
Industrial Machinery
Mold & Die Manufacturing
Defense Manufacturing
General Heavy Machining
TYPICAL PARTS DN SOLUTIONS NHM 6300 CAN PRODUCE
Engine Blocks
Transmission Housings
Gearbox Housings
Hydraulic Manifolds
Pump Housings
Valve Bodies
Heavy Equipment Components
Aerospace Structural Components
Energy Equipment Parts
Mining Equipment Components
Industrial Machine Frames
Precision Fixtures
WHY CHOOSE DN SOLUTIONS NHM 6300
The DN Solutions NHM 6300 is engineered for manufacturers that require maximum rigidity, exceptional cutting power, and dependable long-term performance. Its heavy-duty box guideway construction, powerful ISO 50 spindle, automatic twin-pallet system, large-capacity tool magazine, and advanced Fanuc CNC control make it an outstanding solution for demanding heavy-machining applications.
Whether machining large castings, heavy steel fabrications, oil & gas components, aerospace structures, mining equipment, or industrial machinery, the NHM 6300 delivers outstanding torque, cutting stability, machining accuracy, and production efficiency. Its rugged construction, automation-ready design, and excellent resale value continue to make it one of the industry’s most desirable used heavy-duty CNC horizontal machining centers.
