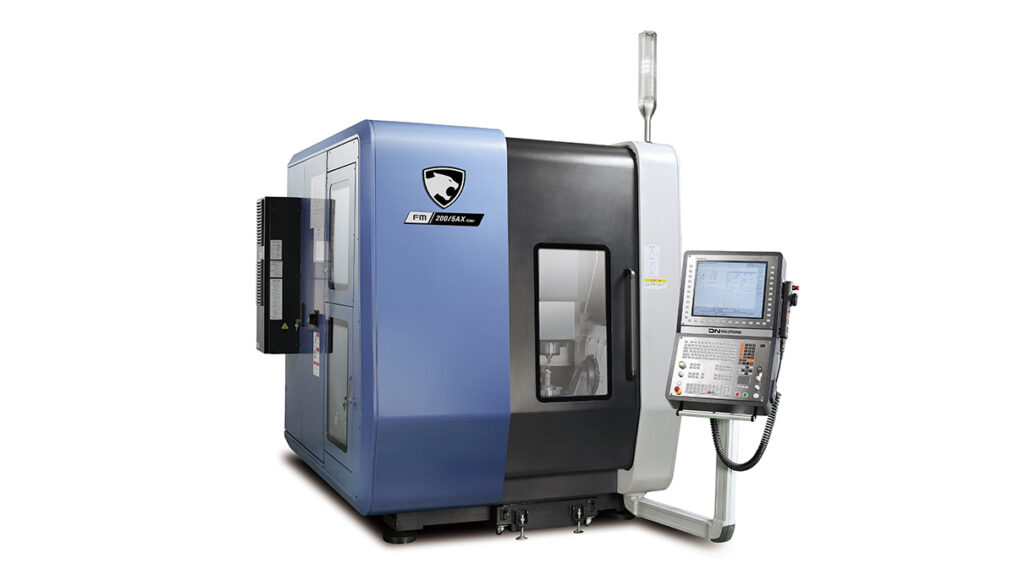

USED DN SOLUTIONS FM 200/5AX LINEAR

The DN Solutions FM 200/5AX Linear is an ultra-high-speed simultaneous 5-axis vertical machining center engineered for manufacturers requiring exceptional precision, surface finish, and micron-level accuracy. Unlike conventional ball-screw machining centers, the FM 200/5AX Linear utilizes linear motors on the X, Y, and Z axes and direct-drive rotary motors on the A and C axes, delivering extremely fast acceleration, outstanding positioning accuracy, and virtually zero backlash. Designed with a rigid gantry structure and mineral cast bed, this machine is ideally suited for medical devices, semiconductor components, aerospace parts, precision molds, micro-machining, and high-speed graphite machining.

The machine provides 8 inches of X-axis travel, 13 inches of Y-axis travel, and 12 inches of Z-axis travel. Its integrated 8-inch (200 mm) rotary table supports workpieces up to 44 lbs (20 kg) while providing simultaneous A-axis tilting and continuous C-axis rotation. The compact machining envelope is optimized for small, intricate components requiring exceptional dimensional accuracy and mirror-quality surface finishes. Linear motor technology enables extremely smooth axis motion with high acceleration and rapid traverse speeds, dramatically reducing cycle times for high-speed machining applications.

The FM 200/5AX Linear is equipped with an ultra-high-speed 42,000 RPM built-in spindle featuring an HSK-E40 tool interface. The spindle delivers approximately 13 HP (10 kW) and 5 ft-lb (6.5 N·m) of torque, making it ideal for high-speed machining of aluminum, graphite, hardened steel, plastics, ceramics, and composite materials. A 24-tool automatic tool changer comes standard, while the Heidenhain CNC control provides advanced five-axis machining functions, dynamic tool center point control, and high-speed contouring for exceptional machining accuracy. The machine’s mineral cast structure minimizes vibration while improving thermal stability during continuous production.

Available with the Heidenhain TNC control, the FM 200/5AX Linear is designed specifically for high-speed simultaneous five-axis machining where precision and surface quality are critical. In the used CNC machinery market, it is one of the most advanced compact high-speed five-axis machining centers available for manufacturers requiring ultra-precision machining performance.

DN SOLUTIONS FM 200/5AX LINEAR – AXIS

DN SOLUTIONS FM 200/5AX LINEAR – AXIS TRAVELS / WORK ENVELOPE

DN SOLUTIONS FM 200/5AX LINEAR – TABLE

DN SOLUTIONS FM 200/5AX LINEAR – SPINDLE

DN SOLUTIONS FM 200/5AX LINEAR – TOOL CHANGER

DN SOLUTIONS FM 200/5AX LINEAR – CONTROL SYSTEM

DN SOLUTIONS FM 200/5AX LINEAR – COOLANT / CHIP MANAGEMENT

DN SOLUTIONS FM 200/5AX LINEAR – POWER REQUIREMENTS

DN SOLUTIONS FM 200/5AX LINEAR – DIMENSIONS

DN SOLUTIONS FM 200/5AX LINEAR – GENERAL INFORMATION

WHY BUY USED DN SOLUTIONS FM 200/5AX LINEAR

Purchasing a used DN Solutions FM 200/5AX Linear allows manufacturers to obtain one of the industry’s most advanced high-speed five-axis machining centers at a significantly lower investment. Its linear motor technology eliminates backlash while delivering extremely high acceleration, exceptional contouring accuracy, and superior surface finishes.

The rigid gantry structure, mineral cast base, and direct-drive rotary axes minimize vibration and thermal distortion, allowing consistent micron-level accuracy during long machining cycles. These features make the FM 200/5AX Linear particularly well suited for medical devices, graphite electrodes, semiconductor components, precision molds, and aerospace applications.

Many used machines include valuable factory-installed options such as laser tool measurement systems, spindle chillers, high-pressure coolant, automatic work measurement probes, and advanced Heidenhain software packages. These features further increase productivity while reducing setup times.

For manufacturers requiring exceptional precision and high-speed machining capability, the FM 200/5AX Linear offers outstanding long-term value and one of the highest performance levels available in a compact five-axis machining center.

HOW MUCH DOES A USED DN SOLUTIONS FM 200/5AX LINEAR COST?

The value of a used DN Solutions FM 200/5AX Linear depends on machine age, spindle hours, maintenance history, tooling, CNC software options, and overall condition. Machines equipped with probing systems, spindle chillers, high-pressure coolant, and low operating hours generally command higher resale values.

Before purchasing, buyers should inspect spindle condition, linear motor accuracy, rotary axis calibration, guideway condition, CNC diagnostics, and maintenance records. Machines with documented service histories and regular calibration generally retain the highest resale value.

A used DN Solutions FM 200/5AX Linear typically sells between $175,000 and $325,000, depending on the year, machine configuration, operating hours, tooling packages, and overall condition. Well-maintained machines continue to deliver excellent return on investment for manufacturers requiring ultra-high-speed precision machining.

INDUSTRIES THAT USE DN SOLUTIONS FM 200/5AX LINEAR

• Medical Device Manufacturing
• Semiconductor Manufacturing
• Aerospace Manufacturing
• Precision Mold & Die
• Electronics Manufacturing
• Optical Component Manufacturing
• Graphite Electrode Manufacturing
• Research & Development
• Precision Contract Manufacturing
• Micro-Machining

TYPICAL PARTS DN SOLUTIONS FM 200/5AX LINEAR CAN PRODUCE

• Medical Implants
• Dental Components
• Aerospace Precision Parts
• Graphite Electrodes
• Mold Inserts
• Optical Components
• Semiconductor Components
• Precision Connectors
• Electronic Housings
• Micro Mechanical Parts
• Prototype Components
• High-Precision 5-Axis Parts

WHY CHOOSE DN SOLUTIONS FM 200/5AX LINEAR

The DN Solutions FM 200/5AX Linear combines linear motor axis technology, a 42,000 RPM built-in spindle, a rigid mineral cast gantry structure, direct-drive rotary axes, and an advanced Heidenhain CNC control into one of the fastest and most accurate compact five-axis machining centers available. Its exceptional positioning accuracy, rapid acceleration, and superior surface finish capabilities make it ideal for manufacturers producing high-value precision components.

Manufacturers choose the FM 200/5AX Linear because it delivers ultra-high-speed machining, outstanding precision, excellent thermal stability, and strong long-term reliability. For companies seeking one of the industry’s most advanced compact 5-axis machining centers, the used DN Solutions FM 200/5AX Linear remains an outstanding investment.
