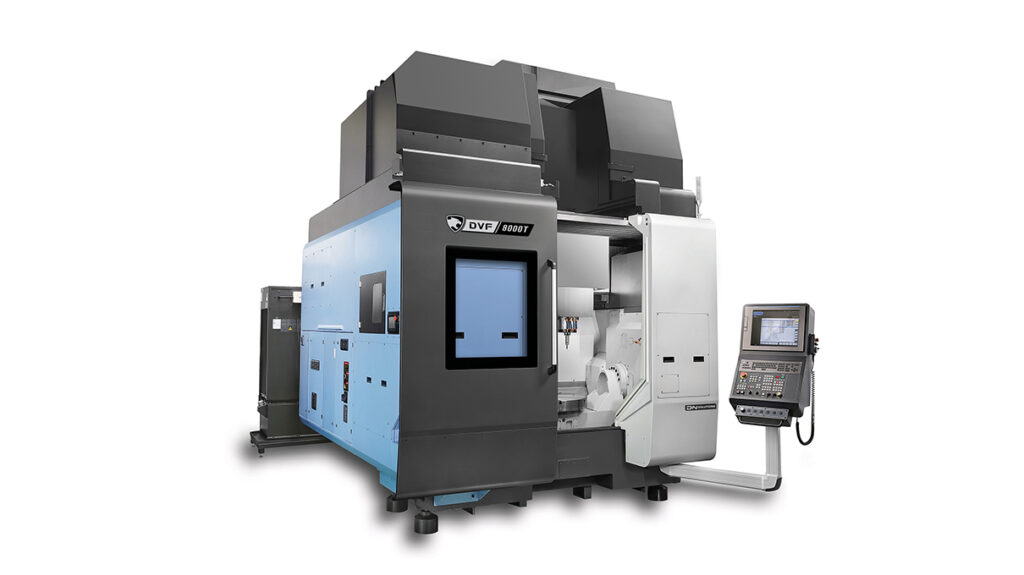

USED DN SOLUTIONS DVF 8000T

The DN Solutions DVF 8000T is a premium 5-axis machining center with integrated turning capability, engineered for manufacturers producing large, high-value components that require both milling and turning operations in a single setup. By combining simultaneous five-axis machining with a high-speed turning table, the DVF 8000T eliminates secondary operations, reduces setup time, and improves machining accuracy. This multitasking machining center is ideal for aerospace, energy, medical, automotive, mold & die, and heavy equipment manufacturers seeking maximum productivity and precision. The machine is fully automation-ready, making it suitable for both high-mix job shops and lights-out production environments.

The machine features 39 inches of X-axis travel, 35 inches of Y-axis travel, and 27 inches of Z-axis travel, together with a 31-inch (800 mm) tilting rotary table capable of supporting workpieces weighing up to 1,543 lbs (700 kg). Unlike the standard DVF 8000, the DVF 8000T incorporates a 600 RPM turning table, allowing manufacturers to perform milling, drilling, tapping, contouring, and turning operations on one machine. This capability makes the DVF 8000T ideal for machining aerospace housings, turbine components, impellers, pump bodies, valve assemblies, medical components, and complex rotational parts.

Built on a heavily ribbed Meehanite cast iron structure with precision roller linear guideways, the DVF 8000T delivers exceptional rigidity, vibration control, and thermal stability during demanding machining operations. The machine is equipped with an 18,000 RPM direct-drive HSK-T63 spindle producing 30 HP (40 HP optional) and 87 ft-lb of torque. The HSK-T63 spindle is specifically designed for multitasking applications, providing outstanding rigidity for both milling and turning. A 60-tool automatic tool changer comes standard, with optional expansion to 120 tools for highly automated production. Standard spindle cooling, integrated thermal compensation, and a tool measurement probe ensure outstanding machining accuracy during extended production cycles.

Available with FANUC, Siemens, or Heidenhain CNC controls, the DVF 8000T supports advanced simultaneous five-axis machining, turning cycles, automation integration, pallet systems, and intelligent tool management. In the used CNC machinery market, the DN Solutions DVF 8000T is recognized as one of the industry’s most capable multitasking machining centers, offering exceptional flexibility while reducing overall production costs.

DN SOLUTIONS DVF 8000T – AXIS

DN SOLUTIONS DVF 8000T – AXIS TRAVELS / WORK ENVELOPE

DN SOLUTIONS DVF 8000T – TABLE

DN SOLUTIONS DVF 8000T – SPINDLE

DN SOLUTIONS DVF 8000T – TOOL CHANGER

DN SOLUTIONS DVF 8000T – CONTROL SYSTEM

DN SOLUTIONS DVF 8000T – COOLANT / CHIP MANAGEMENT

DN SOLUTIONS DVF 8000T – POWER REQUIREMENTS

DN SOLUTIONS DVF 8000T – DIMENSIONS

DN SOLUTIONS DVF 8000T – GENERAL INFORMATION

WHY BUY USED DN SOLUTIONS DVF 8000T

Purchasing a used DN Solutions DVF 8000T allows manufacturers to combine five-axis machining and turning into a single machine while significantly reducing capital investment. By completing multiple machining operations in one setup, the machine improves dimensional accuracy, reduces fixture costs, minimizes work handling, and shortens production cycles.

The high-speed HSK-T63 spindle and integrated turning table make the DVF 8000T particularly well suited for machining large rotational components that would otherwise require separate machining centers and CNC lathes. The rigid machine structure, advanced thermal compensation system, and precision guideways provide excellent surface finishes and repeatable accuracy during long production runs.

Many used DVF 8000T machines include valuable factory-installed options such as through-spindle coolant, Renishaw probing systems, expanded tool magazines, automatic work changers (AWC), robotic loading systems, and pallet automation. These options increase spindle utilization while supporting unattended manufacturing and lights-out production.

HOW MUCH DOES A USED DN SOLUTIONS DVF 8000T COST?

The value of a used DN Solutions DVF 8000T depends on machine age, spindle hours, maintenance history, CNC control, tooling, automation features, and installed options. Machines equipped with larger tool magazines, probing systems, pallet systems, robotic automation, and through-spindle coolant generally command higher resale values because they offer greater production flexibility.

Before purchasing, buyers should inspect spindle condition, turning table accuracy, B-axis and C-axis calibration, guideway wear, ballscrew condition, automatic tool changer performance, CNC diagnostics, and service documentation. Machines with complete maintenance records and lower operating hours generally retain the strongest market value.

A used DN Solutions DVF 8000T typically sells between $350,000 and $650,000, depending on machine configuration, year, operating hours, tooling packages, automation systems, and overall condition. Well-equipped machines capable of unattended production typically provide the greatest return on investment for manufacturers requiring advanced multitasking machining capabilities.

INDUSTRIES THAT USE DN SOLUTIONS DVF 8000T

• Aerospace Manufacturing
• Energy Equipment Manufacturing
• Oil & Gas Equipment Manufacturing
• Automotive Manufacturing
• Defense Manufacturing
• Medical Device Manufacturing
• Heavy Equipment Manufacturing
• Mold & Die Industry
• Precision Contract Manufacturing
• General Engineering

TYPICAL PARTS DN SOLUTIONS DVF 8000T CAN PRODUCE

• Aerospace Housings
• Turbine Casings
• Impellers
• Pump Housings
• Valve Bodies
• Energy Equipment Components
• Medical Components
• Large Rotational Parts
• Hydraulic Components
• Precision Machine Parts
• Complex Prototype Components
• Simultaneous Mill-Turn Parts

WHY CHOOSE DN SOLUTIONS DVF 8000T

The DN Solutions DVF 8000T combines simultaneous five-axis machining, integrated turning capability, a high-speed 18,000 RPM HSK-T63 spindle, a 600 RPM turning table, advanced thermal compensation, and automation-ready architecture into one highly productive machining platform. Its ability to perform milling and turning operations in a single setup improves machining accuracy, reduces production time, and lowers manufacturing costs.

Manufacturers choose the DVF 8000T because it delivers exceptional multitasking capability, outstanding machining precision, excellent long-term reliability, and strong resale value. For manufacturers looking to consolidate multiple machining processes into one advanced production platform, the used DN Solutions DVF 8000T remains one of the most capable mill-turn machining centers available today.
