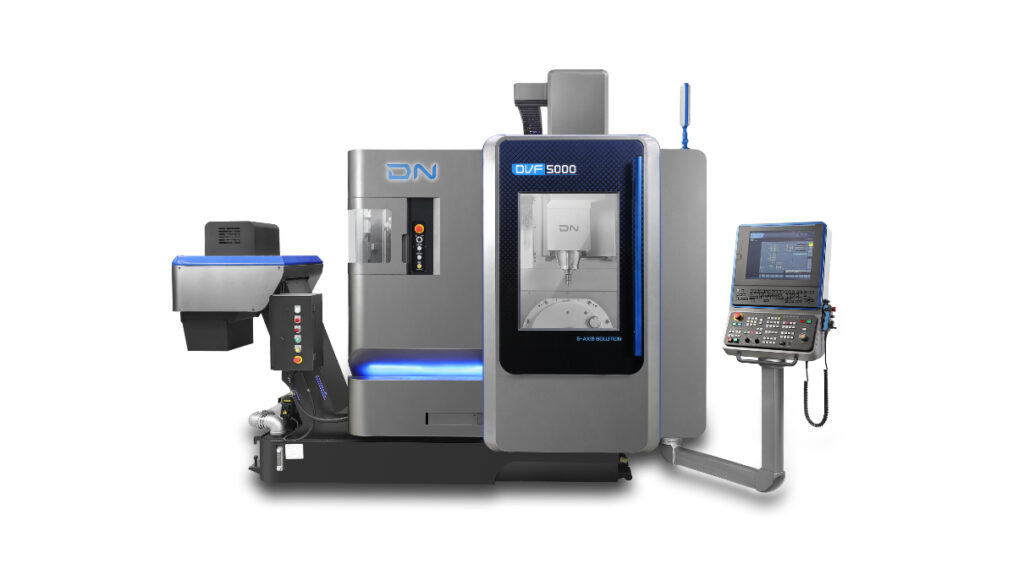

USED DN SOLUTIONS DVF 5000 2nd Generation

The DN Solutions DVF 5000 2nd Generation is an advanced simultaneous 5-axis vertical machining center developed to deliver greater machining capacity, higher productivity, and improved accuracy over the original DVF 5000. Featuring larger axis travels, a bigger rotary table, faster rapid traverse rates, and an upgraded thermal management system, the second-generation model is designed for manufacturers producing complex, high-precision components in a single setup. Its automation-ready platform makes it an excellent solution for aerospace, medical, automotive, mold & die, semiconductor, and precision engineering industries. The redesigned machine offers a larger work envelope while maintaining a compact footprint for maximum shop floor efficiency.

The DVF 5000 2nd Generation features 26 inches of X-axis travel, 21 inches of Y-axis travel, and 19 inches of Z-axis travel, representing a significant increase over the previous model. The machine is equipped with a 25-inch (630 mm) tilting rotary table capable of supporting workpieces weighing up to 882 lbs (400 kg). The larger machining envelope allows manufacturers to process larger and more complex components while maintaining exceptional five-axis accuracy. Simultaneous B-axis tilting and continuous C-axis rotation enable complete machining of multiple surfaces in one setup, reducing fixture changes and improving geometric precision.

Built on a rigid Meehanite cast iron structure with precision roller linear guideways, the DVF 5000 2nd Generation incorporates an enhanced cooling system that actively cools the spindle, guideways, ballscrews, and machine structure to minimize thermal growth during extended machining cycles. The standard 15,000 RPM direct-drive ISO 40 spindle delivers 25 HP and 87 ft-lb of torque, while an optional 20,000 RPM built-in spindle provides even greater productivity for high-speed machining applications. A servo-driven automatic tool changer is available with capacities from 30 to 120 tools, with optional expansion up to 300 tools for automated production environments.

Available with Siemens SINUMERIK ONE, FANUC, or Heidenhain TNC7 controls, the DVF 5000 2nd Generation supports advanced five-axis programming, intelligent thermal compensation, automation integration, and unattended production. In the used CNC machinery market, it has quickly become one of the most desirable compact five-axis machining centers because it combines outstanding machining accuracy, increased capacity, automation readiness, and exceptional long-term reliability.

DN SOLUTIONS DVF 5000 2nd Generation – AXIS

DN SOLUTIONS DVF 5000 2nd Generation – AXIS TRAVELS / WORK ENVELOPE

DN SOLUTIONS DVF 5000 2nd Generation – TABLE

DN SOLUTIONS DVF 5000 2nd Generation – SPINDLE

DN SOLUTIONS DVF 5000 2nd Generation – TOOL CHANGER

DN SOLUTIONS DVF 5000 2nd Generation – CONTROL SYSTEM

DN SOLUTIONS DVF 5000 2nd Generation – COOLANT / CHIP MANAGEMENT

DN SOLUTIONS DVF 5000 2nd Generation – POWER REQUIREMENTS

DN SOLUTIONS DVF 5000 2nd Generation – DIMENSIONS

DN SOLUTIONS DVF 5000 2nd Generation – GENERAL INFORMATION

WHY BUY USED DN SOLUTIONS DVF 5000 2nd Generation

Purchasing a used DN Solutions DVF 5000 2nd Generation allows manufacturers to obtain one of the newest and most advanced compact five-axis machining centers while significantly reducing capital investment. Compared to the previous generation, the machine provides larger travels, a larger rotary table, faster rapid traverse speeds, improved thermal stability, and greater automation capability.

The redesigned thermal management system actively cools the spindle, guideways, ballscrews, and structural components, allowing the machine to maintain exceptional dimensional accuracy during long production runs. The larger machining envelope also enables shops to process bigger workpieces without moving to a larger machine platform.

Many used DVF 5000 2nd Generation machines include valuable factory-installed options such as through-spindle coolant, Renishaw probing systems, automatic work changers (AWC), pallet systems, expanded tool magazines, and automation packages. These options improve spindle utilization, reduce setup time, and increase unattended production capability.

DN Solutions continues to build some of the industry’s most reliable five-axis machining centers. A properly maintained used DVF 5000 2nd Generation can deliver years of precision machining while providing exceptional value compared to purchasing a new machine.

HOW MUCH DOES A USED DN SOLUTIONS DVF 5000 2nd Generation COST?

The value of a used DN Solutions DVF 5000 2nd Generation depends on machine age, spindle hours, control configuration, maintenance history, tooling, automation options, and overall condition. Machines equipped with the optional 20,000 RPM spindle, larger tool magazines, AWC automation, probing systems, and through-spindle coolant generally command higher resale values because they provide greater production capability.

Before purchasing, buyers should inspect spindle performance, B-axis and C-axis calibration, thermal compensation functions, guideway condition, ballscrew wear, automatic tool changer operation, CNC diagnostics, and maintenance documentation. Machines with complete service records and lower spindle hours typically maintain the highest resale value.

A used DN Solutions DVF 5000 2nd Generation typically sells between $180,000 and $350,000, depending on machine configuration, condition, operating hours, automation features, and included accessories. Machines equipped for unattended production often deliver the fastest return on investment for manufacturers seeking high-volume five-axis machining.

INDUSTRIES THAT USE DN SOLUTIONS DVF 5000 2nd Generation

• Aerospace Manufacturing
• Medical Device Manufacturing
• Defense Manufacturing
• Automotive Manufacturing
• Mold & Die Industry
• Semiconductor Manufacturing
• Energy Equipment Manufacturing
• Precision Contract Manufacturing
• Research & Development
• General Engineering

TYPICAL PARTS DN SOLUTIONS DVF 5000 2nd Generation CAN PRODUCE

• Aerospace Structural Components
• Turbine Blades
• Impellers
• Titanium Medical Implants
• Orthopedic Devices
• Mold Cavities
• Mold Cores
• Precision Housings
• Semiconductor Components
• Aluminum Structural Parts
• Complex Prototype Components
• Five-Axis Precision Parts

WHY CHOOSE DN SOLUTIONS DVF 5000 2nd Generation

The DN Solutions DVF 5000 2nd Generation combines a larger machining envelope, an integrated B/C-axis trunnion table, advanced thermal compensation, a 15,000 RPM direct-drive spindle, high-speed rapid traverses, and automation-ready architecture into one exceptionally capable five-axis machining center. Its improvements over the previous generation deliver higher productivity, better accuracy, and greater machining flexibility.

Manufacturers choose the DVF 5000 2nd Generation because it offers industry-leading precision, excellent reliability, reduced setup time, outstanding automation capability, and strong long-term resale value. It is one of the most advanced and versatile used compact 5-axis machining centers available for precision manufacturing today.
