USED DMG MORI DMV 145

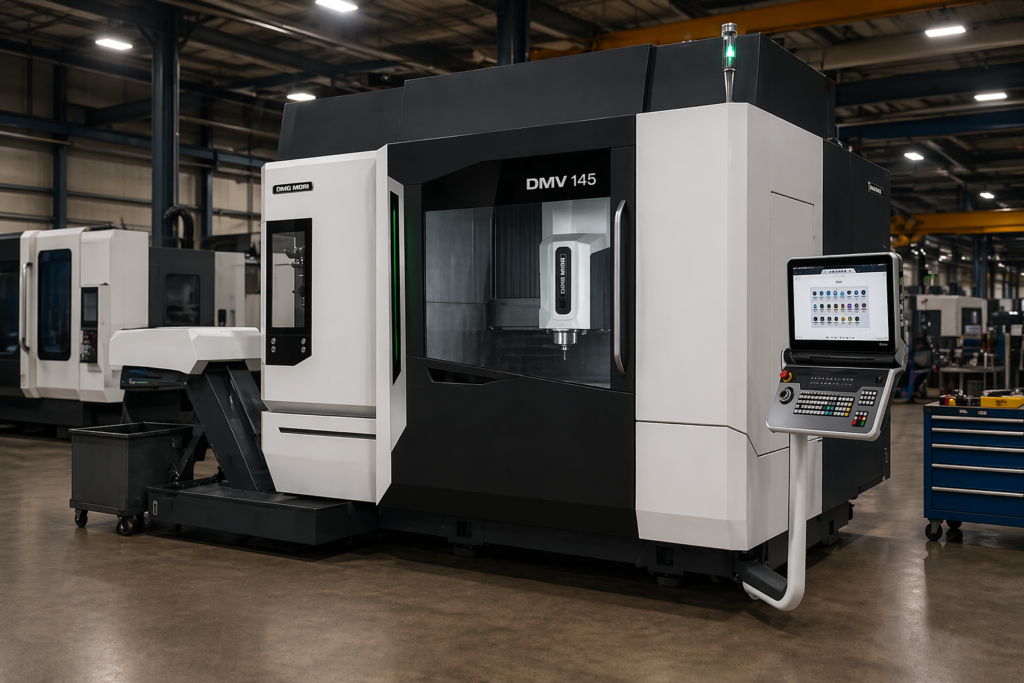

The DMG MORI DMV 145 is a large-format vertical machining center designed for heavy-duty machining and high-precision applications. Positioned at the upper end of the DMV series, it is engineered to handle large workpieces with high stability and accuracy. The machine offers axis travels of approximately 1,450 mm (X), 700 mm (Y), and 550 mm (Z), making it suitable for machining large molds, structural components, and heavy engineering parts. It can accommodate workpieces weighing up to 2,000 kg, which significantly expands its application range compared to smaller vertical machining centers.

A defining feature of the DMV 145 is its rigid construction, built around a fixed table design and elevated X-slide. This structure enhances vibration damping and ensures consistent machining performance even during aggressive cutting operations. The machine incorporates advanced cooling systems for guideways and ball screw nuts, which help maintain thermal stability and precision during long machining cycles. Direct path measuring systems further improve positioning accuracy and repeatability, making the machine suitable for tight-tolerance applications.

The spindle configuration is highly versatile, with a standard 20,000 rpm speedMASTER spindle and optional high-torque or motorized spindles for heavy cutting applications. Tool magazine options range from 20 to 120 tools, allowing flexibility for complex and multi-operation jobs.

From a productivity standpoint, the DMV 145 is designed to maximize cutting time through automation compatibility. Features such as a large side automation door and crane-loading capability enable seamless integration into automated production environments. Combined with advanced control systems like Siemens and Heidenhain, the machine offers both high performance and ease of operation. Overall, the DMV 145 is a powerful machining center built for manufacturers requiring large capacity, high rigidity, and consistent precision.

DMG MORI DMV 145 SPECIFICATIONS

WHY BUY USED DMG MORI DMV 145

Buying a used DMG MORI DMV 145 is a practical decision for manufacturers needing large machining capacity without the high cost of a new machine. One of the biggest advantages is depreciation. New machines in this category can be extremely expensive due to their size, rigidity, and advanced features, but their value drops significantly after initial use. This allows buyers to acquire a high-performance machine at a much lower investment while still benefiting from DMG MORI’s engineering quality.

Another key factor is cutting time efficiency relative to cost. The DMV 145 is designed for heavy-duty machining, and even older machines retain strong structural rigidity and spindle power. For many applications, especially job shop work or medium production volumes, a used machine can deliver comparable cycle times to a new one if it has been properly maintained. This makes it highly cost-effective in terms of output per hour.

Durability is a major advantage of the DMV 145. Its robust cast construction, large guideways, and high-quality components are designed for long-term use under demanding conditions. Machines with moderate cutting time (for example, under 20,000–30,000 spindle hours) often still provide reliable performance with manageable wear. Even higher-hour machines can remain productive with proper maintenance, although they may require more frequent servicing.

Additionally, used machines often come with tooling, fixtures, or automation-ready configurations, adding immediate operational value. Evaluating a machine based on cutting time rather than just manufacturing year is essential, as spindle hours provide a clearer indication of wear and remaining life. For businesses focused on maximizing ROI, a used DMV 145 offers a strong combination of capacity, durability, and cost efficiency.

HOW MUCH DOES A USED DMG MORI DMV 145 COST?

The cost of a used DMG MORI DMV 145 depends on several factors, including manufacturing year, configuration, machine condition, and most importantly, cutting time (spindle hours). Machines with lower cutting hours and strong maintenance records command higher prices, while heavily used machines are priced lower due to wear on critical components such as spindles, guideways, and ball screws.

For machines built before 2000, direct DMV 145 models are not available, but comparable large vertical machining centers typically range from $15,000 to $40,000. These machines usually have high cutting hours and outdated control systems, making them suitable for basic machining or secondary operations rather than high-precision production.

Machines from the 2000–2010 period generally fall within the range of $40,000 to $90,000, depending on condition and usage. Units with moderate cutting time (around 20,000–35,000 spindle hours) are considered good value, offering reliable performance with manageable wear. These machines are widely used in small to mid-sized manufacturing setups.

For actual DMV 145 machines manufactured between 2010 and 2025, prices typically range from $90,000 to $180,000 or more. Machines with low cutting hours (under 10,000–15,000 hours), advanced spindle configurations, and automation-ready features are priced at the higher end. Larger tool magazines and high-torque spindle options can further increase value.

Cutting time plays a critical role in pricing. A newer machine with excessive spindle hours may be valued similarly to an older machine with lower usage. Therefore, buyers should prioritize condition, service history, and real machining performance rather than relying solely on manufacturing year to ensure a sound and cost-effective investment.
