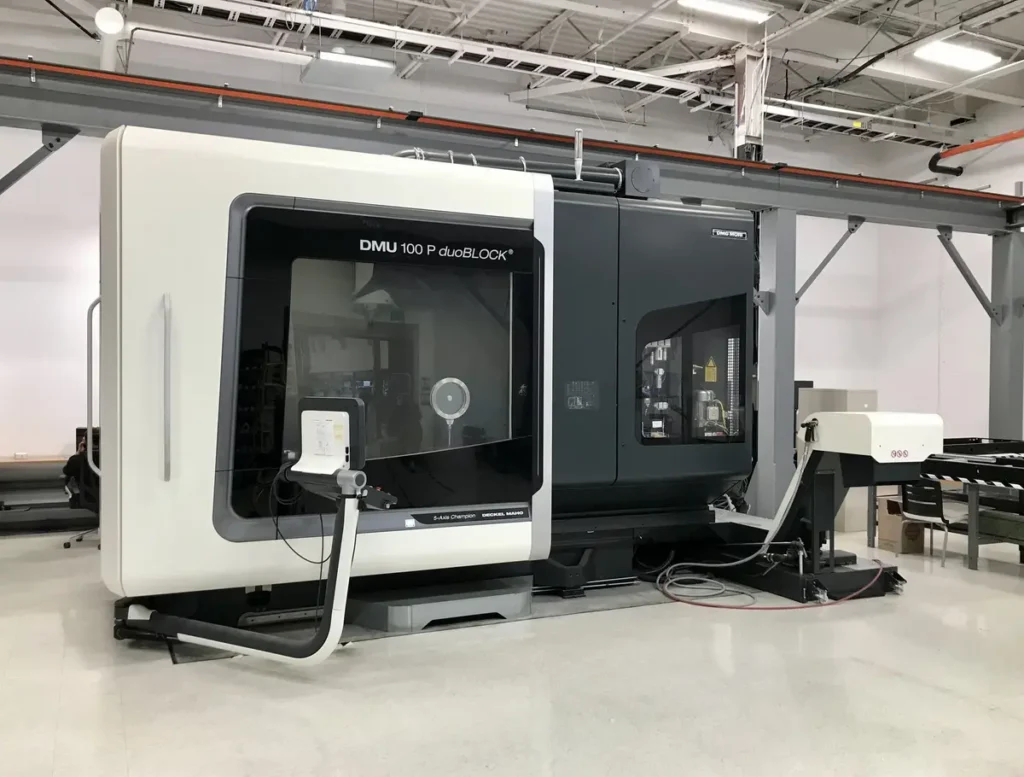

USED DMG MORI DMU 100P DUOBLOCK – 2018

The DMG MORI DMU 100P duoBLOCK – 2018 is a high-performance 5-axis universal machining center designed for complex, large-component machining where accuracy, rigidity, and multi-axis capability are important. The fourth-generation duoBLOCK platform was developed to provide increased structural rigidity and high machining performance, making the DMU 100 P particularly suitable for demanding applications such as aerospace, die and mold, energy, and precision mechanical manufacturing.

The 2018 DMU 100P duoBLOCK provides approximately 39.4 inches of X-axis travel, 49.2 inches of Y-axis travel, and 39.4 inches of Z-axis travel. The machine is equipped with a large approximately 43.3 x 35.4-inch table, with reported table load capacity around 4,850–4,900 lb depending on configuration. The machine’s integrated rotary table and controlled B-axis allow simultaneous 5-axis machining of complex workpieces.

A typical 2018 configuration uses a 12,000 RPM HSK-A100 spindle, a 63-position automatic tool changer, and a Heidenhain TNC 640 3D control. Available equipment on documented 2018 machines includes through-spindle coolant, probing, automatic tool measurement, 3D QuickSet, chip conveyor, hand-held remote pulse generator, inner-cooled ball screws, dynamic collision monitoring, and simultaneous 5-axis milling.

The combination of a rigid duoBLOCK structure, large work envelope, high-capacity table, controlled B-axis milling head, and 5-axis simultaneous machining makes a used DMG MORI DMU 100P duoBLOCK a strong choice for manufacturers that need to machine large and complicated components in fewer setups. DMG MORI identifies the DMU 100 P duoBLOCK with maximum workpiece dimensions of approximately 1,100 mm diameter, 1,600 mm height, and up to 2,200 kg for the current configuration.

---

DMG MORI DMU 100P DUOBLOCK 2018 – AXIS

Specification	Details
Machine Type	5-Axis Universal Machining Center
X-Axis Travel	39.4 in. / 1,000.8 mm
Y-Axis Travel	49.2 in. / 1,249.7 mm
Z-Axis Travel	39.4 in. / 1,000.8 mm
A-Axis Travel	-120° / +10°
B-Axis Travel	-30° / +180°
C-Axis	.001° contouring
Simultaneous Machining	5-Axis
Machine Design	duoBLOCK

The 2018 machine listing confirms X/Y/Z travels of 39.4/49.2/39.4 inches and controlled A-, B-, and C-axis capability.

---

DMG MORI DMU 100P DUOBLOCK 2018 – AXIS TRAVELS / WORK ENVELOPE

Specification	Details
X-Axis Travel	39.4 in.
Y-Axis Travel	49.2 in.
Z-Axis Travel	39.4 in.
Maximum Workpiece Diameter	Approx. 43.3 in. / 1,100 mm
Maximum Workpiece Height	Approx. 63 in. / 1,600 mm
Workpiece Weight	Up to approx. 4,850–4,900 lb
Integrated NC Rotary Table	Approx. 45.3 in.
Table Size	43.3 x 35.4 in.

The manufacturer’s current DMU 100 P duoBLOCK specifications list 1,000 x 1,250 x 1,000 mm X/Y/Z travels, while documented 2018 machines provide the same basic work envelope.

---

DMG MORI DMU 100P DUOBLOCK 2018 – CAPACITY

Specification	Details
Table Length	43.3 in.
Table Width	35.4 in.
Maximum Table Load	Approx. 4,850–4,900 lb
Number of Pallets	1 or 2 depending on configuration
Rotary Table	Integrated NC Rotary Table
Rotary Table Diameter	Approx. 45.3 in.
Table Speed	Approx. 35 RPM
5-Axis Capability	Yes

Individual 2018 machines were configured differently, including machines documented with one or two pallets, so the exact pallet arrangement should be verified for the machine being sold.

---

DMG MORI DMU 100P DUOBLOCK 2018 – SPINDLE

Specification	Details
Spindle Speed	12,000 RPM
Spindle Taper	HSK-A100
Spindle Motor	Approx. 46.9–69 HP depending on configuration
Spindle Type	Universal Milling Spindle
Through-Spindle Coolant	Yes
High-Pressure Coolant	Up to 80 bar on documented configuration
B-Axis Milling Head	Controlled
Spindle Growth / Thermal Management	Available depending on configuration

The 2018 machines documented on the used market include both approximately 46.9 HP and 69 HP spindle configurations, demonstrating that spindle specifications can vary with the machine’s original options.

---

DMG MORI DMU 100P DUOBLOCK 2018 – MILLING SPINDLE

Specification	Details
Milling Configuration	5-Axis Universal Head
B-Axis Range	-30° to +180°
Simultaneous 5-Axis Milling	Yes
Spindle Speed	12,000 RPM
Spindle Taper	HSK-A100
Rotary Table	Fully Contouring
C-Axis Indexing	.001°
Typical Application	Complex 5-Axis Machining

The controlled B-axis milling head and contouring rotary table allow the DMU 100P to machine complex surfaces and features from multiple directions without repeatedly repositioning the workpiece.

---

DMG MORI DMU 100P DUOBLOCK 2018 – TOOL CHANGER

Specification	Details
Automatic Tool Changer	63 Stations
Tool Capacity	63 Tools
Maximum Tool Length	Approx. 25.6 in.
Maximum Tool Diameter	Approx. 7.9 in.
Maximum Tool Weight	Approx. 66.1 lb
Tool Measurement	Yes
Tool Probe	Yes

The 63-tool automatic tool changer provides capacity for production work involving multiple tools and complex 5-axis machining operations.

---

DMG MORI DMU 100P DUOBLOCK 2018 – CONTROL SYSTEM

Specification	Details
CNC Control	Heidenhain TNC 640
Control Type	3D CNC Control
3D Graphics	Yes
3D QuickSet	Yes
Dynamic Collision Monitoring	Yes
Simultaneous 5-Axis Control	Yes
Hand-Held Remote Pulse Generator	Yes
Probing	Yes

The Heidenhain TNC 640 configuration documented for 2018 machines provides the control functions needed for complex simultaneous 5-axis machining, probing, tool measurement, and graphical programming support.

---

DMG MORI DMU 100P DUOBLOCK 2018 – COOLANT / CHIP MANAGEMENT

Specification	Details
Through-Spindle Coolant	Yes
High-Pressure Coolant	Up to 80 bar documented
Chip Conveyor	Yes
Coolant Filtration	Configuration dependent
Coolant Delivery	Through spindle and machine coolant system
Chip Removal	Automatic Chip Conveyor

Through-spindle coolant is particularly useful for deep-hole drilling, difficult-to-machine materials, and long-cycle 5-axis operations. Documented 2018 configurations include 80-bar through-spindle coolant and chip conveyors.

---

DMG MORI DMU 100P DUOBLOCK 2018 – POWER REQUIREMENTS

Specification	Details
Spindle Motor	Approx. 46.9–69 HP depending on configuration
Electrical Requirements	Configuration dependent
Main Spindle	12,000 RPM documented
Machine Drive System	High-performance servo drive system
Thermal Management	Inner-cooled ball screws on documented machine

Electrical requirements vary according to spindle, coolant, automation, and auxiliary equipment, so the machine’s electrical documentation should be checked before installation.

---

DMG MORI DMU 100P DUOBLOCK 2018 – DIMENSIONS

Specification	Details
Machine Type	Large 5-Axis Universal Machining Center
Machine Weight	Approx. 54,100 lb on documented listing
Table Size	43.3 x 35.4 in.
Workpiece Capacity	Up to approximately 4,850–4,900 lb
Installation Requirements	Heavy-duty industrial foundation and rigging
Footprint	Configuration dependent

A documented 2018 machine weighs approximately 54,100 lb, making professional rigging and installation planning important when relocating the machine.

---

DMG MORI DMU 100P DUOBLOCK 2018 – GENERAL INFORMATION

Specification	Details
Manufacturer	DMG MORI
Model	DMU 100P duoBLOCK
Year	2018
Machine Type	5-Axis Universal Machining Center
Control	Heidenhain TNC 640
Spindle	12,000 RPM
Spindle Taper	HSK-A100
Tool Changer	63 ATC
Number of Axes	5
Rotary Table	Integrated NC Rotary Table
Probing	Yes
Tool Measurement	Yes
Chip Conveyor	Yes
Through-Spindle Coolant	Yes
3D QuickSet	Yes

---

INDUSTRIES THAT USE DMG MORI DMU 100P DUOBLOCK

The DMG MORI DMU 100P duoBLOCK is designed for industries requiring high accuracy, large work envelopes, rigid machining, and complex multi-axis operations. DMG MORI specifically positions the duoBLOCK family for demanding applications including aerospace and tool and mold manufacturing, while the machine’s 5-axis architecture also makes it useful in general precision manufacturing.

Common industries include:

• Aerospace manufacturing
• Defense manufacturing
• Automotive manufacturing
• Energy equipment
• Tool and die manufacturing
• Mold manufacturing
• Heavy equipment
• Precision engineering
• General contract machining
• Medical component manufacturing

For manufacturers machining large, complex components, the DMU 100P can reduce the number of setups required while maintaining access to multiple surfaces of the component.

---

TYPICAL PARTS DMG MORI DMU 100P DUOBLOCK CAN PRODUCE

The large work envelope and simultaneous 5-axis configuration make the DMU 100P suitable for machining complicated components that would otherwise require multiple machines or setups.

Typical parts include:

• Aerospace structural components
• Turbine and energy components
• Large molds and dies
• Complex automotive components
• Pump and valve components
• Impellers and blisks
• Precision housings
• Large mechanical components
• Prototype components
• Complex contoured parts

The controlled B-axis and contouring rotary table are particularly valuable when machining curved surfaces, angled features, deep cavities, and components requiring multiple orientations in one setup.

---

WHY CHOOSE DMG MORI DMU 100P DUOBLOCK

The DMG MORI DMU 100P duoBLOCK is built around a rigid machine architecture intended to provide high cutting performance while maintaining accuracy during demanding machining operations. The fourth-generation duoBLOCK design introduced increased rigidity and improvements in precision, performance, and efficiency.

Its combination of a large 1,000 x 1,250 x 1,000 mm travel envelope, 5-axis simultaneous machining, 12,000 RPM spindle, HSK-A100 taper, 63-tool magazine, and Heidenhain TNC 640 control gives manufacturers a versatile platform for complex and high-value components.

---

WHY BUY USED DMG MORI DMU 100P DUOBLOCK

Buying a used DMG MORI DMU 100P duoBLOCK can provide access to a high-end 5-axis machining platform without the capital investment associated with purchasing a comparable new machine. A properly maintained 2018 machine can offer modern control technology, a large work envelope, high-pressure coolant, probing, automatic tool measurement, and a substantial tool capacity.

Many used machines include valuable options such as:

• Heidenhain TNC 640 control
• HSK-A100 spindle
• 63-position automatic tool changer
• Through-spindle coolant
• High-pressure coolant
• Chip conveyor
• Part probing
• Tool measurement
• 3D QuickSet
• Controlled B-axis
• Simultaneous 5-axis milling
• Dynamic Collision Monitoring
• Hand-held remote pulse generator
• Inner-cooled ball screws

Before purchasing, buyers should inspect spindle condition, rotary-axis accuracy, machine geometry, coolant system, probing equipment, tool changer operation, control condition, ball screws, and maintenance history. Because configurations vary significantly, the exact options and operating hours of the individual machine should always be verified.

---

HOW MUCH DOES A USED DMG MORI DMU 100P DUOBLOCK COST?

Pricing for a used DMG MORI DMU 100P duoBLOCK – 2018 varies substantially according to spindle configuration, hours, tooling, probing, coolant system, pallet configuration, machine condition, and location. Current listings for this model commonly use Request a Quote rather than publishing a fixed asking price. A documented 2018 example is listed as a low-hours machine with a 12,000 RPM HSK-A100 spindle, 63 ATC, Heidenhain TNC 640 control, 1,000-psi coolant, probing, and a chip conveyor.

There are also 2018 examples with different configurations and options, so comparing machines strictly by model and year can be misleading. The spindle motor, number of pallets, rotary-table configuration, probing package, coolant pressure, tool magazine, and actual spindle/cutting hours can have a significant effect on value.

For a used DMG MORI DMU 100P duoBLOCK, price on request is therefore the safest market description unless the exact machine’s current asking price is available. A professional inspection and verification of machine hours, options, geometry, spindle condition, and included tooling should be completed before establishing the final purchase value.
