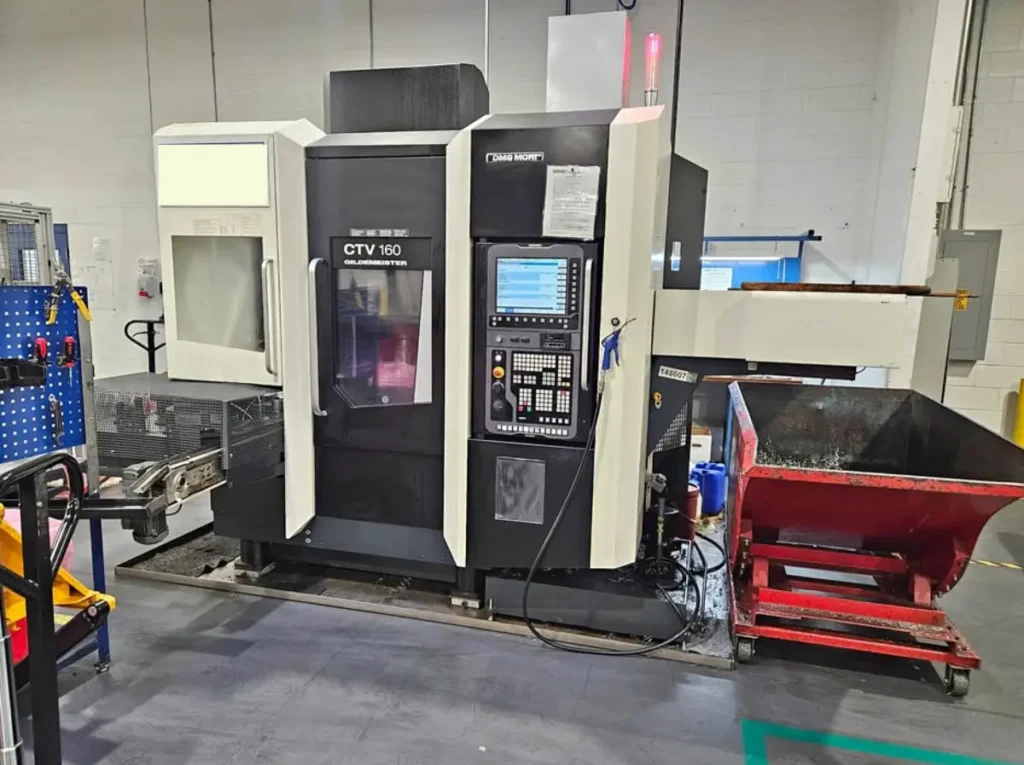

The DMG MORI CTV 160 – 2015 is a compact, high-productivity vertical turning center designed specifically for automated production environments requiring precision turning, milling, drilling, and complete machining of small to medium-sized components. Developed by DMG MORI, one of the world’s leading machine tool manufacturers, the CTV 160 combines advanced turning technology, integrated automation capabilities, and multi-axis functionality into a highly efficient production platform. The machine was engineered to meet the demanding requirements of automotive, aerospace, hydraulic, bearing, and precision engineering manufacturers seeking maximum throughput with minimal floor space requirements.
Unlike conventional horizontal lathes, the vertical design of the CTV 160 offers significant advantages in chip evacuation, workpiece stability, and automated loading. Gravity naturally assists chip removal, helping maintain clean cutting conditions and reducing machine downtime. The machine’s vertical spindle arrangement also improves workpiece support, making it ideal for precision machining of gears, flanges, bearing races, hubs, hydraulic components, and other rotationally symmetrical parts.
The CTV 160 features a powerful liquid-cooled spindle capable of speeds up to 6,000 RPM, providing the performance necessary for both roughing and finishing operations. Optional Y-axis functionality allows manufacturers to perform off-center drilling, milling, and complex machining operations without requiring secondary equipment. Combined with live tooling and C-axis capability, the machine can complete many parts in a single setup, improving productivity while reducing handling costs.
One of the most attractive features of the CTV 160 is its automation-focused design. The machine was built for integration into high-volume manufacturing cells and can support automated loading systems, part handling systems, and production monitoring technologies. This makes it particularly attractive for manufacturers seeking lights-out production capabilities and maximum operational efficiency.
Industries utilizing the CTV 160 include automotive manufacturing, aerospace production, bearing manufacturing, hydraulic component production, industrial equipment manufacturing, energy sector suppliers, and high-volume precision machining operations. Typical applications include brake components, bearing rings, gear blanks, transmission parts, flanges, hubs, valve bodies, hydraulic housings, and precision rotational components.
The 2015 DMG MORI CTV 160 remains highly sought after in the used CNC market because it offers exceptional productivity, advanced automation capabilities, compact floor space requirements, and the proven reliability associated with DMG MORI machine tools.
DMG MORI CTV 160 – AXIS
| Specification | Value |
|---|---|
| Number of Axes | 4 Axis |
| Axis Configuration | X, Y, Z, C |
| Machine Type | CNC Vertical Turning Center |
| C-Axis Capability | Standard |
| Live Tooling Capability | Available |
| Simultaneous Machining | Turning and Milling Operations |
DMG MORI CTV 160 – AXIS TRAVELS / WORK ENVELOPE
| Specification | Value |
|---|---|
| X-Axis Travel | 22.6 in |
| Y-Axis Travel | ±3.5 in |
| Z-Axis Travel | 11.8 in |
| C-Axis Rotation | 360° |
| Maximum Turning Diameter | 6.3 in |
| Maximum Turning Height | 6.3 in |
| Maximum Workpiece Diameter | 6.3 in |
DMG MORI CTV 160 – CAPACITY / TABLE
| Specification | Value |
|---|---|
| Chuck Size | 6.3 in |
| Maximum Workpiece Weight | Approx. 18 lbs |
| Workpiece Loading | Automated Compatible |
| Workholding Type | Hydraulic Chuck |
| Production Configuration | High-Volume Manufacturing |
DMG MORI CTV 160 – SPINDLE
| Specification | Value |
|---|---|
| Maximum Spindle Speed | 6,000 RPM |
| Spindle Power | 21 HP |
| Maximum Torque | 130 ft-lb |
| Spindle Nose | 140H5 |
| Spindle Cooling | Liquid Cooled |
| Spindle Design | High-Precision Production Spindle |
DMG MORI CTV 160 – TOOL CHANGER
| Specification | Value |
|---|---|
| Turret Stations | 12 |
| Driven Tool Positions | Up to 12 |
| Tool Type | VDI Tooling |
| Live Tool Speed | Up to 4,000 RPM |
| Tool Selection | Automatic |
DMG MORI CTV 160 – CONTROL SYSTEM
| Specification | Value |
|---|---|
| CNC Control | Siemens Sinumerik 840D |
| Programming Capability | Turning, Milling, Drilling |
| Networking Capability | Available |
| Shop Floor Integration | Supported |
| Production Monitoring | Available |
DMG MORI CTV 160 – COOLANT / DUST / WATER MANAGEMENT
| Specification | Value |
|---|---|
| Flood Coolant System | Standard |
| Coolant Filtration | Integrated |
| Chip Management | Automated Chip Removal |
| High-Pressure Coolant | Optional |
| Chip Evacuation | Gravity-Assisted Vertical Design |
DMG MORI CTV 160 – POWER REQUIREMENTS
| Specification | Value |
|---|---|
| Electrical Supply | 400V – 480V |
| Phase | 3 Phase |
| Frequency | 50/60 Hz |
| Connected Load | Approx. 40 kVA |
DMG MORI CTV 160 – DIMENSIONS
| Specification | Value |
|---|---|
| Machine Length | Approx. 124 in |
| Machine Width | Approx. 121 in |
| Machine Height | Approx. 100 in |
| Machine Weight | Approx. 11,500 lbs |
DMG MORI CTV 160 – GENERAL INFORMATION
| Specification | Value |
|---|---|
| Manufacturer | DMG MORI |
| Model | CTV 160 |
| Year | 2015 |
| Machine Category | Vertical Turning Center |
| Control System | Siemens Sinumerik 840D |
| Automation Ready | Yes |
| Typical Materials | Steel, Aluminum, Cast Iron, Stainless Steel |
| Production Type | High-Volume Precision Manufacturing |
INDUSTRIES THAT USE DMG MORI CTV 160
- Automotive Manufacturing
- Aerospace Manufacturing
- Bearing Manufacturing
- Hydraulic Component Manufacturing
- Industrial Equipment Manufacturing
- Power Transmission Manufacturing
- Energy Sector Manufacturing
- Precision Engineering
- Contract Manufacturing
- High-Volume Production Facilities
TYPICAL PARTS DMG MORI CTV 160 CAN PRODUCE
- Bearing Rings
- Wheel Hubs
- Brake Components
- Gear Blanks
- Transmission Components
- Hydraulic Housings
- Valve Bodies
- Flanges
- Couplings
- Pump Components
- Precision Rotational Parts
- Industrial Machine Components
WHY CHOOSE DMG MORI CTV 160
The DMG MORI CTV 160 stands out because it was specifically designed to maximize productivity in automated manufacturing environments. Unlike traditional turning centers that focus solely on turning operations, the CTV 160 combines turning, milling, drilling, and automation capabilities into a single compact machine platform. This integration allows manufacturers to significantly reduce handling requirements, eliminate secondary operations, and improve overall production efficiency.
One of the machine’s biggest advantages is its vertical design. Workpieces are naturally stabilized by gravity, improving machining consistency and reducing the likelihood of workholding issues. Chip evacuation is also greatly improved because chips naturally fall away from the cutting zone, helping maintain optimal cutting conditions during long production runs.
The machine’s Y-axis and live tooling capabilities further increase flexibility. Components requiring off-center holes, slots, milled features, or secondary machining operations can often be completed in a single setup. This reduces cycle times while improving dimensional accuracy and repeatability.
Automation readiness is another major advantage. The CTV 160 was developed with high-volume production in mind and can easily integrate with robotic loading systems, pallet handling systems, and automated production cells. Manufacturers seeking lights-out manufacturing capabilities often find the CTV 160 particularly attractive.
The Siemens Sinumerik control provides advanced programming functionality, excellent reliability, and extensive connectivity options. Combined with DMG MORI’s proven engineering and machine construction, the result is a highly productive manufacturing platform capable of supporting demanding production schedules.
For manufacturers focused on precision turning and automated production, the CTV 160 remains one of the most capable compact vertical turning centers available.
WHY BUY USED DMG MORI CTV 160
Purchasing a used DMG MORI CTV 160 offers manufacturers access to premium European machine tool technology at a substantially lower cost than purchasing a new machine. For many companies, the used market provides an opportunity to acquire advanced automation-ready production equipment while maintaining financial flexibility.
One of the biggest benefits of buying a used CTV 160 is the significant reduction in capital investment. New automated vertical turning centers can require substantial expenditures, while a properly maintained used machine can provide similar productivity at a fraction of the cost. This allows manufacturers to allocate additional resources toward automation, tooling, fixturing, or production expansion.
The machine’s reputation for reliability further enhances its value. DMG MORI machines are known worldwide for precision engineering, robust construction, and long-term durability. Many CTV 160 machines continue operating successfully after years of production use when properly maintained.
Another advantage is immediate availability. New machine purchases often involve long lead times due to manufacturing schedules and machine configuration requirements. Used equipment is frequently available for immediate shipment and installation, allowing manufacturers to respond quickly to new business opportunities.
Many used CTV 160 machines are already equipped with valuable options such as Y-axis capability, live tooling, automation interfaces, part handling systems, and upgraded control features. These additions can significantly increase machine capability while reducing future upgrade costs.
The machine’s ability to support automated production environments also contributes to its strong resale demand. As manufacturers continue seeking higher productivity and reduced labor requirements, the CTV 160 remains a highly desirable production platform.
For companies focused on precision production turning, a used DMG MORI CTV 160 offers an outstanding combination of performance, reliability, automation capability, and value.
HOW MUCH DOES A USED DMG MORI CTV 160 COST?
The value of a used DMG MORI CTV 160 depends on several factors including machine condition, spindle hours, maintenance history, control configuration, installed options, automation equipment, tooling packages, and overall market demand. Because the machine was designed for production environments and remains highly desirable among manufacturers, resale values generally remain strong.
Machine condition is usually the most important pricing factor. Machines with lower operating hours, documented maintenance records, and good mechanical condition typically command higher prices. Buyers often prioritize equipment with complete service histories because it reduces risk and future maintenance costs.
Installed options can significantly impact market value. Features such as Y-axis capability, live tooling, automated loading systems, robotic interfaces, part handling equipment, probing systems, and advanced software packages often increase machine pricing. These upgrades improve productivity and eliminate the need for future capital expenditures.
Market demand also influences pricing. Manufacturers in automotive, bearing, hydraulic, and aerospace industries continue seeking compact production turning centers capable of supporting automated operations. The CTV 160 remains attractive because of its combination of productivity, flexibility, and relatively small footprint.
Additional ownership costs should also be considered. Transportation, rigging, installation, operator training, tooling, and commissioning expenses may vary depending on machine location and facility requirements.
In today’s used CNC machinery market, a 2015 DMG MORI CTV 160 typically sells within a range of approximately $70,000 to $160,000, depending on machine condition, spindle hours, installed options, automation equipment, tooling packages, and overall configuration. Machines equipped with Y-axis capability, live tooling, automation systems, and documented maintenance histories generally command pricing toward the upper end of the range.
When evaluating value, manufacturers should focus on the machine’s ability to increase throughput, reduce labor requirements, support automation initiatives, and improve production efficiency. These benefits continue to make the DMG MORI CTV 160 one of the most attractive used vertical turning centers available in the CNC marketplace.
