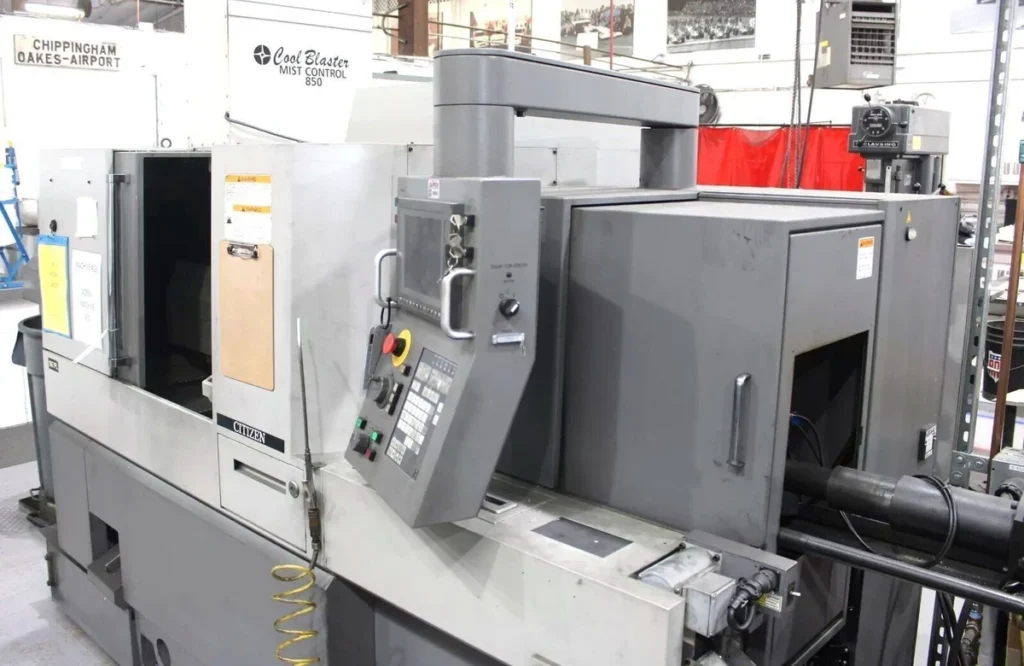

USED CITIZEN A32 VIIPL – 2008

The CITIZEN A32 VIIPL is a high-capacity Swiss-type CNC automatic lathe engineered to deliver exceptional precision, productivity, and flexibility for manufacturers producing complex turned and milled components. Built by Citizen Machinery, one of the most respected names in Swiss machining technology, the A32 VIIPL combines advanced sliding headstock capabilities with multi-axis machining functionality, making it an ideal solution for industries that demand tight tolerances, intricate geometries, and high-volume production.

The 2008 Citizen A32 VIIPL was designed to handle larger diameter bar stock while maintaining the superior accuracy and efficiency that Swiss-type lathes are known for. With a maximum bar capacity of approximately 32 mm, the machine fills the gap between smaller Swiss machines and larger turning centers, allowing manufacturers to machine a broader range of precision components without sacrificing productivity or quality.

A major advantage of the A32 VIIPL is its ability to complete multiple machining operations within a single setup. The machine incorporates live tooling, synchronized spindle operations, sub-spindle functionality, and multi-axis control, enabling turning, milling, drilling, tapping, threading, cross-machining, and secondary operations to be performed simultaneously. This dramatically reduces cycle times while improving part consistency and reducing labor costs.

The machine’s sliding headstock design supports the workpiece directly at the cutting point, minimizing deflection and vibration during machining. This feature is particularly beneficial when producing long, slender, or highly detailed parts where dimensional accuracy is critical. The result is superior surface finishes, excellent repeatability, and enhanced tool life.

The Citizen A32 VIIPL is commonly used for machining stainless steel, titanium, aluminum, brass, copper, plastics, and specialty alloys. Industries such as medical device manufacturing, aerospace, defense, automotive, fluid power, electronics, telecommunications, and industrial automation frequently utilize the machine for precision production applications.

In the used CNC machinery market, the 2008 Citizen A32 VIIPL remains highly sought after because it provides advanced Swiss machining capabilities, proven reliability, and exceptional production efficiency at a significantly lower cost than purchasing a new machine.

---

CITIZEN A32 VIIPL – AXIS

Specification	Details
Axis Configuration	7-Axis Swiss-Type CNC Lathe
Main Spindle Axes	X1, Y1, Z1, C1
Sub Spindle Axes	X2, Z2, C2
Simultaneous Axis Control	Multi-Axis
Guide Bushing System	Sliding Headstock
Positioning Accuracy	High Precision

---

CITIZEN A32 VIIPL – AXIS TRAVELS / WORK ENVELOPE

Specification	Details
Maximum Bar Capacity	32 mm
Maximum Machining Length	320 mm
Main Spindle Travel	Programmable
Sub Spindle Travel	Programmable
Guide Bushing Operation	Standard
Complex Geometry Capability	Excellent

---

CITIZEN A32 VIIPL – CAPACITY / TABLE

Specification	Details
Maximum Bar Diameter	32 mm
Main Spindle Capacity	32 mm
Sub Spindle Capacity	32 mm
Maximum Part Length	Application Dependent
Production Capability	High Volume
Lights-Out Manufacturing	Supported

---

CITIZEN A32 VIIPL – SPINDLE

Specification	Details
Main Spindle Speed	8,000 RPM
Sub Spindle Speed	8,000 RPM
Main Spindle Motor	AC Servo Spindle
Sub Spindle Motor	AC Servo Spindle
Spindle Configuration	Main & Sub Spindle
C-Axis Capability	Standard

---

CITIZEN A32 VIIPL – TOOL CHANGER

Specification	Details
Total Tool Positions	Up to 25 Tools
Live Tool Stations	Multiple
End Working Capability	Yes
Cross Drilling Capability	Yes
Simultaneous Tool Operations	Supported
Tool Selection	Automatic

---

CITIZEN A32 VIIPL – CONTROL SYSTEM

Specification	Details
CNC Control	Mitsubishi Meldas
Programming Type	G-Code
Conversational Programming	Available
Networking Capability	Available
Program Storage	Expanded Memory
High-Speed Processing	Yes

---

CITIZEN A32 VIIPL – COOLANT / DUST / WATER MANAGEMENT

Specification	Details
Flood Coolant System	Standard
High Pressure Coolant	Optional
Through Tool Coolant	Available
Coolant Filtration System	Standard
Mist Collection Compatibility	Available
Chip Management System	Integrated

---

CITIZEN A32 VIIPL – POWER REQUIREMENTS

Specification	Details
Voltage	220V / 380V / 480V
Electrical Phase	3 Phase
Connected Load	Approx. 18 kVA
Air Requirement	Shop Air Required

---

CITIZEN A32 VIIPL – DIMENSIONS

Specification	Details
Machine Length	Approx. 102 in
Machine Width	Approx. 60 in
Machine Height	Approx. 78 in
Machine Weight	Approx. 8,800 lbs

---

CITIZEN A32 VIIPL – GENERAL INFORMATION

Specification	Details
Manufacturer	Citizen Machinery
Model	A32 VIIPL
Year	2008
Machine Type	Swiss-Type CNC Automatic Lathe
Control	Mitsubishi Meldas
Country of Manufacture	Japan
Primary Application	Precision Swiss Machining

---

INDUSTRIES THAT USE CITIZEN A32 VIIPL

The Citizen A32 VIIPL serves a broad range of industries that require precision machining of medium-to-large diameter components. Medical manufacturers frequently utilize the machine for orthopedic implants, surgical instruments, dental components, bone fixation devices, and specialized medical hardware. The machine’s ability to maintain tight tolerances and produce superior surface finishes is essential for critical medical applications.

Aerospace manufacturers rely on the A32 VIIPL for producing hydraulic fittings, fuel system components, aerospace fasteners, actuator parts, sensor housings, and precision structural hardware. The machine’s capability to process aerospace-grade materials while maintaining consistent accuracy supports demanding industry standards.

Automotive suppliers use the machine to manufacture fuel injection components, transmission parts, sensor bodies, valve assemblies, shafts, connectors, and drivetrain hardware. Its high production efficiency makes it well suited for both prototype and production environments.

Additional industries include defense, fluid power, hydraulics, electronics, telecommunications, industrial automation, energy production, semiconductor manufacturing, and contract precision machining. The machine’s flexibility allows manufacturers to produce a wide variety of components while maintaining exceptional productivity and quality.

Its combination of Swiss precision and larger capacity makes the A32 VIIPL an attractive solution for manufacturers seeking versatile production capabilities.

---

TYPICAL PARTS CITIZEN A32 VIIPL CAN PRODUCE

The Citizen A32 VIIPL is capable of producing a wide range of highly complex and precision-machined components. Medical applications include implant hardware, orthopedic screws, surgical devices, catheter fittings, medical connectors, and dental components. The machine’s sliding headstock design allows these parts to be manufactured with outstanding dimensional accuracy.

Aerospace applications include hydraulic fittings, actuator components, fuel system hardware, aerospace fasteners, bushings, connectors, and structural precision parts. The machine’s ability to complete multiple machining operations in a single cycle improves productivity while maintaining strict quality requirements.

Automotive manufacturers commonly produce transmission components, fuel system parts, valve assemblies, sensor housings, shafts, and precision-machined connectors. The machine’s high-speed production capabilities support demanding manufacturing schedules.

Industrial applications include hydraulic fittings, pneumatic components, automation hardware, instrumentation parts, semiconductor equipment components, electrical connectors, energy-sector hardware, and custom-engineered products. The machine’s ability to process stainless steel, titanium, aluminum, brass, copper, plastics, and specialty alloys significantly expands its production capabilities.

---

WHY CHOOSE CITIZEN A32 VIIPL

The Citizen A32 VIIPL offers manufacturers an outstanding combination of precision, flexibility, and production efficiency. One of its most significant advantages is the 32 mm bar capacity, allowing manufacturers to machine larger components while still benefiting from Swiss-type machining accuracy.

The machine’s multi-axis configuration enables simultaneous machining operations that dramatically reduce cycle times and eliminate many secondary processes. Features such as live tooling, sub-spindle machining, and synchronized operations allow complete parts to be produced in a single setup, improving productivity and reducing labor costs.

Citizen’s reputation for precision engineering and reliability further enhances the machine’s value. Many A32 series machines continue operating successfully for decades due to their robust construction and dependable performance.

The machine also offers exceptional versatility across numerous industries and applications. Whether producing medical components, aerospace hardware, fluid power fittings, or industrial automation parts, the A32 VIIPL delivers consistent results and excellent manufacturing efficiency.

For manufacturers seeking a proven Swiss machining platform capable of handling complex production requirements, the Citizen A32 VIIPL remains one of the most respected machines in its class.

---

WHY BUY USED CITIZEN A32 VIIPL

Purchasing a used Citizen A32 VIIPL provides manufacturers with access to advanced Swiss machining technology at a substantially lower cost than purchasing a new machine. Swiss-type CNC lathes represent a significant capital investment, making the used equipment market an attractive option for companies looking to expand production capabilities while maintaining budget flexibility.

The A32 VIIPL has established a strong reputation for reliability, precision, and long-term durability. Properly maintained machines continue delivering exceptional performance years after their original installation, providing excellent value and return on investment.

Many used machines include valuable accessories such as bar feeders, high-pressure coolant systems, mist collectors, tooling packages, automation equipment, and chip management systems. These additions can significantly enhance productivity while reducing future capital expenditures.

Another advantage is machine availability. New Swiss machines often involve lengthy lead times, whereas used machines may be available for immediate delivery and installation. This allows manufacturers to respond quickly to increasing customer demand and production requirements.

For businesses seeking advanced machining capability, proven reliability, and cost-effective manufacturing solutions, a used Citizen A32 VIIPL remains an excellent investment.

---

HOW MUCH DOES A USED CITIZEN A32 VIIPL COST?

The cost of a used Citizen A32 VIIPL depends on several factors including machine condition, operating hours, maintenance history, installed options, tooling inventory, and overall market demand. Machines with documented maintenance records and lower operating hours generally command higher values because of their reduced operational risk and proven reliability.

Additional equipment such as bar feeders, high-pressure coolant systems, mist collectors, automation interfaces, tooling packages, and software upgrades can significantly influence pricing. Buyers frequently place greater value on machines that are fully equipped and production-ready.

Demand for Swiss-type CNC lathes remains strong across medical, aerospace, automotive, electronics, defense, and precision engineering sectors. These industries rely heavily on Swiss machining technology for producing complex, high-precision components, helping maintain healthy resale values for quality machines.

When evaluating acquisition costs, buyers should also consider transportation, rigging, installation, tooling, training, and facility preparation expenses. These additional costs should be balanced against the machine’s productivity gains and manufacturing efficiencies.

Compared to purchasing a new Swiss-type CNC lathe, a used 2008 Citizen A32 VIIPL can provide substantial cost savings while still delivering advanced machining capabilities, exceptional precision, and reliable high-volume production performance. For manufacturers seeking a proven Swiss machining solution with larger capacity and outstanding versatility, the Citizen A32 VIIPL remains an excellent choice in the used CNC equipment market.
