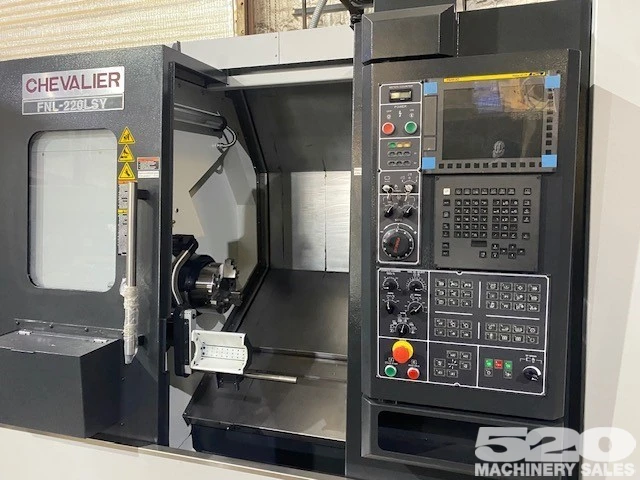

USED CHEVALIER FNL-220LSY – 2024

The 2024 CHEVALIER FNL-220LSY is a state-of-the-art CNC turning center engineered for manufacturers that need to machine complex parts in a single setup. Built by Chevalier Machinery Inc., a respected global manufacturer of grinding machines, machining centers, and CNC lathes, the FNL-220LSY combines turning, milling, drilling, tapping, and secondary spindle operations into one highly efficient platform. The machine is designed to help production facilities reduce setup times, improve accuracy, and increase throughput.

The “LSY” configuration indicates that the machine includes a sub-spindle (L), live tooling (S), and Y-axis (Y). This advanced configuration allows for off-center milling, cross drilling, and complete front-and-back machining. Rather than moving parts from one machine to another, manufacturers can finish an entire component in one cycle. This capability significantly improves consistency while lowering labor and handling costs.

The FNL-220LSY typically features a rigid slant-bed cast iron structure, linear guideways, a high-speed servo turret, and a modern CNC control such as Fanuc 0i-TF Plus. The machine is optimized for bar-fed and chucking applications and is well suited for both small precision parts and medium-sized production components. Common capacity includes approximately 65 mm bar capacity, 330 mm maximum turning diameter, and around 500 mm maximum turning length.

This machine is widely used in aerospace, medical, automotive, defense, hydraulics, electronics, and precision engineering. Manufacturers rely on it for shafts, bushings, connectors, valve bodies, couplings, implants, and other complex turned components.

The 2024 model is especially attractive on the used CNC market because it offers current-generation technology, automation compatibility, and advanced multitasking capabilities while avoiding long factory lead times and premium new-machine pricing. Buyers can obtain a nearly new turning center with low hours and substantial cost savings.

For machine shops seeking a versatile, high-precision CNC lathe capable of complete part processing, the used CHEVALIER FNL-220LSY – 2024 represents an excellent investment that combines productivity, reliability, and modern manufacturing capability.

---

CHEVALIER FNL-220LSY – AXIS

Parameter	Specification
Number of Controlled Axes	9 Axis (X, Y, Z, C1, C2, Sub-Spindle, Live Tool, Turret, Tailstock/Optional)
X Axis	Yes
Y Axis	Yes
Z Axis	Yes
Main Spindle C Axis	Yes
Sub-Spindle C Axis	Yes

CHEVALIER FNL-220LSY – AXIS TRAVELS / WORK ENVELOPE

Parameter	Specification
X Axis Travel	230 mm (9.0″)
Y Axis Travel	±50 mm (3.9″ total)
Z Axis Travel	540 mm (21.3″)
Maximum Turning Diameter	330 mm (13.0″)
Maximum Turning Length	500 mm (19.7″)
Swing Over Bed	650 mm (25.6″)

CHEVALIER FNL-220LSY – CAPACITY / TABLE

Parameter	Specification
Bar Capacity	65 mm (2.56″)
Main Chuck Size	8″ Hydraulic Chuck
Sub-Spindle Chuck Size	6″ Hydraulic Chuck
Maximum Part Weight	50 kg (110 lbs)
Tailstock	Optional

CHEVALIER FNL-220LSY – SPINDLE

Parameter	Specification
Main Spindle Speed	4,500 RPM
Main Spindle Motor	20 HP / 15 kW
Sub-Spindle Speed	5,000 RPM
Sub-Spindle Motor	10 HP / 7.5 kW
Live Tool Speed	6,000 RPM
Live Tool Motor	5 HP / 3.7 kW

CHEVALIER FNL-220LSY – TOOL CHANGER

Parameter	Specification
Turret Stations	12
Live Tool Stations	12
Tool Shank Size	25 mm OD / 40 mm Boring Bar
Index Time	0.2 sec/station

CHEVALIER FNL-220LSY – CONTROL SYSTEM

Parameter	Specification
CNC Control	Fanuc 0i-TF Plus
Programming	ISO G-Code
Display	10.4″ Color LCD
Networking	Ethernet and USB
Tool Management	Tool Life Monitoring

CHEVALIER FNL-220LSY – COOLANT / DUST / WATER MANAGEMENT

Parameter	Specification
Coolant Tank Capacity	200 Liters
High Pressure Coolant	Optional 1,000 PSI
Chip Conveyor	Standard
Coolant Through Tool	Optional

CHEVALIER FNL-220LSY – POWER REQUIREMENTS

Parameter	Specification
Electrical Requirement	220V / 3 Phase
Connected Load	35 kVA
Air Requirement	90 PSI

CHEVALIER FNL-220LSY – DIMENSIONS

Parameter	Specification
Machine Length	3,000 mm (118″)
Machine Width	1,900 mm (75″)
Machine Height	2,100 mm (83″)
Machine Weight	5,500 kg (12,100 lbs)

CHEVALIER FNL-220LSY – GENERAL INFORMATION

Parameter	Specification
Manufacturer	Chevalier Machinery
Model	FNL-220LSY
Year	2024
Machine Type	CNC Turning Center with Y-Axis and Sub-Spindle
Country of Manufacture	Taiwan
Typical Condition	Low-Hour, Excellent

---

INDUSTRIES THAT USE CHEVALIER FNL-220LSY

The CHEVALIER FNL-220LSY is used in industries where complex cylindrical components must be produced accurately and efficiently.

• Aerospace
• Medical Device Manufacturing
• Automotive
• Defense and Military
• Hydraulics and Pneumatics
• Oil and Gas
• Electronics
• Semiconductor Equipment
• Industrial Machinery
• Precision Contract Manufacturing

These industries benefit from the machine’s ability to complete multiple operations in one setup, reducing cycle time and improving dimensional consistency.

---

TYPICAL PARTS CHEVALIER FNL-220LSY CAN PRODUCE

The FNL-220LSY is ideal for producing:

• Shafts
• Bushings
• Hydraulic Fittings
• Couplings
• Valve Bodies
• Medical Implants
• Bone Screws
• Electrical Connectors
• Sensor Housings
• Aerospace Fasteners
• Pistons
• Bearing Sleeves
• Threaded Components
• Precision Adapters

Its Y-axis and live tooling enable milling flats, slots, keyways, and off-center holes without additional operations.

---

WHY CHOOSE CHEVALIER FNL-220LSY

The CHEVALIER FNL-220LSY offers a powerful combination of flexibility, accuracy, and production efficiency. Manufacturers choose this machine because it supports complete machining in a single cycle, reducing labor and improving throughput. The sub-spindle allows both ends of a part to be machined automatically, while the Y-axis makes it possible to create complex milled features.

The machine is built with a rigid slant-bed design that minimizes vibration and improves surface finish. Fanuc controls are widely used and easy to support, ensuring operators and programmers can quickly become productive. The FNL-220LSY is also highly compatible with automation, including bar feeders, parts catchers, and robotic systems.

For shops that want near-new technology, modern controls, and advanced multitasking capability, the CHEVALIER FNL-220LSY delivers exceptional value and long-term reliability.

---

WHY BUY USED CHEVALIER FNL-220LSY

Purchasing a used CHEVALIER FNL-220LSY – 2024 is an excellent strategy for manufacturers seeking advanced CNC turning capability without paying the full price of a new machine. Since this model is a current-generation turning center, buyers often obtain a machine with very low operating hours, modern software, and excellent mechanical condition.

One of the biggest benefits of buying used is cost savings. A machine that is only one or two years old can often be purchased at a significant discount compared to a new factory order. This allows businesses to preserve capital for tooling, automation, inspection equipment, and additional production capacity.

Another major advantage is immediate availability. New multitasking lathes may have lead times ranging from several months to more than a year depending on factory schedules and options. A used 2024 FNL-220LSY is typically available for quick inspection, purchase, and installation, allowing production to begin much sooner.

The FNL-220LSY itself is an especially desirable machine because of its Y-axis, live tooling, and sub-spindle. These features enable true done-in-one machining, reducing setup time and eliminating multiple operations. Shops can improve productivity while maintaining tighter tolerances and better part consistency.

Because the machine uses Fanuc controls, service, programming support, and spare parts are readily available. Fanuc is one of the most widely supported CNC platforms in the world, making ownership more convenient and less risky.

Used machines may also include valuable options such as:

• Bar feeders
• Parts catchers
• High-pressure coolant
• Tool presetter systems
• Chip conveyors
• Live tooling packages

These options can represent tens of thousands of dollars in additional value.

The 2024 model year is particularly attractive because it offers current safety standards, modern electronics, and improved software compared to older machines. Buyers get nearly all the benefits of a new machine with reduced depreciation.

For contract manufacturers, medical shops, aerospace suppliers, and precision machine shops, a used CHEVALIER FNL-220LSY is a cost-effective way to expand capacity and take on more complex jobs while maintaining a strong return on investment.

---

HOW MUCH DOES A USED CHEVALIER FNL-220LSY COST?

The cost of a used CHEVALIER FNL-220LSY – 2024 varies depending on condition, spindle hours, included tooling, automation accessories, and geographic location. Since this is a premium late-model CNC turning center, used prices generally remain strong, especially when the machine has low hours and desirable options.

USED CHEVALIER FNL-220LSY PRICE GUIDE

Condition	Estimated Price Range (USD)
Excellent, Low Hours, Fully Equipped	$145,000 – $210,000
Very Good Condition	$125,000 – $165,000
Standard Production Condition	$110,000 – $145,000
High Hours or Limited Options	$90,000 – $120,000

Several factors influence pricing.

Machine Hours

Machines with fewer spindle hours and documented maintenance records command higher prices. A lightly used machine may perform nearly like new.

Options Included

Machines equipped with bar feeders, high-pressure coolant, chip conveyors, live tooling, and toolholders are worth more because these accessories reduce setup costs.

Inspection Results

A machine that passes a full mechanical and operational inspection with accurate positioning, clean spindle bearings, and stable thermal performance will justify a higher asking price.

Market Demand

Multitasking lathes with Y-axis and sub-spindles are in high demand because they reduce labor and shorten cycle times. Strong demand helps support resale values.

Location and Logistics

Shipping, rigging, and installation costs vary by region and should be included in budgeting.

NEW VS USED COST COMPARISON

Purchase Type	Estimated Cost (USD)
New Machine	$220,000 – $320,000+
Used 2024 Model	$110,000 – $210,000

A used 2024 machine can provide savings of $50,000 to more than $100,000 compared to purchasing new.

When evaluating a used CHEVALIER FNL-220LSY, buyers should request:

• Maintenance records
• Spindle hour reports
• Tooling inventory
• Option lists
• Video demonstration
• Inspection results

For companies seeking modern CNC turning capability with Y-axis and sub-spindle functionality, the used CHEVALIER FNL-220LSY offers excellent value, fast availability, and long-term productivity.
